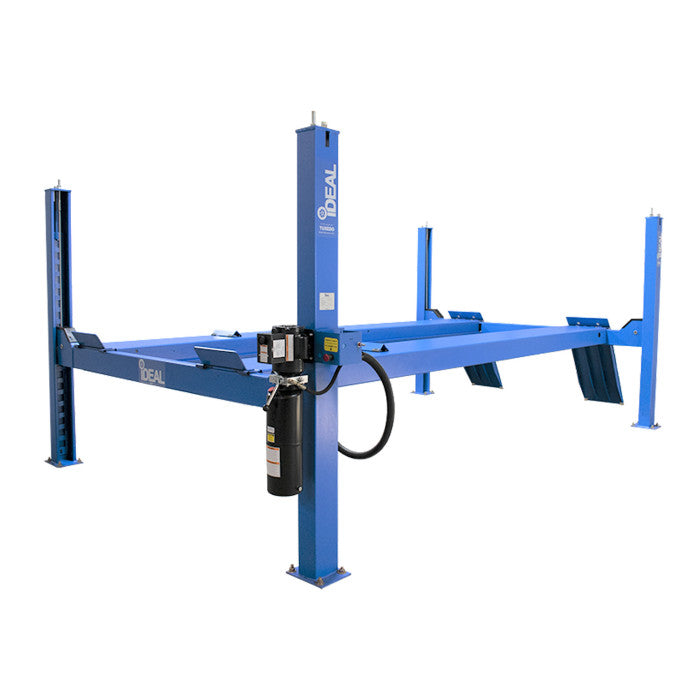

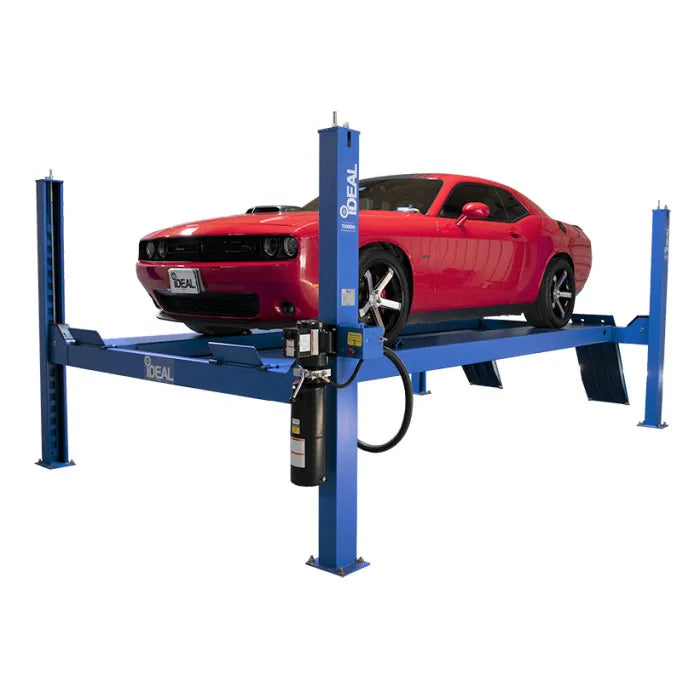

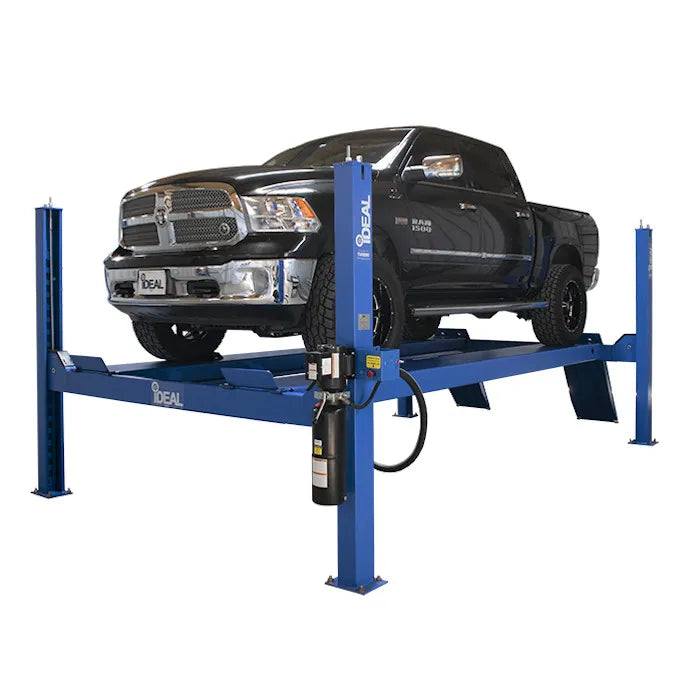

iDEAL FP14KC-X Four Post Service Lift

Features & Specs

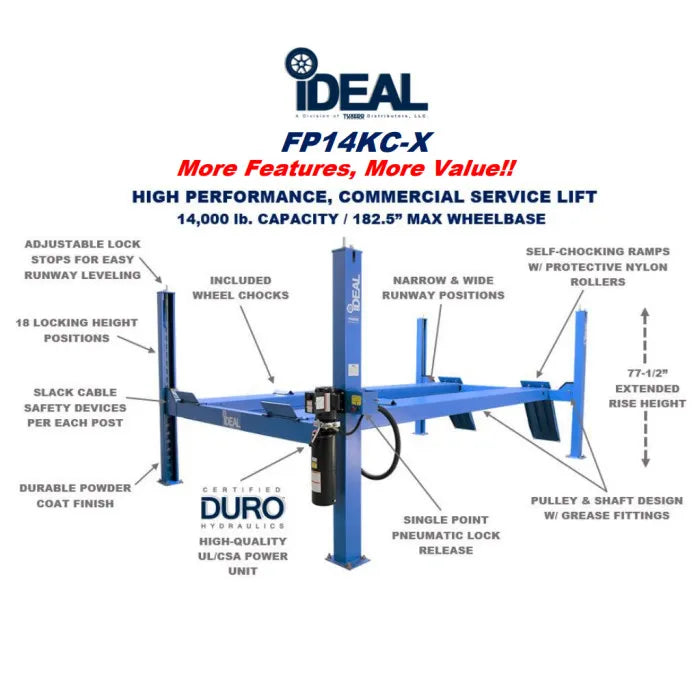

Features

• 14,000 lbs. Capacity
• High Performance Commercial Service Lift
• Durable, High Quality Cable Lift System
• 182.5" Max Service Wheelbase
• 18 Locking Height Positions
• 20" Wide Runways
• Narrow & Wide Runway Mounting Positions
• Single Point Pneumatic Lock Release
• Fully Adjustable Lock Stops For Easy Leveling
• Slack Cable Safety Devices
• Self-Chocking Approach Ramps with Nylon Rollers
• Wheel Chocks (1 Pair)
• Durable Powder Coat Finish

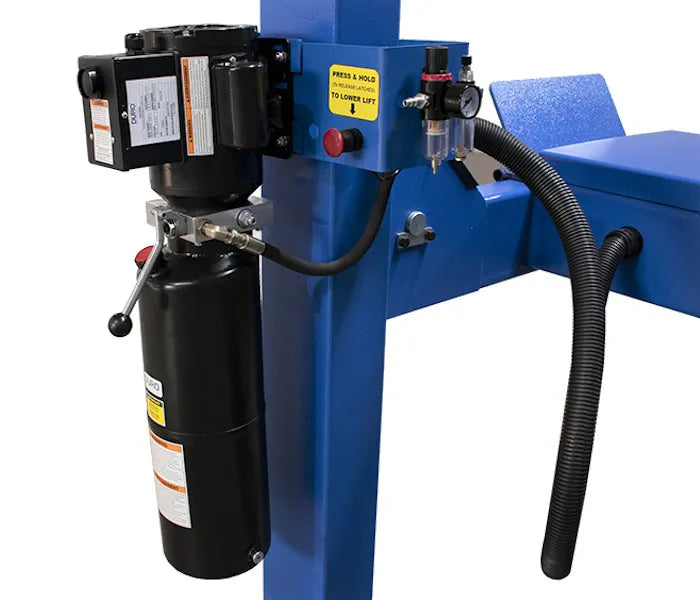

• High Quality Duro Power Unit with UL Listed Motor and Switch Components
• Quickly Converts to Alignment Lift with Optional 'Bolt-On' Alignment Kit

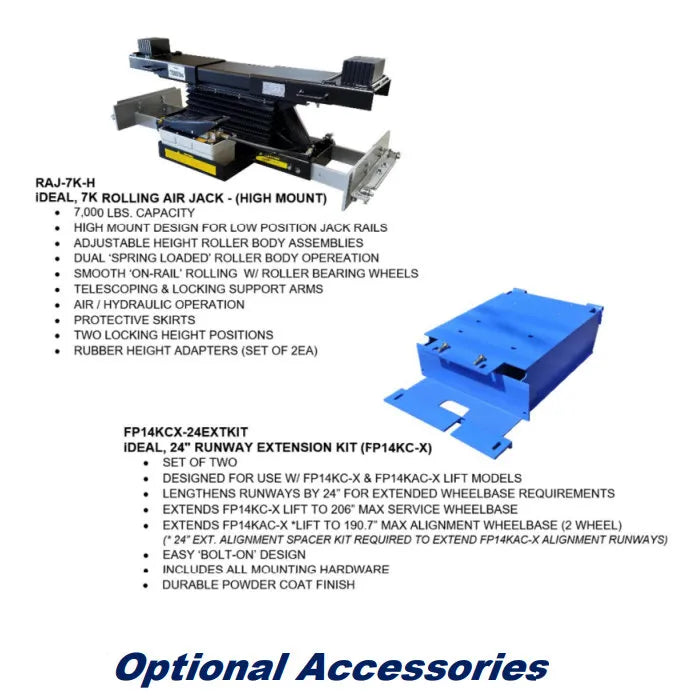

Optional Accessories

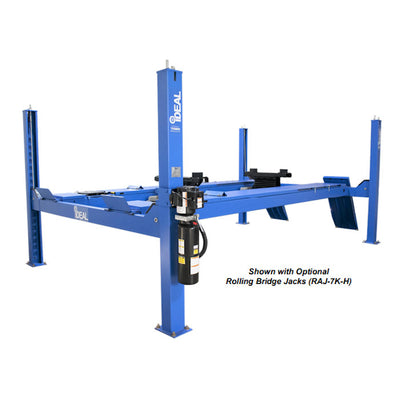

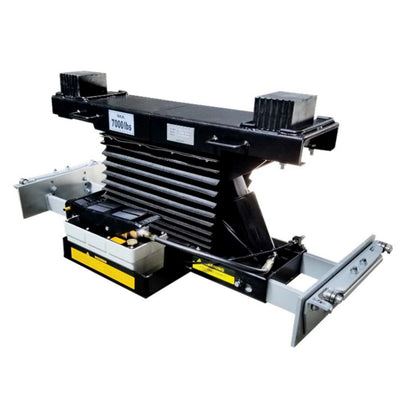

• RAJ-7K-H Rolling Air Jack High Mount 7,000 lbs. Capacity
• FP-14KCX-24EXTKIT 24" Runway Extension Kit
• FP14KCX-ALIGNKIT 'Bolt-On' Alignment Kit

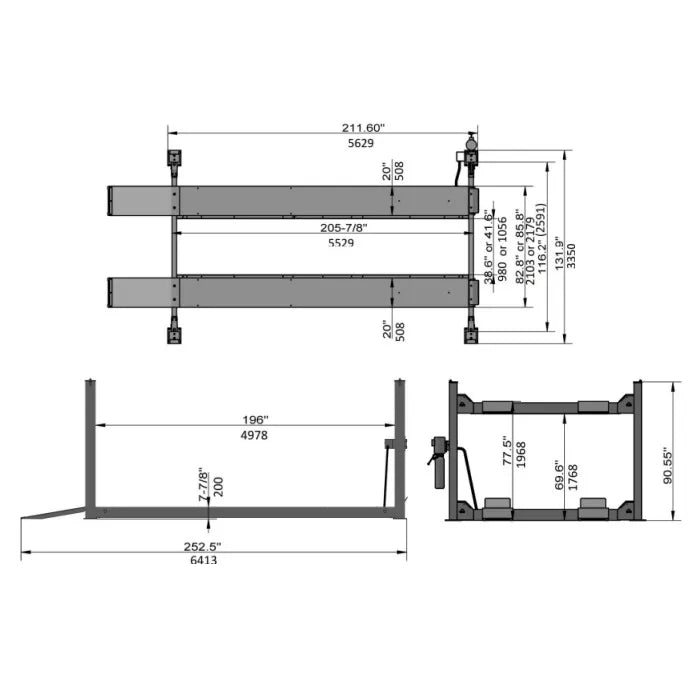

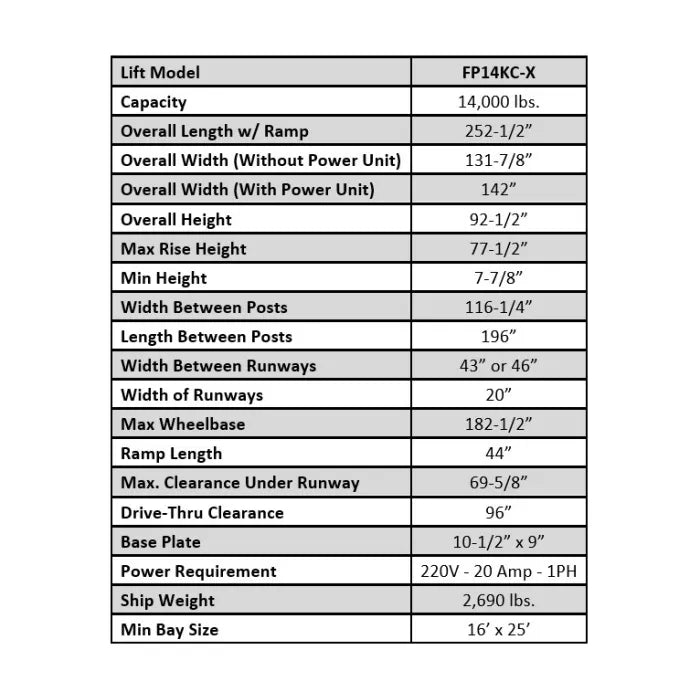

Specifications

• Capacity: 14,000 lbs.
• Overall Length with Ramp: 252-1/2"
• Overall Width (without Power Unit): 131-7/8"
• Overall Width (with Power Unit): 142"
• Overall Height: 92-1/2"
• Max Rise Height: 77-1/2"
• Min Height: 7-7/8"
• Width Between Posts: 116-1/4"
• Length Between Posts: 196"
• Width Between Runways: 43" or 46"
• Width of Runways: 20"
• Max Wheelbase: 182-1/2"
• Ramp Length: 44"
• Max Clearance Under Runway: 69-5/8"
• Drive-Thru Clearance: 96"
• Base Plate: 10-1/2" x 9"
• Power Requirement: 220V - 20 Amp - 1 PH
• Minimum Bay Size: 16' x 25'
• Shipping Weight: 2,690 lbs.
• Warranty: 5 Years Structure, 1 Year Parts, No Labor

Structural Warranty
The following parts and structural components carry a five year warranty: Columns, Top Rail, Uprights, Arms, Swivel Pins, Legs, Carriages, Tracks, Overhead Beam, Cross Rails.

Limited (1) Year Warranty
Tuxedo Distributors, LLC (iDEAL) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications.

Other Limitations
This warranty does not cover:

• Parts needed for normal maintenance
• Wear parts, including but not limited to cables, slider blocks, chains, rubber pads and pulleys
• Replacement of lift and tire changer cylinders after the first 30 days. A seal kit and installation instructions will be sent for repairs thereafter
• On-site labor
