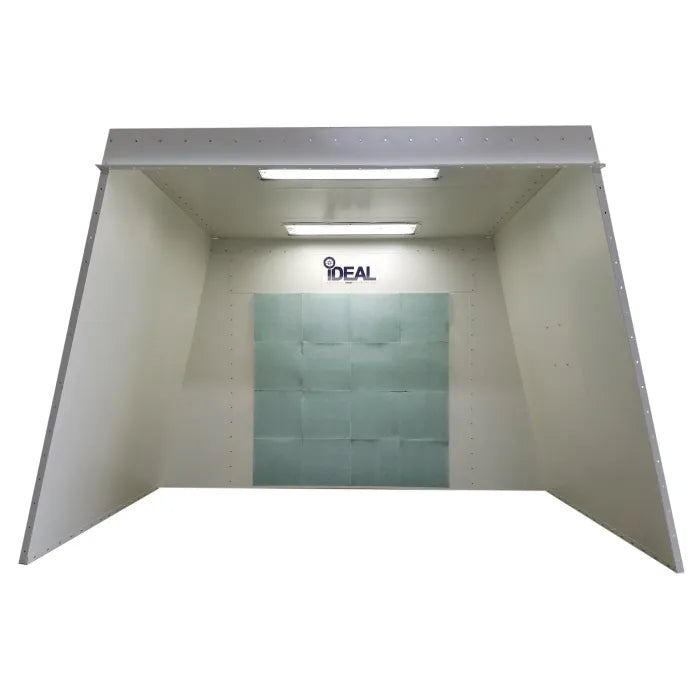

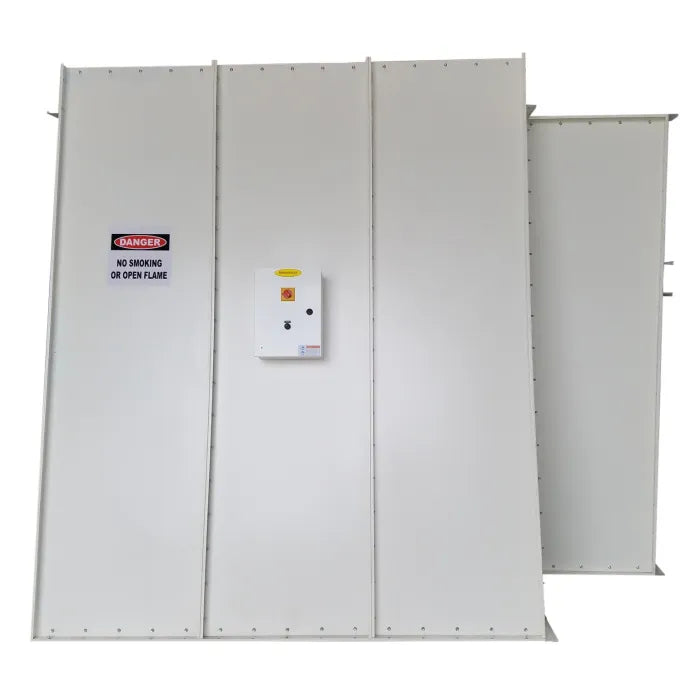

iDEAL PSB-AFOFB1388-AK-1PH Open Front Paint Spray Booth

In Stock SKU PSB-AFOFB1388-AK-1PH UPC 850020821808

OUR PRICE: $9,700.00

Regular Price: $10,189.00

$269.44 / mo
INCLUDES FREE SHIPPING*
asedeals.com widget logo

Short Description

iDEAL PSB-AFOFB1388-AK-1PH Open Front Paint Spray Booth
13' W x 8' 6" H x 7' 6" D Inside Dimensions with 1 Phase Motor

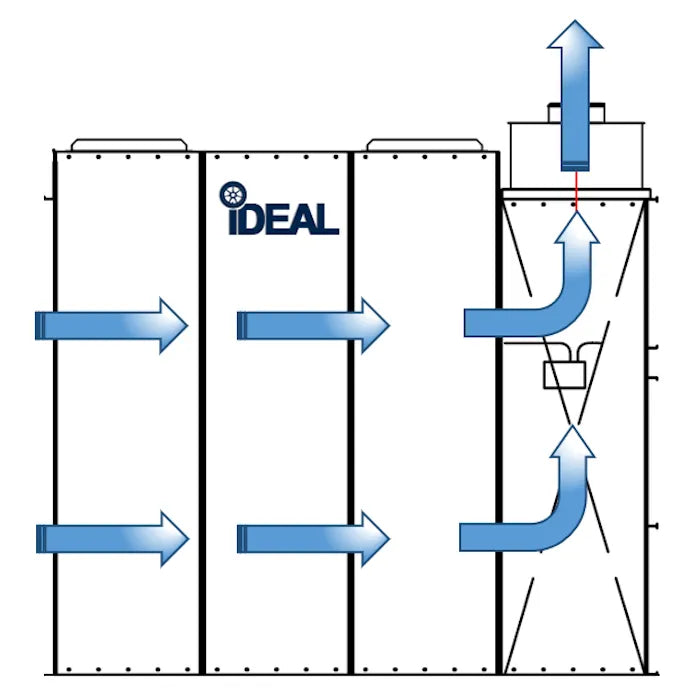

The iDEAL PSB-AFOFB1388-AK-1PH Open Front Paint Booth is an 'A-Frame' economic, commercial grade open front paint booth designed to provide optimal 'air flow' with superior lighting for high-quality spray painting and finishing applications. The iDEAL Open Front Paint Booth is a great solution for industrial batch-type and automated production-type finishing systems. Air flows through the open front section of the booth, then passes through the work area towards the rear of booth into the filtered exhaust chamber. Filtered exhaust air is then drawn through the exhaust plenum and discharged upwards through the exhaust fan and ducting. Easily installed with heavy duty, precision punched 18 gauge panels allowing for quick nut and bolt assembly. Standard with bright white powder-coat finish inside and out, deluxe Rammstein control panel, premium AFC exhaust filters, hinged glass light fixtures and high-quality tube-axial exhaust fan to complete the package for a premium, high-quality Open Front Paint Booth, all at a great value!

FREE SHIPPING

CALL US TODAY FOR AN EVEN BETTER DEAL!

Description

Atlas Automotive Equipment

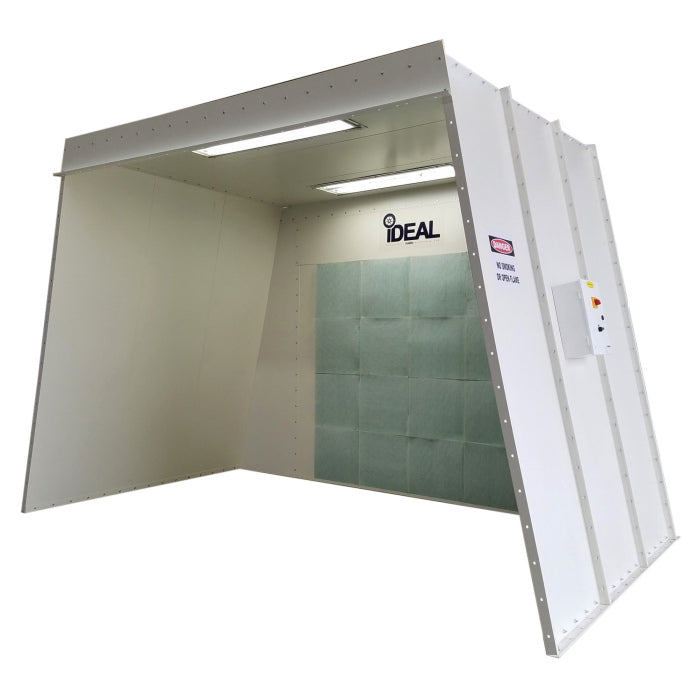

iDEAL PSB-AFOFB1388-AK-1PH Open Front Paint Spray Booth
13' W x 8' 6" H x 7' 6" D Inside Dimensions with 1 Phase Motor

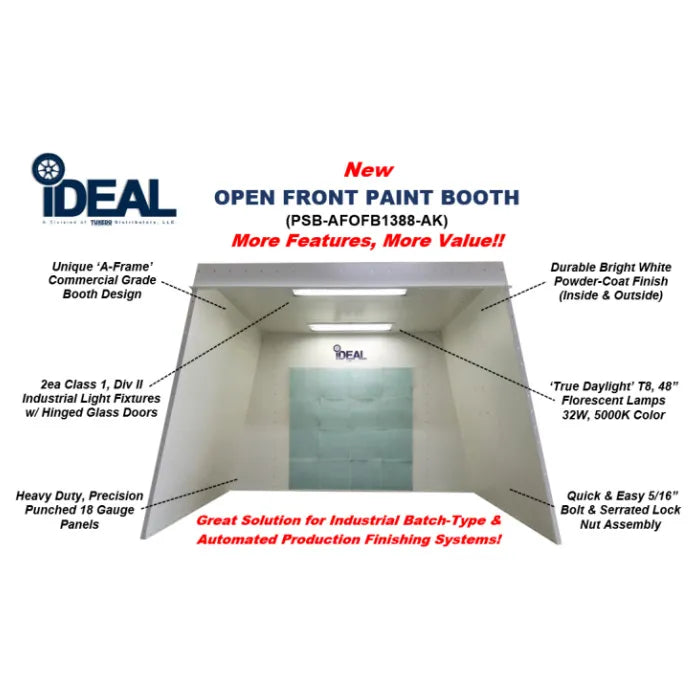

The iDEAL PSB-AFOFB1388-AK-1PH Open Front Paint Booth is an 'A-Frame' economic, commercial grade open front paint booth designed to provide optimal 'air flow' with superior lighting for high-quality spray painting and finishing applications. The iDEAL Open Front Paint Booth is a great solution for industrial batch-type and automated production-type finishing systems. Air flows through the open front section of the booth, then passes through the work area towards the rear of booth into the filtered exhaust chamber. Filtered exhaust air is then drawn through the exhaust plenum and discharged upwards through the exhaust fan and ducting. Easily installed with heavy duty, precision punched 18 gauge panels allowing for quick nut and bolt assembly. Standard with bright white powder-coat finish inside and out, deluxe Rammstein control panel, premium AFC exhaust filters, hinged glass light fixtures and high-quality tube-axial exhaust fan to complete the package for a premium, high-quality Open Front Paint Booth, all at a great value!

Features & Specs

Features

  • Always in Stock, Typically Ships Within 48 Hours!
  • Unique A-Frame Commercial Grade Booth Design
  • Designed For Optimal Air Flow & Lighting Coverage

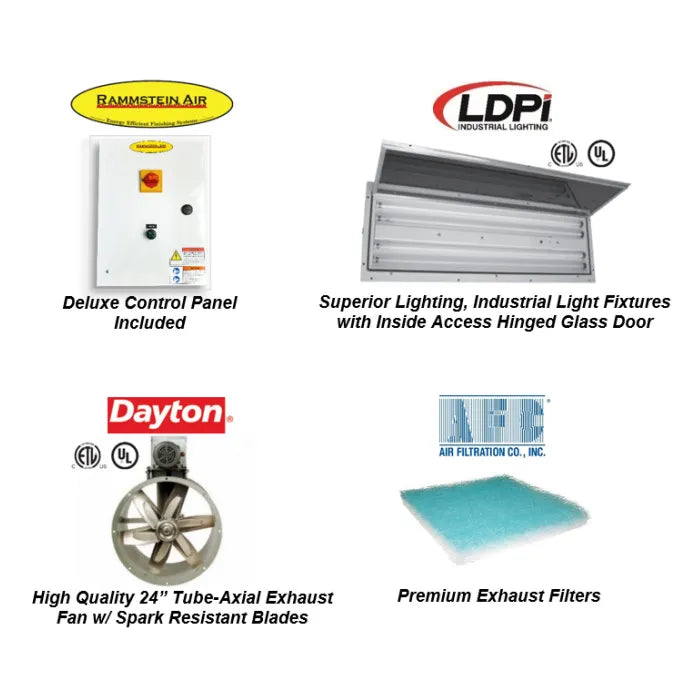

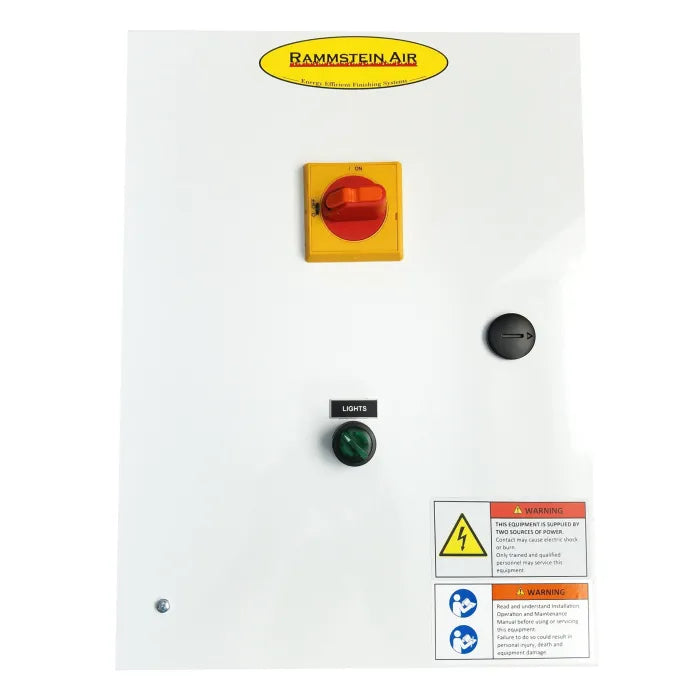

  • Deluxe Rammstein Air Control Panel Included
  • Bright White Powder Coat Panel Finish Inside & Outside
  • Heavy-Duty Precision Punched 18 Gauge Panel Construction
  • Convenient 5/16" Bolt & Serrated Lock Nut Assembly
  • UL Listed Dayton 24" Tube-Axial Exhaust Fan with Spark Resistant Fan Blades
  • NEMA Rated 2HP 230/460VAC 1PH 60Hz Motor
  • Premium AFC Exhaust Filters Included
  • Superior Lighting with LDPI Industrial Light Fixtures
  • Fixtures Feature Inside Access Hinged Glass Door
  • (2) LDPI Industrial (CLS1 / DIV 2) Light Fixtures - UL & ETL (Groups A, B, C & D)
  • True 'Daylight Color' with GE T8 48" Fluorescent Lamps 32W - 2900 Lumens, 5000K
  • Optimal Air Flow with CFM 7,983 @ .5 Static Pressure
  • All Assembly Hardware, Manometer & Sealant Included
  • Meets and/or Exceeds All Applicable OSHA & NFPA 33 Regulations
  • Easy To Install, Operate & Maintain
  • Booth Panels & Doors Made In China
  • Electrical Components & Filters Made In USA
  • Entire Paint Booth Can Be Made In USA Upon Request (Additional Charges Would Apply)

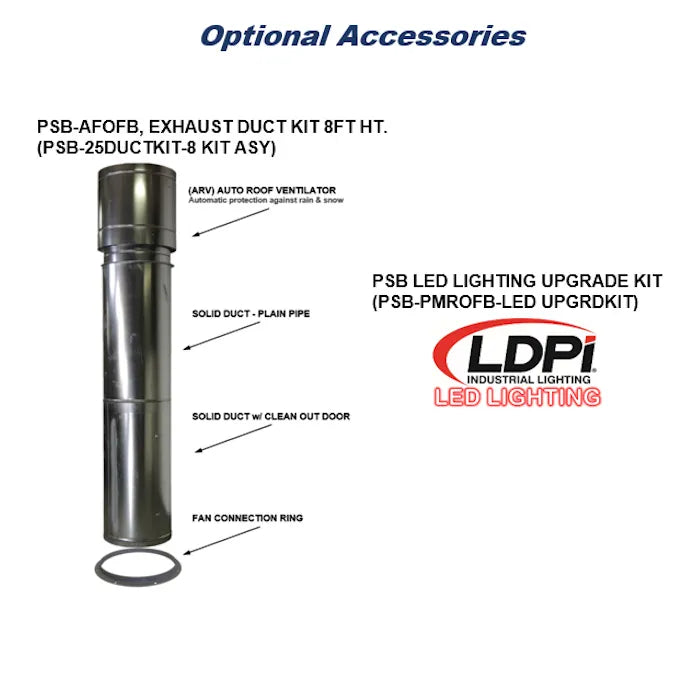

Optional Accessories

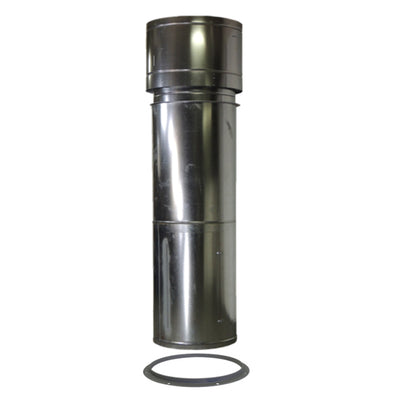

  • PSB-25DUCTKIT-8 KIT-ASY 25" x 8' Exhaust Duct Kit
  • PSB-PMROFB-LED-UPGRDKIT LDPI LED Lighting Upgrade Kit

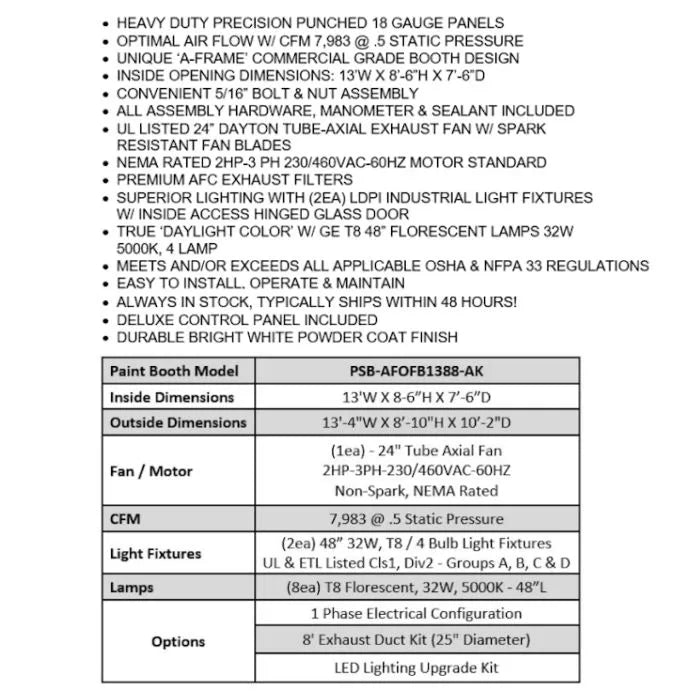

Specifications

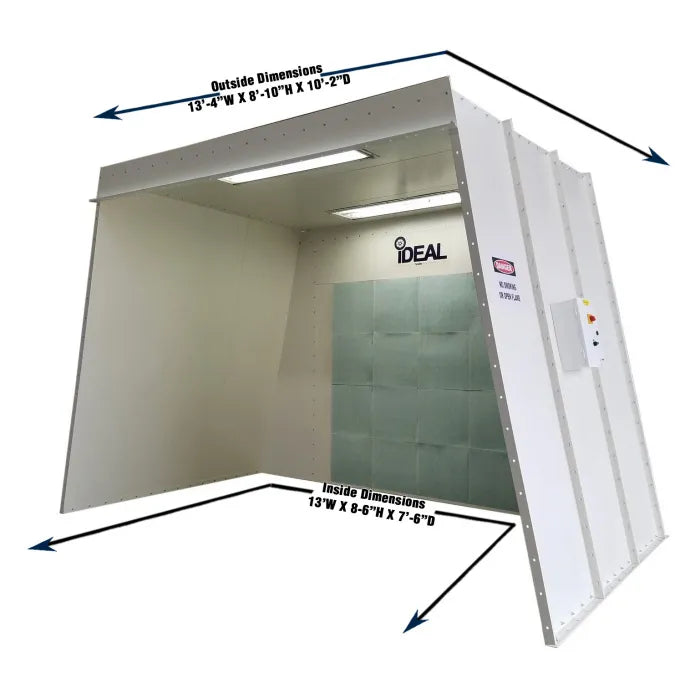

  • Inside Dimensions: 13' W X 8 6" H X 7' 6" D
  • Outside Dimensions: 13' 4" W X 8' 10" H X 10' 2"D
  • Fan / Motor Type: (1) 24" Tube Axial Fan
  • Fan / Motor Electrical: 2HP 230/460VAC 1PH 60HZ
  • Fan / Motor Rating: Non-Spark, NEMA Rated
  • Fan / Motor Air Flow: 7,983 CFM @ .5 Static Pressure
  • Light Fixtures: (2) 48" 32W T8 / 4 Bulb Light Fixtures
  • Classification: UL & ETL Listed CLS1, DIV2 - Groups A, B, C & D
  • Lamps: (8) T8 Florescent 32W 5000K 48" L
  • Warranty: (1) Year Limited Parts and Material

Accessories/Options

More Information

iDEAL PSB-AFOFB1388-AK Open Front Paint Spray Booth Brochure (.pdf)

iDEAL PSB-AFOFB1388-AK Open Front Paint Spray Booth Manual (.pdf)

iDEAL PSB-AFOFB1388-AK Open Front Paint Spray Booth Assembly (.pdf)

iDEAL PSB-AFOFB1388-AK Open Front Paint Spray Booth Parts (.pdf)

So you want great quality products, but you don’t want to over-spend? Have we got the manufacturer for you! iDEAL is a division of Tuxedo Distributors based in Alvarado, TX. We have been proudly distributing their products since 2004. They manufacture all kinds of auto shop equipment for home hobby car buffs, as well as the professional technician or auto mechanic. iDEAL is Tuxedo’s premium line of equipment - made for the discriminating professional who wants a higher quality product at a reasonable price. They’ve been proven over time to be among some of the best products we carry. Products include car lifts, frame straighteners, frame racks, paint spray booths with accessories, mobile column lifts, motorcycle lifts, and more. They provide expert technical support, and always have inventory of most of their products for immediate shipment out of their headquarters warehouse in TX. Add to that their dozen or so satellite warehouses that they have across the country, and they offer a unique competitive advantage over many other manufacturers who typically ship out of only one location. This allows them to save on freight, passing on the saving to the end user, as well as offering faster shipping times than a majority of the other automotive equipment distributors out there. Give us a call today to learn more...
