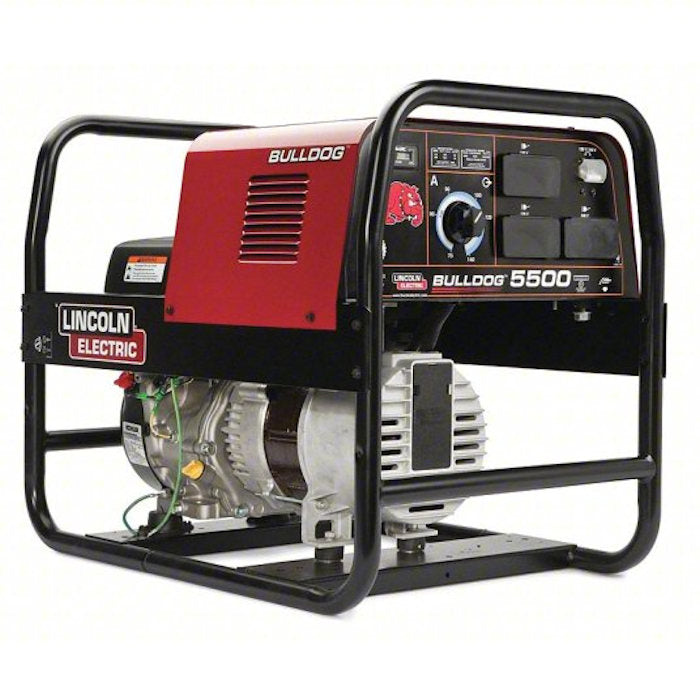

Lincoln Electric Bulldog 5500 Engine Driven Welder Generator
In Stock SKU K2708-2 UPC 015082906607
OUR PRICE: $4,041.00
Regular Price: $4,249.00
Short Description
Lincoln Electric Bulldog 5500 Engine Driven Welder Generator
Portable Kohler 8.9HP OHV Gasoline Engine
with AC Welding and AC Generator Output
The Lincoln Electric Bulldog 5500 Engine Driven Welder Generator provides 70-140 Amp AC stick welding and 5,500 watts AC generator power from a Kohler 8.9HP OHV gasoline engine. It's a great portable option for homeowners, hobbyists, ranchers and farmers for maintenance and repair work.
CURRENT LEAD TIME IS 2-3 WEEKS
Description

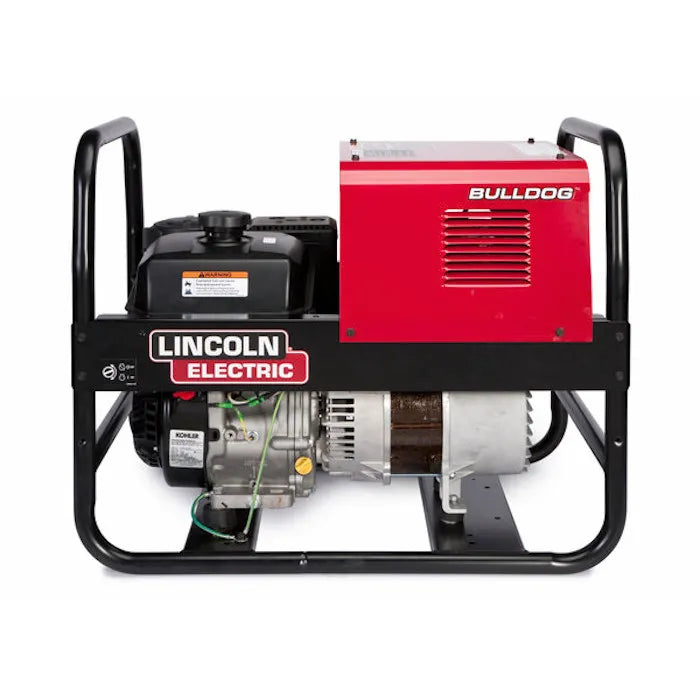

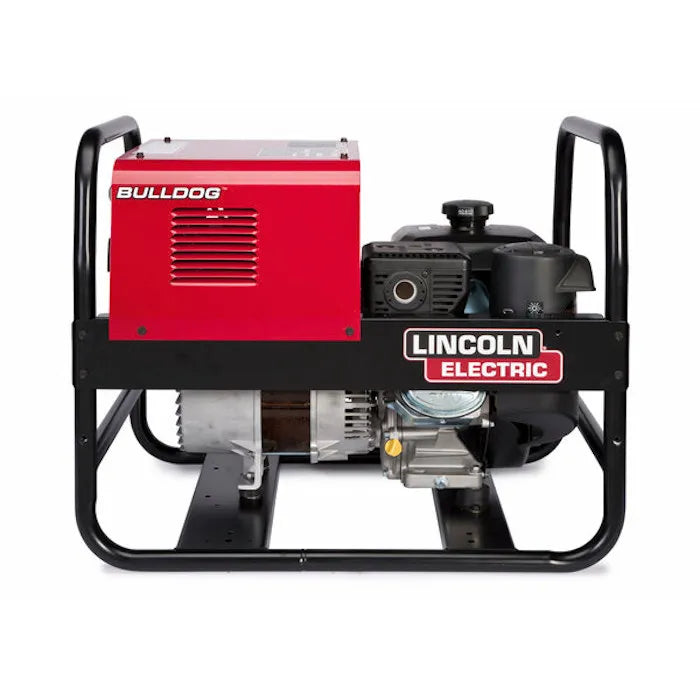

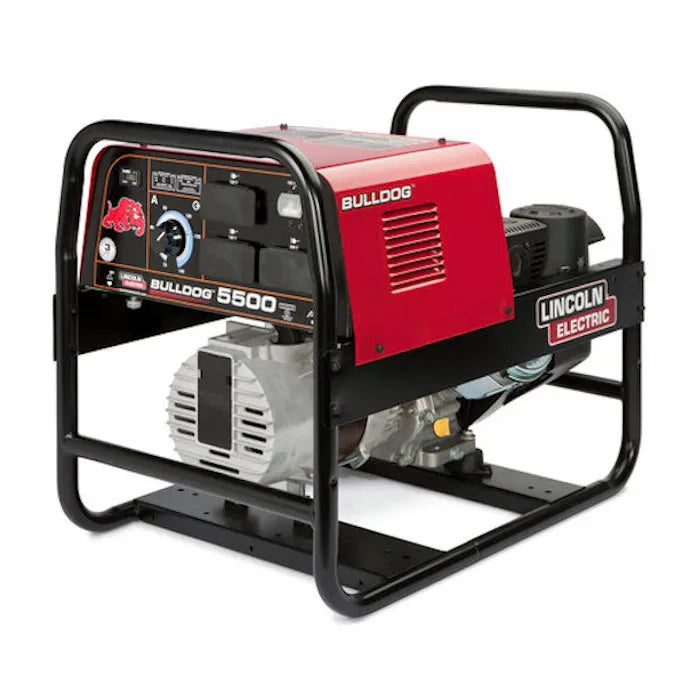

Lincoln Electric Bulldog 5500 Engine Driven Welder Generator
Portable Kohler 8.9HP OHV Gasoline Engine
with AC Welding and AC Generator Output
The Lincoln Electric Bulldog 5500 Engine Driven Welder Generator provides 70-140 Amp AC stick welding and 5,500 watts AC generator power from a Kohler 8.9HP OHV gasoline engine. It's a great portable option for homeowners, hobbyists, ranchers and farmers for maintenance and repair work. Portable AC Welder/AC Generator
It’s great for homeowners and anyone who needs portable AC stick welding and AC generator power!
Low-Lift Grab Bars
- More leverage for lifting unit on and off truck beds
- Extra protection against product damage.
- Best in class feature!
1-1/4 in. (32 mm) Diameter Rugged Tube Frame
- Great for all-around sturdy protection.
- Largest diameter tube frame in its class!
- Best in class feature!
AC Welding with up to 1/8 in. (3.2 mm) Stick Electrode
- Up to 140 amps of AC output for many applications.
5,500 Watts Surge (4,000 Watts Continuous) AC Generator Power
- Many uses! Grinder, work lights, pump, motor starting, or emergency power. Plug in a Lincoln Electric POWER MIG 140C for wire welding.
Arc Performance
- Up to 140 amps of AC welding output for welding steel, stainless steel, cast iron or hardfacing projects with up to 1/8 in. (3.2 mm) stick electrode. Suggested electrodes are Lincoln Electric 7018AC (AWS E7018) and Fleetweld 180 (AWS E6011).

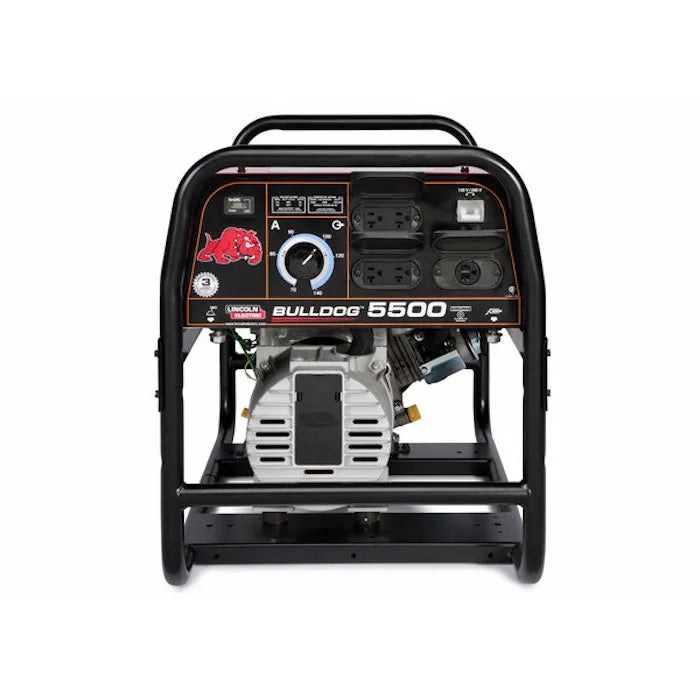

- Single, full range calibrated welding output dial makes it simple to dial in the ideal amperage for your repair, maintenance or fabrication project. Dial also includes operating ranges for 3/32 in. (2.4 mm) and 1/8 in. (3.2 mm) electrode.
AC Generator Performance
- Delivers up to 16.7 amps continuous power from the 240V AC receptacle, and up to 33.3 amps continuous power from the two 120V AC duplex receptacles.
- All outlets are circuit breaker protected.
- Optional GFCI (Ground Fault Circuit Interrupter) Kit available for additional protection from electric shock in the AC generator auxiliary power circuit.
Quality and Reliability
- Welding and AC Generator Outputs Rated at 104ºF (40ºC).
- Dependability and long life aided by all-copper windings in rotor and stator with high quality insulation.
- Red and black powder paint finish offers increased durability with added protection from rust and corrosion. Also ultraviolet resistant to better retain color and gloss.
- Manufactured under a quality system certified to ISO 9001 requirements.
- This equipment meets U.S. EPA EVAP standards for reduced emissions of gasoline vapor.
- Canadian Standards Association (CSA) certified.
- Three-year Lincoln Electric warranty on parts and labor (engine is warranted separately by the manufacturer).
Features & Specs
Features
- Multi-Process unit capable of MIG, TIG, and Stick welding
- MIG weld at 20-180 Amps
- MIG - Wide 20-180 amp welding output for MIG, FCAW and Spool Gun allows for welding 24 gauge to 3/8" welding material
- DC TIG weld at 10-165 Amps
- TIG - Torch and Foot pedal sold separately; Wide 10-165 amp range permits welding on thin and thick steel and stainless
- Stick weld at 25-160 Amps
- Stick - Smooth arc starts prevent stick. Heavy duty electrode holder and cable included
- Fully adjustable drive system reduces the chance of wire tangling and crushing
- Brass to brass gun connection enhances conductivity
- Fast toolless drive roll changeovers
- Simple two knob operation
- Single button for process selection
- Lightweight and portable at 34.5 lbs.
- Conveniently plugs into household 230 volt or 120 volt power with included adaptor
- Perfect for the shop, farm, home or auto body shops
What's Included
- Magnum 100L gun and 10 ft. (3.0 m) cable assembly with brass connection and 8-pin trigger connector
- .025 in. (0.6 mm) contact tip
- .030 in. (0.9 mm) contact tip
- Gasless nozzle for Innershield welding
- Gas nozzle for MIG welding
- Spindle adapter for 8 in. (203 mm) diameter spools
- .025 - .035 in. (0.6 - 0.9 mm) wire diameter dual track drive roll for MIG and flux-cored welding
- Harris Gas Regulator and 52 in. (1.3 m) hose for use with Ar/ CO2 blend gases.
- Work clamp and 10 ft. (3.0 m) cable
- Electrode holder with 10 ft. cable for stick welding
- 230 Volt to 120 Volt adapter
- Instruction Manual
- Quick Start Guide
Specifications
- Machines Processes: Stick (SMAW), Flux-Cored (FCAW), TIG (GTAW), MIG (GMAW)
- Output Range by Mode: 30-180A MIG 10-165A DC TIG 25-160A Stick
- Machines Maximum Weldable Thickness: 5/16in.
- Machines Minimum Weldable Thickness: 24ga.
- Number of driven rolls: 1 roll
- Feeder type: Portable
- Max spool diameter: 200mm
- Max Wire Diameter (Solid): 3/64 in (1.2 mm)
- Max Wire Diameter (Cored): 3/64 in (1.2 mm)
- Wire Configuration: Single
- Wire Feeders Processes: MIG, Flux Cored
- Contact Tips Included: Yes
- Hand Shield Included: No
- Maximum Wire Thickness: .035
- Minimum Wire Thickness: .025
- Safety Listing CSA: Yes
- Sample Flux Wire Included: No
- Sample MIG Wire Included: No
- Wire Feed Amperage: 30-180A
- Wire Feed Duty Cycle: 165A/22V/30%
- Wire Feed Process: MIG and Flux-Cored
- Stick Welders Amperage: 25-160A
- Minimum Electrode Thickness: 1/8
- Maximum Electrode Thickness: 5/32
- Input Voltage: 120V or 230V
- Input Current: 20A
- Input Hertz: 60
- Input Power: 120V/230V Single phase
- Input Phase: 1
- Mode Icon: CV
- Output Range: 30-180A MIG, 10-165DC TIG, 25-160A Stick
- Polarity: DC+ MIG and Stick or DC- TIG and FCAW
- Rated Output: 165A/22 V@30% MIG, 165A/16.6V/30% TIG, 160A/26.4V/25% Stick
- Dimensions: 13.6" H x 8.9" W x 18.1" D (345 x 224 x 460 mm)
- Net Weight: 34.5 lbs. (15.6 kg)
- Warranty: (3) Years Warranty, (90) Days Gun and Cable
