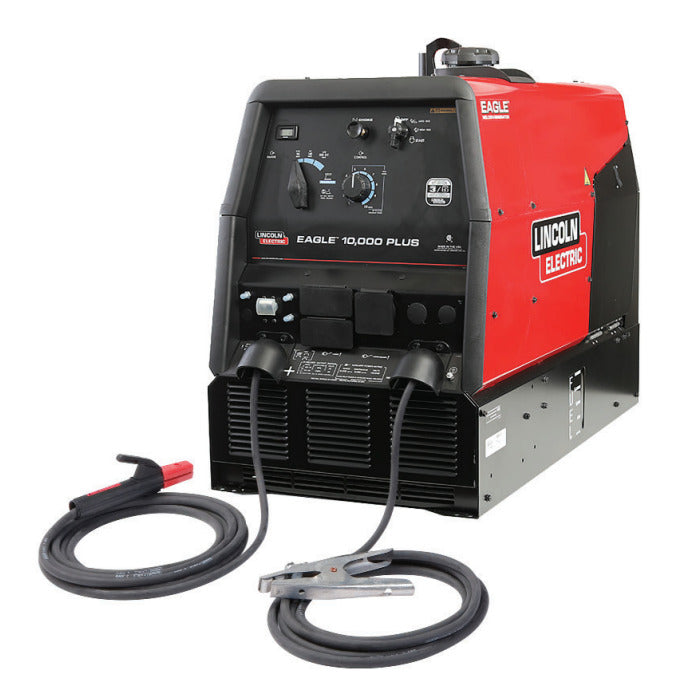

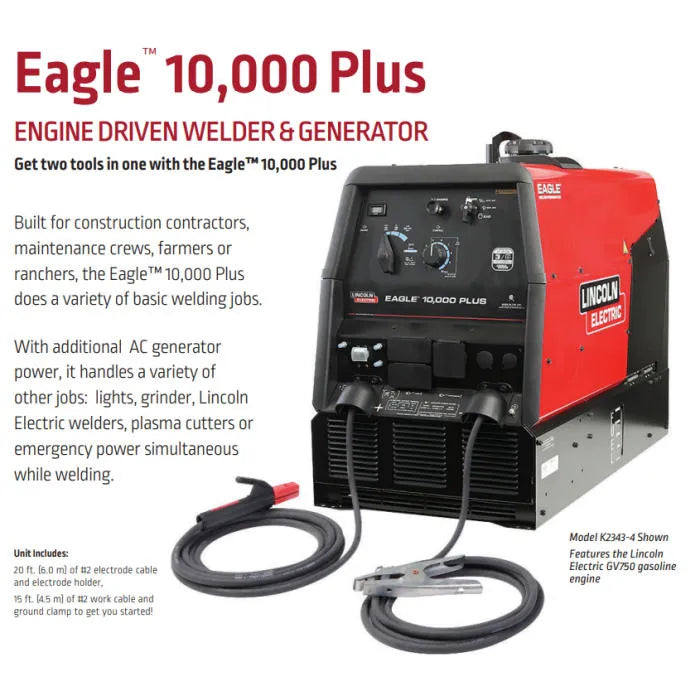

Lincoln Electric Eagle 10,000 Plus Engine Driven Welder Generator

Features & Specs

Features

• Totally enclosed case that protects the engine and lowers the sound level
• Versatile, smooth DC welding output allowing the use of a broad range of stick electrodes
• MIG, Flux-Cored and TIG capabilities with optional equipment

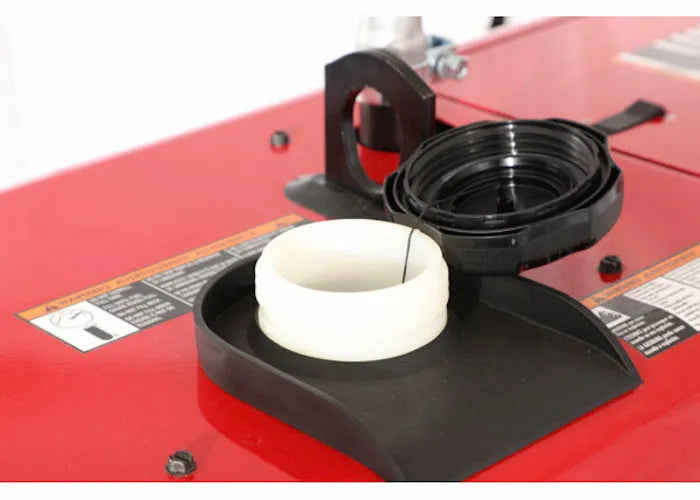

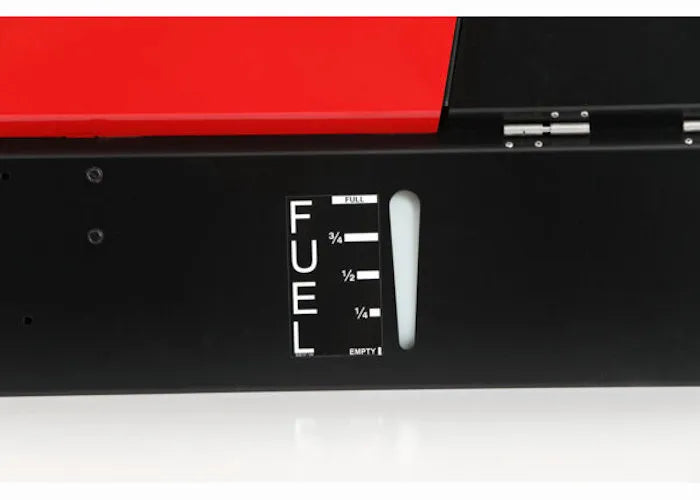

• 12 gallon gasoline tank for extended run time with a visual fuel level gauge on both sides of unit

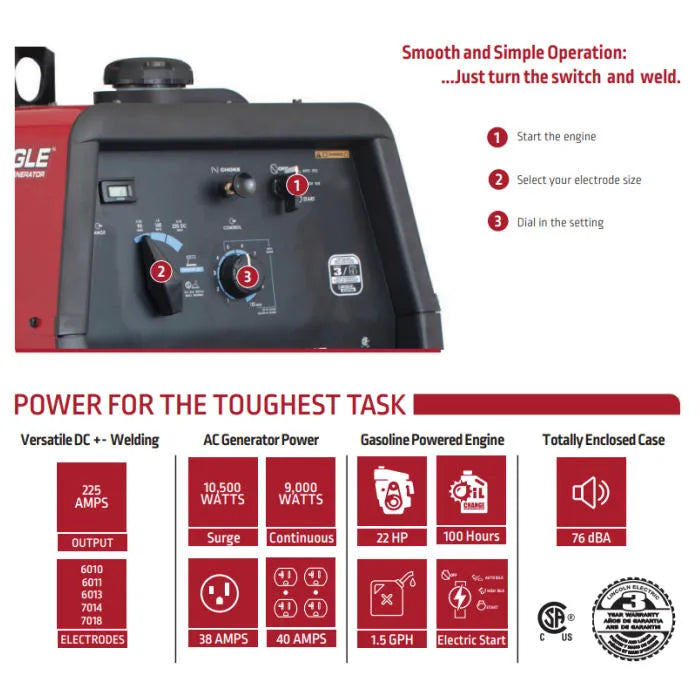

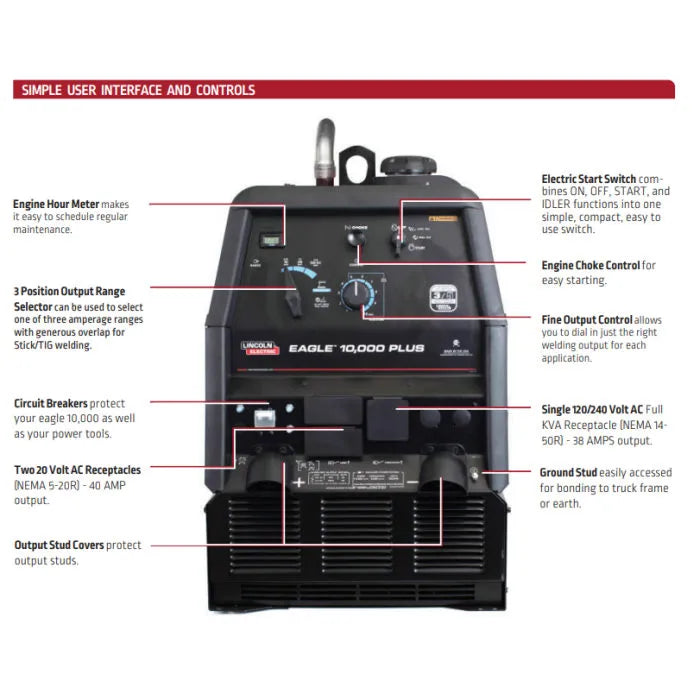

• Fine adjustment control allows you to dial in just the right welding output for each application

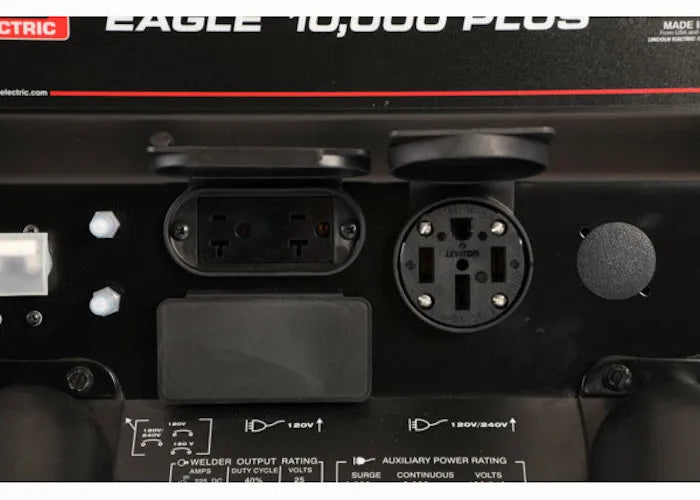

• 10,500 watt surge and 9,000 watt continuous AC generator
• Convenient truck or trailer mounting with front and rear hole in base

What's Included

• 20 ft. of #2 electrode cable
• Electrode holder
• 15 ft. of #2 work cable and work clamp
• Instruction Manual

Machine Specifications

• Machines Processes: Stick (SMAW), Gouging (CAC-A), Flux-Cored (FCAW), TIG (GTAW), MIG (GMAW)
• Engine Brand & Model: OHV Command CH730
• Engine Horsepower: 22 HP @ 3600 RPM
• Fuel Tank Size (US gal.): 12
• Fuel Tank Size (L): 45
• Oil Capacity (qts.): 1.6
• Oil Capacity (L): 1.5
• Input Power: Gasoline
• Output Range: 220-225A ; 70-145A ; 50-90A
• Polarity: DC
• Rated Output: DC Constant Current 225A/25V/40% ; 210A/25V/100%
• Generator Output: 10,500 Watts Surge ; 9,000 Continuous
• Dimensions: 29.9" H x 21.5" W x 42.3" D (759 x 546 x 1074 mm)
• Net Weight: 514 lbs. (233 kg)
• Warranty: (3) Years Warranty

Engine Specifications

• Engine Model: Lincoln Electric GV750 (Gasoline)
• Description: 2 Cylinder, 4 Cycle, OHV Air-Cooled, Gasoline Engine, Aluminum Alloy, with Cast Iron Liners
• Horsepower & Displacement: 22 HP @ 3600 RPM 45 cu in (750 cc)
• Ignition: Electric Start, 12V Battery, 410 Cold Cranking Amps, Manual Choke
• Fuel Capacity: 12 Gals (45 Ltrs)
• Oil Capacity: 1.6 Qts (1.5 Ltrs)
• Operating Speeds: 210A DC 3,500 RPM - High Idle 3,700 RPM - Low Idle 2,200 RPM
• Fuel Consumption: 1.5 Gals/Hr (5.7 Ltr/Hr) - 0.9 Gals/Hr (3.5 Ltr/Hr) - 0.4 Gals/Hr (1.6 Ltr/Hr)
