Ranger QuickJack 7000TLX Extended Portable Truck Lift System
Out Of Stock SKU 7000TLX UPC 849672024750
OUR PRICE: $2,100.00
Regular Price: $2,209.00
Short Description
Ranger QuickJack 7000TLX Extended Portable Truck Lift System
7,000 lbs. Lifting Capacity 24.5" Lifting Height 76" Frame Length
The QuickJack 7000TLX Extended Portable Truck Lift System is recommended for use with light trucks and SUVs with longer wheelbases. This is the heaviest-duty lift in the extended-length lineup. As the longer version of our truck lift, this QuickJack model is perfect for lifting four-door truck cabs, vans and SUVs. There isn't much on the consumer market that this lift can't handle. If you specialize in heavy machinery and don't need to worry about the little stuff, QuickJack's EXT series will change your life.
Voltage Selection:
#5175645 7000TLX-110V
#5175647 7000TLX-208-240V
Description

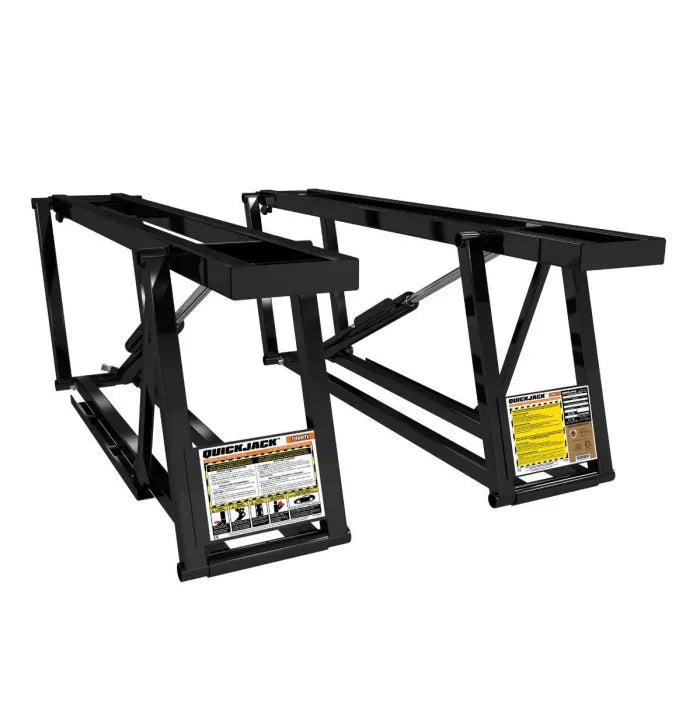

Ranger QuickJack 7000TLX Extended Portable Truck Lift System
7,000 lbs. Lifting Capacity 24.5" Lifting Height 76" Frame Length
The 7,000 lbs. capacity 7000TLX is the safest, highest-capacity and longest-reaching portable car lift ever made. Vehicle types with lift points that stretch toward the edges of the wheelbase can finally be serviced by a fully collapsible, open-center car lift. Until the 7000TLX , only two-post and four-post lifts could service such vehicles. Even mid-rise lifts, while popular in many auto detailing shops and repair bays, often struggle with unique lift point spreads. Compared to other QuickJack models, the 66" lift point reach on the 7000TLX allows operator access to more trucks and SUVs than ever before.
Despite the longer, beefier construction, the 7000TLX car lift still reaches its max rise in approximately 30 seconds. A QuickJack truck/SUV adapter kit, sold separately, adds extra rise and convenience.
Like our lower-capacity portable car lifts (the 3500SLX, 5000TL and 7000TL), built-in durable urethane wheels mean the 7000TLX frames can be rolled around, indoors or outdoors, at your convenience. This is our heaviest model, but no bolts are required, and no special wiring is ever necessary.
The 76" frames are longer than our TL models (the same length as the 5000TLX), but they're still convenient to roll and stow around the garage. An SUV or truck bed can make for perfect transportation to the track or other locations. As long as the ground is level, the assembly can be taken outdoors for use on dirt, gravel, grass, asphalt or concrete. Initial setup is fast and easy, and then it's seconds to get from stow-to-go.

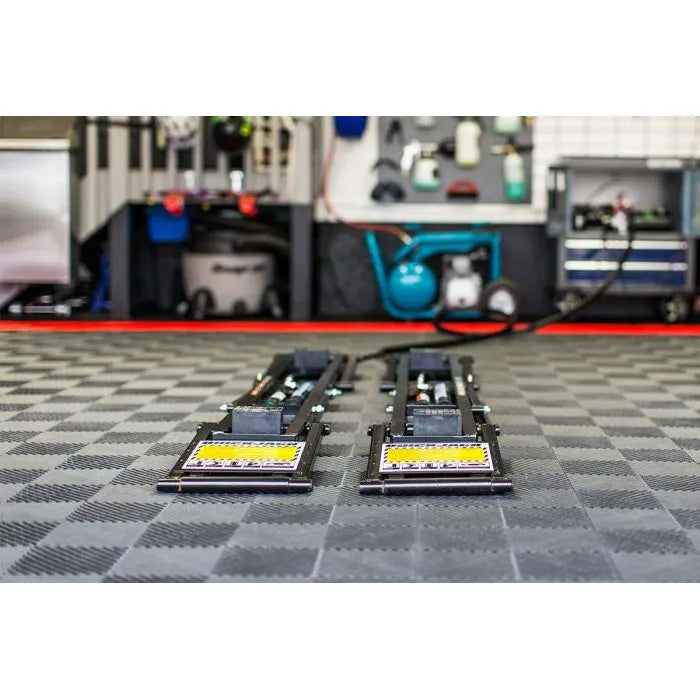

With a collapsed profile just over 3.5", the 7000TLX needs no extra support crossbeams. It's the perfect car lift for shops with little space to spare and big vehicles to service.

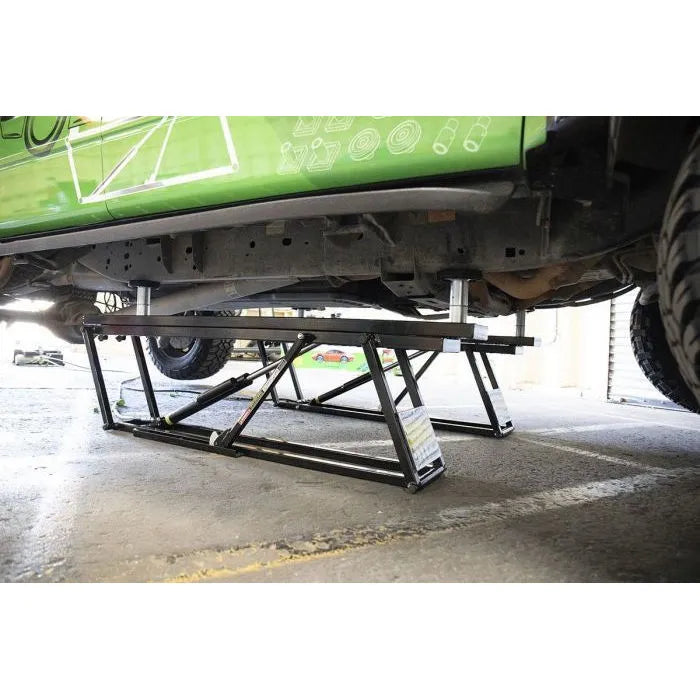

Extended-Length Truck Lift Design

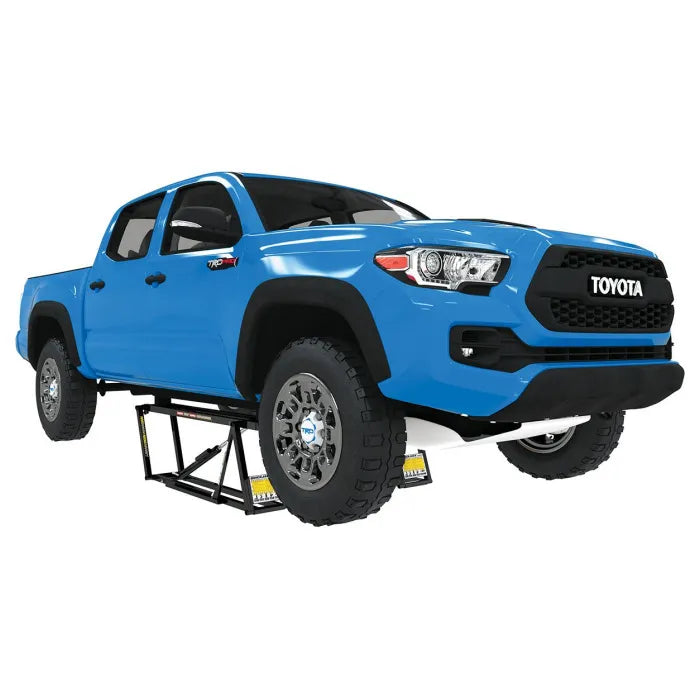

The 7000TLX portable car lift has been redesigned to accommodate heavy, high-clearance vehicles with long wheelbases. We've increased the overall frame length and lift point spread by 6". This means the minimum lift point spread is now 6" longer, so smaller vehicles may not fit with the 7000TLX.
TL Minimum Lift Point Spread: 37"
TLX Minimum Lift Point Spread: 43"
TL Maximum Lift Point Spread: 60"
TLX Maximum Lift Point Spread: 66"
TL Overall Frame Length: 70"
TLX Overall Frame Length: 76"
What's the difference between the NEW TL Models vs. SLX Models?
The biggest difference between the 5000TL and BL-5000SLX is the lifting height, which has increased 3 inches. This provides ample room to perform all the common vehicle maintenance tasks and allows you the capability to perform even the most complicated repairs.
Overall dimensions have remained the same, so you'll continue to benefit from what made QuickJack so popular in the automotive community and that is it's super-low 3" lowered height. The minimum lifting point spread did change from 31.5" to 37", but this will not make a difference to the vast majority of 5000TL users.
Automatic Safety Locks
Features dual-position automatic safety locks on each TL frame. As the frames rise, these locks glide securely into place at mid-rise and full-rise. Disengage with a simple flip of the lock bar and your car lift is ready for a smooth descent.
Increased Lifting Height
QuickJack TL models are capable of lifting an extra 3-inches making it easier to perform vehicle maintenance tasks that are both routine and more involved. The extra room gives you more ability and versatility under the vehicle, while doing so in added comfort.

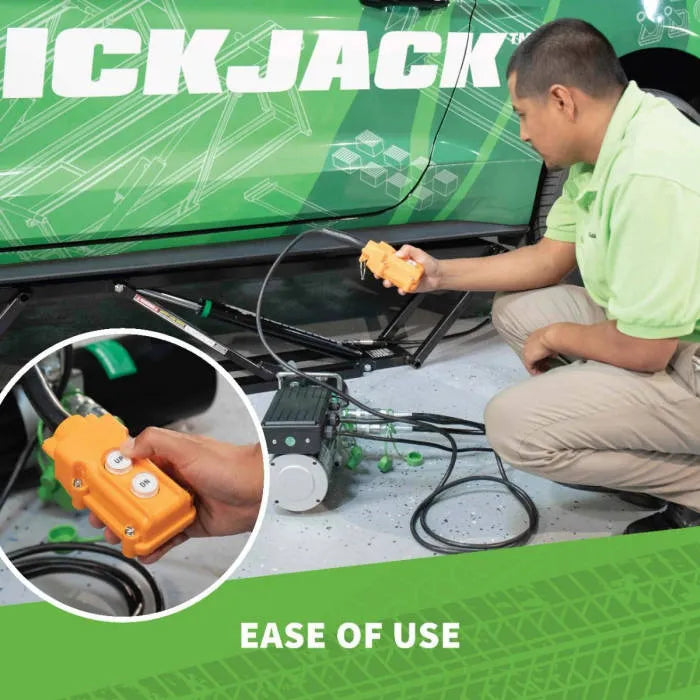

One-Handed Operation
By holding the pendant control in one hand, your other hand is totally free. No cranking or bending during lifting.

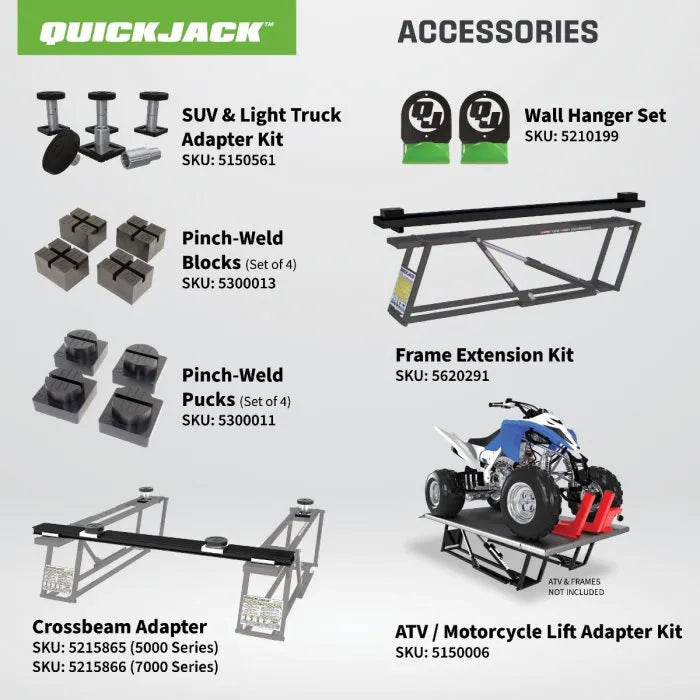

Accessories To Increase Versatility
Most QuickJack accessories were developed from customer suggestion and need. We offer many different lifting options and configurations to customize your QuickJack experience to fit your needs and specifications.

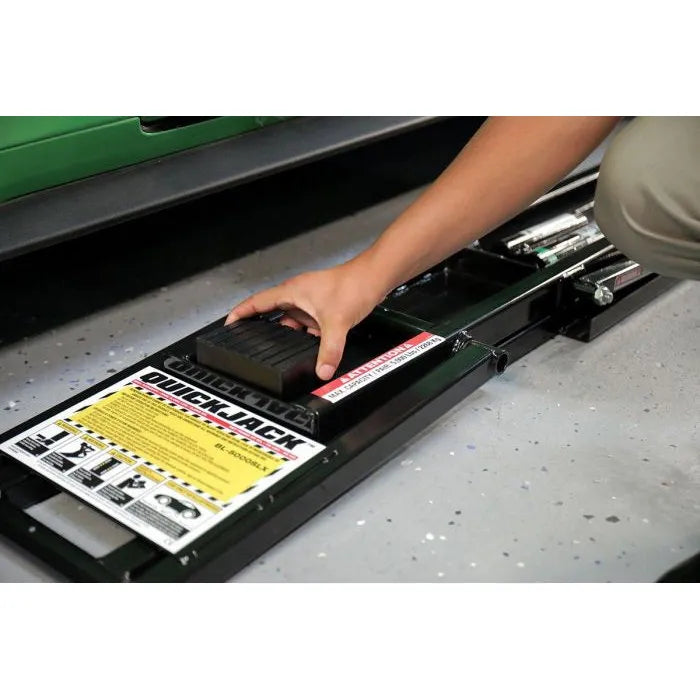

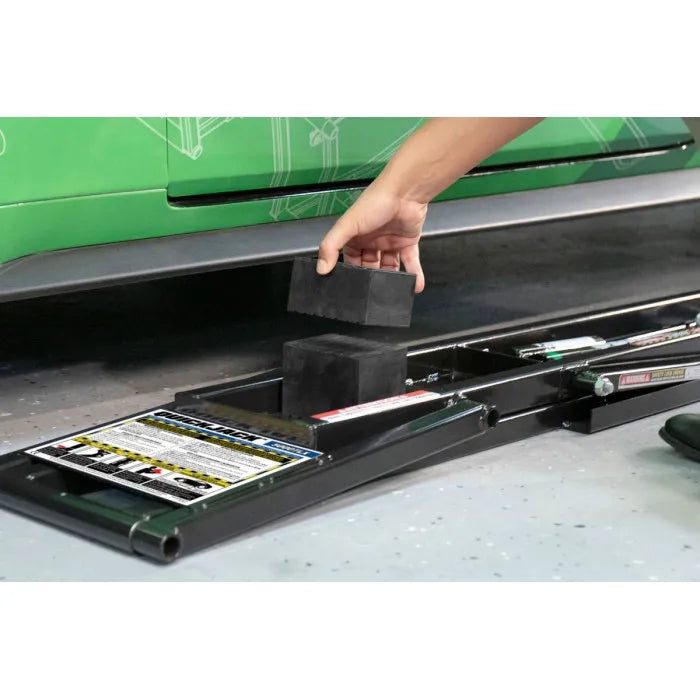

Extended Block Trays
We increased the size of our rubber block trays to improve access to varied lift points. Position blocks from 26.75" – 50.5" apart, satisfying most lift point spreads.
Zero-Leak Fittings
Our car lift components include flush-face hose fittings to ensure fluids stay in the unit and not on your garage floor. You don't want to be the one to leak all over the track, either.
Open-Center Design
Don't let us get in your way! Inspired by larger frame-engaging car lifts, our open-center design gives users total access to the wheels and undercarriage.

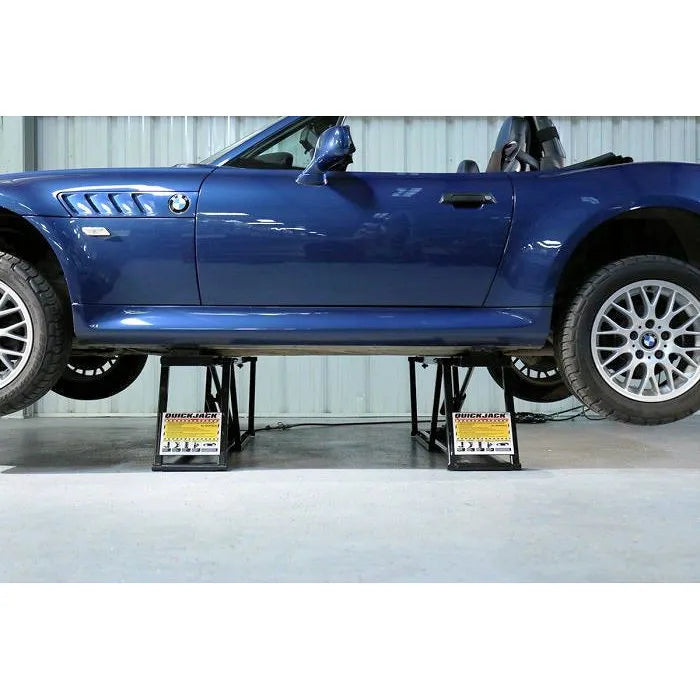

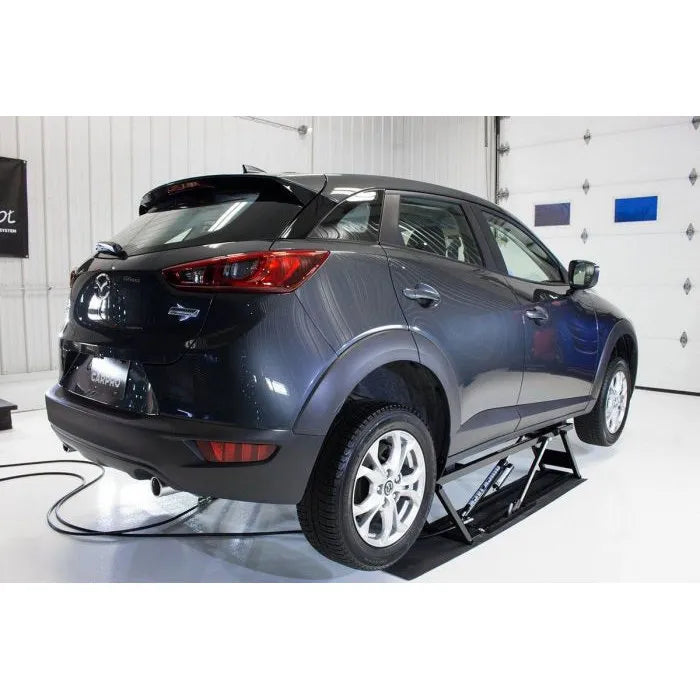

Using QuickJack
The QuickJack portable car lift is an extremely versatile tool unlike any you've ever seen. It features a completely open-center design, durable built-in wheels, rapid 30-second rise and heavy-duty lift capacities up to 7,000 lbs. The other standout feature is that QuickJack is a frame-engaging lift, so unlike other portable models, QuickJack allows you to perform full wheel service with the use of stands.
Professionals and DIY'ers alike will find QuickJack to be an incredibly useful tool. In the sections below, we've compiled just a small number of uses, testimonials and case studies to get your imagination going. If you need to work on a car, QuickJack has a solid place in your life. If you give it some thought, you'll probably think of something we haven't!
Residential
The most widespread use of QuickJack comes from homeowners using it as their primary garage lift. Most families don't have room for a standing in-ground auto lift, and anchor bolts are out of the question for some folks. QuickJack is more than just a mere alternative or "compromise." It's actually every bit as effective as the big hydraulic lifts that have come before it. There are tens of thousands of proud QuickJack owners to attest to that.
Auto Repair Shops
Even though virtually every auto shop in the world has at least one two-post lift to service vehicles, there are always more customer cars than there is space for equipment. In this case, it helps to have a portable car lift that works as a mobile backup or overflow lift. Roll it around very quickly, indoors or outdoors, and don't lose business just because your other lift is occupied. QuickJack is also useful in the event your main hoist is down for service.
Auto Detailing
It didn't happen overnight, but professional detailers were quick to get on the QuickJack bandwagon. It's so easy to maneuver around the shop, and it gets up to the perfect height for detailing work. This doesn't just apply to the pros, though. Home users will enjoy that QuickJack can get wet (go ahead and disconnect the power unit while you work, as long as the locks are in place). This means power washing, and fine detailing can be done with the vehicle lifted to a more ergonomic height.
Mobile Auto Repair
Nobody's schedule is getting easier, especially if you work at an office all day. Folks can use their precious days off babysitting their cars in the shop, or they can call you, a bonafide vehicle repair expert, to come right to their place of work and handle business in the parking lot while they earn that bacon. This is a major application for QuickJack that's still just being recognized. Mobile repair businesses need a portable lift to stay safe while they operate on hundreds of different vehicles, day in and day out.
Race Track Lift
QuickJack is the ultimate race track tool. When you're having a blast on track day drifting, timing your quarter or just seeing how fast your brand-spanking-new Z06 can maintain its top speed before petering out, chances are you're going to want to pull over for a tune-up or wheel swap. QuickJack eliminates the time otherwise spent jacking up a car. If there's no outlet nearby, a 12V DC power unit will run off your car's battery for total convenience. The frames are also lightweight and easy to transport in the trunk or backseats of many vehicles.
How It Works
QuickJack will make your garage life safer and more efficient. It will eliminate the corner-by-corner you perform with floor jacks during every tire rotation. There will be no more stressing over how much torque you're applying during brake changes. Sliding under cars for suspension work, oil changes, exhaust system swaps, detailing, etc. will all feel safer, and jobs will take less time. Even detailing jobs will be performed ergonomically and rapidly. As car buffs and gearheads ourselves, we hold one truth above all others: The best way to work is the only way to work.

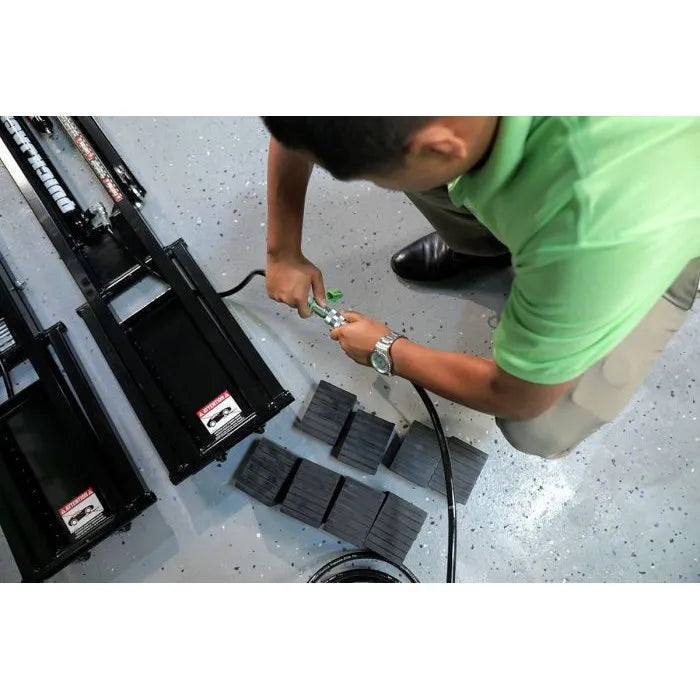

Setup
QuickJack is easy to set up - no time-consuming installation procedures. After that initial setup, the frames and power unit would need to be accessible at any time (with the appropriate power supply at hand). QuickJack is easy to operate anywhere: indoors and on virtually any flat surface, all without the use of anchor bolts.
Operation
Second, QuickJack would have to be as easy to use as a full-sized car lift without taking up a lot of space. Since this is what floor jacks and jack stands accomplish, in order to be successful, our hydraulic lift would have to be safer, faster and easier to use on a daily basis. It would also need to offer complete access to the vehicle's undercarriage.

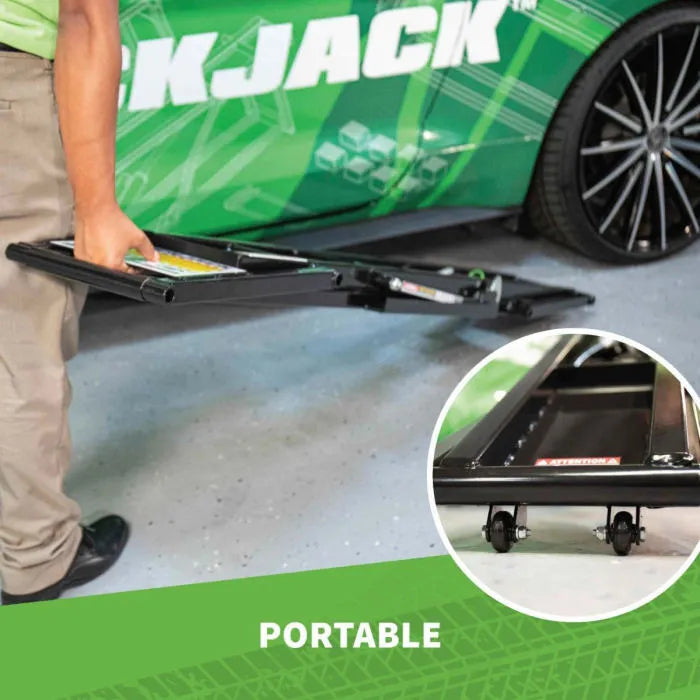

Storage
Last, QuickJack would need to be easy to take out of storage and to put away. It would need to be heavy-duty enough to lift most consumer vehicles yet light enough to glide on built-in wheels. If necessary, an operator should be able to carry the frames to and from the desired work area.
Never Buy Cheap Lifts
There are full-size car lift options out there for under $1,500. But should you trust them? You're sacrificing a lot when you pay that little for something so important. We'll break down what you're getting and why you should reconsider before making an investment you might come to regret.
QuickJack... or Car Lift?
When we talk about QuickJack as a portable car lift, we compare it to car jacks and jack stands. QuickJack is not meant to replace two-post lifts or four-post lifts. If you're in the market for a full-size car lift, you need room around the lift to spare. Living situations factor into whether you want something permanent or portable.
QuickJack is the average car guy's or gal's dream. It's fast and safe, and it's essentially zero-footprint when stowed away. If you want a full-sized car lift, our parent company BendPak makes the safest, most rugged car lifts you're going to find.
Features & Specs
Features

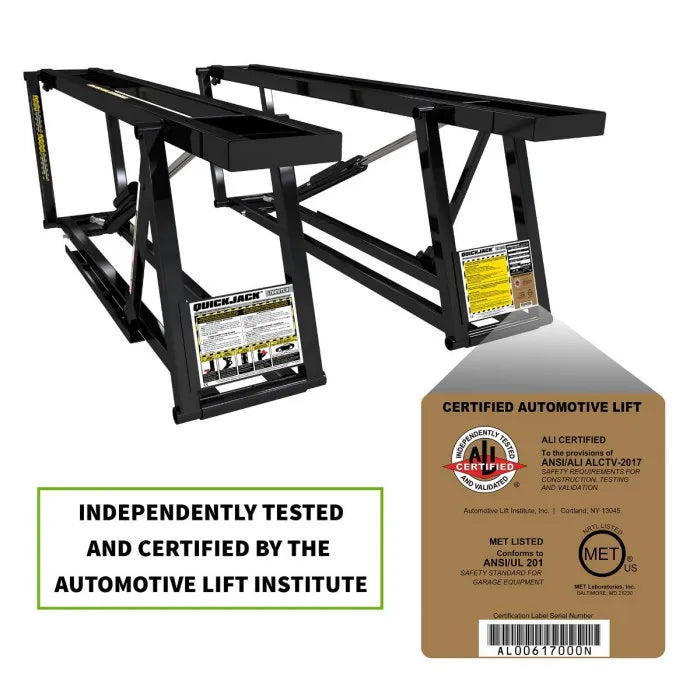

- 7,000 lbs. Capacity ALI Certified
- From Stow To Go In Less Than 60 Seconds
- Dual-Position Automatic Safety Lock Bars Engage Automatically As The Lift Rises
- Dual Locking Positions - Mid Level And Full Rise
- Extended, Cantilevered Rubber Block Trays Provide Increased Rubber Block Reach

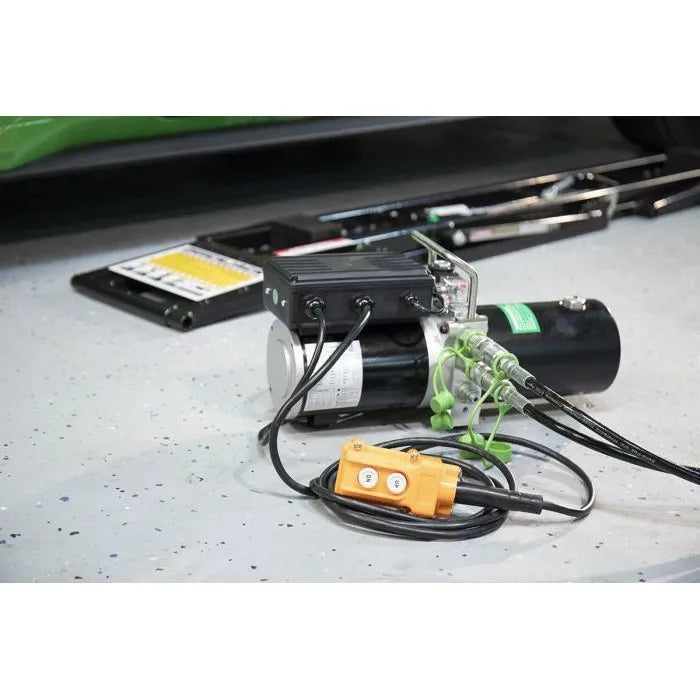

- Portable Power Unit Features A Remote Push-Button Control For Simple Operation
- Steel Mounted UHMW Wheels Provide Effortless Rolling Of Jack Frames On Floor
- Remote Pendant Control Features A 13-Foot Cord
- Power Unit Features A Built-In Hydraulic Flow Divider For Precise Equalized Lifting
- Open-Center Design For Clear Under Car Access

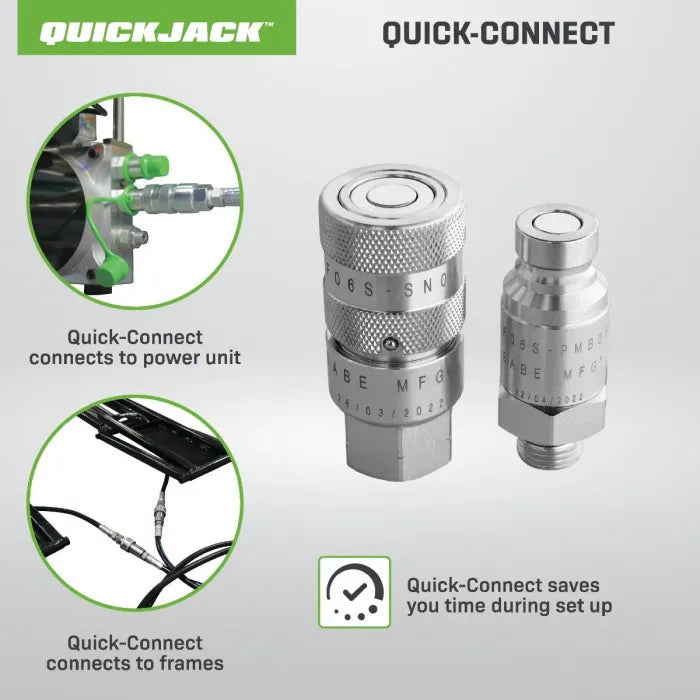

- Quick-Connect/Disconnect Hoses For Fast And Convenient Set-Up

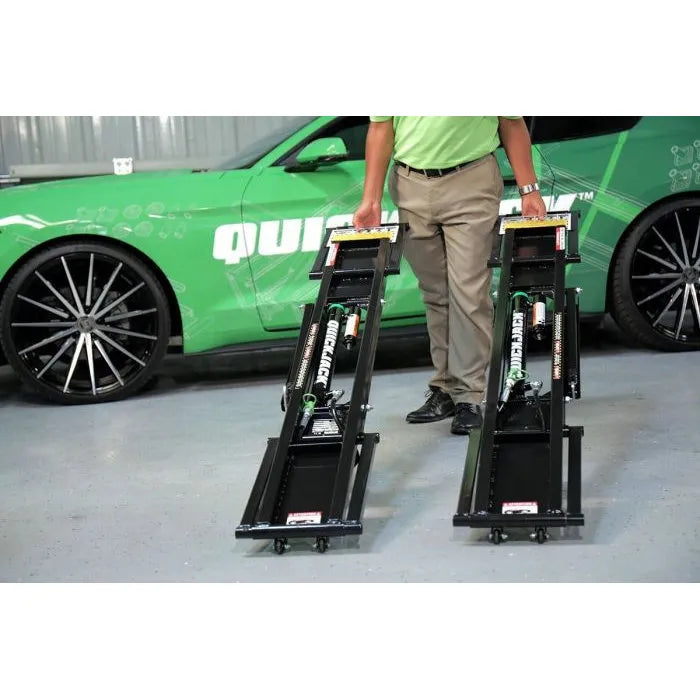

- Convenient Handles Allow For Easy Positioning Of The Jack Frames
- Strong 14-Gauge Welded Steel Frames
- It's A Jack You Can Use When You Need It Then Conveniently Store Out Of The Way
- Provides Quick Wheels-Free Convenience For Brake And Tire Service And Clear Undercarriage Access Of All Types Of Vehicles
- Low-Profile Jack Frames Fit Under Most Race Cars
- Powerful Hydraulic Cylinders Eliminate The Need For Screw Mechanisms
- Integrated Power-Assist Canisters Increase The Lowering Speed
- Hydraulic Cylinders Feature Integrated Velocity-Fuse Safety Valves
- A Convenient Metal Carrier With Handle Keeps The Power Unit Protected And Easily Mobile
- Includes An Eight Piece Set Of Adjustable And Stackable Rubber Lift Blocks To Support Cars At Precise Locations For Increased Stability And Safety
- Detailed Installation, Maintenance And Safety Instructions Accompany Each Quickjack System
- Durable Powder Coat Finish

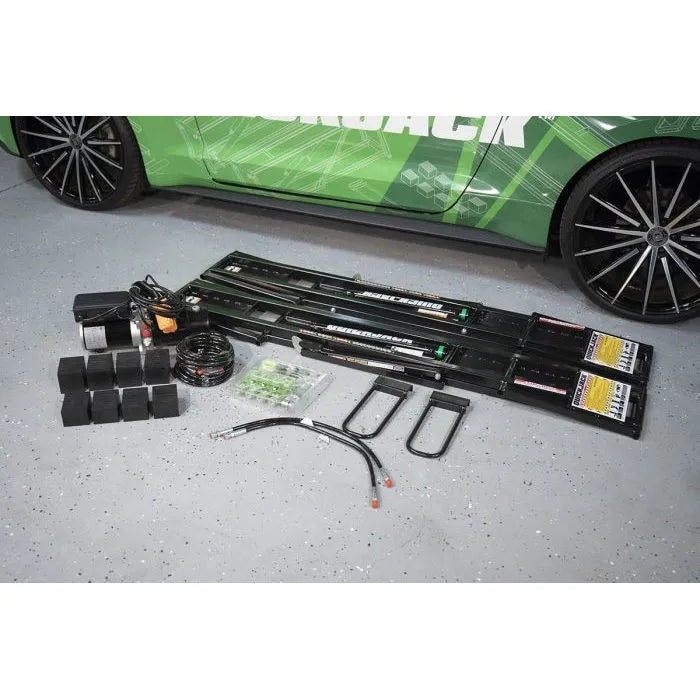

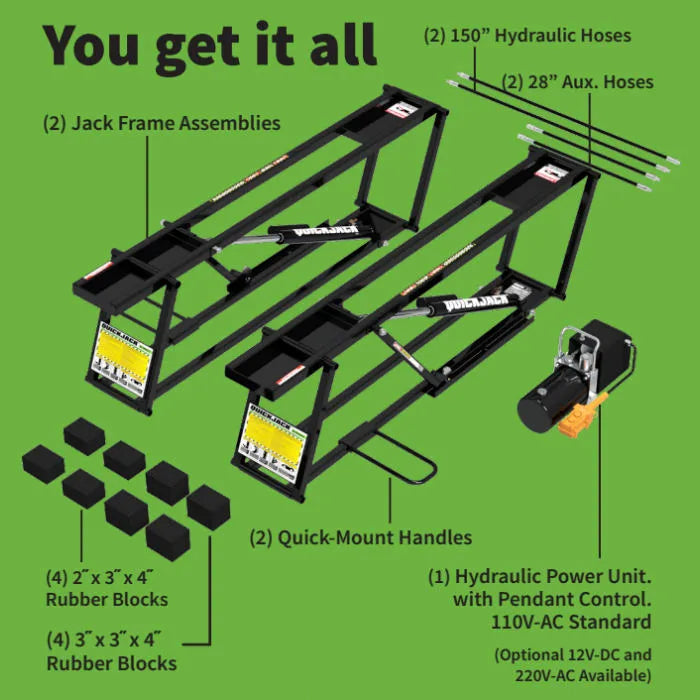

What's Included
- 7000TLX Left Frame Assembly
- 7000TLX Right Frame Assembly
- 1x Hydraulic Power Unit With Control
- 4x Medium Rubber Lift Blocks (2")
- 4x Tall Rubber Lift Blocks (3")
- 2x Short Hydraulic Hoses
- 2x Long Hydraulic Hoses
- 2x Frame-Positioning Handles
- Fittings And Thread Tape For Setup
- Instruction Manual
Requirements
- (3) Liters Of Automatic Transmission Fluid
- Air Source To Inflate Air Cylinders Up To 50 PSI
- Assembly Tools

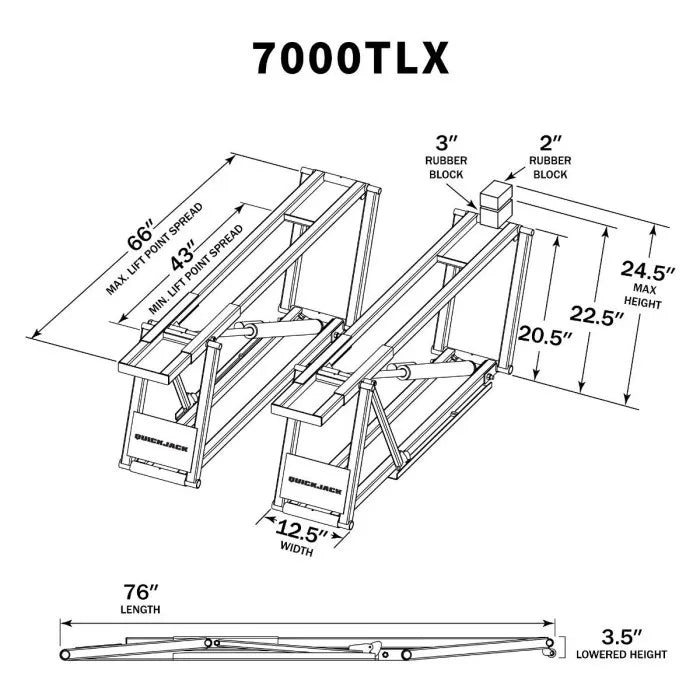

Specifications
| Model Number | BL-3500SLX | 5000TL | 5000TLX | 7000TL | 7000TLX | 6000ELX |
|---|---|---|---|---|---|---|
| Lifting Capacity | 3,500 lbs. | 5,000 lbs. | 5,000 lbs. | 7,000 lbs. | 7,000 lbs. | 6,000 lbs. |
| A - Lowered Height (Frame Only) | 3" | 3" | 3" | 3.5" | 3.5" | 3.5" |
| B - Lowered Height (with 2" Block) | 3.5" | 3.5" | 3.5" | 3.75" | 3.75" | 3.75" |
| D - Lifting Height (with 2" Block) | 17.5" | 21" | 21" | 21.5" | 21.5" | 21.5" |
| E - Lifting Height (with 3" Block) | 18.5" | 18.5" | 22" | 22" | 22.5" | 22.5" |
| F - Max. Height | 21" | 24" | 24" | 24.5" | 24.5" | 24.5" |
| G - Lifting Height (with Adapters) | N/A | 24" | 24" | 24.25" | 24.25" | 24.25" |
| G - Lifting Height (with Adapters + Pin) | N/A | 26.75" | 26.75" | 27" | 27" | 27" |
| I - Lift Point Spread (Max) | 50.5" | 60" | 66" | 60" | 66" | 76" |
| J - Lift Point Spread (Min) | 27" | 37" | 43" | 37" | 43" | 53" |
| K - Frame Width | 10.5" | 11" | 11" | 12.5" | 12.5" | 12.5" |
| L - Frame Length | 62.5" | 70" | 76" | 70.75" | 76" | 86.75" |
| Frame Weight | 60 lbs. | 78 lbs. | 81.5 lbs. | 98 lbs. | 103 lbs. | 112 lbs. |
| Time To Full Rise | 30 seconds | 30 seconds | 30 seconds | 30 seconds | 30 seconds | 30 seconds |
| Power Unit Weight | 15 lbs. | 15 lbs. | 15 lbs. | 15 lbs. | 15 lbs. | 15 lbs. |
| Total Shipping Weight | 180 lbs. | 240 lbs. | 250 lbs. | 280 lbs. | 304 lbs. | 318 lbs. |
- Warranty: (1) Year Limited
QuickJack Warranty Statement
Standard Warranty
Duration: From the date of purchase by the original Purchaser or 12 months from the date of shipment or whichever comes first.
- One-Year (12-Month) Warranty on equipment structure*
- One-Year (12-Month) Warranty on operating components
- One-Year (12-Month) Free Shipping** on ground-freight charges related to warranty performance
Optional Extended Warranty
Duration: From the date of purchase by the original Purchaser or 24 months from the date of shipment or whichever comes first.
- Two-Year (24-month) Warranty on equipment structure*
- Two-Year (24-Month) Warranty on operating components
- Two-Year (24-Month) Free Shipping** on ground-freight charges related to warranty performance
* Equipment structure is defined as any non-moving permanently affixed frame or main body, or sub-structures that are non-moving and permanently affixed or attached to any main equipment structure or frame.
** Free-shipping applies to direct shipping points within the 48 continental United States. Rural area shipping surcharge may apply for remote addresses.
Limitation of Liability
QuickJack shall have no obligation pursuant to this Warranty with respect to products which in our sole judgment have been altered damaged, misused, abused, badly worn, lost or improperly maintained. This Warranty is null and void if the customer or any other person other than an authorized representative of QuickJack has made any attempt to service or modify the tool prior to its return to QuickJack under this Warranty. In no event will either party be liable for any damage caused by the other party's failure to fulfill its responsibilities under these terms and conditions. In no event will either party be liable for any lost profits, lost savings, incidental damage, or other economic consequential damages QuickJack products are provided and sold as is without any express or implied warranties including warranties of merchantability or fitness for particular purpose. No warranties, expressed or implied, will apply after this period. QuickJack may modify these terms and conditions at any time by either providing the customer with written notice or posting such revised terms on www.quickjack.com. Such revised terms shall be effective thirty days from the date of such written notice or posting.
