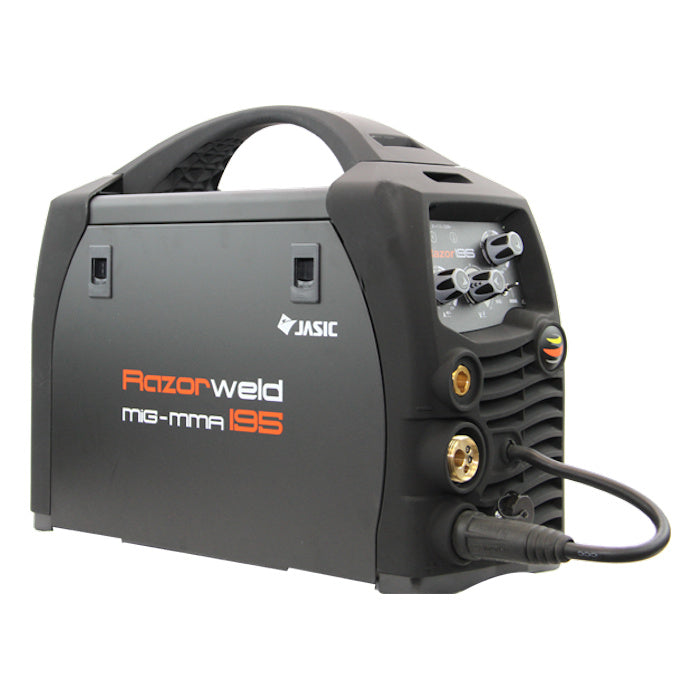

Razorweld Dual Voltage MIG Stick TIG Welder 195Amp

Out Of Stock SKU TITPLKUMJRRW195 UPC 680474943661

OUR PRICE: $1,958.00

Regular Price: $2,059.00

$54.38 / mo
INCLUDES FREE SHIPPING*
asedeals.com widget logo

Short Description

Razorweld Dual Voltage MIG Stick TIG Welder 195Amp
KUMJRRW195
The Razorweld Dual Voltage MIG Stick TIG Welder is a new inverter-based portable MIG welding machine with added ARC & TIG function. The MIG function allows you to weld with both Gas Shielded and Gas-less wire applications. Easy step-less adjustment of voltage and wire feed make for easy setting of welding parameters giving excellent, professional welding results. Wire Inch gives easy feeding of the wire during set up without gas waste and the Burn Back adjustment leaves the wire out ready for the next weld. ARC welding capability delivers easy electrode welding with high quality results, including cast iron, stainless, and low hydrogen. This is an industrial machine that is both lightweight and portable. Being Dual Voltage single phase gives great versatility. Ideal for general engineers, contractors, maintenance workshops and rural workshop. Designed and built to our specifications. A robust and quality welder - a real standout in the field. This is a big performance machine.

Description

Razorweld

Razorweld Dual Voltage MIG Stick TIG Welder 195Amp
KUMJRRW195

The Razorweld Dual Voltage MIG Stick TIG Welder is a new inverter-based portable MIG welding machine with added ARC & TIG function. The MIG function allows you to weld with both Gas Shielded and Gas-less wire applications. Easy step-less adjustment of voltage and wire feed make for easy setting of welding parameters giving excellent, professional welding results. Wire Inch gives easy feeding of the wire during set up without gas waste and the Burn Back adjustment leaves the wire out ready for the next weld. ARC welding capability delivers easy electrode welding with high quality results, including cast iron, stainless, and low hydrogen.

An additional feature is the Spool Gun ready function that allows the simple connection of the optional SPGRWA200 Spoolgun for the use of thin or softer wires that don't have the column strength to feed through standard MIG torches, such as aluminum wire. This is an industrial machine that is both lightweight and portable.

Being Dual Voltage single phase gives great versatility. Ideal for general engineers, contractors, maintenance workshops and rural workshop. Designed and built to our specifications. A robust and quality welder - a real standout in the field. This is a big performance machine.

PURE WELDING PERFORMANCE

The Razorweld 195 MIG/STICK/TIG machine is the ideal machine for light industrial and panel work. The machine is lightweight and portable and perfect for site work. The MIG function provides superb arc characteristics when using either Gas Shielded or Gasless Wires. The machine features an adjustable Burnback control and easy to use panel layout to get your job done faster.

The machine is also a very capable MMA (Stick) welder capable of running most MMA Electrodes up to 5/32. An added feature of Hot Start helps when striking an Arc to minimize the Electrode sticking to the workpiece.

With the machine being Spool Gun ready a Razorweld Spool Gun is available if you want to run Aluminum wire without the changeover in the torch, liner and drive roller. The Spool Gun is an ideal way to use softer wires and not have to purchase larger spools of wire for small jobs.

*Always refer to the recommended polarity setup as stated on the electrode packaging.

  • Latest IGBT Inverter Technology
  • MIG/MAG With Gas And Gasless Wire Function
  • Excellent MIG Welding With Co2 Gas & Mixed Gas
  • Euro Style MIG Torch Connection
  • Internal Wire Feeder, Gear Driven
  • Accommodates 2 lbs. To 11 lbs. Spools
  • Adjustable Burn Back
  • Spool Gun Connection
  • Stepless Voltage And Wire Feed Control
  • Wire Inch
  • DC TIG With Scratch Start Arc Ignition
  • Stick Function
  • Excellent Arc Stability
  • Hot Start - Anti Stick
  • Industrial Rated
  • Solid Case Construction
  • IP21S Rating For Environmental/Safety Protection
  • Tolerant To Variable Power Supply

Features & Specs

Features

  • Elevated Duty Cycle Produces Extensive Running And Peak Power
  • User Friendly, Lightweight And Portable
  • Built-In Handle On Unit Makes It Simple To Grab And Go
  • Cutting Edge Inverter Technology Makes Maintenance And Repair Simple And Cost Effective
  • Can Be Used With Portable Power

What's Included

  • 10ft Tweco 2 Style MIG Torch
  • 12ft Arc Welding Lead Set Including Twist Lock Electrode Holder & 300 Amp Earth Clamp
  • RazorFlow Argon Regulator
  • 230/115V Power Adapter
  • 6.5ft Gas Hose With Connections
  • Instruction Manual

Specifications

  • Primary Input Voltage: 230/115V -1 ±15%
  • Rated Input Power KVA 230V: 6 KVA
  • Rated Input Power KVA 115V: 5 KVA
  • ieff Amps 115V: 22.5A
  • ieff Amps 230V: 21.5A
  • Imax Amps 115V: 38A
  • Imax Amps 230V: 36A
  • Rated Output STICK: 195A / 28.0V ARC
  • Rated Output MIG: 195A / 28.0V ARC
  • Welding Current Range: 30 - 200 Amps
  • Load Voltage: 53V
  • Duty Cycle @ 104°F MIG: 35% @ 195 Amps 230V
  • Duty Cycle @ 104°F STICK: 35% @ 195 Amps 230V
  • Duty Cycle @ 104°F TIG DC: 35% @ 195 Amps 230V
  • Protection Class: IP21S
  • Compliance: CAN/CSA E60974-1
  • Compliance: ANSI/IEC 60974-1
  • Dimensions: 19.1" x 7.3" x 14.6"
  • Weight: 28.4 lbs.
  • Warranty: (3) Years Material and Workmanship

Optional Accessories

  • 15ft Tweco 2 Style MIG Torch
  • WP17V35/50 TIG Torch
  • 19ft 200 Amp Spool Gun
  • RWX5000 Automatic Welding Helmet
  • RWX7000 Automatic Welding Helmet

Accessories/Options
