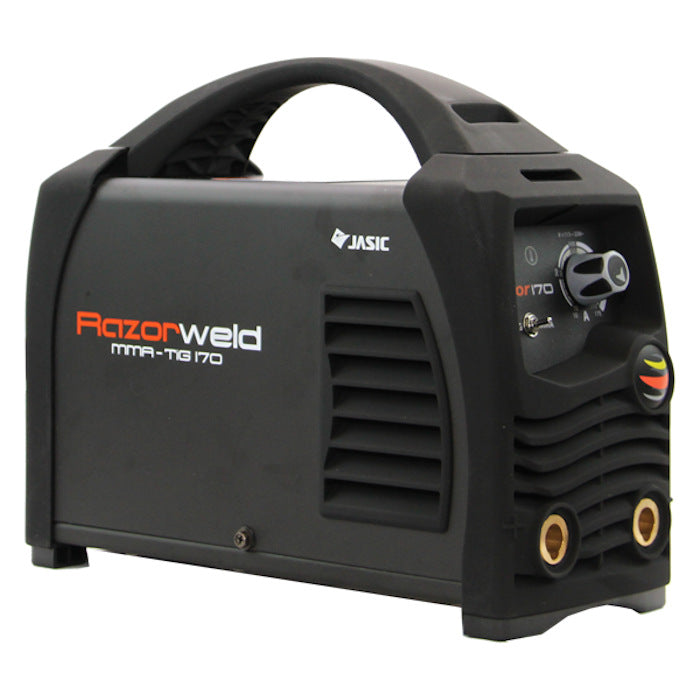

Razorweld Dual Voltage Stick TIG Welder 170Amp

In Stock SKU TITPLKUMJRRW170CA UPC 680474943753

OUR PRICE: $800.00

Regular Price: $849.00

INCLUDES FREE SHIPPING*
asedeals.com widget logo

Short Description

Razorweld Dual Voltage Stick TIG Welder 170Amp
KUMJRRW170CA

The Razorweld Dual Voltage Stick TIG Welder is an inverter-based welding machine produced using the latest in IGBT technology. This machine is reliable, robust and stacked with features that you can expect from Razorweld. The DC Stick welding capability delivers a smooth and incredibly stable arc allowing easy welding with Stick electrodes producing high-quality welds on material such as cast Iron, stainless steels and mild steels.

Description

Razorweld

Razorweld Dual Voltage Stick TIG Welder 170Amp
KUMJRRW170CA

The Razorweld Dual Voltage Stick TIG Welder is an inverter-based welding machine produced using the latest in IGBT technology. This machine is reliable, robust and stacked with features that you can expect from Razorweld. The DC Stick welding capability delivers a smooth and incredibly stable arc allowing easy welding with Stick electrodes producing high-quality welds on material such as cast Iron, stainless steels and mild steels.

The Razorweld ARC170 is equipped with DC Lift TIG Arc function that allows quality DC TIG welding of mild steel, stainless steel, bronze, copper, and chrome moly. The Lift Arc function is superb and delivers perfect arc ignition which minimizes the tungsten electrode sticking to the workpiece, a remarkably smooth stable arc produces high-quality TIG welds for a high-quality finish.

The Razorweld ARC170 is an exceptional machine that is suitable for a wide range of applications including light industrial use, site welding, farming, along with repair and maintenance applications. The Razorweld Arc170 is packaged in a robust PVC carry case with your choice of MMA option accessories or STICK/TIG option accessories.

This is an exceptional cost effective machine is suitable for a wide range of applications including, DIY, light industrial, site welding, farming, along with repair and maintenance applications. The RAZOR 170 gives you the best of both worlds, great portability, with the power to get the job done.

Built to our specification and manufactured in compliance to AS/NZ60974.1

  • Latest IGBT Inverter Technology
  • Hot Start (Improves Electrode Starting)
  • Arc Force (Boosts Current To Prevent Electrode Extinguishing)
  • Excellent Arc Stability With All Electrodes
  • Lift Arc Ignition (Prevents Tungsten Sticking During Arc Ignition)
  • Ultra-Smooth DC TIG Welding Current
  • Thermal Overload Protection
  • Generator Compatible (Recommend 9.0 KVA Minimum)
  • Tolerant To Variable Power Supplies

Features & Specs

Features

  • Elevated Duty Cycle Produces Extensive Running And Peak Power
  • User Friendly, Lightweight And Portable
  • Built-In Handle On Unit Makes It Simple To Grab And Go
  • Cutting Edge Inverter Technology Makes Maintenance And Repair Simple And Cost Effective
  • Can Be Used With Portable Power

What's Included

  • Razorweld ARC 170 DC MMA/TIG Power Source
  • 12ft Arc Welding Lead Set Including Twist Lock Electrode Holder & 300 Amp Earth Clamp
  • 230/115V Power Adapter
  • Lightweight Heavy Duty PVC Carry Case
  • Machine Carry Strap
  • Instruction Manual

Specifications

  • Primary Input Voltage: 230/115V -1 ±15%
  • Rated Input Power KVA: 9 KVA
  • ieff Amps 115V: 20A
  • ieff Amps 230V: 20A
  • Imax Amps 115V: 36A
  • Imax Amps 230V: 39A
  • Rated Output STICK: 170A / 26.8V
  • Rated Output TIG: 170A / 16.8V
  • Welding Current Range: 10 - 170 Amps
  • No Load Voltage: 63V
  • Duty Cycle @ 104°F STICK: 30% @ 170 Amps
  • Duty Cycle @ 104°F TIG: 35% @ 170 Amps
  • Protection Class: IP21S
  • Compliance: CAN/CSA E60974-1
  • Compliance: ANSI/IEC 60974-1
  • Dimensions: 12.32" x 5.11" x 9.84"
  • Weight: 33 lbs.
  • Warranty: (3) Years Material and Workmanship
