Rotary R501PLUS Super Fast Truck Tire Changer

Name: Rotary R501PLUS Super Fast Truck Tire Changer
Brand: ASEDeals
SKU: R501PLUS
Price: 23282.0 USD
Availability: InStock

In Stock SKU R501PLUS

OUR PRICE: $23,282.00

Regular Price: $24,449.00

$646.72 / mo

INCLUDES FREE SHIPPING*

Short Description

Rotary R501PLUS Super Fast Truck Tire Changer
Heavy-Duty Speedchanger

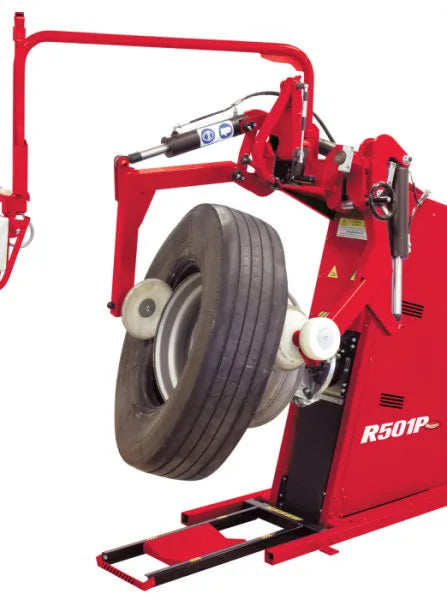

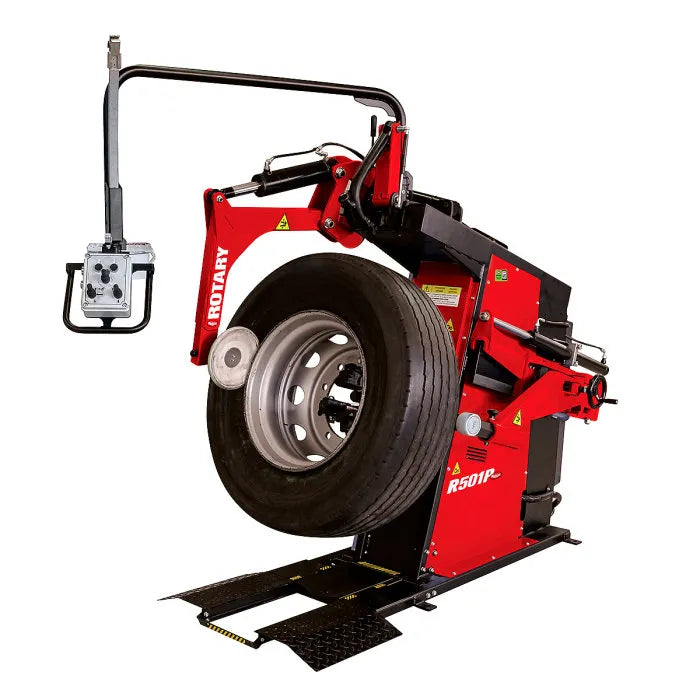

Rotary's R501PLUS Super Fast Truck Tire Changer is one of a kind. With it's patented operating system and distinctive design, the changer is equipped with four rollers positioned on both sides of the wheel in diametrically opposite positions. With this system, the dismounting of the tire is a simple operation: while the front bead breakers keep the bead in the drop center, the rear breakers continue their course until the dismounting is complete. The bead-breakers are supported by two separately controlled arms and each has two rollers: one conical which pushes on the bead, and one cylindrical which pushes on the side of the tire.

Description

Rotary Wheel Service Equipment

Rotary R501PLUS Super Fast Truck Tire Changer
Heavy-Duty Speedchanger

Rotary's R501PLUS Super Fast Truck Tire Changer is one of a kind. With it's patented operating system and distinctive design, the changer is equipped with four rollers positioned on both sides of the wheel in diametrically opposite positions. With this system, the dismounting of the tire is a simple operation: while the front bead breakers keep the bead in the drop center, the rear breakers continue their course until the dismounting is complete. The bead-breakers are supported by two separately controlled arms and each has two rollers: one conical which pushes on the bead, and one cylindrical which pushes on the side of the tire.

DISMOUNT AND MOUNT A TRUCK TIRE IN 30 SECONDS!

QUICK LOADING
Raise or lower the wheel clamps depending on the wheel diameter with hydraulic height positioning.

HYDRAULIC CLAMPING

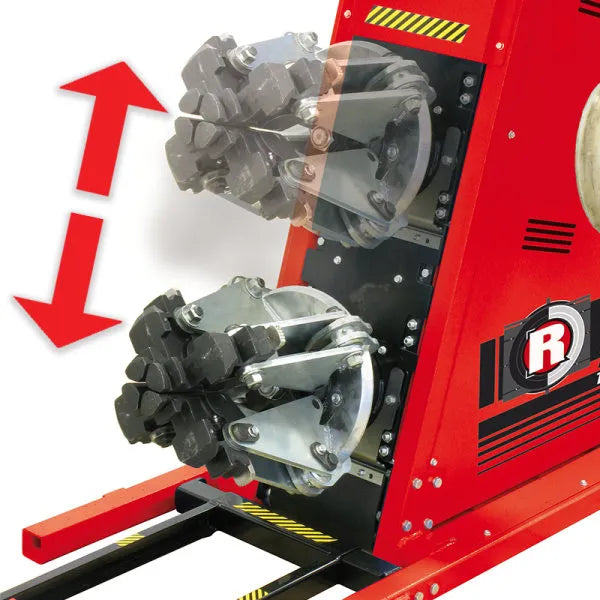

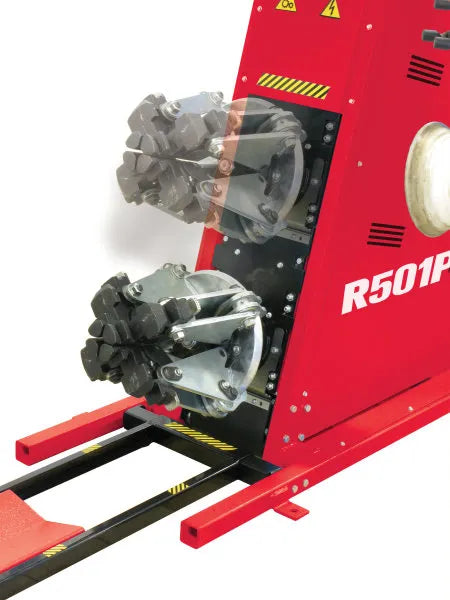

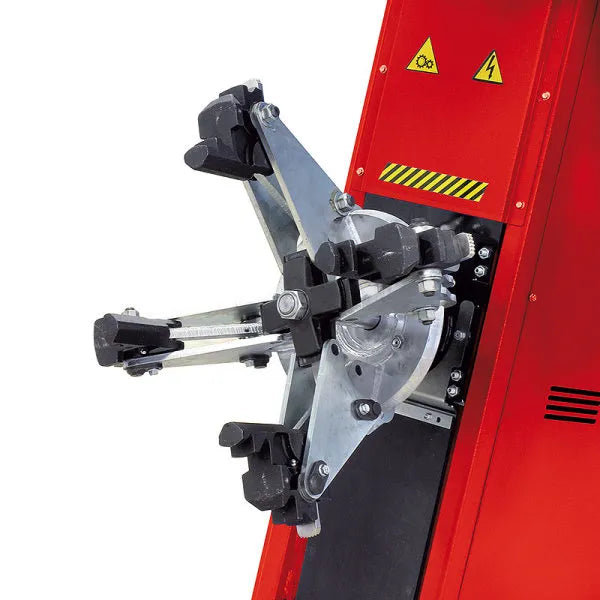

Hydraulic clamping firmly secures the wheel to the tire changer. 4" Minimum Clamping, 13" Minimum Height. Designed to clamp a variety of wheels, the chucking unit is able to move clockwise, counter-clockwise, and up and down.

HYDRAULIC CONTROLS
Hydraulic controls function from an ergonomic console with adjustable arm positioning.

SAFE PLASTIC ROLLERS

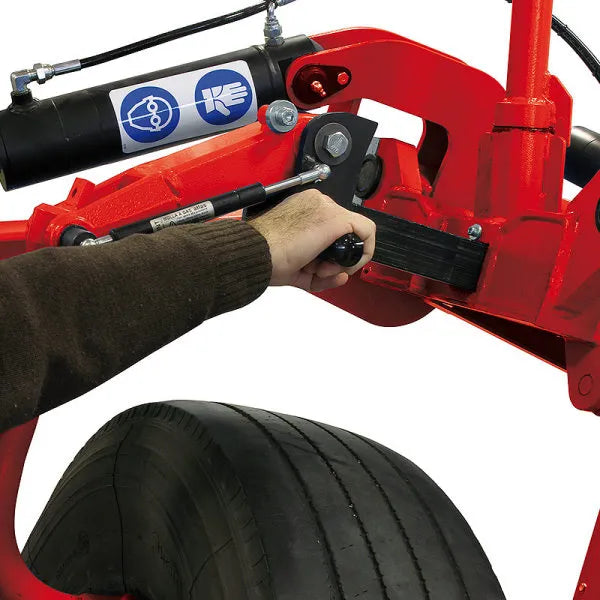

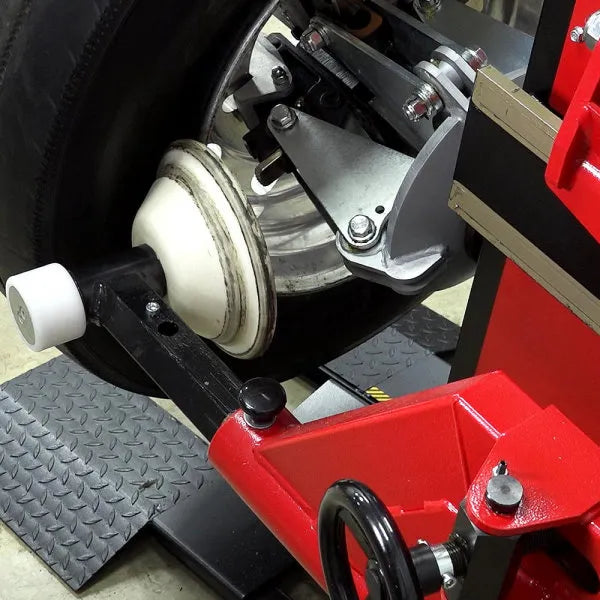

Plastic bead breakers prevent damage to the rim. Adjustable arm positioning allows easy movement of bead breaker to lower drop center in front of the tire. Speedy removal of tire with front and back bead breakers. Quick mounting of a tire to the wheel with the patented bead lever. Aluminum rim protection using attachable braces on hydraulic clamps.

Features & Specs

Features

Super Fast Truck Tire Changer
Quick Loading
Dismount and Mount a Truck Tire in 30 Seconds
Adjustable Arm Position
Hydraulic Chucking / Clamping Table
Hydraulic Height Positioning
Speed Mounting
Speed Demounting
Safe Plastic Rollers
Stand-By Function

Standard Equipment

(4) Standard Clamp Protectors
Tire Lever
Tire Paste Lubricant and Brush
Ships with NEMA L6-20P Plug

Specifications

Chucking Unit Rotation Motor: 2.7 Hp / 2 kW
Hydraulic Drive Unit Motor: 2 Hp / kW 1.5
Maximum Tire Diameter: 52" (1320mm)
Maximum Wheel Width: 21.2" (540mm)
Bead Breaker Power: 13,300 Ft/lbs. 18,000 N
Maximum Wheel Weight: 2.645 lbs. (1200 kg)
Chuck Rotation Speed: 8 Rev/Min
Maximum Torque to Chuck: 585 Ft/lbs. 2,600 Nm
Power Supply: 220v / 3Ø / 60 Hz
Weight: 1,240 lbs. (562 kg)
Machine Warranty: (3) Years Functional, (1) Year Labor
