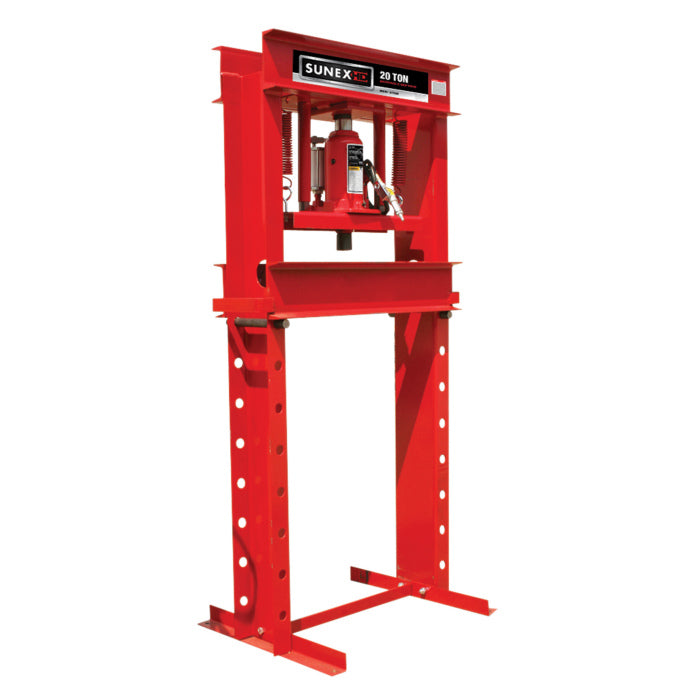

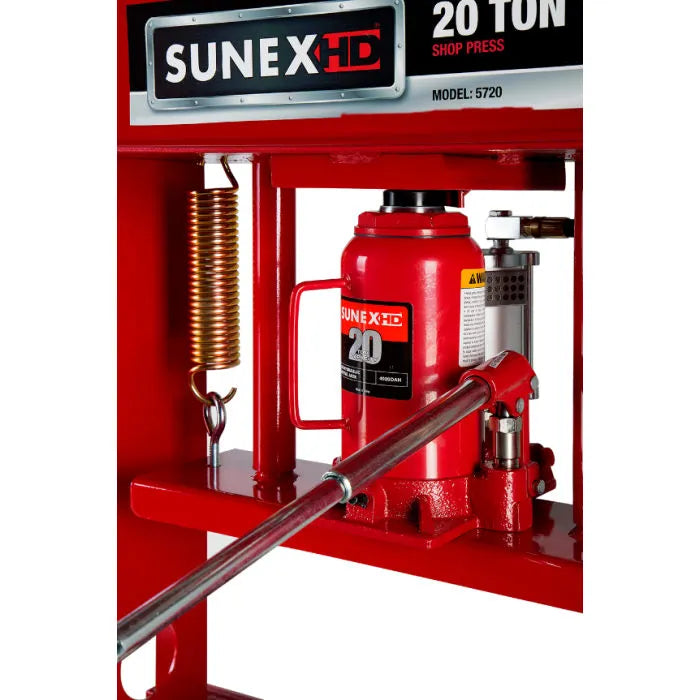

Sunex 5720AH 20-Ton Air Hydraulic Shop Press

Features & Specs

Features

• 20 Ton Manual Hydraulic Press
• Ideal for Straightening and Bending
• Ideal for Removing / Installing Gears, Bearings and Bushings
• Fully Welded Design for Superior Durability and Strength
• Includes 3 Piece Punch Kit
• Includes Bed Plates and Bearing Shield
• Made in USA

Specifications

• Capacity (Tons): 20
• Piston Stroke: Manual
• Overall Height: 64.5"
• Base Width: 26"
• Vertical Throat Opening: 1.5" to 34"
• Throat Width: 6"
• Ram Stroke: 6"
• Ram Diameter: 2"
• Cylinder Bore: 3"
• Frame Dimensions: 57.75" x 34.5" x 11.5"
• Weight: 265 lbs.
• Warranty: 1 Year
