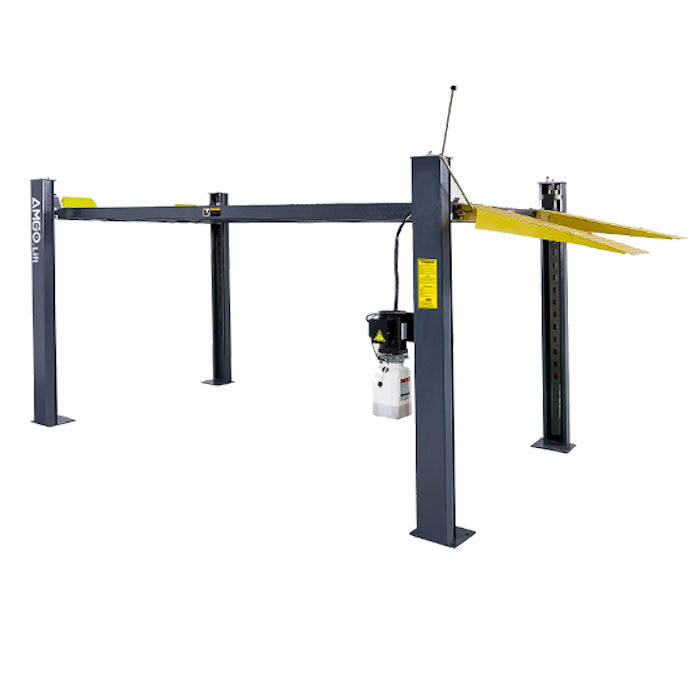

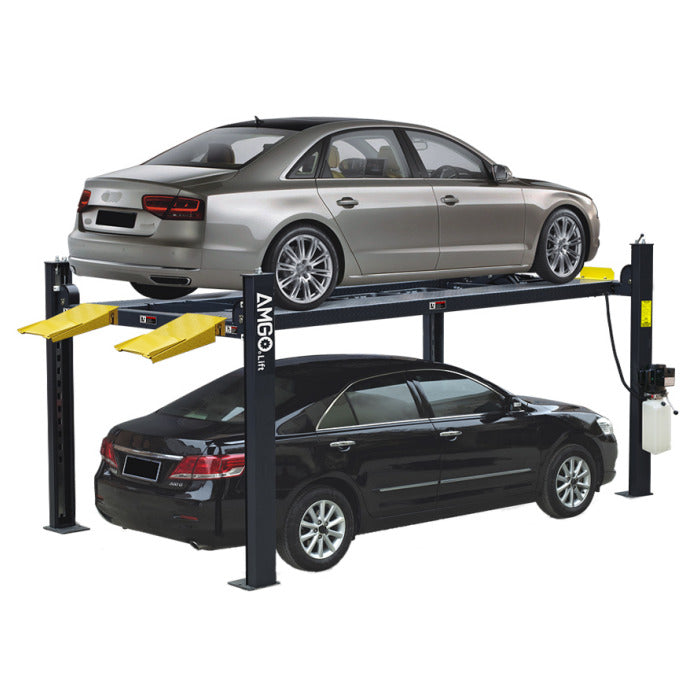

AMGO 407-P Four Post Parking Lift

Features & Specs

Features

• 7,000 lbs. Lifting Capacity
• AMGO Exclusive Hidden Safety Locks

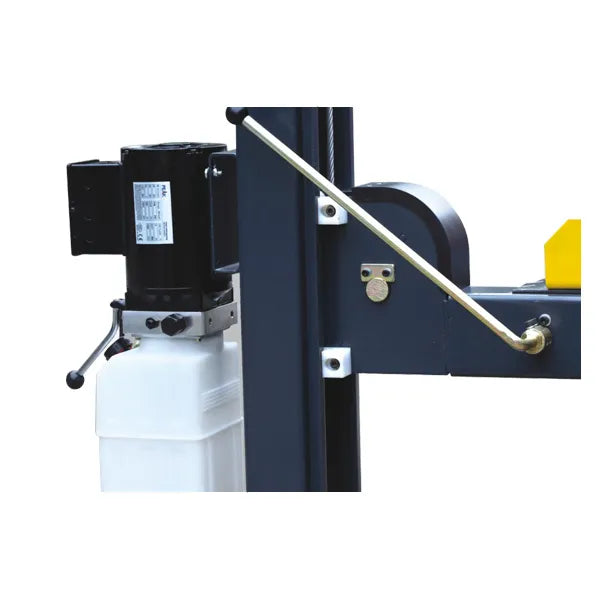

• Manual Single-Point Lock Release

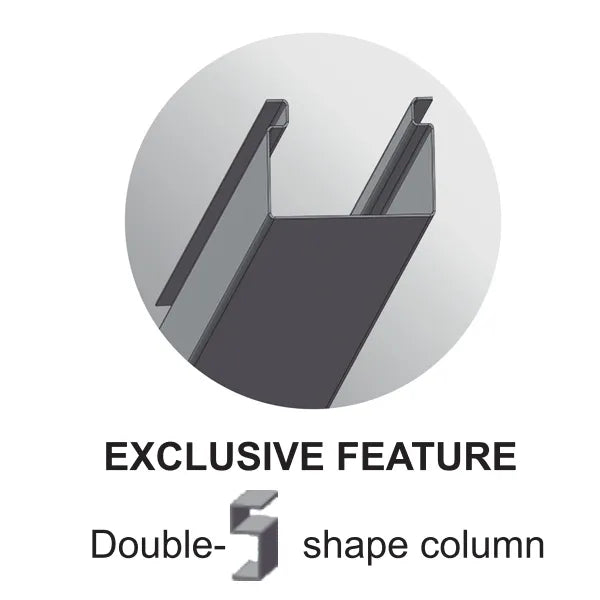

• Double-S Shaped Columns for Increased Strength
• Non-Slip Lifting Platform
• Flexible Design: Power Side Column can be installed at any corner
• Suitable for home garages and shops with limited floor space
• No special foundation or complicated installation
• Available in 110V or 220V

Optional Parts

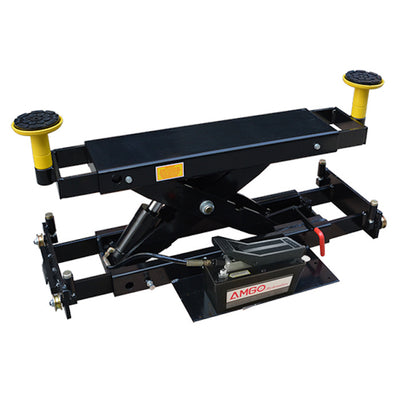

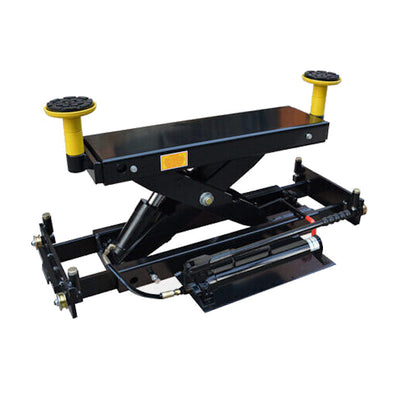

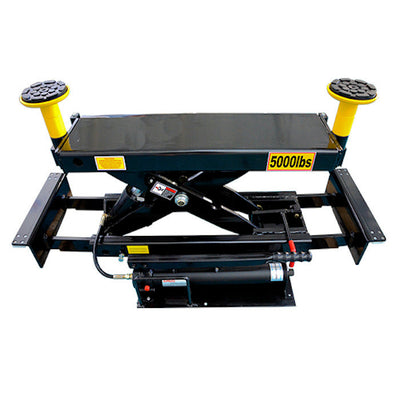

• #J5H Sliding Jack with Hand Pump

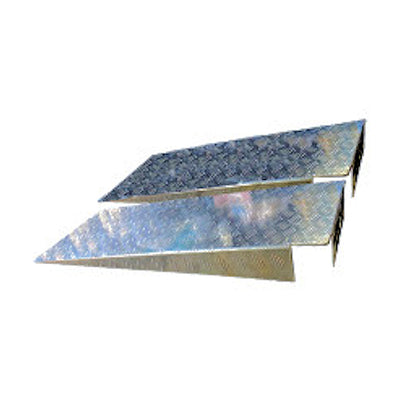

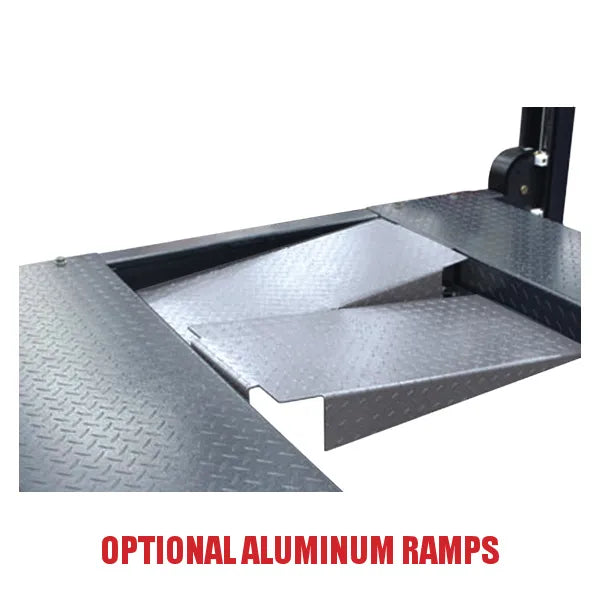

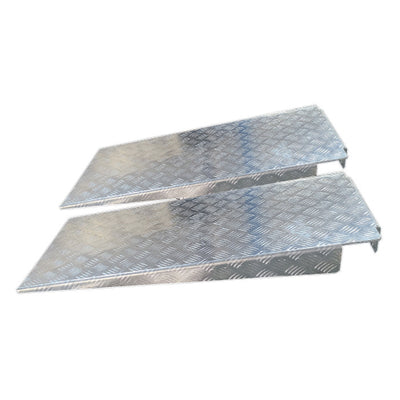

• #40803 (2) Aluminum Alloy Drive In Ramps

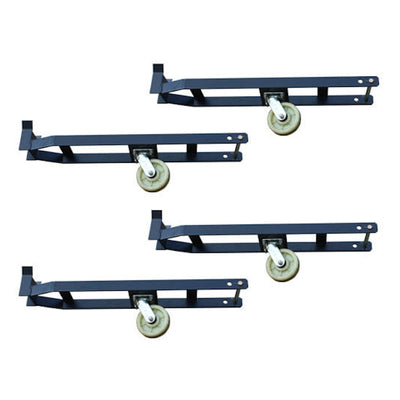

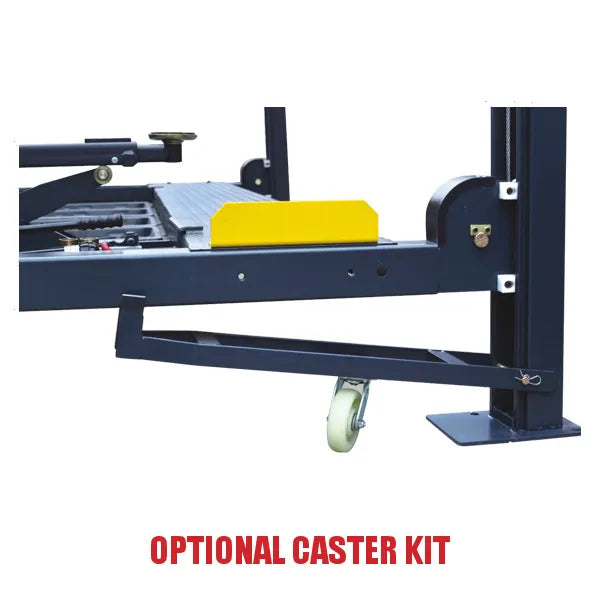

• #40801 (4) Caster Kit

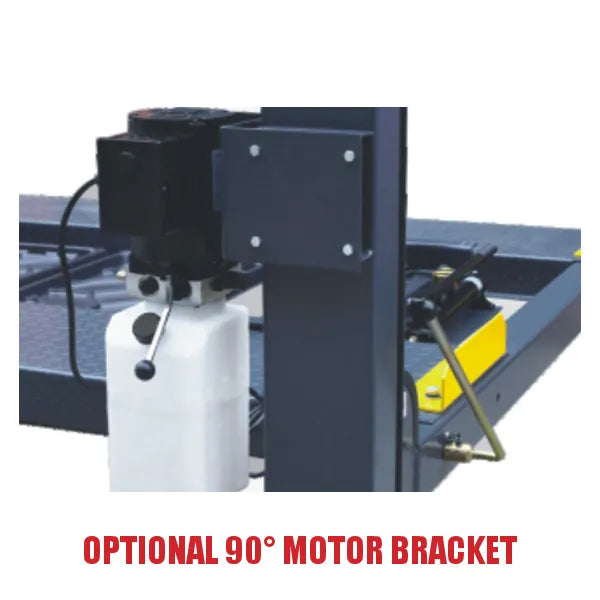

• #40802 90å¡ Installation Plate for Power Unit

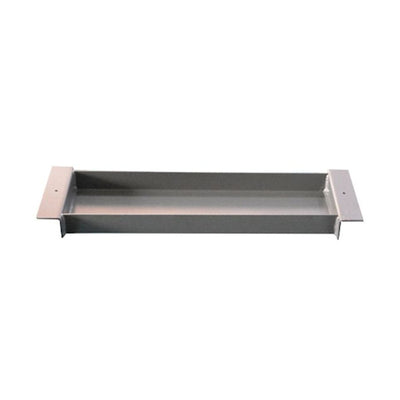

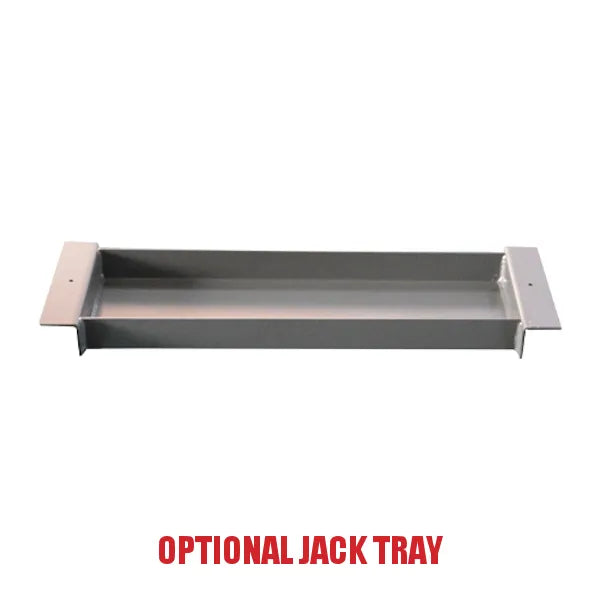

• #40808 Jack Tray Kit

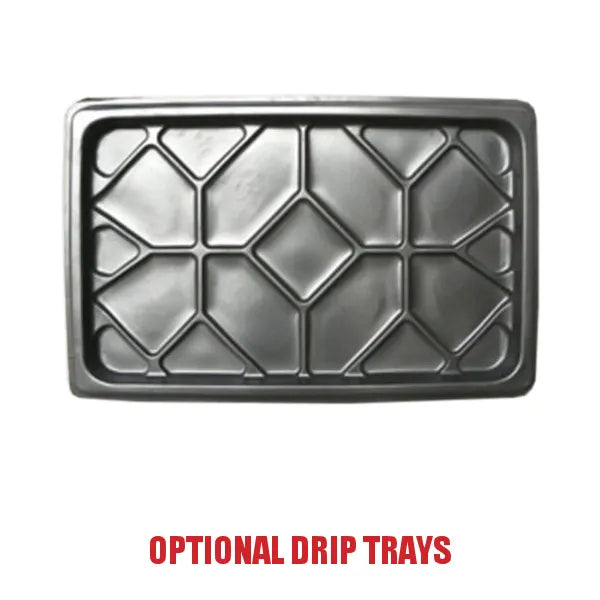

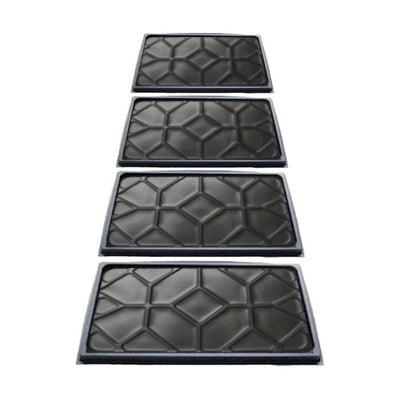

• #40806 (4) Drip Trays

Specifications

• Lifting Capacity: 7,000 lbs.
• Lifting Time: 68s (1HP 110V) / 26s (2HP 220V)
• A: Overall Length (Inc Ramps): 185 1/2" (4712mm)
• B: Overall Length (No Inc. ramps): 152" (3862mm)
• C: Overall Width: 98 3/4" (2509mm)
• D: Width Between Posts: 85 3/8" (2167mm)
• E: Max. Lifting Height: 73 3/4" (1872mm)
• F: Overall Height: 82 7/8" (2105mm)
• G: Minimum Height: 5 3/8"(135mm)
• H: Max. Underneath Height: 69 3/4" (1772mm)
• I: Drive-Thru Clearance: 77" (1956mm)
• J: Width Between Runways: 37" (940mm)
• K: Outside Edge of Runways: 74 3/8" (1890mm)
• Motor: 1HP 110V 60Hz / 2HP 220V 60Hz
• Gross Weight: 1,543 lbs. (700kg)
• Warranty: (5) Years Steel Structure, (3) Years Hydraulic Parts, (2) Years Electrical Components, No Labor

AMGO Hydraulics offers the Best Warranty in the Industry
5 Year Warranty for Steel Structure
3 Year Warranty for Hydraulic Parts
2 Year Warranty for Electrical Components

Any items received that fall into the warranty category, (inoperable, or manufacturer's defect) should be handled under manufacturer‰۪s written warranty conditions. Customer should call AMGO Hydraulic Corporation to have us troubleshoot problem by phone first. Warranty conditions will be provided with all shipments. We will happily assist customers with any warranty service.

AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows: 1. Steel Structure Components (including columns, carriages, lifting arms, topbeam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate, etc.) Warranty for Five (5) Years. 2. Hydraulic Parts (including cylinders, oil seal, oil hose, fitting etc.) Warranty for Three (3) Years. 3. Other Parts (not including consumption parts such as rubber pads), electrical components, power unit have Warranty for Two (2) Years. Warranty coverage would be applicable to the 48 contiguous states. If outside the 48 contiguous states, please call AMGO Hydraulic Corporation. If warranty parts are needed, AMGO Hydraulic Corporation will send them out at our own cost at standard ground shipping rate. If customer needs parts more quickly, it will be the customer's responsibility to pay for expedited shipping charges. AMGO Hydraulic Corporation will not compensate customers for down time when their equipment is out of service. AMGO Hydraulic Corporation will not compensate customers for time lost if freight is not delivered on the date or time estimated by the freight company.
