AMGO 409-HP Four Post Parking Lift

Name: AMGO 409-HP Four Post Parking Lift
Brand: ASEDeals
SKU: 409-HP
Price: 7824.0 USD
Availability: InStock

In Stock SKU 409-HP

OUR PRICE: $7,824.00

Regular Price: $8,219.00

$217.33 / mo

INCLUDES FREE SHIPPING*

Short Description

AMGO 408-HP Commercial Grade Four PoståÊ
Parking Lift 8,000 lbs. CapacityåÊ
The AMGO 408-HP is a true space-saving powerhouse. It is the perfect service lift for shops and home car ports with limited floor space with performance maximization in mind. The 408-HP requires no special foundation or complicated installation and is about the size of a typical parking space. These features, and more, make the AMGO 408-HP one of the best commercial or private use lifts in the world. The 408-HP is the perfect choice for commercial shops or residential car ports trying to save space with a capacity of 8,000 lbs. The 408-HP shares almost the same features as the 408-P but adds an additional 14" of high lifting, making it easier to park vehicles with taller dimensions.åÊ

ALL ACCESSORIES ARE SOLD SEPARATELY åÊ-åÊOptional Parts Include:åÊSliding Jack, Aluminum Alloy Drive In Ramps, Caster Kit, 90å¡ Installation Plate for Power Unit, Jack Tray, and Drip Trays.åÊ

Description

AMGO Hydraulics

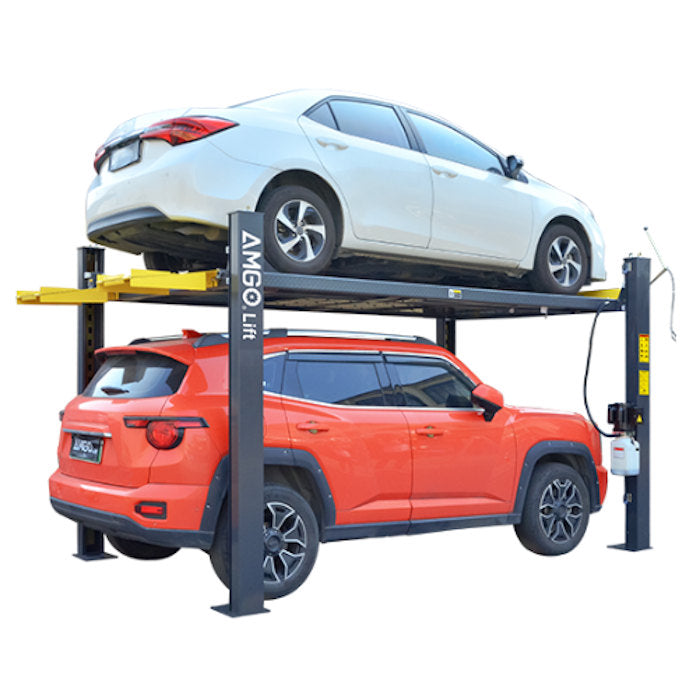

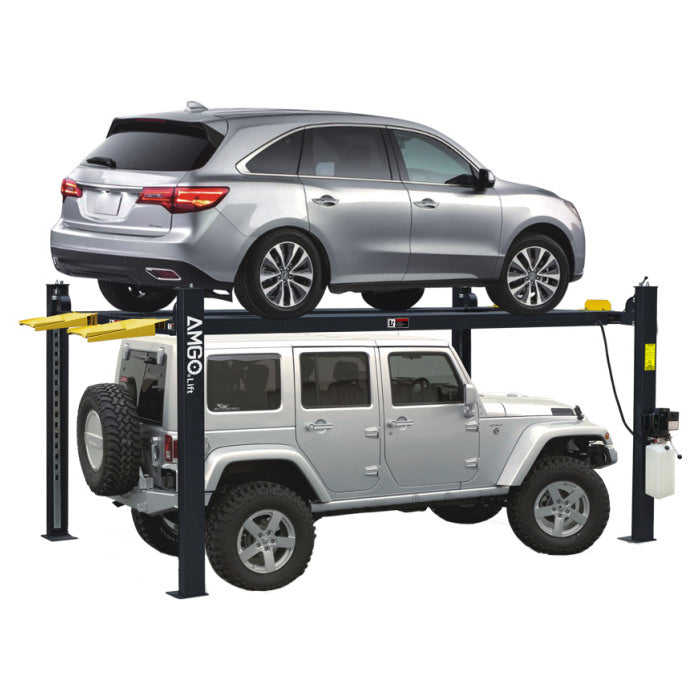

AMGO 409-HP Commercial Grade Four Post Parking Lift 9,000 lbs. Capacity

AMGO's 409-HP Commercial Grade Four Post Parking Lift for cars, vans and light trucks is similar to AMGO models 408-P and 409-P. It is longer than the 409-P, wider than the 408-P, faster than the 408-P, and more powerful than the 408-P. The 409-HP is the perfect choice for commercial garages trying to save space and maximize performance. The 409-HP requires no special foundation or complicated installation and is about the size of a typical parking space. These features, and more, make the AMGO 409-HP one of the best commercial use lifts in the world.

Features & Specs

Features

8,000 lbs. Lifting Capacity

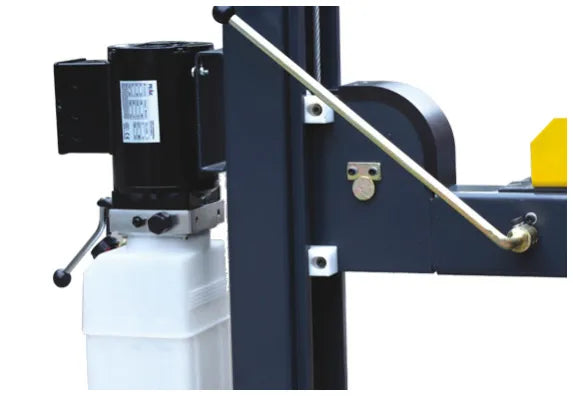

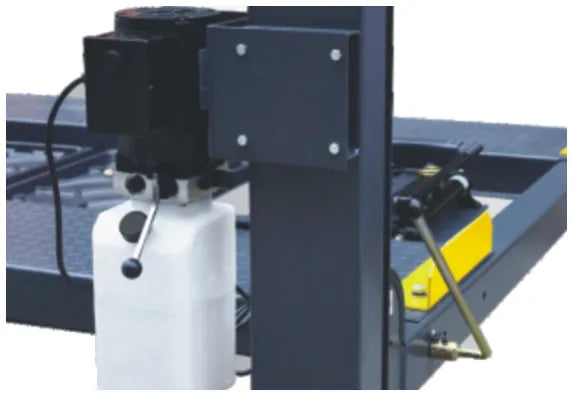

AMGO ETL Certified Power Unit Comes Standard
High Quality Cylinder Designed and Made To High Standard

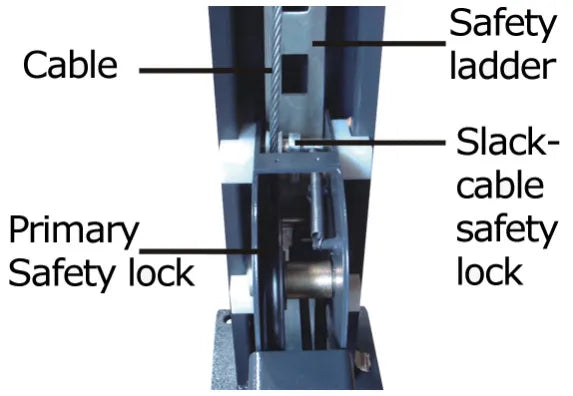

AMGO's Patented Design Concealed Safety Lock Control Device
Manual Single-Point Lock Release
Aero Standard Cables Included Standard
Double-S Shaped Columns Are Utilized To Enhance Strength
Non-Slip Platforms Come With Foldable Drive-In Ramps Standard
Support Back To Back Installation To Minimize Space Occupancy
Power Side Column Can Be Installed At Any Corner
Extremely High Lifting Is Suitable To Park Taller Vehicles For 408-HP
Pull Rope Comes Standard For 408-HP

Optional Accessories

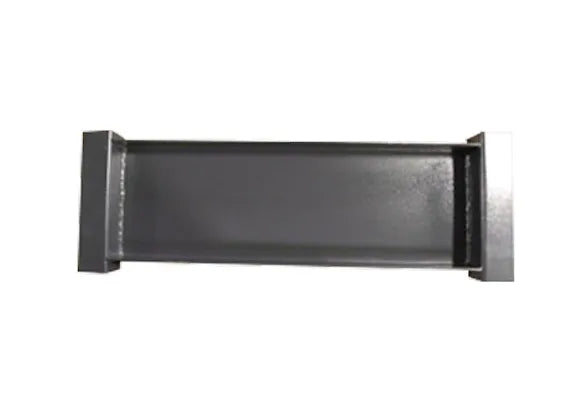

Jack Tray: No. 40808
90å¡ Motor Bracket: No. 40802

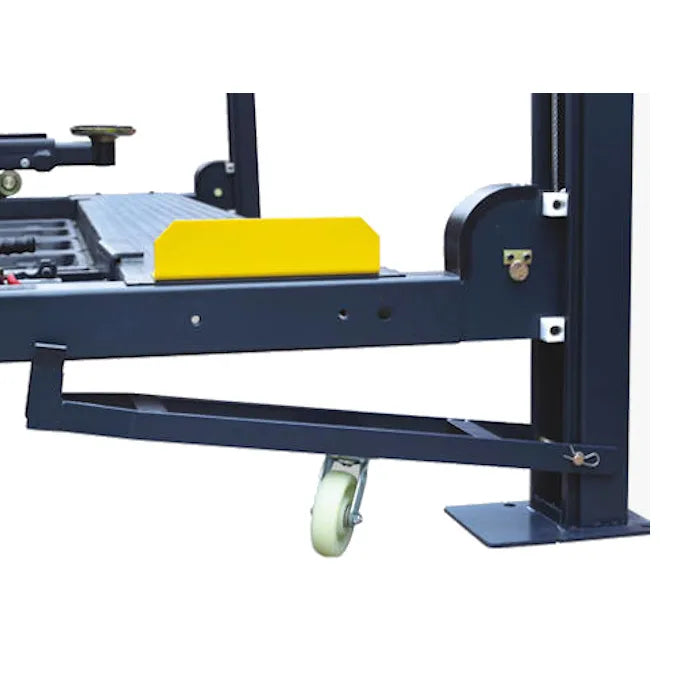

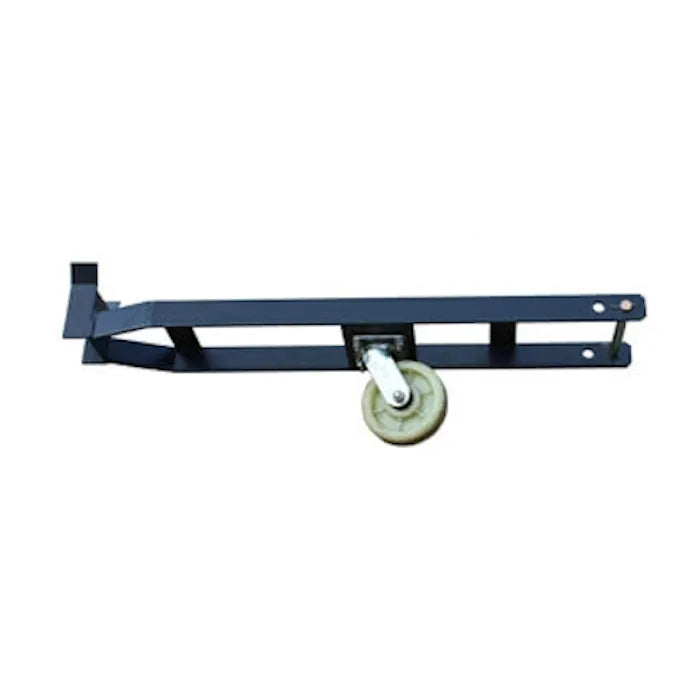

Set of (4) Caster Kit: No. 40801

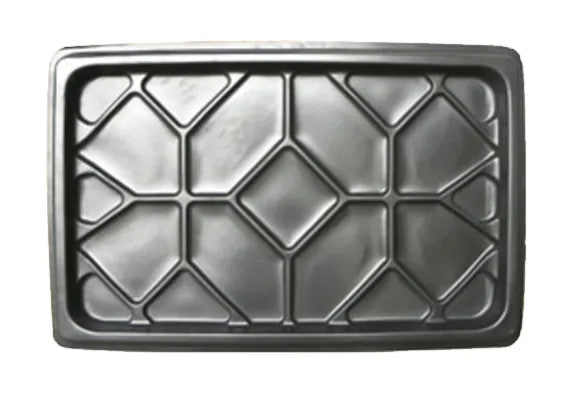

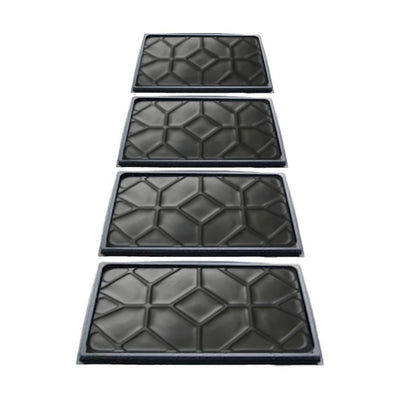

Set of (4) Plastic Oil Trays: No. 40806
Four Post LED Light Kit: No. 40103
Extra Long Aluminum Ramps: No. 40805

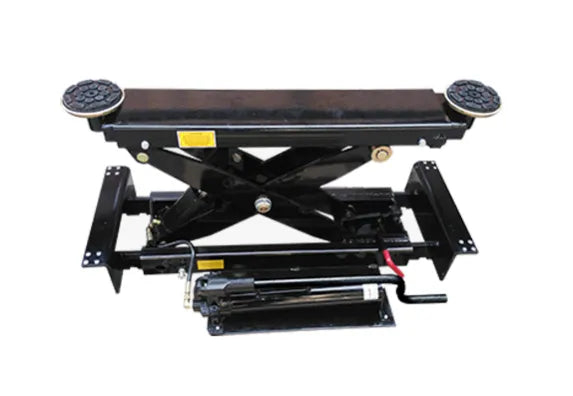

J5H Manual Rolling Jack: No. J5H

Specifications

Dimensions

Model Number	408-P	408-HP
Lifting Capacity	8,000 lbs.	8,000 lbs.
Lifting Time	98s (110V) / 40s (220V)	98s (110V) / 46s (220V)
A - Overall Length (Inc Ramps)	207 1/4"	207 1/4"
B - Overall Edge of Crossbeams	166 7/8"	166 7/8"
C - Overall Width	102 1/2"	102 1/2"
D - Width Between Posts	92 7/8"	92 7/8"
E - Max Lifting Height	73 11/16"	87 11/16"
E - Max Locking Height	70 9/16"	84 1/2"
F - Overall Height	82 7/8"	96 5/8"
G - Minimum Height	6 1/16"	6 1/16"
H - Max Underneath Height	69"	82 15/16"
H - Max Lock Underneath Runway	65 13/16"	79 13/16"
I - Drive-Thru Clearance	81 11/16"	81 11/16"
J - Width Between Runways	37"	37"
K - Outside Edge of Runways	74 3/8"	74 3/8"
110V Motor	1.0HP 110V 60Hz 1Ph	1.0HP 110V 60Hz 1Ph
2200V Motor	2.0HP 220V 60Hz 1Ph	2.0HP 220V 60Hz 1Ph
Gross Weight	1,585 lbs.	1,585 lbs.

åÊ

AMGO Hydraulics offers the Best Warranty in the Industry
AMGO Hydraulics offers the Best Warranty in the Industry
5 Year Warranty for Steel Structure
3 Year Warranty for Hydraulic Parts
2 Year Warranty for Electrical Components

Any items received that fall into the warranty category, (inoperable, or manufacturer's defect) should be handled under manufacturer's written warranty conditions. Customer should call AMGO Hydraulic Corporation to have us troubleshoot problem by phone first. Warranty conditions will be provided with all shipments. We will happily assist customers with any warranty service.

AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows: 1. Steel Structure Components (including columns, carriages, lifting arms, top beam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate, etc.) Warranty for Five (5) Years. 2. Hydraulic Parts (including cylinders, oil seal, oil hose, fitting etc.) Warranty for Three (3) Years. 3. Other Parts(not including consumption parts such as rubber pads), electrical components, power unit have Warranty for Two (2) Years. Warranty coverage would be applicable to the 48 contiguous states. If outside the 48 contiguous states, please call AMGO Hydraulic Corporation. If warranty parts are needed, AMGO Hydraulic Corporation will send them out at our own cost at standard ground shipping rate. If customer needs parts more quickly, it will be the customer's responsibility to pay for expedited shipping charges. AMGO Hydraulic Corporation will not compensate customers for down time when their equipment is out of service. AMGO Hydraulic Corporation will not compensate customers for time lost if freight is not delivered on the date or time estimated by the freight company.
