AMGO 408-P Four Post Parking Lift

In Stock SKU 408-P

OUR PRICE: $4,740.00

Regular Price: $4,979.00

$131.66 / mo
INCLUDES FREE SHIPPING*
asedeals.com widget logo

Short Description

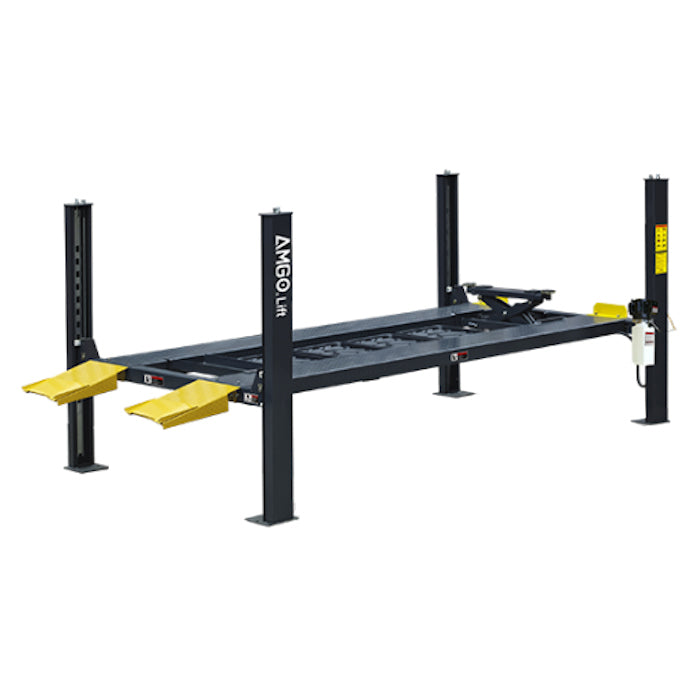

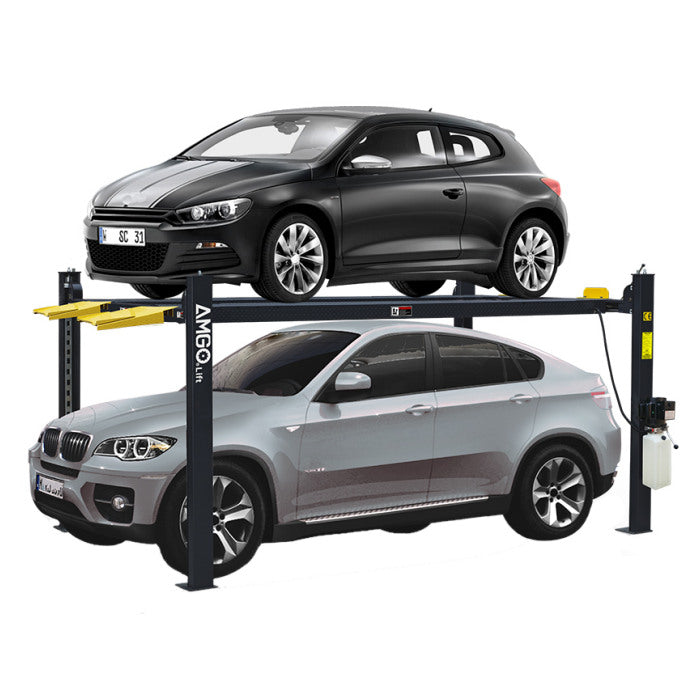

AMGO 408-P Commercial Grade Four Post
Parking Lift 8,000 lbs. Capacity
The AMGO 408-P is a true space-saving powerhouse. It is the perfect service lift for shops and home car ports with limited floor space with performance maximization in mind. The 408-P requires no special foundation or complicated installation and is about the size of a typical parking space. These features, and more, make the AMGO 408-P one of the best commercial or private use lifts in the world. The 408-P is the perfect choice for commercial shops or residential car ports trying to save space with a capacity of 8,000 lbs.

ALL ACCESSORIES ARE SOLD SEPARATELYåÊ-åÊOptional Parts Include: Sliding Jack, Aluminum Alloy Drive In Ramps, Caster Kit, 90å¡ Installation Plate for Power Unit, Jack Tray, and Drip Trays.åÊ

Description

AMGO Hydraulics

AMGO 408-P Commercial Grade Four Post Parking Lift 8,000 lbs. Capacity

The AMGO 408-P is a true space-saving powerhouse. It is the perfect service lift for shops and home car ports with limited floor space with performance maximization in mind. The 408-P requires no special foundation or complicated installation and is about the size of a typical parking space. These features, and more, make the AMGO 408-P one of the best commercial or private use lifts in the world. The 408-P is the perfect choice for commercial shops or residential car ports trying to save space with a capacity of 8,000 lbs.

ALL ACCESSORIES ARE SOLD SEPARATELY - Optional Parts Include:
Sliding Jack, Aluminum Alloy Drive In Ramps, Caster Kit, 90å¡ Installation Plate for Power Unit, Jack Tray, and Drip Trays.

NEW! More Bang For The Buck
Promotional Combo Bundle Includes:
(1) 408-P Lift, (4) Drip Trays, (4) Casters, (1) Jack Tray

Features & Specs

Features

    • 8,000 lbs. lifting capacity, which is perfect for light duty vehicles
    • AMGO exclusive hidden safety locks and manual single-point release device allows for operators to unlock the safety locks on one column simultaneous
    • Double-S shaped columns help increase the columns strength
    • Skid Proof Diamond Platform provides traction for the tires to stay put
    • Flexible Design: The power side column can be installed at any corner
    • Portable design, can easily be moved by using the optional caster kits

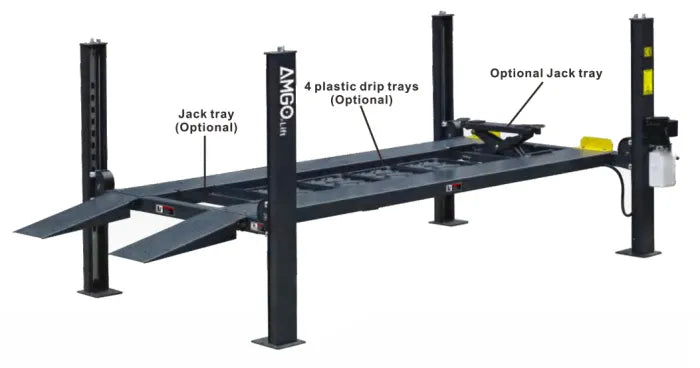

    • Optional Parts:
      • Jack Tray: No. 410040
      • 90å¡ Motor Bracket: No. 40802
      • Set of (4) Caster Kit: No. 40801
      • Set of (4) Plastic Oil Trays: No. 410140
      • Set of (2) Aluminum Alloy Ramps: No. 40803

Specifications

Dimensions

Model Number 408-P 408-HP
Lifting Capacity 8,000 lbs. 8,000 lbs.
Lifting Time 98s (110V) / 40s (220V) 98s (110V) / 46s (220V)
A - Overall Length (Inc Ramps) 207 1/4" 207 1/4"
B - Overall Edge of Crossbeams 166 7/8" 166 7/8"
C - Overall Width 102 1/2" 102 1/2"
D - Width Between Posts 92 7/8" 92 7/8"
E - Max Lifting Height 73 11/16" 87 11/16"
E - Max Locking Height 70 9/16" 84 1/2"
F - Overall Height 82 7/8" 96 5/8"
G - Minimum Height 6 1/16" 6 1/16"
H - Max Underneath Height 69" 82 15/16"
H - Max Lock Underneath Runway 65 13/16" 79 13/16"
I - Drive-Thru Clearance 81 11/16" 81 11/16"
J - Width Between Runways 37" 37"
K - Outside Edge of Runways 74 3/8" 74 3/8"
110V Motor 1.0HP 110V 60Hz 1Ph 1.0HP 110V 60Hz 1Ph
2200V Motor 2.0HP 220V 60Hz 1Ph 2.0HP 220V 60Hz 1Ph
Gross Weight 1,585 lbs. 1,585 lbs.

åÊ

AMGO 5/3/2 Warranty AMGO Hydraulics offers the Best Warranty in the Industry
AMGO Hydraulics offers the Best Warranty in the Industry
5 Year Warranty for Steel Structure
3 Year Warranty for Hydraulic Parts
2 Year Warranty for Electrical Components

Any items received that fall into the warranty category, (inoperable, or manufacturer's defect) should be handled under manufacturer's written warranty conditions. Customer should call AMGO Hydraulic Corporation to have us troubleshoot problem by phone first. Warranty conditions will be provided with all shipments. We will happily assist customers with any warranty service.

AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows: 1. Steel Structure Components (including columns, carriages, lifting arms, top beam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate, etc.) Warranty for Five (5) Years. 2. Hydraulic Parts (including cylinders, oil seal, oil hose, fitting etc.) Warranty for Three (3) Years. 3. Other Parts(not including consumption parts such as rubber pads), electrical components, power unit have Warranty for Two (2) Years. Warranty coverage would be applicable to the 48 contiguous states. If outside the 48 contiguous states, please call AMGO Hydraulic Corporation. If warranty parts are needed, AMGO Hydraulic Corporation will send them out at our own cost at standard ground shipping rate. If customer needs parts more quickly, it will be the customer's responsibility to pay for expedited shipping charges. AMGO Hydraulic Corporation will not compensate customers for down time when their equipment is out of service. AMGO Hydraulic Corporation will not compensate customers for time lost if freight is not delivered on the date or time estimated by the freight company.

Accessories/Options
