APEX 96" Lightweight Foam Four Post Ramp Kit

Name: APEX 96" Lightweight Foam Four Post Ramp Kit
Brand: ASEDeals
SKU: 5174170
Price: 1169.0 USD
Availability: InStock

In Stock SKU 5174170

OUR PRICE: $1,169.00

Regular Price: ~~$1,375.00~~

INCLUDES FREE SHIPPING*

Short Description

APEX 96" Lightweight Foam Four Post Ramp Kit
11" Lift / 6° Approach Angle / Set of 2
The APEX 96" Lightweight Foam 4-Post Ramp Kit is the ultra light, hook nose upgrade made specifically for BendPak HD-973P and HD-973PX lifts. Each 96 inch ramp delivers 11 inches of lift with a shallow 6 degree approach angle that low cars can actually climb without bumper drama. Built from high density structural foam with a rugged textured coating and a reinforced hook nose, these ramps are engineered to drop into the HD-973P / HD-973PX ramp pockets as a direct replacement for the factory steel ramps. Once you switch to APEX, you will not want to wrestle stock ramps again.

Does your BendPak four-post lift have ramp receiver brackets?
Ramp receiver brackets required for using APEX hook-nose lift ramps on BendPak 7K–9K four-post lifts. Sold as a pair. See Accessories/Options.

CURRENT LEAD TIME 3-4 WEEKS

Description

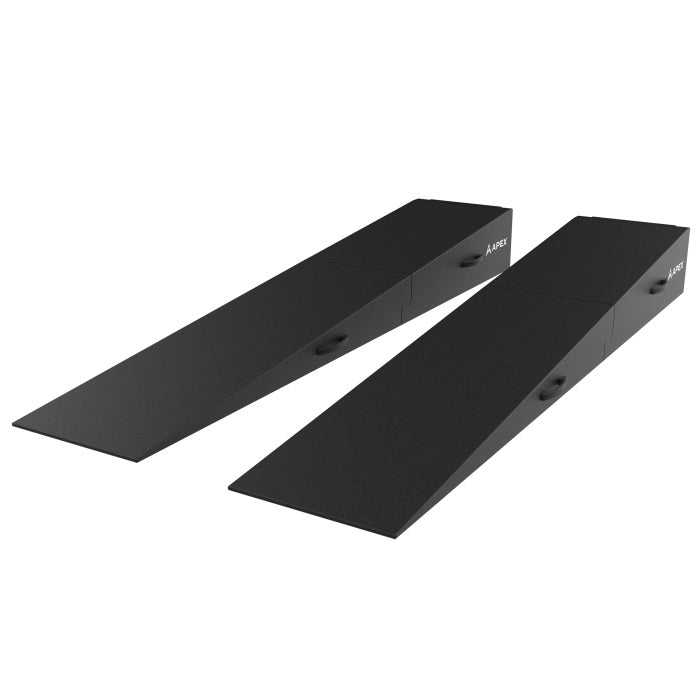

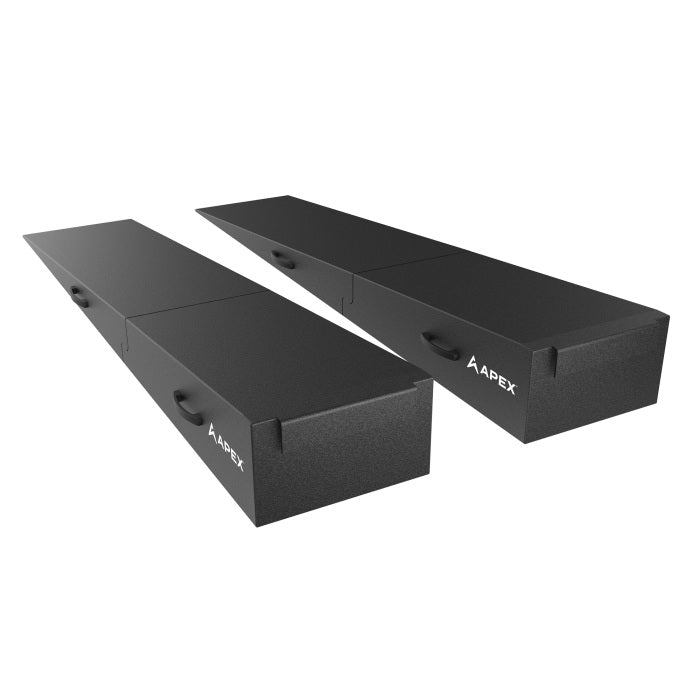

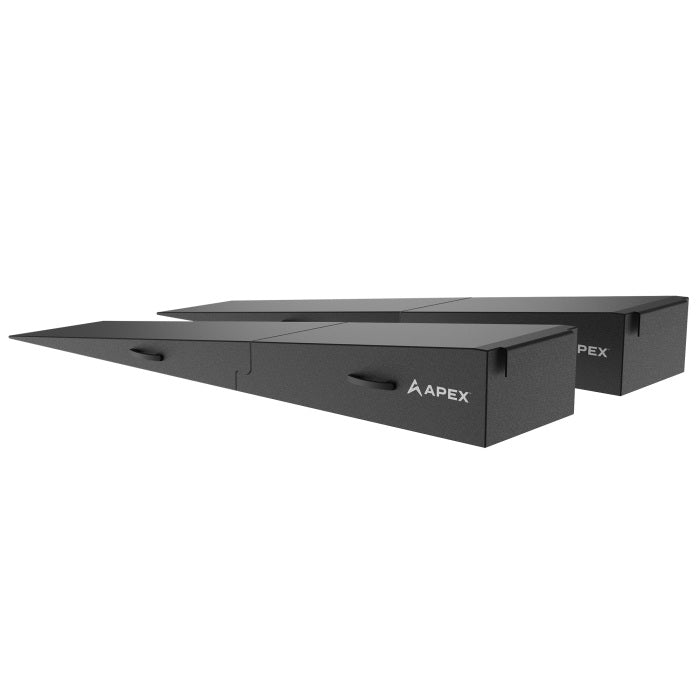

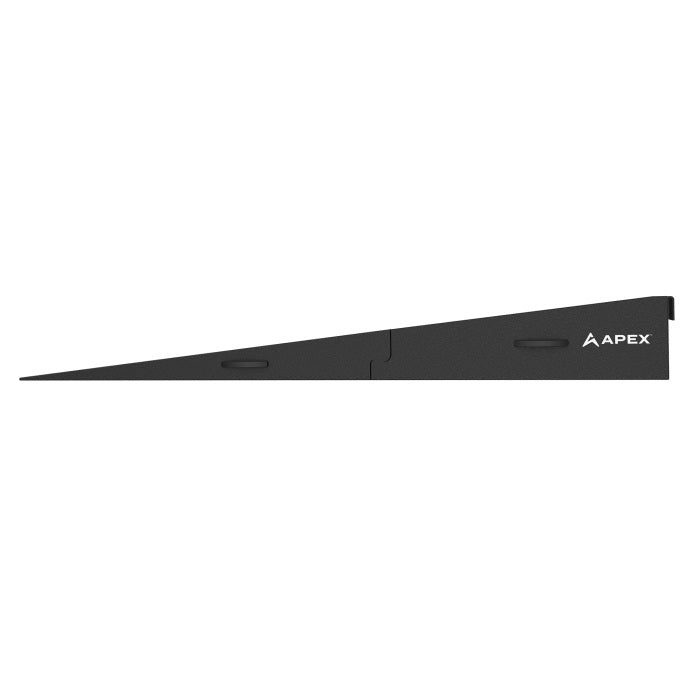

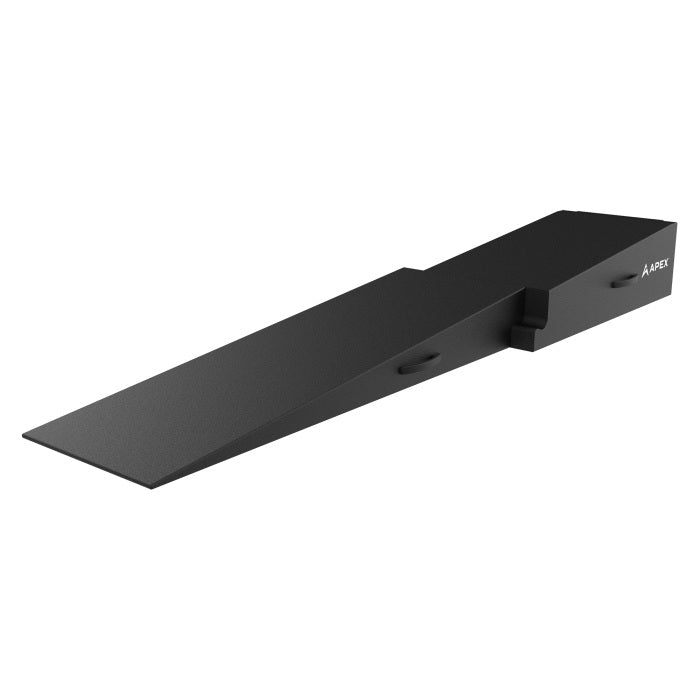

APEX 96" Lightweight Foam Four Post Ramp Kit
11" Lift / 6° Approach Angle / Set of 2

The APEX 96" Lightweight Foam 4-Post Ramp Kit is the ultra light, hook nose upgrade made specifically for BendPak HD-973P and HD-973PX lifts. Each 96 inch ramp delivers 11 inches of lift with a shallow 6 degree approach angle that low cars can actually climb without bumper drama. Built from high density structural foam with a rugged textured coating and a reinforced hook nose, these ramps are engineered to drop into the HD-973P / HD-973PX ramp pockets as a direct replacement for the factory steel ramps. Once you switch to APEX, you will not want to wrestle stock ramps again.

Ultra-Lightweight Upgrade for BendPak Four-Post Lifts
APEX four post lift ramps are the ultra lightweight upgrade for BendPak style drive on lifts, built to replace heavy factory steel ramps with something you can move one handed. Each ramp uses a solid structural foam core with a rugged polyurea skin and a reinforced hook nose that seats positively in the lift pockets. The result is a low angle drive on experience that protects splitters, lips, and front overhangs while taking the misery out of pulling ramps on and off the lift all day.

Stop Wrestling With Heavy Steel Ramps
If you own a BendPak HD-973P or HD-973PX four-post lift, you already know the drill. The car lift is great. The factory ramps are not. They are heavy, awkward, and just steep enough to make low cars complain every time they climb on. The 96" Lightweight Foam 4-Post Ramp Kit from APEX is built to fix that in one move.

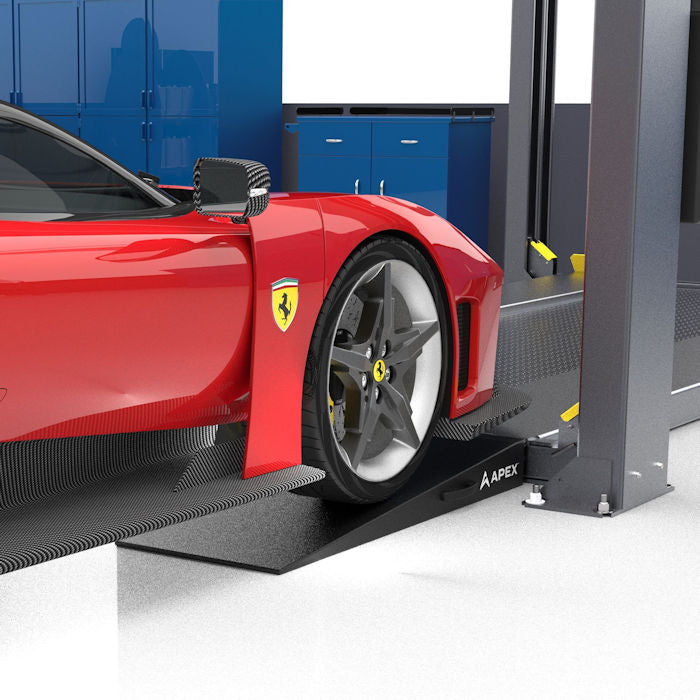

Each ramp replaces the traditional steel or aluminum drive-on ramp with a long, lightweight, hook-nose alternative. You still get full four-post functionality, but with a 6 degree approach angle and a ramp you can actually move with one hand instead of bracing your whole body and hoping your back does not pop.

Designed Specifically For BendPak HD-973P / HD-973PX
These four-post lift race car ramps are engineered exclusively for BendPak HD-973P and HD-973PX triple-stack parking lifts that use removable, drop-in steel drive-on ramps. The hook nose geometry, ramp profile, and pocket engagement are all matched to the dimensions of these specific BendPak models.

This kit is not intended or approved for use on any other four-post lift, even if the ramp pockets appear similar. Always verify that your lift is an HD-973P or HD-973PX before installation. Using these ramps on other brands or models can result in improper engagement and unsafe operation.

96 Inches Long, 11 Inches Of Lift, 6 Degrees Of Calm
The numbers on this kit are not random. At 96 inches long with 11 inches of lift, each ramp provides a full, gradual run-up that low cars can actually live with. The 6 degree approach angle softens the breakover between the shop floor and the lift runways so splitters, lips, and long front overhangs do not have to play roulette every time they drive on.

Longer ramp length also helps with longer wheelbase vehicles and modern performance cars with bigger front overhangs. Instead of having the nose swing down toward a steep ramp edge, the chassis rotates slowly and stays predictable from the time the front tires hit the ramp to the moment they land on the runways.

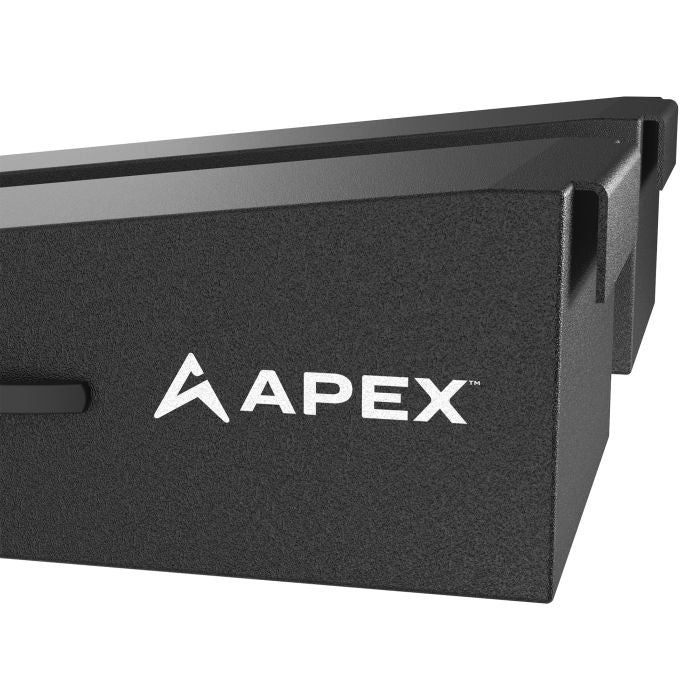

Hook Nose That Actually Locks In
A lot of foam based replacement ramps rely on a simple flat plate glued to the front. That might work for a while, but over time the plate can peel, flex, or start to separate. APEX does it differently.

Inside each 96" Lightweight Foam 4-Post Ramp Kit ramp is a contoured, reinforced hook nose insert that anchors deep into the structural foam body. That internal reinforcement ties the hook mechanically into the ramp, instead of depending on a thin layer of coating to hold everything together. Once the assembly is encapsulated in the textured coating, you end up with a hook that seats securely in the lift slot and stays there, season after season.

High Density EPS Structural Foam Core
At the heart of every APEX ramp is a proprietary high density expanded polystyrene (EPS) core. This solid, closed cell body is engineered to support thousands of pounds while staying impressively light in the hand. It is not hollow plastic. It is not a thin metal shell. It is a full depth structural core that distributes load through the entire ramp.

Under the tire, that core feels like real equipment. The ramp does not ring, flex, or feel squishy. It simply supports the vehicle as it climbs, then holds position while you raise the lift. The EPS does not rust, does not absorb water or oil, and does not transfer heat like steel, which is ideal for shop environments where conditions are not always perfect.

Rugged Polyurea Coating That Grips And Protects
The EPS core is fully encapsulated in a high performance polyurea elastomer coating. That coating forms a tough, flexible skin that resists abrasion, impacts, chemical spills, and day-to-day shop abuse. Just as important, it is applied in a way that chemically bonds to the foam, so it does not peel off in sheets the first time someone drags a ramp across the floor.

The surface is micro textured to grip both the shop floor and the tire tread. On concrete, epoxy, painted floors, and typical service bay surfaces, the ramps are designed to stay where you put them. You are not chasing ramps that scoot away under throttle or slide when a heavy front end first makes contact.

Lighter Than Steel, Smarter Than Aluminum
Most factory steel four-post ramps are heavy enough to be miserable. Aluminum upgrades are lighter, but still not what you would call easy. APEX ramps change the equation. The structural foam and integrated handles make each 96 inch ramp shockingly manageable for its size. You grab, lift, and carry without feeling like you just signed up for a gym session.

In day-to-day use, that matters more than spec sheets. When ramps are easy to remove, you are more likely to pull them off when you need full rear access or want a cleaner look. When they are easy to hang, you are more likely to put them back exactly where they should be. The APEX kit is built to live on and off the lift without becoming a chore.

Built To Work In Real Shops And Serious Home Garages
The 96" Lightweight Foam 4-Post Ramp Kit from APEX is aimed squarely at people who actually use their BendPak HD-973P or HD-973PX lifts, not just park cars on them. Performance shops, detailers, dealers, and serious home enthusiasts all benefit from a ramp solution that protects low cars, saves backs, and speeds up daily workflow.

Drive on, raise the lift, do the work, drop it, and drive off. Simple. No more wrestling steel, no more hoping the angle is friendly enough for your lowest car, and no more pretending heavy ramps are fine when everyone knows they are a pain. Once you swap to APEX, going back to stock ramps feels like going backward.

Who Is This Product Best For?

BendPak HD-973P and HD-973PX four-post lift owners who are tired of wrestling heavy steel ramps
Shops and dealers using HD-973P / HD-973PX lifts that load low cars, performance vehicles, and customer cars all day long
Home enthusiasts and collectors with BendPak HD-973P or HD-973PX lifts who want a professional level ramp solution that respects both their cars and their backs
Detailers and tuners who constantly move cars on and off BendPak HD-973P / HD-973PX lifts and need fast, repeatable, low angle access
Anyone looking for an APEX grade, ultra-light replacement for factory steel ramps on BendPak HD-973P and HD-973PX lifts

Built Around BendPak Four Post Lifts
APEX four post ramps are designed first and foremost for BendPak lifts. Hook geometry, pocket engagement, and overall ramp profile are matched to specific BendPak models so they drop in and work as if they shipped with the lift from day one. Some ramps, such as the 96 inch Lightweight Foam 4 Post Ramp Kit, are engineered specifically for the HD-973P and HD-973PX triple stack lifts and must not be used on any other model. Others, like the shorter 48 inch kit, are tuned for more conventional BendPak four post installations where space and speed matter. Either way, you get a purpose built solution, not a generic block that just happens to fit.

Structural Foam That Replaces Heavy Steel
Traditional steel ramps get the job done, but they are brutal to live with. APEX replaces that mass with a high density structural foam core that carries real vehicle loads while remaining shockingly light. Under the tire, the ramp feels solid and planted. Under your hand, it feels manageable. The foam never rusts, does not soak up fluids, and does not ring or flex like thin metal. It is wrapped in a polyurea shell that resists abrasion and chemicals while providing a micro textured surface that grips typical shop floors and tire tread.

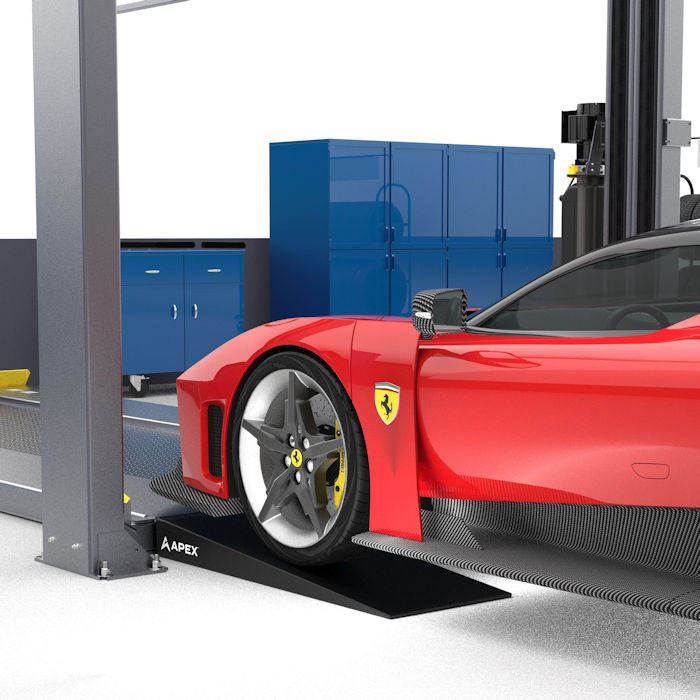

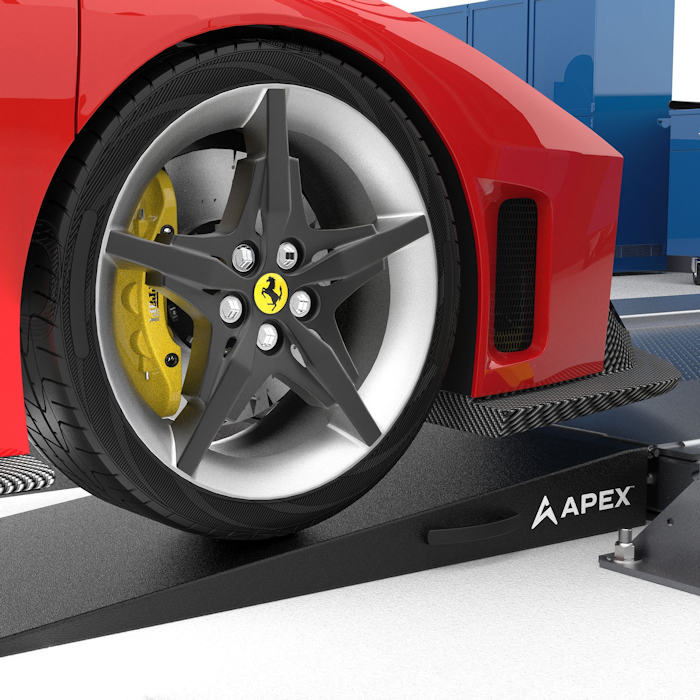

Low Angles For Low Cars
APEX four post ramps are specced with low approach angles so modern sports cars, performance sedans, and lowered builds can climb onto the runways without treating the lift like a concrete curb. Longer 96 inch ramps give you 11 inches of lift with a 6 degree approach angle that is friendly to serious aero and long overhangs. Shorter 48 inch ramps provide a compact, faster loading option with a more forgiving angle than factory steel. In both cases, you get predictable geometry that respects ride height instead of punishing it.

Everyday Use Without The Daily Fight
Lightweight ramps change how you use the lift. When a 96 inch ramp can be moved by one person, you stop hesitating to pull it for rear access or cosmetic reasons. Integrated carry zones molded into the ramp body make it easy to lift, hang, and stow without wrestling hardware or listening to loose plates rattle. APEX ramps are built to live on and off the lift all week in real shops and serious home garages, not to sit in the corner as a someday upgrade.

Hook-Nose Four Post Ramp FAQs

Which four post lifts are APEX ramps compatible with?
APEX four post ramps are designed primarily for BendPak lifts. The 96 inch Lightweight Foam 4 Post Ramp Kit is engineered specifically for BendPak HD-973P and HD-973PX models and must not be used on any other lift. Other APEX four post ramp kits are tuned for additional BendPak four post configurations. Always check the compatibility notes on each product page and verify your exact lift model before ordering.

Why can’t the 96" APEX four post ramps be used on other brands or models?
The 96 inch ramps use a hook nose profile and pocket engagement that are matched to the HD-973P and HD-973PX ramps and runways. Using them on lifts with different pocket geometry can lead to incomplete engagement, unstable seating, and unsafe operation. For that reason they are approved only for those specific BendPak models.

Are APEX ramps as strong as the steel ramps they replace?
APEX ramps use a high density structural EPS core with a reinforced hook and a bonded polyurea shell. This composite design is engineered to support thousands of pounds within the published limits while providing a large, stable contact patch. When used on the specified BendPak models according to the instructions, they deliver strength and stability without the weight and rust of traditional steel ramps.

Do APEX four post ramps work with low cars and front splitters?
Yes. Approach angles are specifically tuned for low and performance oriented vehicles. The 96 inch ramps use a 6 degree approach angle to be friendly to long noses and aero, while the shorter 48 inch ramps offer a lower angle than typical factory steel ramps. As with any ramp, you should still load slowly and confirm clearance with very aggressive setups.

Can I leave APEX ramps on the lift full time?
Absolutely. APEX ramps are designed to live on the lift just like the original steel ramps. They can also be removed and stored easily thanks to their low weight and molded carry zones. The structural foam and polyurea shell do not rust and are resistant to typical shop environments.

New Race Car Ramps Just Rolled Into Town.
Ultra-lightweight APEX ramps for trailers, lifts, garages and storage. Built for low cars and people who actually wrench.

One Idea. Four Ways To Use It
APEX ramps solve the same problem in different places - on the trailer, in the garage, on the lift and when the car sits for a while.

From The Lift People. For The Ramp Problem.
APEX is born inside the same group that builds BendPak car lifts. That means these ramps were sketched on shop floors, tested under real cars and refined around real frustrations. APEX ramps are not just an accessory. They are part of a system. The missing piece between the floor, the trailer and the lift your car already trusts.

All The Strength. None Of The Struggle.
Steel ramps are strong but heavy. Aluminum is lighter but still a fight. APEX ramps use a solid, lightweight high-density EPS structural foam core that changes the math. The foam core spreads weight through the body instead of concentrating it at thin contact points. The outer skin is a tough, textured coating that locks to the core and grips tires and floors. Don't dread the setup. Grab an APEX ramp, drop it where it belongs and get on with the work.

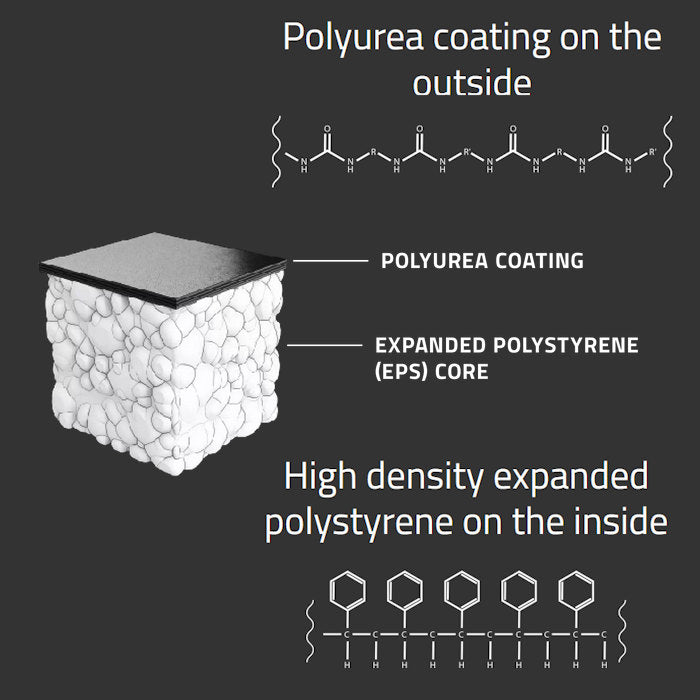

What's Inside Every APEX Ramp?
APEX ramps are not painted mystery foam. Each one is a composite: a high density expanded polystyrene core locked inside a sprayed polyurea elastomer shell. The chemistry is overbuilt for what you do to ramps in the real world.

Polyurea Coating On The Outside
The outer shell is a two component polyurea elastomer sprayed directly onto the foam. Isocyanate and amine react in milliseconds to form long chains of urea linkages that crosslink into a dense, rubber tough skin. That chemistry gives you high tensile strength, very high elongation and serious abrasion resistance in one layer.

The coating wets into the EPS surface while it cures, so it does not sit on top like paint. It keys into the core and locks on, which is why you can drag APEX ramps across concrete, load on them all weekend and not watch the shell peel away.

Fast cure time for a seamless shell around the core.
High elongation and impact resistance for dropped tools and curb hits.
Micro textured finish that grips tires and typical shop floors.
Excellent resistance to oil, fuel, coolant and most common shop chemicals.

High Density Expanded Polystyrene On The Inside
The core starts as styrene beads that are pre expanded with steam, then fused under heat and pressure into a solid block. At the densities APEX uses, expanded polystyrene behaves like a structural foam: rigid enough to carry heavy loads, light enough to move with one hand and stable across real temperature swings in trailers and garages.

Closed cell structure means the beads trap gas rather than water. The core does not soak up moisture, does not rust and does not slowly turn to mush if you park on it for long stretches. Compression is distributed through the whole block instead of one thin wall, which is why APEX ramps feel planted when you drive onto them.

High compressive strength relative to weight for real vehicle loads.
Closed cell construction that resists water ingress and freeze damage.
Dimensionally stable across typical shop and trailer temperatures.
Acts as a damping layer so ramps stay quiet under the car.

Two Materials Working As One.
Put together, the EPS core and polyurea shell give APEX ramps a solid core feel with a tough, grippy surface that holds up to trailers, lifts and low cars that actually get driven.

Features & Specs

Features

Replaces heavy steel or aluminum ramps on BendPak HD-9 and HD-7 four post lifts with a structural foam and polyurea design that one person can easily move.
Designed specifically to fit the ramp pockets on BendPak HD-9 and HD-7 series lifts for a positive, repeatable hook nose engagement.
48 inch length, 5 inch lift, and a 5.7 degree approach angle that is much friendlier to low and performance cars than most factory ramps.
Internal S shaped reinforcement anchors deep into the core, so the hook acts as part of the ramp instead of a glued on afterthought.
Solid, closed cell EPS supports thousands of pounds, will not rust, and does not absorb water, oil, or most common shop chemicals.
Chemically bonded shell that resists abrasion and chemicals while providing a micro textured surface for tire and floor grip.

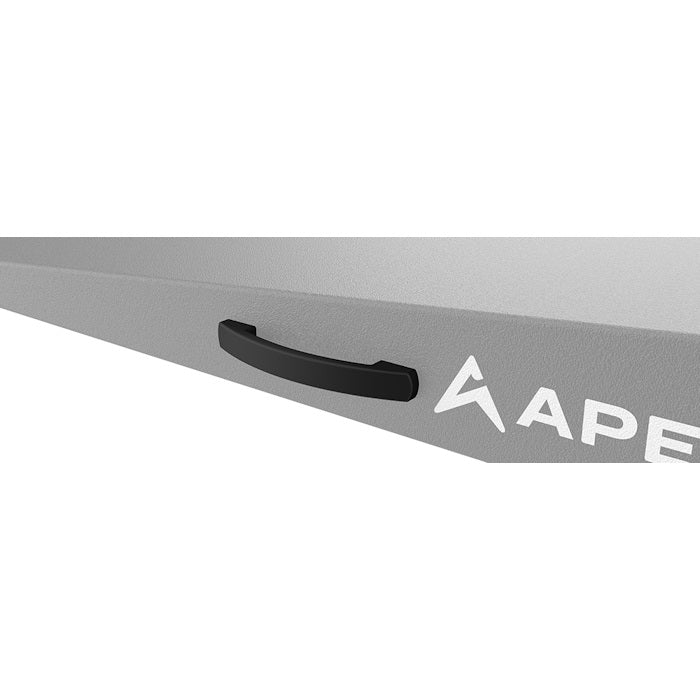

Molded hand areas and balanced weight make it easy for techs or owners to move, hang, and store ramps quickly.
Gentle on epoxy, sealed concrete, and painted floors with no sharp metal edges to gouge or stain.

What's Included

One pair (2 total) of Lightweight Foam 4 Post Lift Ramps with reinforced hook nose interfaces
Integrated molded carry zones on each ramp for easy transport and storage
Installation, compatibility, and safety guidelines

Specifications

BendPak SKU	5174172	5174170
Apex Model	AR-45-57-LR	AR-911-6-LR
Ramp Kit	48" Four Post Ramp Kit	96" Four Post Ramp Kit
Length	48"	96"
Height At Runway End	5"	11"
Width	19"	19"
Weight Each	11 lbs.	13.5 lbs.
Approach Angle	5.7 Degrees	6 Degrees
Compatible Lifts	HD-7 & HD-9 Series Only	HD-973P & HD-973PX Series Only
Ramp Style	Hook Nose Four Post Lift Ramp	Hook Nose Four Post Lift Ramp
Max Capacity	3,500 lbs. per pair	3,500 lbs. per pair
Configuration	Set of 2 Ramps	Set of 2 Ramps
Ideal Use	Busy shops and home lifts with mixed vehicles	Four post lifts loading very low performance cars

Warranty: (1) Year on Ramp Structure and Surface Coating, (6) Months Freight

APEX High-Density Foam Garage Ramps Limited Warranty
Subject to the terms below, BendPak Inc. (" Warrantor" ) warrants that the Product conforms to Warrantor' s published specifications and is free from defects in materials and workmanship under normal use. NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE MADE.

Duration

1 Year (12 Months): Ramp structure and surface coating
6 Months: Freight and shipping related to warranty service

Limited Warranty

Warrantor: BendPak Inc., 30440 Agoura Road, Agoura Hills, CA 91301.
Purchaser: The original Purchaser (other than for resale).
Covered Products: Any APEX lightweight high-density foam garage, trailer, or lift ramp manufactured on or after 10/1/2025.
Coverage: Manufacturer defects due to materials or workmanship under normal use and service.
Exclusions
This warranty does not cover:

Misuse, abuse, neglect, accident, or use beyond rated capacity.
Improper or unintended use, including wheel spin, burnouts, or contact with hot or sharp components.
Cuts, gouges, abrasions, or surface wear caused by tires, tools, or improper contact.
Exposure to chemicals, oils, solvents, fuels, or extreme environmental conditions.
Improper storage, including prolonged UV exposure or water saturation.
Cosmetic blemishes, color fading, or minor surface irregularities that do not affect functionality.
Normal wear and tear.
Unauthorized modifications or repairs.
Damage during freight handling or caused by natural disasters (fire, flood, wind, etc.).
Incidental, indirect, or consequential damages, including vehicle damage, personal injury, loss of time, or other expenses.

Warrantor' s Responsibility

At its sole discretion, Warrantor will repair or replace any defective component during the warranty period.

Purchaser' s Responsibility

Provide dated proof of purchase and maintenance records.
Inspect product upon receipt; report shortages within 10 days and defects within 15 days of discovery.
Return defective components if requested. Freight after six (6) months is the Purchaser' s responsibility.
Use and maintain the Product per the owner' s manual.
Claims not submitted in writing within the above timeframes are deemed waived.

Service

Warranty service will be performed according to standard scheduling and parts availability at an authorized service location.

Limitation of Liability

Warrantor has no obligation for products altered, damaged, misused, or improperly maintained. In no event shall either party be liable for lost profits, incidental or consequential damages.
APEX products are provided as is, without any warranty beyond the terms stated herein. Warrantor may revise warranty terms by written notice or posting on www.bendpak.com, effective 30 days from notice or posting.

This Limited Warranty represents the entire agreement between Warrantor and Purchaser and supersedes all prior written or oral warranties.
