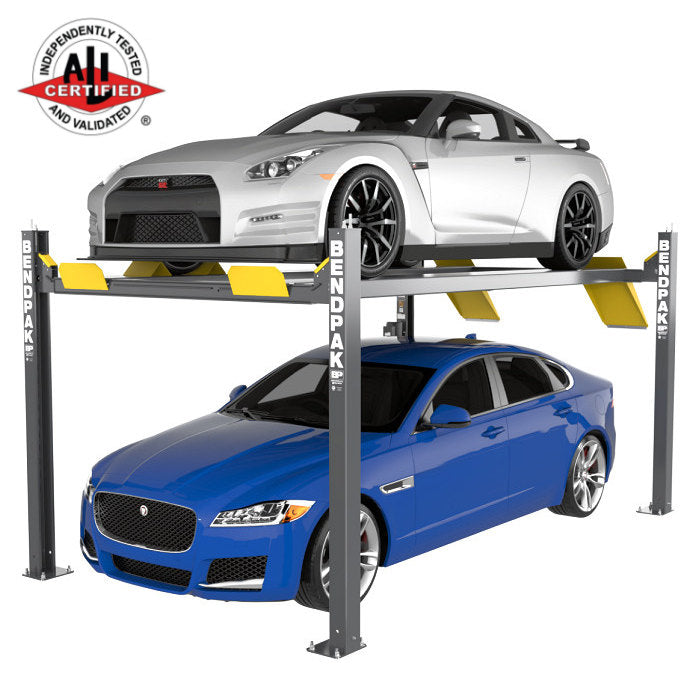

BendPak HD-9EWT Four Post Lift Extra Wide Tall 9,000 lbs. Capacity

Features & Specs

Features

• 9,000 lbs. Maximum Lifting Capacity
• Freestanding Design
• High-Rise
• Better Suited For Wide Cars And Off-Road Vehicles
• Perfect For Parking, Storage, And Service
• Runways Accommodate Narrow And Standard Vehicles
• Runways Include Rail-Kit For Optional Accessories
• Electric-Hydraulic Power System
• Single Hydraulic Cylinder Mounted Underneath Runway
• Fully Enclosed Lifting Cables, Safety Locks, And Sheaves
• Internal Anti-Sway Slider Blocks In Each Column
• Oversized Self-Lubricating Cable Rollers

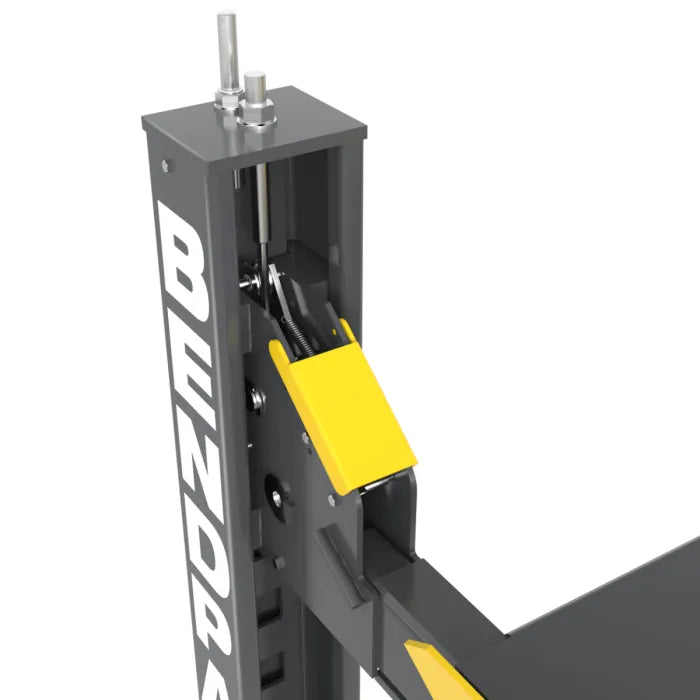

• Multi-Position Safety Locks In Each Column
• Adjustable Safety Locks In Each Column
• Adjustable Lock Ladders
• Runways Feature A Durable Matte Finish
• Push-Button Pneumatic Safety Release
• Independent Backup Slack-Cable Safety Latches
• Customizable Power Unit Location

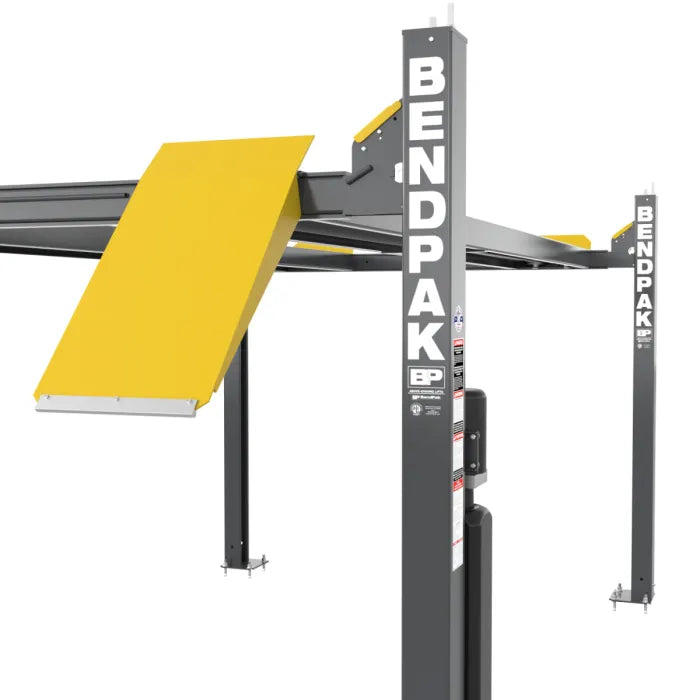

• Removable Approach Ramps For Additional Drive-Under Clearance
• Longer Approach Ramps For Low-Ground Clearance Vehicles Available

Specifications

• Lifting Capacity: 9,000 lbs. (4,082 kg)
• Max Capacity At Front Axle: 4,500 lbs. (2,041 kg)
• Max Capacity At Rear Axle: 4,500 lbs. (2,041 kg)
• Min. Runway Height: 4.75 in. (121 mm)
• Maximum Rise: 82.165 in. (2,087 mm)
• Maximum Lifting Height: 87 in. (2,208 mm)
• Overall Width ± .125 In. (3 Mm): 117 in. (2,970 mm)
• Outside Length: 198 in. (5,028 mm)
• Overall Length: 224.50 in. (5,703 mm)
• Height Of Post: 100 in. (2,537 mm)
• Distance Between Posts: 107 in. (2,716mm)
• Drive-Thru Clearance: 93.25 in. (2,371 mm)
• Runway Width: 19 in. (482 mm)
• Runway Length: 182.25 in. (4,629 mm)
• Width Between Runways: 35.75 in. - 42.0 in. (910 Min - 1,068 mm) Max
• Runway Centerline: 57.75 in. - 64.00 in. (1,468 - 1,626 mm)
• Outside Edge Of Runways: 76.75 in.- 83 in. (1,950 - 2,108 mm)
• Max. Load Operating Pressure: 135 in. (3,429 mm)
• Min. Wheelbase @ Rated Capacity: 115 in. (2,921 mm)
• Min. Wheelbase @ 75 Capacity: 95 in. (2,413 mm)
• Min. Wheelbase @ 25 Capacity: 80 in. (2,032 mm)
• Locking Positions: 17 spaced every 4 in. (102 mm)
• Motor: 220 VAC, 60 Hz, 1 Ph (special voltages available upon request)
• Shipping Dimensions: 192" L x 22" W x 29" H
• Shipping Weight: 1,852 lbs.
• GTIN / UPC: 849672037330
• Warranty: (5) Years on Structure, (2) Year on Hydraulics, (1) Year Electrical, (1) Year Labor

BendPak Two Post/Four Post Lifts Limited Warranty
LIMITED WARRANTY. Subject to the limitations of set forth below, Warrantor warrants that the Product sold hereunder conform to Warrantor's published specifications. WARRANTOR MAKES NO REPRESENTATION OR WARRANTY OF ANY OTHER KIND, EXPRESS OR IMPLIED, WITH RESPECT TO THE GOODS, WHETHER AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER.

Duration: From the date of purchase by original Purchaser or 60-24‐12 months from the date of shipment by BendPak or whichever comes first.

• Five Years (60-Months) Warranty on the lift structure
• Two Years (24‐Months) Warranty on the hydraulic cylinder(s) and power unit
• One Year (12‐Months) Warranty on operating components
• One Year (12‐Months) Warranty on electrical components (excluding power unit)
• One Year (12‐Months) Labor Warranty on site or at factory*
• One Year (12‐Months) Free‐Shipping** on ground‐freight charges related to warranty performance

Limited Warranty

1. Who gives this warranty (Warrantor): BendPak Inc., 1645 Lemonwood Dr., Santa Paula, CA 93060
2. Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
3. What products are covered by this warranty (Product): Any BendPak Two‐Post or Four‐Post Vehicle Service Lift***
4. What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below.
5. What is not covered under this warranty:
1. Any failure that results from Purchaser's abuse, neglect or failure to operate, maintain or service Product in accordance with instructions provided in the owner's manual(s) supplied.
2. Any damage caused by overloading Product beyond rated capacity.
3. Items or service normally required to maintain the Product, i.e. lubricants, oil, etc.
4. Items considered general wear parts such as rubber pads/blocks, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship.
5. Any component damaged in shipment or any failure caused by installing or operating lift under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings.
6. Motor or pump failure caused by rain, excessive humidity, corrosive environments or other contaminants.
7. Rusted components due to improper maintenance or corrosive environments.
8. Cosmetic defects that do not interfere with Product functionality.
9. Damage due to incorrect voltage or improper wiring.
10. Any failure that results from improper installation or use not according to specifications.
11. Damage caused by disasters such as fire, flood, wind, and lightning.
12. Damage caused by unauthorized attachments or modifications.
6. Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor's option, component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period. Warrantor will pay reasonable labor costs for the first 12 months only.
7. Responsibilities of Purchaser under this warranty/ notice of claims:
1. Provide dated proof of purchase and maintenance records.
2. In some cases, components may be required to be shipped to the nearest BendPak Authorized Service Center. Freight costs, after 12‐months, must be borne by the Purchaser.
3. Use reasonable care in the operation and maintenance of the Products as described in the owner's manual(s).
4. Immediately upon receipt of the Product, Purchaser shall inspect the same. Any claim for shortage must be made within ten days after Purchaser's receipt. All other claims, including claims for alleged defective Product, must be made within fifteen days after Purchaser learns of the facts upon which such claim is based, but in no event later than the applicable one, two or five year period specified above for the specified component(s). All claims not made in writing and received by Seller within the time periods specified above shall be deemed waived. With respect to any defects incapable of discovery until in use, all claims for any damages or losses as a result of such defects shall be deemed waived unless made in writing and received by Seller within fifteen days after Purchaser learns of the alleged defect giving rise to the claim and after the expiration of said periods, but in no event later than the applicable one, two or five year period specified above for the specified component(s). Purchaser expressly assumes all liability for all such damages or losses, irrespective of any use which shall have taken place or whether the alleged defect shall have occurred or been discovered prior to expiration of such periods.
8. When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.
9. *As determined by Warrantor in its sole discretion**Free‐shipping applies to direct shipping points within the 48 continental United States. Rural area shipping surcharge may apply for remote addresses. ***For all BendPak brand Full‐Rise Scissors Vehicle Service Lift (excluding specialty lifts, high rise, commercial parking, material handling, or models for particular purpose) manufactured on or following 1/1/2011.
