APEX AL10C Clearfloor Two Post Car Lift

In Stock SKU 5176251 UPC 849672044710

OUR PRICE: $4,195.00

Regular Price: $4,409.00

$116.52 / mo
INCLUDES FREE SHIPPING*
asedeals.com widget logo

Short Description

APEX AL10C Clearfloor Two Post Car Lift
10,000 lbs. Capacity Symmetric and Asymmetric Arms
The APEX AL10C is a 10,000 lbs. clearfloor two-post lift engineered for shops that demand unrestricted under-vehicle access, heavy-duty strength, and long-term reliability. Featuring a direct-drive hydraulic lifting system, rugged overhead box-beam construction, and advanced safety systems, the AL10C delivers smooth, consistent lifting performance for a wide range of vehicles. Previously sold under the GrandPrix brand, the AL10C now carries the APEX name while retaining the same proven design, performance, and BendPak-backed support.

Description

APEX

APEX AL10C Clearfloor Two Post Car Lift
10,000 lbs. Capacity Symmetric and Asymmetric Arms

The APEX AL10C is a 10,000 lbs. clearfloor two-post lift engineered for shops that demand unrestricted under-vehicle access, heavy-duty strength, and long-term reliability. Featuring a direct-drive hydraulic lifting system, rugged overhead box-beam construction, and advanced safety systems, the AL10C delivers smooth, consistent lifting performance for a wide range of vehicles. Previously sold under the GrandPrix brand, the AL10C now carries the APEX name while retaining the same proven design, performance, and BendPak-backed support.

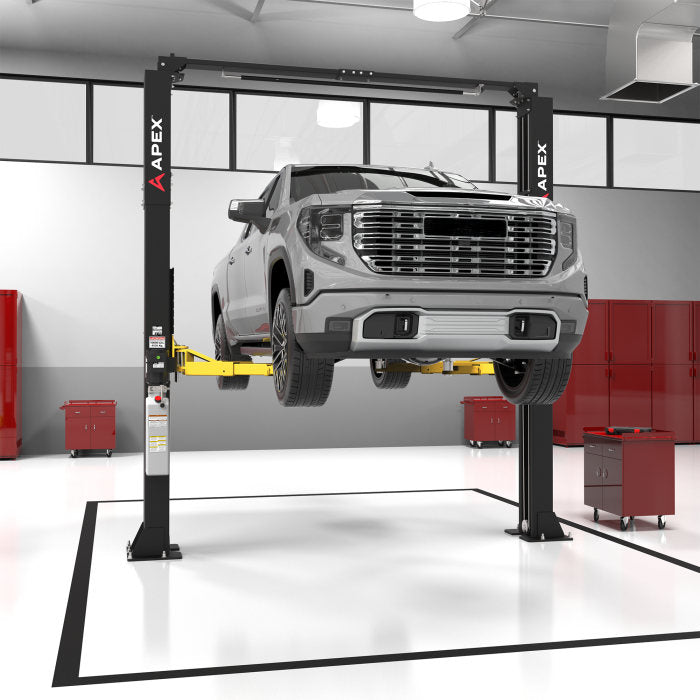

Clearfloor Design for Maximum Shop Efficiency
The APEX AL10C is designed for professional shops and serious garages that want complete freedom of movement beneath the vehicle. Its clearfloor design eliminates the floor beam found on traditional two-post lifts, allowing transmission jacks, oil drains, tool carts, and other shop equipment to move freely without obstruction.

This open workspace improves efficiency, reduces clutter, and makes it easier to service everything from low-profile performance cars to lifted trucks. With a 10,000-lb lifting capacity, the AL10C delivers the strength needed for modern vehicles while maintaining excellent access and workflow.

From GrandPrix to APEX: Proven Engineering, Unified Brand
The APEX AL10C was previously sold under the GrandPrix brand and has transitioned into the APEX lineup as part of BendPak’s effort to streamline and strengthen its product families. This transition represents a branding evolution, not a design change.

The AL10C retains the same clearfloor architecture, direct-drive hydraulic lifting system, heavy-duty structural components, and safety features that made it a trusted lift in professional and enthusiast shops. It continues to be built to the same specifications and performance standards.

By bringing this model under the APEX name, BendPak has aligned it with a broader APEX product lineup focused on delivering professional-grade capability at a smart value, supported by U.S.-based customer service and industry-leading warranty and support.

Flexible Arm Geometry for Faster Vehicle Positioning
Positioning vehicles correctly on a two-post lift can slow productivity, but the AL10C is built to make setup fast and predictable. Dual symmetric and asymmetric arm configurations allow technicians to position the arms exactly where they are needed for balanced lifting.

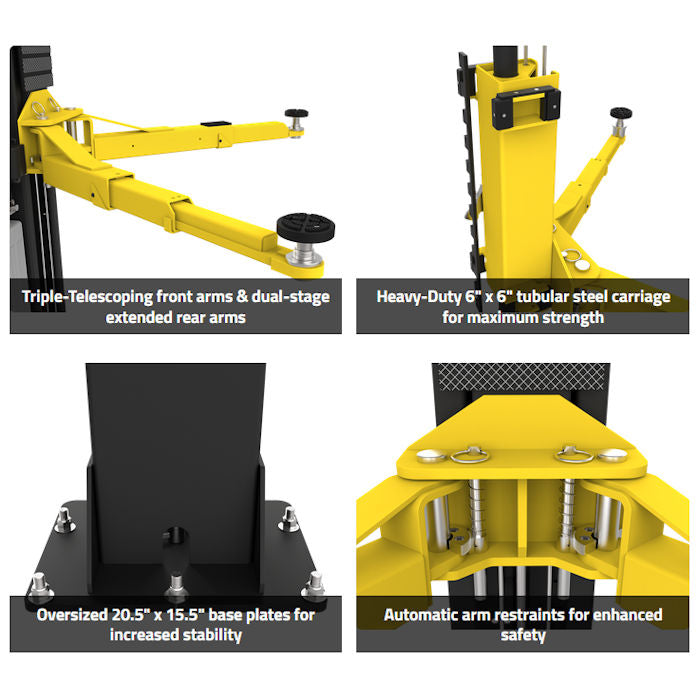

Triple-telescoping front arms and dual-stage extended rear arms provide exceptional reach, accommodating a wide range of wheelbases and vehicle types. Double-telescoping screw pads and a 4-piece 63 mm stackable adapter set ensure secure, stable contact across varying frame designs.

Direct-Drive Hydraulic Lifting System

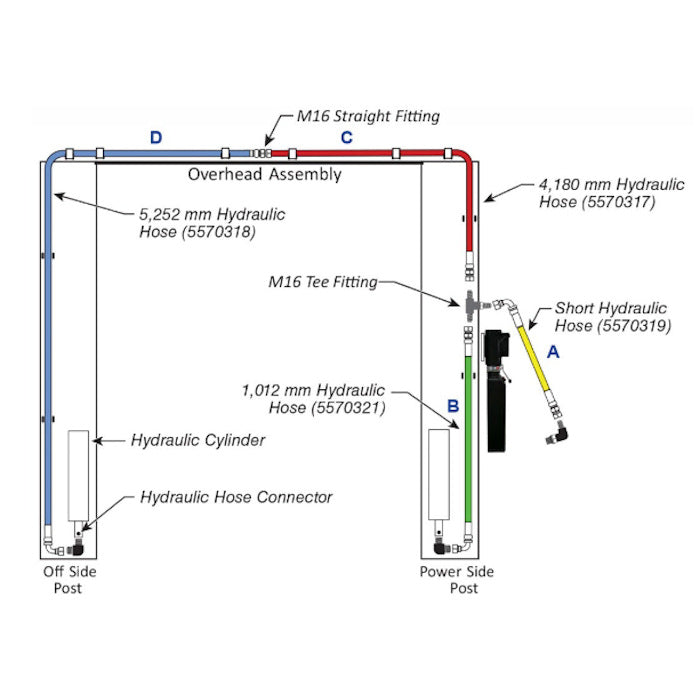

Unlike many clearfloor lifts that rely on complex chain-over systems, the AL10C features a direct-drive design with dual full-stroke hydraulic cylinders. This approach significantly reduces the number of moving parts, minimizing wear while delivering smooth, consistent lifting performance.

The result is lower maintenance, improved long-term reliability, and quiet, efficient operation under daily shop use.

Built for Safety and Structural Stability
Safety is engineered into every aspect of the AL10C. Automatic safety locks engage every three inches throughout the lift range, providing consistent, secure load holding at working height. These locks release easily via single-pull lanyards on each carriage for straightforward operation.

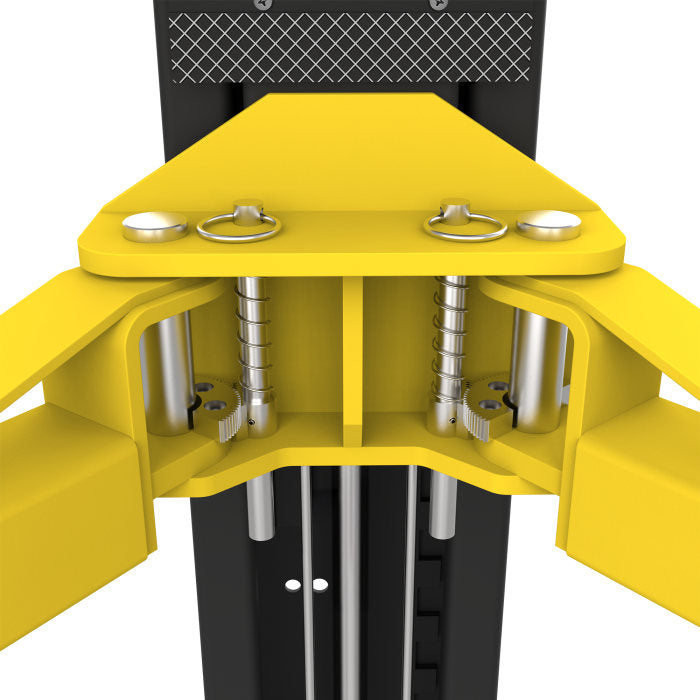

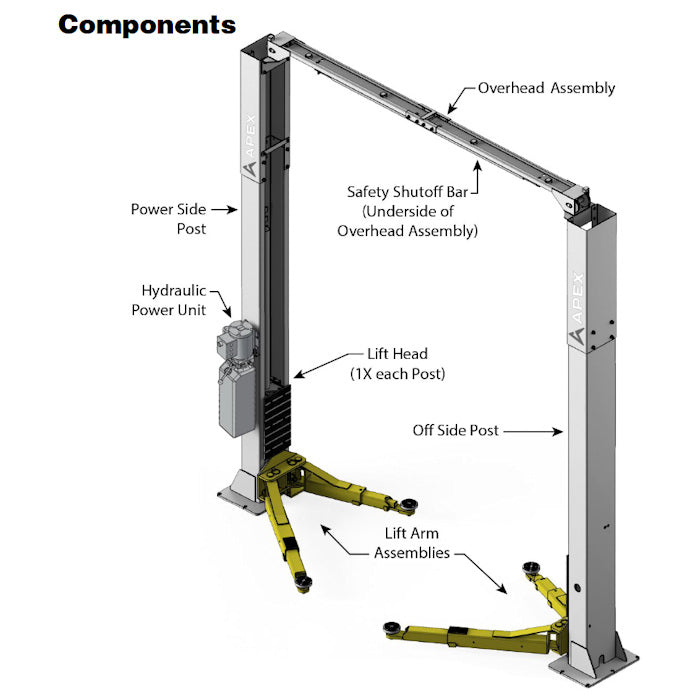

A rugged overhead box-beam structure reinforces the lifting frame, reducing column stress and enhancing overall stability. A padded overhead shutoff bar with an industrial-grade limit switch automatically stops lift travel if a vehicle is raised too high. Automatic arm restraints secure the arms when the lift is elevated, preventing unintended movement during service.

Heavy-Duty Construction for Daily Shop Use

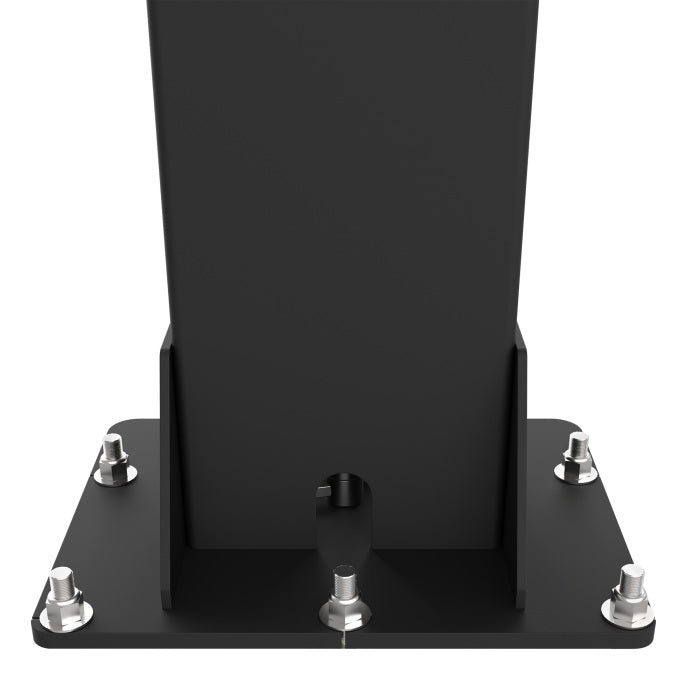

The AL10C is built to withstand the rigors of demanding shop environments. A heavy-duty 6” x 6” tubular steel carriage delivers exceptional load-bearing strength, while oversized 20.5” x 15.5” base plates distribute weight evenly for rock-solid stability.

Self-lubricating UHMW polyethylene guide blocks eliminate the need for frequent greasing, while oversized cable sheaves and aircraft-quality equalizer cables reduce fatigue and extend component life.

Built as a Long-Term Investment
Backed by BendPak’s industry-leading 36-month warranty and a nationwide support network, the APEX AL10C is designed to be a dependable, long-term investment in shop efficiency, safety, and productivity.

Features & Specs

Features

  • 10,000 lbs. Lifting Capacity
    • Supports a wide range of passenger vehicles, performance cars, and light trucks.
  • Clearfloor Two-Post Design
    • Provides unobstructed access beneath the vehicle for improved workflow.
  • Direct-Drive Dual Hydraulic Cylinders
    • Reduce moving parts while delivering smooth, consistent lifting performance.
  • Rugged Overhead Box-Beam Construction
    • Enhances structural stability and reduces column stress.
  • Padded Overhead Safety Shutoff Bar
    • Automatically stops lift travel if a vehicle is raised too high.
  • Symmetric and Asymmetric Arm Configurations
    • Allows fast, flexible vehicle positioning.
  • Triple-Telescoping Front Arms and Extended Rear Arms
    • Accommodates a wide range of wheelbases and frame designs.
  • Automatic Safety Locks Every 3 Inches
    • Ensures secure load holding throughout the lift range.
  • Automatic Arm Restraints
    • Prevent unintended arm movement during service.
  • 36-Month Limited Warranty
    • Industry-leading coverage backed by BendPak support.

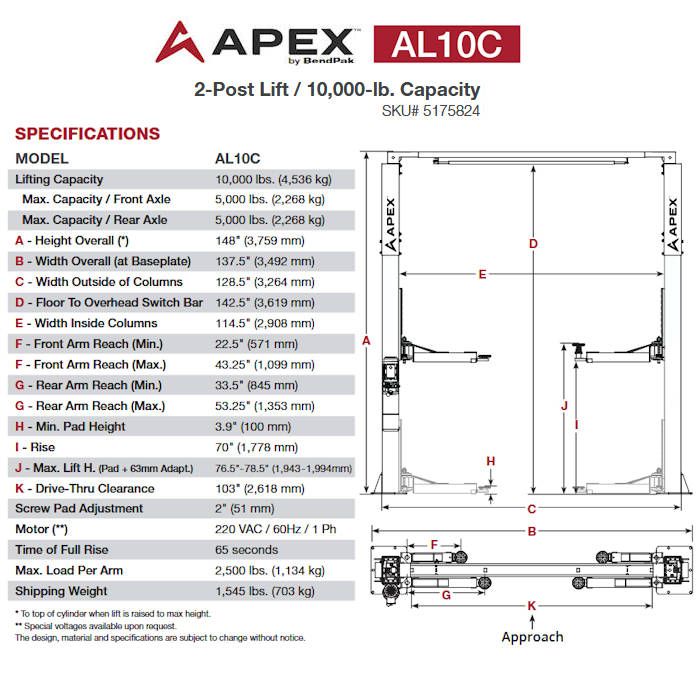

Specifications

  • Lifting Capacity: 10,000 lbs. (4,536 kg)
  • Max. Capacity / Front Axle: 5,000 lbs. (2,268 kg)
  • Max. Capacity / Rear Axle: 5,000 lbs. (2,268 kg)
  • Height Overall: 148" (3,759 mm)
  • Width Overall (at Baseplate): 137.5" (3,492 mm)
  • Width Outside of Columns: 128.5" (3,264 mm)
  • Floor to Overhead Switch Bar: 142.5" (3,619 mm)
  • Width Inside Columns: 114.5" (2,908 mm)
  • Front Arm Reach (Min.): 22.5" (571 mm)
  • Front Arm Reach (Max.): 43.25" (1,099 mm)
  • Rear Arm Reach (Min.): 33.5" (845 mm)
  • Rear Arm Reach (Max.): 53.25" (1,353 mm)
  • Min. Pad Height: 3.9" (100 mm)
  • Rise: 70" (1,778 mm)
  • Max. Lift Height (Pad + 63mm Adapt.): 76.5" - 78.5" (1,943 - 1,994 mm)
  • Drive-Thru Clearance: 103" (2,618 mm)
  • Screw Pad Adjustment: 2" (51 mm)
  • Motor: 220 VAC / 60Hz / 1 Ph
  • Time of Full Rise: 65 seconds
  • Max. Load Per Arm: 2,500 lbs. (1,134 kg)
  • Shipping Weight: 1,545 lbs. (703 kg)
  • Warranty: (3) Years on Equipment Structure, (1) Year on Cylinders, Power Unit, and Components, (6) Months Labor and Freight

APEX Two-Post / Four-Post Limited Warranty
Subject to the terms below, BendPak Inc. ("Warrantor") warrants that the Product conforms to Warrantor’s published specifications and is free from defects in materials and workmanship. NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE MADE.

Duration

  • 3 Years (36 Months): Equipment structure
  • 1 Year (12 Months): Hydraulic cylinders, power unit, and operating components
  • 6 Months: Onsite labor and freight related to warranty service

Limited Warranty

  1. Warrantor: BendPak Inc., 30440 Agoura Road, Agoura Hills, CA 91301.
  2. Purchaser: The original Purchaser (other than for resale).
  3. Covered Products: Any APEX brand Two-Post or Four-Post Vehicle Service Lift manufactured on or after 10/1/2025.
  4. Coverage: Manufacturer defects due to materials or workmanship under normal use and service.
  5. Exclusions
    This warranty does not cover:
    1. This warranty is non-transferable and terminates upon sale or transfer of the Product to any subsequent owner.
    2. Abuse, neglect, overloading, or failure to follow installation, operation, or maintenance instructions.
    3. Damage during shipment, or from contact with tools or surroundings.
    4. Wear items (rubber pads, cables, etc.) unless defective in material or workmanship.
    5. Routine maintenance or consumables (lubricants, oils, etc.).
    6. Corrosion or rust from poor maintenance or corrosive environments.
    7. Motor or pump failure due to moisture, contaminants, or improper voltage/wiring.
    8. Cosmetic imperfections that do not affect functionality.
    9. Damage from natural disasters, accidents, or unauthorized modifications.
    10. Any indirect, incidental, or consequential loss, including property damage or downtime.
  6. Warrantor' s Responsibility
    1. At its sole discretion, Warrantor will repair or replace any defective component during the warranty period.
  7. Purchaser' s Responsibility
    1. Provide dated proof of purchase and maintenance records.
    2. Inspect product upon receipt; report shortages within 10 days and defects within 15 days of discovery.
    3. Return defective components if requested. Freight after six (6) months is the Purchaser' s responsibility.
    4. Use and maintain the Product per the owner' s manual.
    5. Claims not submitted in writing within the above timeframes are deemed waived.
  8. Service
    1. Warranty service will be performed according to standard scheduling and parts availability at an authorized service location.
  9. Limitation of Liability
    1. Warrantor has no obligation for products altered, damaged, misused, or improperly maintained. In no event shall either party be liable for lost profits, incidental or consequential damages.
    2. APEX products are provided as is, without any warranty beyond the terms stated herein. Warrantor may revise warranty terms by written notice or posting on www.bendpak.com, effective 30 days from notice or posting.

    This Limited Warranty represents the entire agreement between Warrantor and Purchaser and supersedes all prior written or oral warranties.

    © 2025 BendPak Holdings LLC. A wholly owned subsidiary of BendPak, Inc.

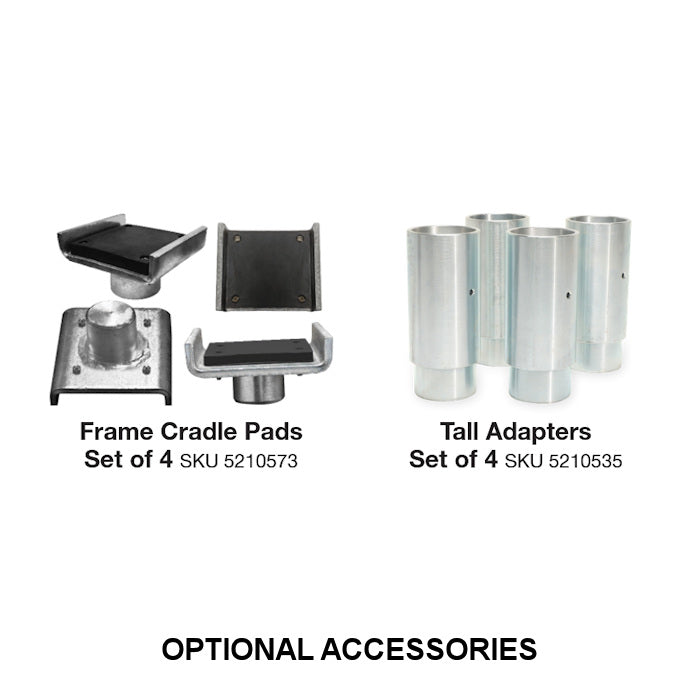

Accessories/Options
