APEX AL9LC Floorplate Two Post Car Lift

Name: APEX AL9LC Floorplate Two Post Car Lift
Brand: ASEDeals
SKU: 5176250
Price: 3895.0 USD
Availability: InStock

In Stock SKU 5176250 UPC 849672044703

OUR PRICE: $3,895.00

Regular Price: ~~$4,089.00~~

$108.19 / mo

INCLUDES FREE SHIPPING*

Short Description

APEX AL9LC Floorplate Two Post Car Lift
9,000 lbs. Capacity Symmetric and Asymmetric Arms

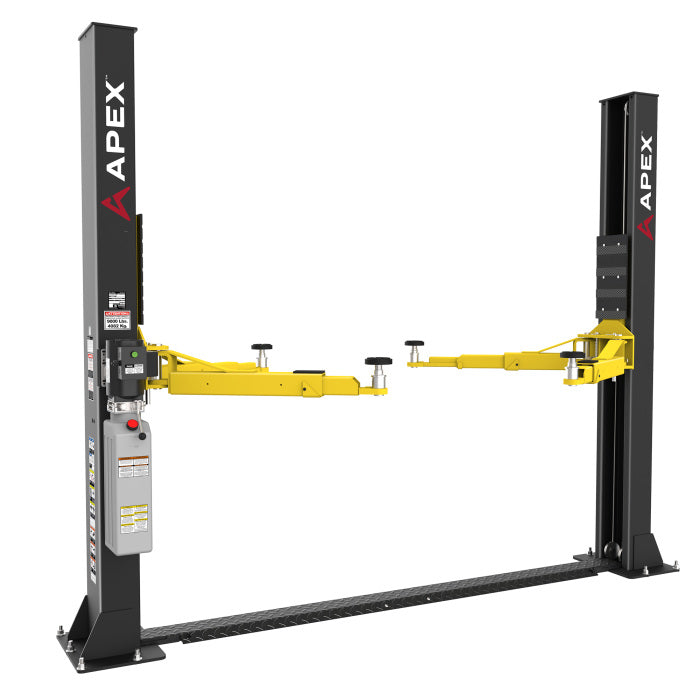

The APEX AL9LC is a 9,000 lbs. floorplate two-post lift engineered for shops and serious garages that need professional lifting capability in low-ceiling environments. Featuring dual symmetric and asymmetric arm configurations, long-reach telescoping arms, and a rugged chain-over lifting system, the AL9LC delivers stable, confident performance for a wide range of vehicles. Previously sold under the GrandPrix brand, the AL9LC now carries the APEX name while retaining the same proven design, performance, and BendPak-backed support.

Description

APEX AL9LC Floorplate Two Post Car Lift
9,000 lbs. Capacity Symmetric and Asymmetric Arms

The APEX AL9LC is a 9,000 lbs. floorplate two-post lift engineered for shops and serious garages that need professional lifting capability in low-ceiling environments. Featuring dual symmetric and asymmetric arm configurations, long-reach telescoping arms, and a rugged chain-over lifting system, the AL9LC delivers stable, confident performance for a wide range of vehicles. Previously sold under the GrandPrix brand, the AL9LC now carries the APEX name while retaining the same proven design, performance, and BendPak-backed support.

Professional Two-Post Lifting for Low-Ceiling Spaces
The APEX AL9LC is designed to deliver professional two-post lifting performance in garages and shops where overhead clearance is limited. Its floorplate design eliminates the restrictive top crossbar found on many two-post lifts, keeping the workspace open while maintaining full lifting capability.

With a 9,000-lb lifting capacity, the AL9LC is built to handle everything from low-slung sports cars to full-size pickups, making it an ideal solution for small shops, performance garages, and serious home mechanics who want real capability without compromising space.

Flexible Arm Geometry for Faster, Easier Vehicle Positioning
Proper vehicle positioning is critical for safe lifting, and the AL9LC is engineered to make setup fast and predictable. Dual symmetric and asymmetric arm configurations allow technicians to position the arms exactly where they are needed based on vehicle size and weight distribution.

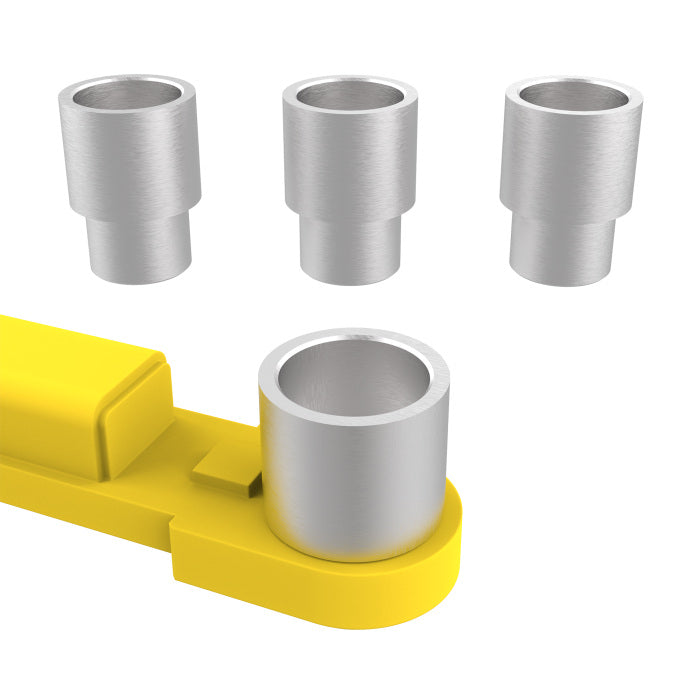

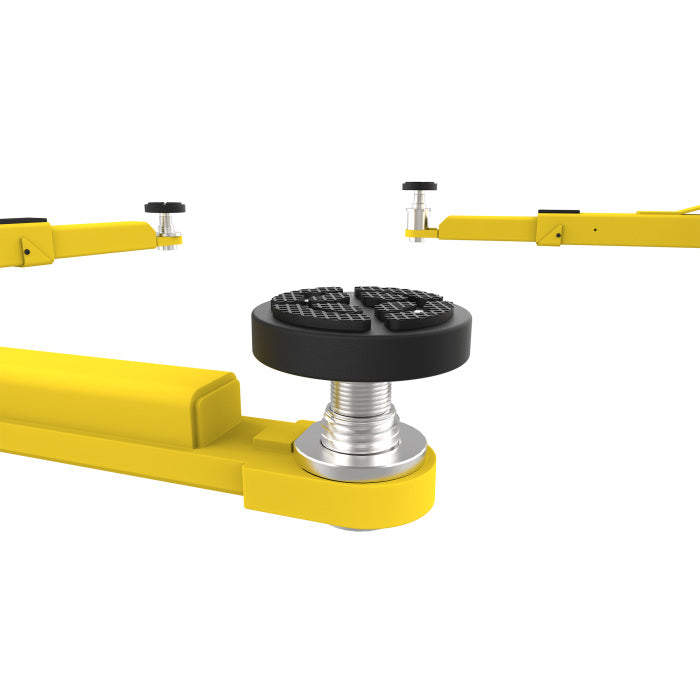

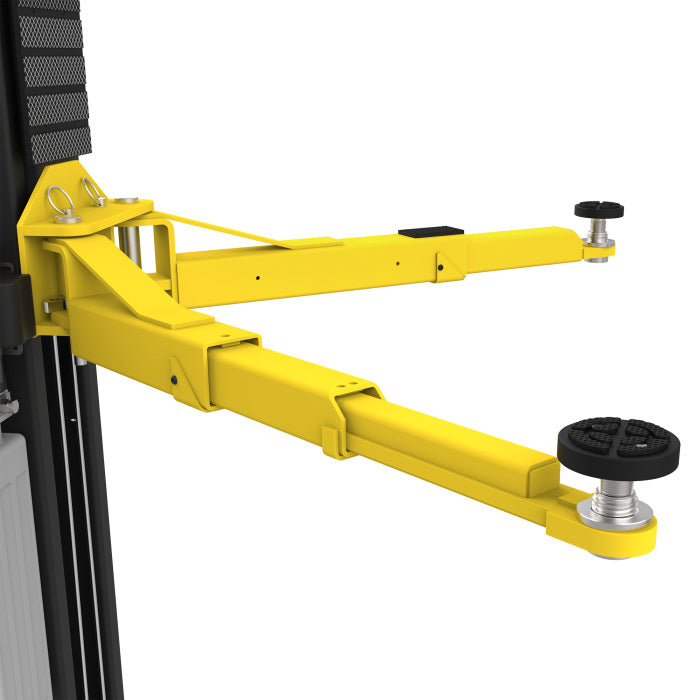

Triple-telescoping front arms and dual-stage extended rear arms provide exceptional reach, making it easy to lift a wide variety of wheelbases. Double-telescoping screw pads and a 4-piece 63 mm stackable adapter set ensure secure, stable contact across different frame designs.

Built for Safety and Stability
Safety is built into every stage of operation on the AL9LC. Automatic safety locks engage every three inches throughout the lifting range, providing consistent, rock-solid load holding at working height.

Automatic arm restraints secure the lift arms in place when the vehicle is raised, preventing unintended movement during service and improving technician confidence.

Heavy-Duty Construction for Daily Use

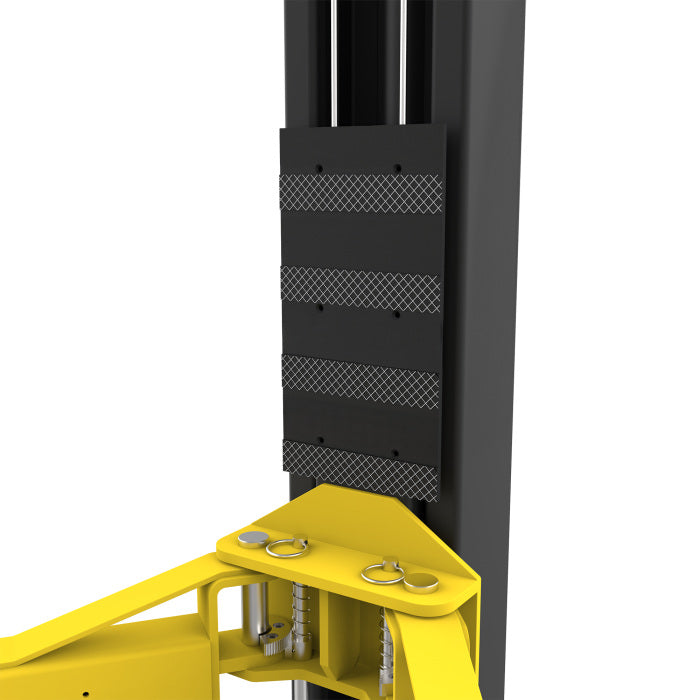

The AL9LC is built to handle the demands of daily shop use with high-strength steel and reinforced components throughout. A heavy-duty 6" x 6" tubular steel carriage delivers excellent load-bearing strength, while oversized 20.5" x 15.5" base plates ensure even weight distribution and outstanding stability.

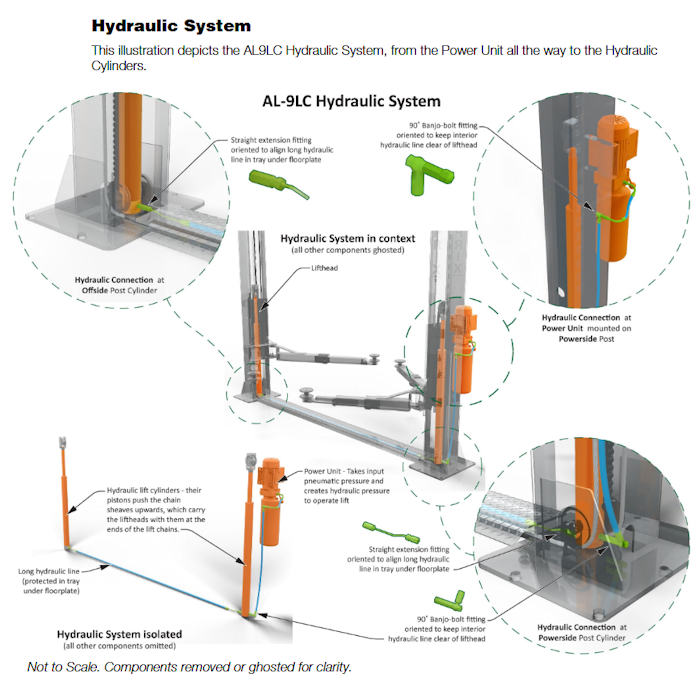

An electric-hydraulic power system provides smooth, quiet, and efficient lifting operation, making the AL9LC comfortable to use throughout long workdays.

Low-Maintenance Chain-Over Lifting System
The AL9LC uses a proven chain-over lifting design with an industrial-grade, high-strength leaf chain manufactured to ANSI standards. This chain is engineered to withstand heavy loads and repeated lifting cycles without stretching or premature wear.

Oversized heavy-duty rollers with Zerk grease fittings and self-lubricating UHMW polyethylene guide blocks reduce friction and wear, helping maintain smooth, consistent operation with minimal maintenance.

From GrandPrix to APEX: Proven Design, Clearer Brand Alignment
The APEX AL9LC was previously sold under the GrandPrix brand and has transitioned into the APEX lineup as part of BendPak's effort to simplify and strengthen its product families.

This change represents a branding update, not a redesign. The AL9LC retains the same floorplate architecture, chain-over lifting system, structural components, and safety features that made it a trusted lift for professional and enthusiast use.

By moving this model under the APEX name, BendPak has aligned it with a broader lineup focused on delivering professional-grade capability at a smart value, supported by U.S.-based customer service and industry-leading warranty and support.

Designed as a Long-Term Investment
Backed by BendPak's industry-leading 36-month warranty and nationwide support network, the APEX AL9LC is built to be a dependable, long-term investment in shop efficiency, safety, and productivity.

Features & Specs

Features

9,000 lbs. Lifting Capacity
Handles passenger vehicles, performance cars, and light trucks with confidence.
Floorplate Two-Post Design
Ideal for low-ceiling garages while maintaining full lifting capability.
Symmetric and Asymmetric Arm Configurations
Allows flexible arm positioning for faster vehicle setup.
Triple-Telescoping Front Arms and Extended Rear Arms
Provides exceptional reach for a wide range of wheelbases.
Automatic Safety Locks Every 3 Inches
Ensures secure load holding throughout the lift range.
Automatic Arm Restraints
Prevent unintended arm movement during service.
Heavy-Duty 6" x 6" Tubular Steel Carriage
Delivers long-term structural strength and durability.
Chain-Over Lifting System
Industrial-grade leaf chain engineered for reliable, low-maintenance operation.
Oversized Base Plates
Improve stability and evenly distribute vehicle weight.
36-Month Limited Warranty
Industry-leading coverage backed by BendPak support.

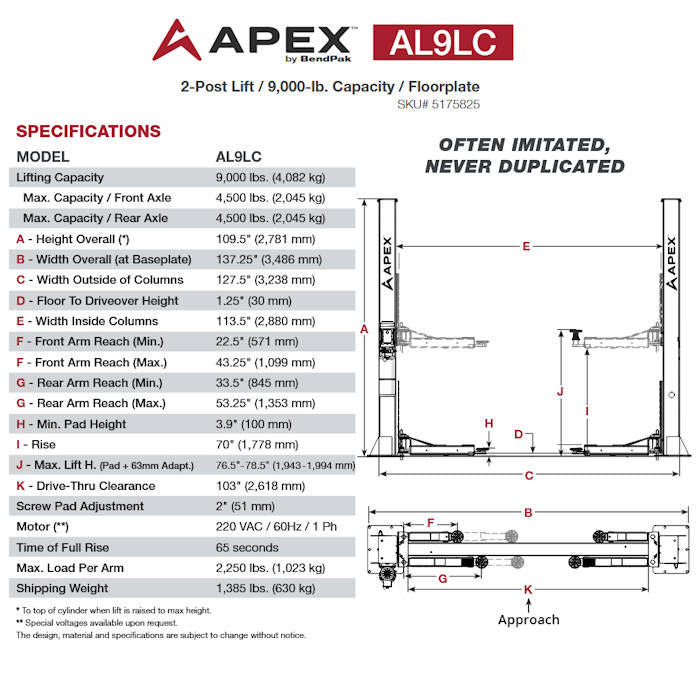

Specifications

Lifting Capacity: 9,000 lbs. (4,082 kg)
Max. Capacity / Front Axle: 4,500 lbs. (2,045 kg)
Max. Capacity / Rear Axle: 4,500 lbs. (2,045 kg)
Height Overall: 109.5" (2,781 mm)
Width Overall (at Baseplate): 137.25" (3,486 mm)
Width Outside of Columns: 127.5" (3,238 mm)
Floor To Driveover Height: 1.25" (30 mm)
Width Inside Columns: 113.5" (2,880 mm)
Front Arm Reach (Min.): 22.5" (571 mm)
Front Arm Reach (Max.): 43.25" (1,099 mm)
Rear Arm Reach (Min.): 33.5" (845 mm)
Rear Arm Reach (Max.): 53.25" (1,353 mm)
Min. Pad Height: 3.9" (100 mm)
Rise: 70" (1,778 mm)
Max. Lift Height (Pad + 63mm Adapt.): 76.5" - 78.5" (1,943 - 1,994 mm)
Drive-Thru Clearance: 103" (2,618 mm)
Screw Pad Adjustment: 2" (51 mm)
Motor: 220 VAC / 60Hz / 1 Phv
Time of Full Rise: 65 seconds
Max. Load Per Arm: 2,250 lbs. (1,023 kg)
Shipping Weight: 1,385 lbs. (630 kg)
Warranty: (3) Years on Equipment Structure, (1) Year on Cylinders, Power Unit, and Components, (6) Months Labor and Freight

APEX Two-Post / Four-Post Limited Warranty
Subject to the terms below, BendPak Inc. ("Warrantor") warrants that the Product conforms to Warrantor’s published specifications and is free from defects in materials and workmanship. NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE MADE.

Duration

3 Years (36 Months): Equipment structure
1 Year (12 Months): Hydraulic cylinders, power unit, and operating components
6 Months: Onsite labor and freight related to warranty service

Limited Warranty

Warrantor: BendPak Inc., 30440 Agoura Road, Agoura Hills, CA 91301.
Purchaser: The original Purchaser (other than for resale).
Covered Products: Any APEX brand Two-Post or Four-Post Vehicle Service Lift manufactured on or after 10/1/2025.
Coverage: Manufacturer defects due to materials or workmanship under normal use and service.
Exclusions
This warranty does not cover:

This warranty is non-transferable and terminates upon sale or transfer of the Product to any subsequent owner.
Abuse, neglect, overloading, or failure to follow installation, operation, or maintenance instructions.
Damage during shipment, or from contact with tools or surroundings.
Wear items (rubber pads, cables, etc.) unless defective in material or workmanship.
Routine maintenance or consumables (lubricants, oils, etc.).
Corrosion or rust from poor maintenance or corrosive environments.
Motor or pump failure due to moisture, contaminants, or improper voltage/wiring.
Cosmetic imperfections that do not affect functionality.
Damage from natural disasters, accidents, or unauthorized modifications.
Any indirect, incidental, or consequential loss, including property damage or downtime.

Warrantor' s Responsibility

At its sole discretion, Warrantor will repair or replace any defective component during the warranty period.

Purchaser' s Responsibility

Provide dated proof of purchase and maintenance records.
Inspect product upon receipt; report shortages within 10 days and defects within 15 days of discovery.
Return defective components if requested. Freight after six (6) months is the Purchaser' s responsibility.
Use and maintain the Product per the owner' s manual.
Claims not submitted in writing within the above timeframes are deemed waived.

Service

Warranty service will be performed according to standard scheduling and parts availability at an authorized service location.

Limitation of Liability

Warrantor has no obligation for products altered, damaged, misused, or improperly maintained. In no event shall either party be liable for lost profits, incidental or consequential damages.
APEX products are provided as is, without any warranty beyond the terms stated herein. Warrantor may revise warranty terms by written notice or posting on www.bendpak.com, effective 30 days from notice or posting.

This Limited Warranty represents the entire agreement between Warrantor and Purchaser and supersedes all prior written or oral warranties.
