Atlas 9KBPX Baseplate Two Post Lift

Name: Atlas 9KBPX Baseplate Two Post Lift
Brand: ASEDeals
SKU: ATEXH-9KBPX
Price: 2999.0 USD
Availability: InStock

In Stock SKU ATEXH-9KBPX UPC 810524020008

OUR PRICE: $2,999.00

Regular Price: $3,149.00

$83.30 / mo

INCLUDES FREE SHIPPING*

Short Description

Atlas 9KBPX Baseplate Two Post Lift
9,000 lbs. Capacity Light Commercial Grade
The Atlas 9KBPX is a base-plate two-post lift designed for low ceiling garages. The total column height of 111-1/2" (9 feet 3-1/2 inches) allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet 6 inches.

CALL OUR EXPERTS NOW FOR UNBEATABLE, EXCLUSIVE PRICING!

Description

Atlas 9KBPX Baseplate Two Post Lift
9,000 lbs. Capacity Light Commercial Grade

The Atlas 9KBPX is a base-plate two-post lift designed for low ceiling garages. The total column height of 111-1/2" (9 feet 3-1/2 inches) allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet 6 inches.

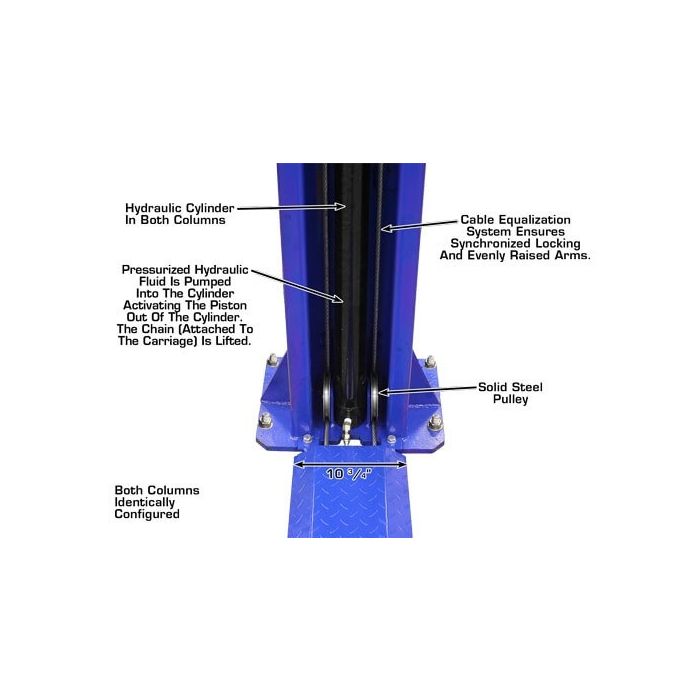

The Atlas 9KBPX features dual hydraulic chain-drive cylinders, symmetric arms, and automatic arm restraints. Atlas 9KBPX two post "chain over roller" lifts have a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain.

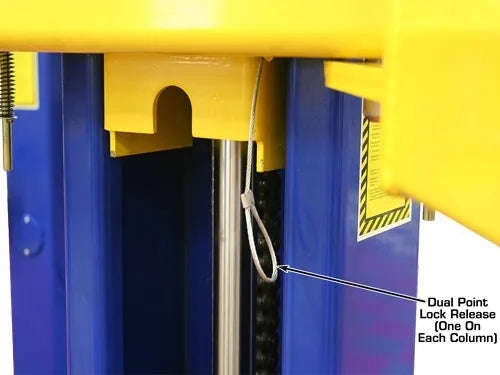

Dual Point Lock Release - One of the features of this lift is the dual-point lock release. The dual-point lock release features locks in both columns. The lock cable in both columns must be pulled to release the locks.

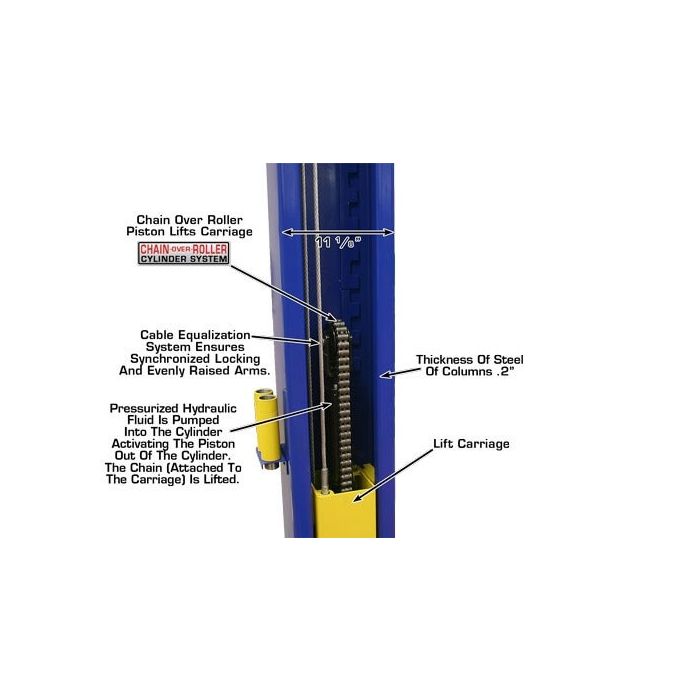

Chain-Over-Roller Cylinder Configuration - This 2-post lift has the chain-over-roller cylinder configuration. There are two popular hydraulic cylinder configurations used in two post electric/hydraulic above ground lifts: Greg Smith Equipment sells above ground lifts that incorporate both the direct drive cylinder configuration and the chain-over-roller cylinder configuration. The base plate two post above ground lift implements the chain-over-roller configuration. This is the only hydraulic cylinder system that is possible in the base plate lift. The base plate two post above ground is designed for "low ceilings". The direct drive hydraulic cylinder configuration cannot be used in the base plate lift because the hydraulic cylinder would extend above the 9' column when the lift arms were raised to the maximum height. The "overhead" two post above ground lift may incorporate either the direct drive hydraulic cylinder or the chain-over-roller hydraulic cylinder.

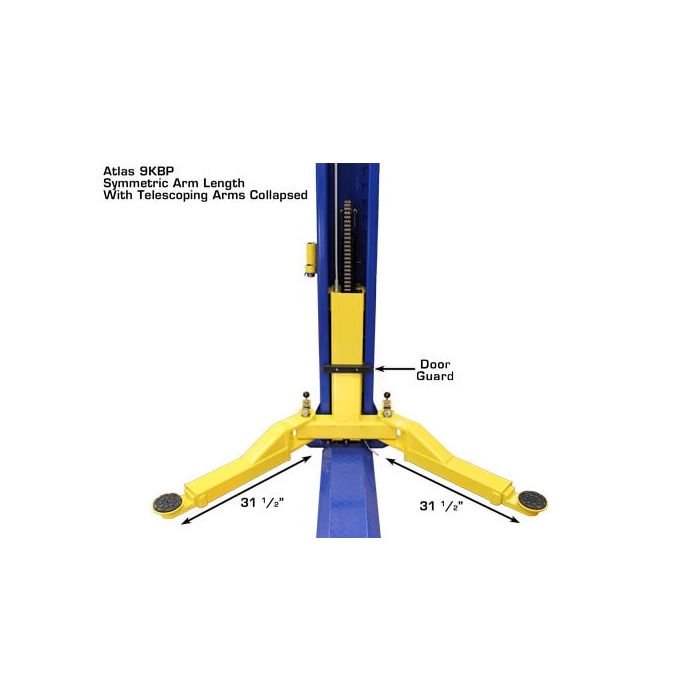

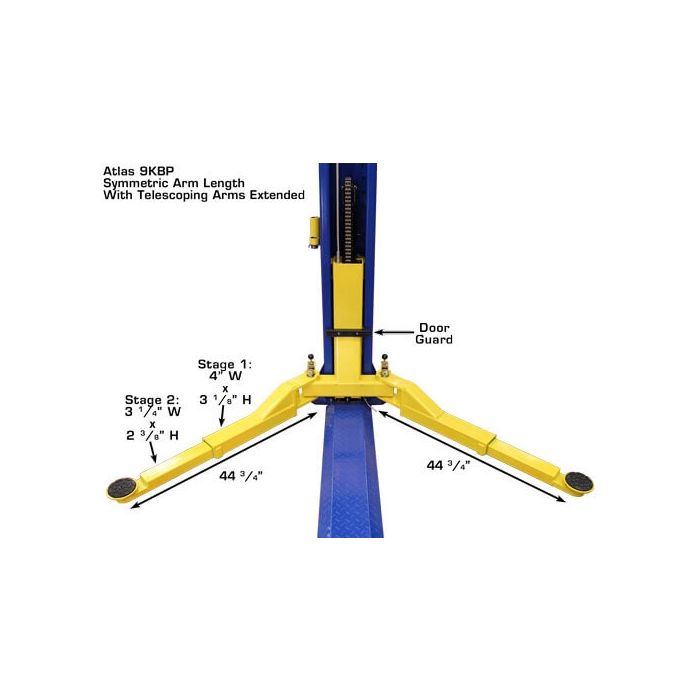

Symmetric Arm Design - This lift includes a symmetric column configuration to offer the widest possible Drive Thru. This base-plate above ground lift has symmetric arms to allow easy access to both sides of the vehicle.

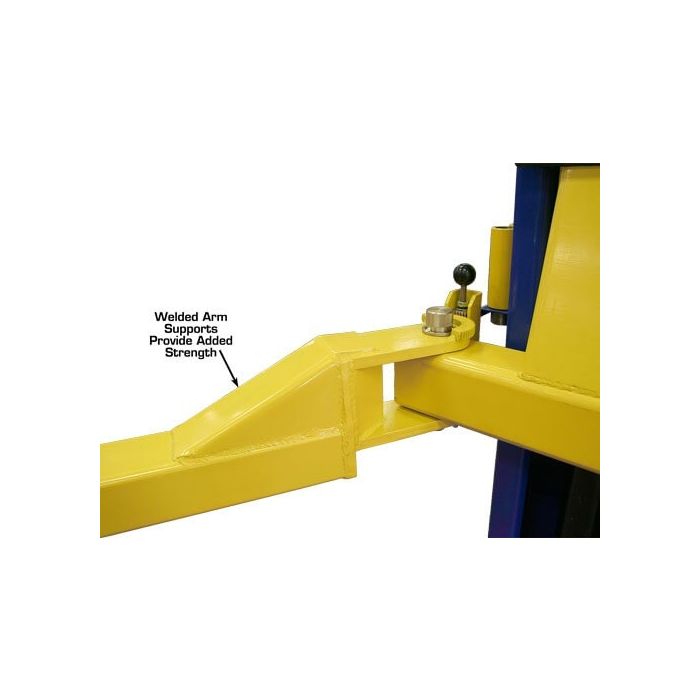

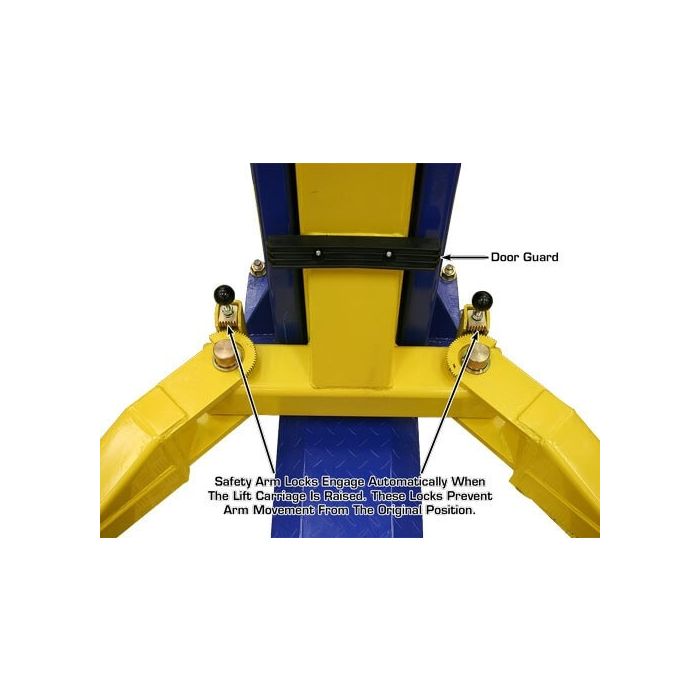

Automatic Arm Restraints - are needed to keep the arm "locked" into a position relative to the carriage. When the arms are at rest in the lowest position, the arm restraint pin (which extends below the carriage) is pressed up and the lock (teeth) mechanism is disengaged. The operator can then move the arms so that the lift pads can be properly positioned under the vehicle’s lift points. Once the carriage is raised (approximately 2 inches) the lock is reengaged and the arms cannot be moved. However, the operator may pull the knob or metal ring to manually unlock the arms. Lock restraints do not guarantee that a vehicle cannot be "moved" off of the lift pads. Operator should use care when working on vehicles that have an abundant amount of undercoating (lift pads may "slide") or a significant weight imbalance of the vehicle may occur due to removal of an engine or transmission. Also, "HEAVY wrenching" may result in a vehicle shifting weight on the arm pads. We recommend the use of tall jack stands under the vehicle to add another layer of safety.

Features & Specs

Features

9,000 lbs. Capacity
Symmetric Arms
Base Plate Design
Dual Hydraulic
Chain-Drive Cylinders
Secondary Lock System (SLS)

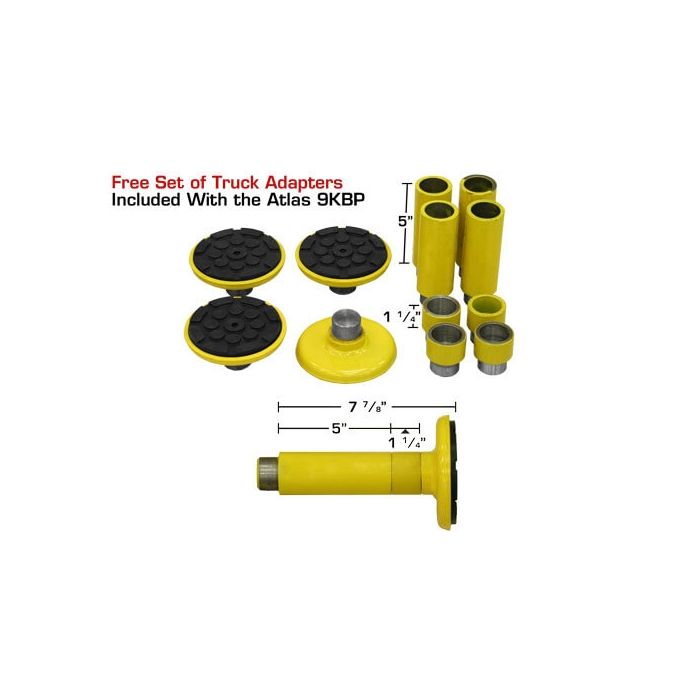

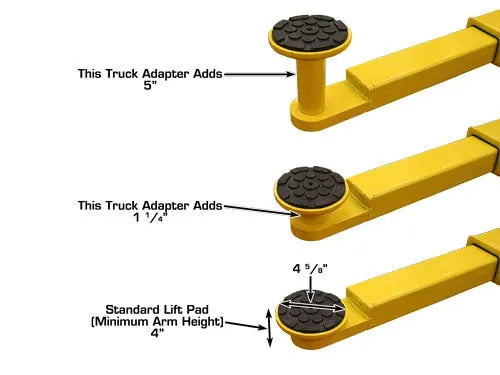

Free 8 Piece Truck Adapter Set
Automatic Arm Restraints
Dual Point Lock Release
Designed For Low Ceiling Clearance - 9' 3-1/2" Columns

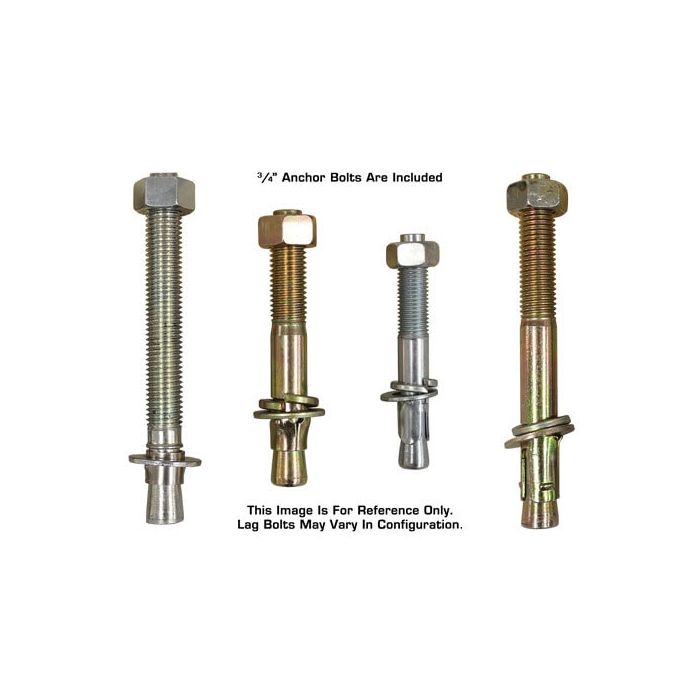

Mounting Hardware Included

Specifications

Capacity: 9,000 lbs.
Lifting Time: Ask Your Salesperson

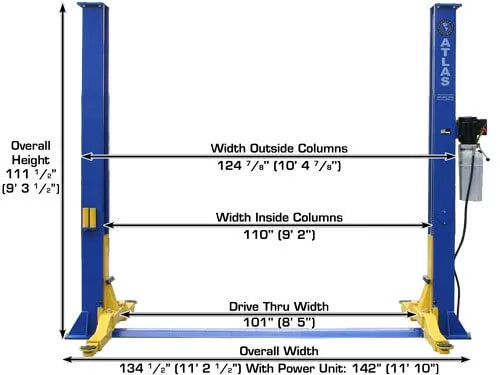

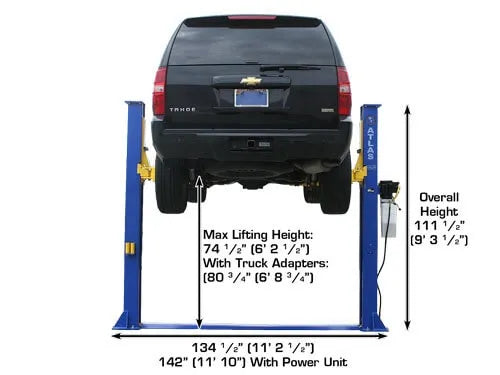

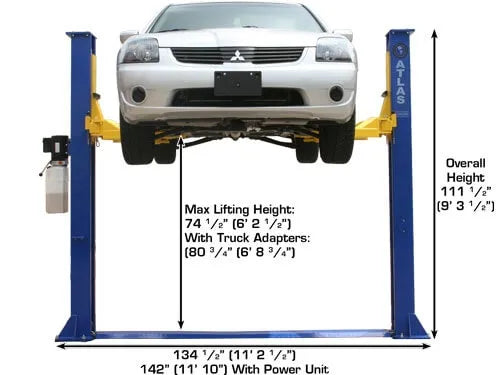

Overall Height: 111-1/2" (9' 3-1/2")
Overall Width (With Power Unit): 142" (11' 10")
Overall Width (Without Power Unit): 134 ½" (11' 2-1/2")
Outside Column to Outside Column: 124-7/8" (10' 4-7/8")

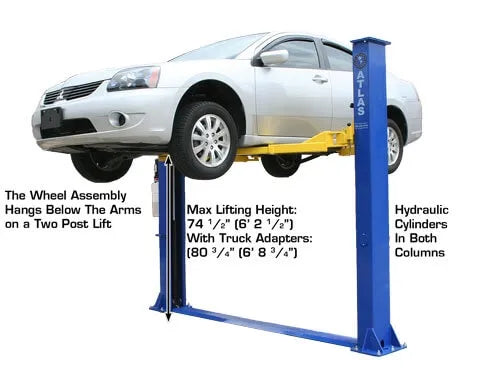

Maximum Lift Height: 74-1/2" (6' 2-1/2")
Minimum Arm Height: 4"

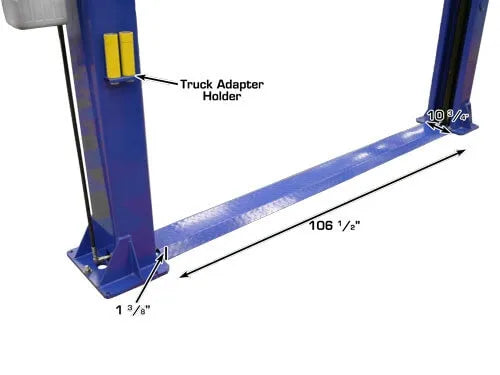

Base Plate Width: 10-3/4"
Inside Column: 110" (9' 2")
Drive Thru: 101" (8' 5")
Column Size: 7-1/4" x 11-1/8"
Column Thickness of Steel: 5mm
Carriage Thickness of Steel: 6mm
Arms Thickness of Steel: 6mm
Cable Diameter: .375"

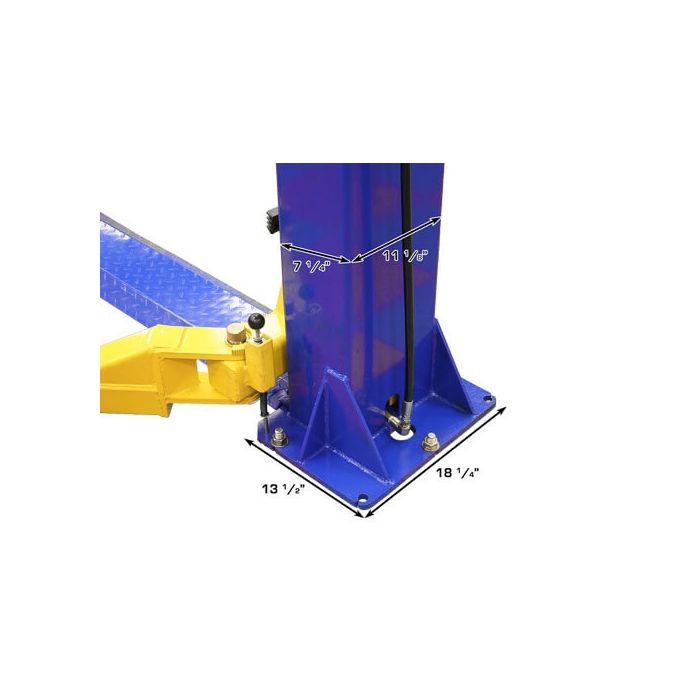

Base Of Lift: 13-1/2" x 18-1/4"
Motor Requirement: 3HP 22V Single (1) Phase
Electrical Requirement: 30 Amp Breaker Required
Oil Requirement: 3-5 Gallons AW32/AW46
Floor Requirement: Minimum 4" 3000PSI Concrete

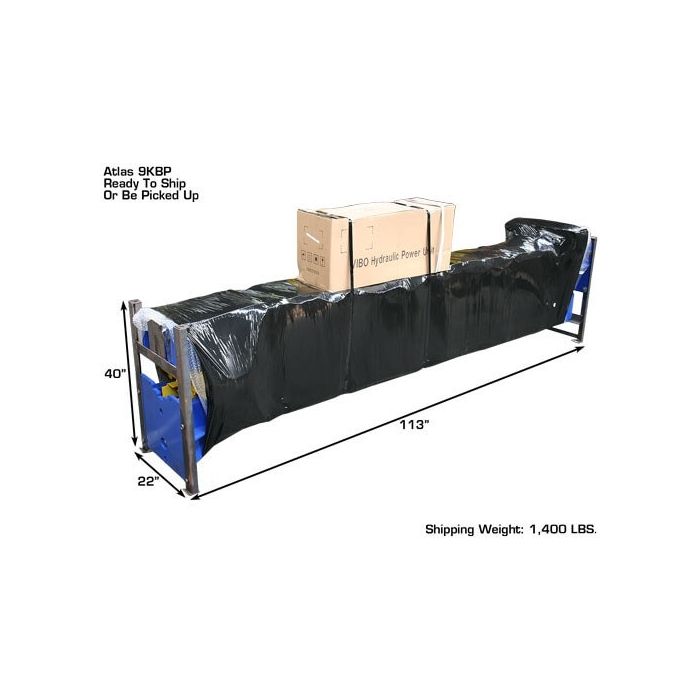

Shipping Dimensions: 22" x 40" x 113"
Shipping Weight: 1,400 lbs.
Warranty: 2 Years Structure, 1 Year Hydraulic, No Labor

2 Year Structural & 1 Year Hydraulic Warranty
This item is warranted for two (2) years on structural components and one (1) year on air or electric hydraulic power units, pneumatic power units, cylinders and major components from date of invoice. Wear items are covered by a 90 day warranty.

This LIMITED warranty policy does not include a labor warranty.

NOTE: ALL WARRANTY CLAIMS MUST BE PRE-APPROVED BY THE MANUFACTURER TO BE VALID.

The Manufacturer shall repair or replace at their option for this period those parts returned to the factory freight prepaid, which prove after inspection to be defective. This warranty will not apply unless the product is installed, used and maintained in accordance with the Manufacturers installation, operation and maintenance instructions.

This warranty applies to the ORIGINAL purchaser only, and is non-transferable. The warranty covers the products to be free of defects in material and workmanship but, does not cover normal maintenance or adjustments, damage or malfunction caused by: improper handling, installation, abuse, misuse, negligence, carelessness of operation or normal wear and tear. In addition, this warranty does not cover equipment when repairs or alterations have been made or attempted to the Manufacturer's products.

Electrical Requirements

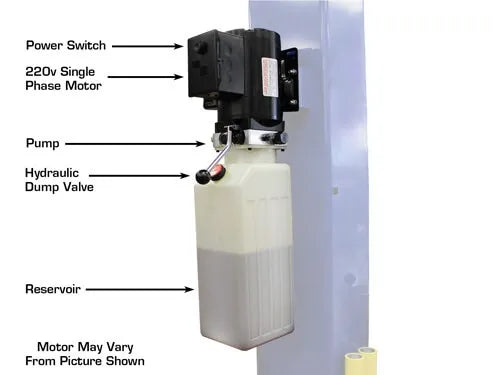

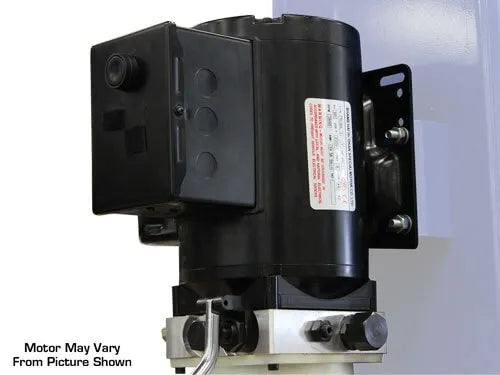

The electric motor for the power unit requires 220 Volt (single phase) 60 Hz (+/- 5%, so 209-231 volts). We recommend using at least a 10 gauge (grounded) wire from the electrical panel. The power unit may or may not have a short pigtail (no plug) that can be wired to either an optional quick disconnect box (mounted on the lift column) or to a male/female plug combination. A 30 amp breaker is required.

Installation
The Atlas 9KBPX Baseplate Two Post Lift should be installed on a concrete floor. This concrete floor should have a minimum of four (4) inches of concrete with 3000 PSI strength. Most of our above ground lift customers install their own car lifts. The average time to install the Atlas 9KBPX car lift is four hours. We provide detailed installation instructions with all our two post above ground lifts and our four post above ground lifts.
