Atlas 9KOHX Overhead Two Post Lift + Lawn Mower Adapter Combo

Description

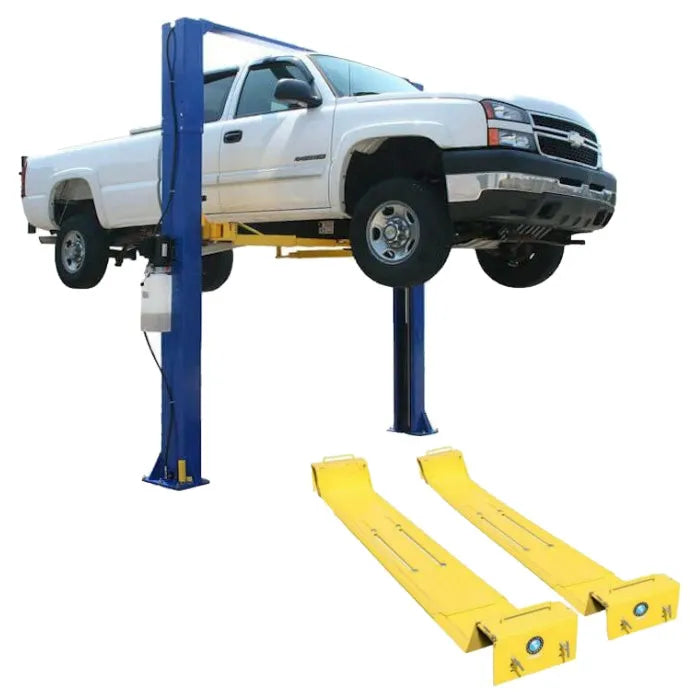

Atlas 9KOHX Overhead Two Post Lift 9,000 lbs. Capacity +
Atlas LMA Lawn Mower Adapter Combo

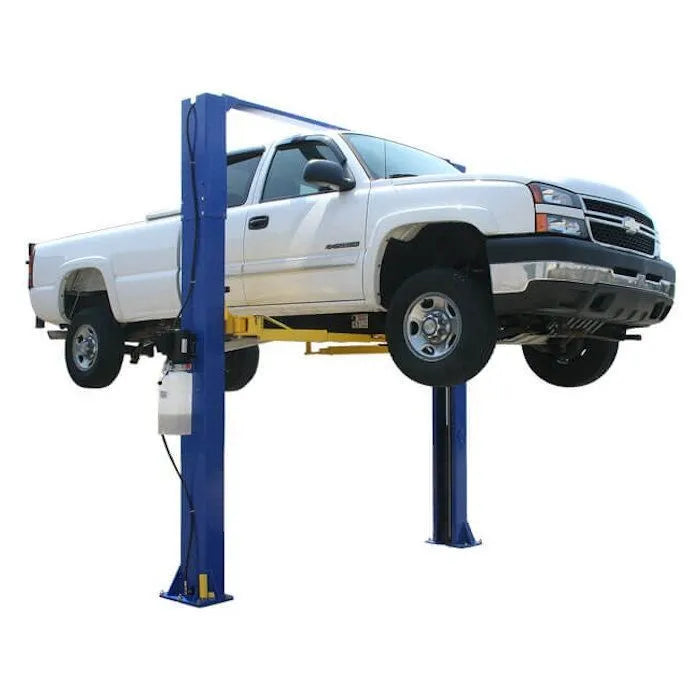

Atlas 9KOHX Adjustable Height Overhead Two Post Lift
9,000 lbs. Capacity Light Commercial Grade

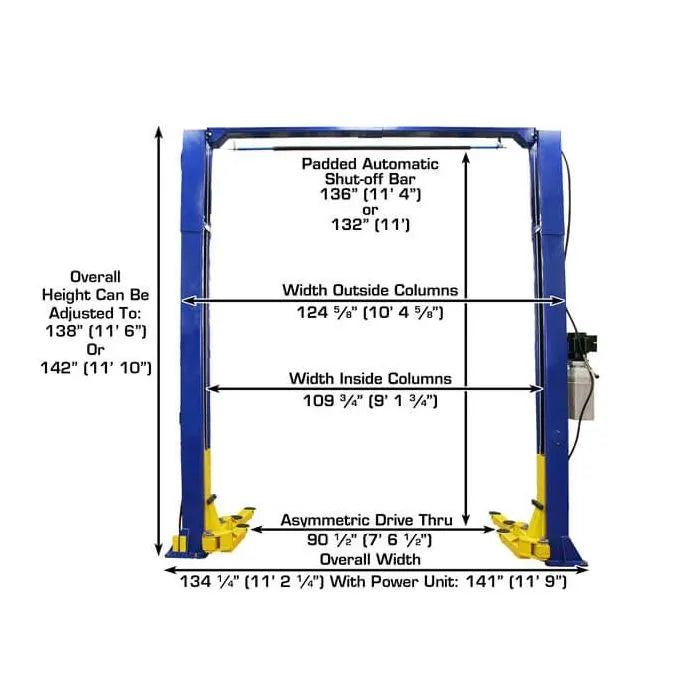

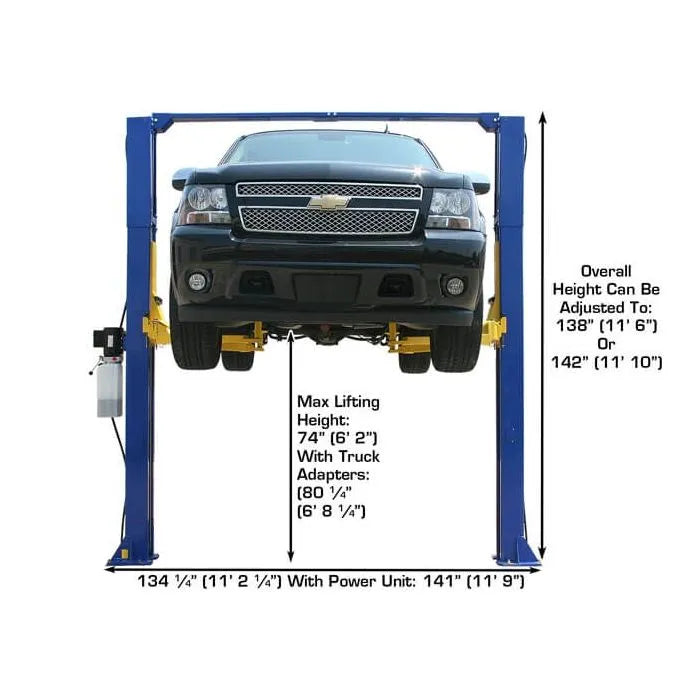

The Atlas 9KOHX is the perfect choice for those customers who demand the most lifting capacity at the lowest possible price. The Atlas 9KOHX can be adjusted to two different height settings: 11' 6" or 11' 10".

This combo includes the Atlas Lawn Mower Adapter or LMA. The LMA allows the Two Post Lift to better raise ATVs, UTVs, and lawn mowers. The LMA is adjustable along the length of the lifts arms to handle different wheelbase vehicles. The weight capacity of the LMA is dependent on the positioning of the adapter (higher when the plates are closer to the columns) and the balance of the weight of the vehicle being lifted.

The Atlas 9KOHX has symmetric columns and specially designed arms that can be set in either the symmetric or asymmetric position. The asymmetric/symmetric arm design offers an extremely low lift pad position on the EZ-metric lift arm configuration. This low pad height will allow the operator to position the lift arms under most small cars (with low pick up points) and light pick up trucks.

The Atlas 9KOHX includes: a complete set of solid peg type truck adapters, mounting hardware, a set of sliding lift point adapters, and a 220 volt single phase power unit that can be mounted on either side of the lift. (The power unit column must be on the correct side).

The Atlas 9KOHX two post "chain over roller" lifts have a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain.

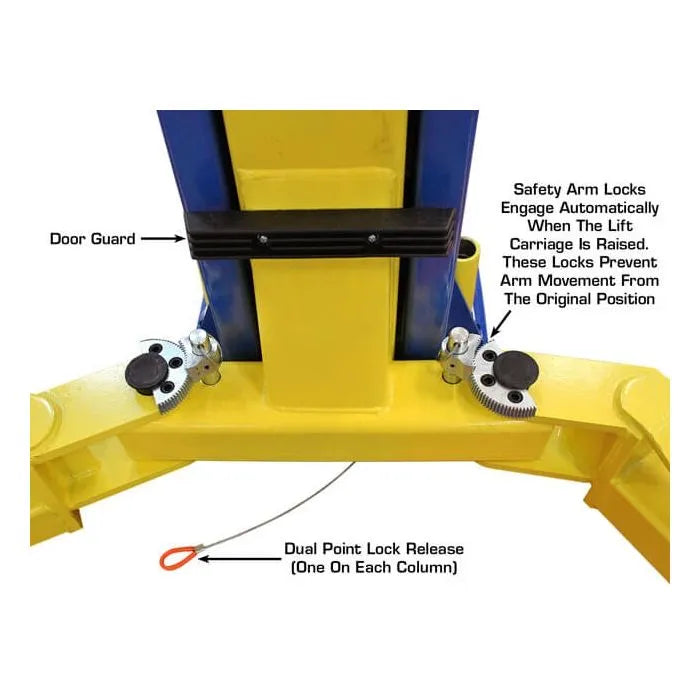

Dual Point Lock Release - The dual-point lock release features locks in both columns. The lock cable in both columns must be pulled to release the locks.

Automatic Arm Restraints - are needed to keep the arm "locked" into a position relative to the carriage. When the arms are at rest in the lowest position, the arm restraint pin (which extends below the carriage) is pressed up and the lock (teeth) mechanism is disengaged. The operator can then move the arms so that the lift pads can be properly positioned under the vehicle’s lift points. Once the carriage is raised (approximately 2 inches) the lock is reengaged and the arms cannot be moved. However, the operator may pull the knob or metal ring to manually unlock the arms. Lock restraints do not guarantee that a vehicle cannot be "moved" off of the lift pads. Operator should use care when working on vehicles that have an abundant amount of undercoating (lift pads may "slide") or a significant weight imbalance of the vehicle may occur due to removal of an engine or transmission. Also, "HEAVY wrenching" may result in a vehicle shifting weight on the arm pads. We recommend the use of tall jack stands under the vehicle to add another layer of safety.

Overhead Configuration - The overhead bar configuration leaves the floor area between the columns open, and allows the operator to easily roll a transmission jack or a tool box under the car. The Automatic Padded Shut-Off Bar located below the cross beam prevents the top of the vehicle from being damaged by hitting the cross beam. The padded bar, which contacted automatically shuts off the motor on the power unit to prevent the vehicle from being lifted.

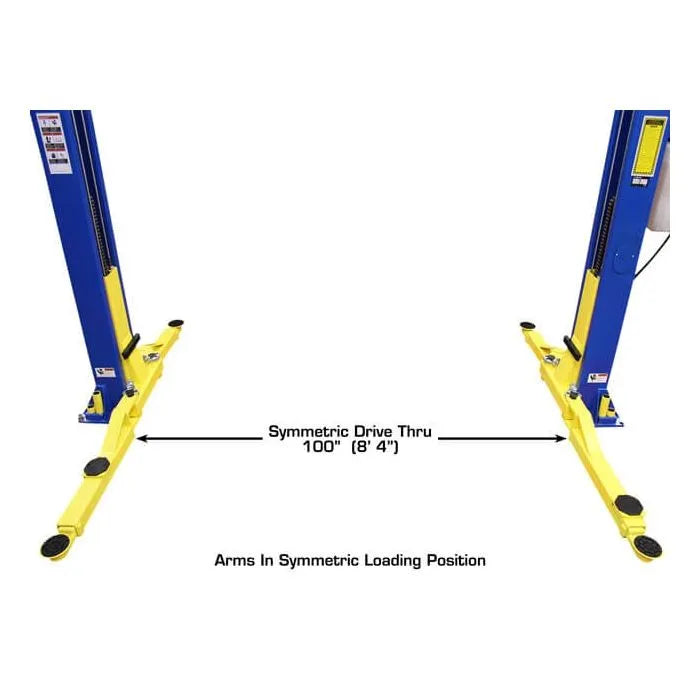

Asymmetric/Symmetric Arm Design - offers an extremely low lift pad position on the EZ-metric lift arm configuration. This low pad height will allow the operator to position the lift arms under most small cars (with low pick up points) and heavier pick up trucks. This lift has symmetrical columns and includes a set of EZ-metric arms. These arms can be configured into the symmetrical position to lift a full loaded pick up truck OR these arms can be configured to the asymmetric position to offer easier opening of the front door on some vehicles.

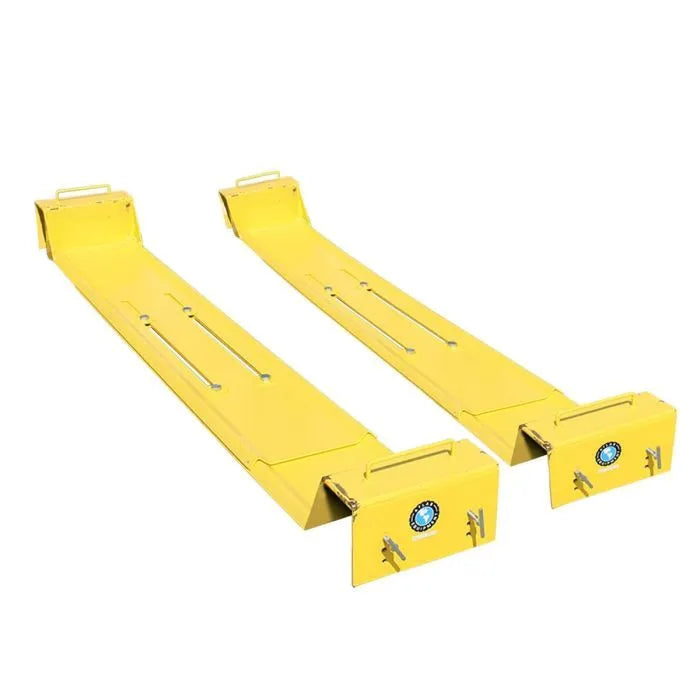

Atlas LMA Lawn Mower Adapter

The Atlas LMA Lawn Mower Adapter will transform most two post above ground lifts into an easy to use lawn mower lift, golf car lift, snowmobile lift, ATV lift, or a small sports car lift.

The Atlas LMA adapts easily to most two post above ground lifts that are equipped with a symmetric arm design. The LMA is adjustable in width to accommodate the many different arm configurations found on two post lifts. The Atlas LMA can be used in an infinite amount of wheel base configurations (between 32" and 90") to allow the operator great flexibility in lifting different pieces of lawn service equipment with varying wheelbases.

Most of the specialty lawn mower lifts and golf cart lifts are just variations of the economical automobile lift. Golf course maintenance equipment distributors are demanding artificially high prices for specialty above ground lifts that are just subtle adaptations of the very affordable two post above ground car lifts.

When properly installed, the Atlas LMA can transform most two post above ground lifts into an economical four wheel support lift that will accommodate wheel bases from 32" to 90". The Atlas LMA plates can be positioned ONLY on two post lift arms that offer symmetric arm configuration.

Please read the following before buying or using the Atlas LMA:

The Atlas LMA is designed to work well with most two post above ground lifts with symmetric arms. There are many factors that will determine the SAFE weight capacity of the Atlas LMA on YOUR lift. Greg Smith Equipment Sales recommends the following LMA guidelines for the SAFE lifting of all specialty vehicles or lawn service equipment.

Many above ground two post lifts have been OVER RATED by certain lift distributor. Your 9,000 lbs. or 10,000 lbs. two post may be (in reality) only an 8,000 lbs. two post lift.

For the purpose of illustration, let us assume that you have an REAL 8,000 lbs. two post lift.

This 8,000 lbs. capacity translates into an important fact about above ground two post lifts: An 8,000 lbs. two post lift has four lift arms that are capable of lifting (and safely supporting) 2,000 lbs. each. If you are lifting an 8,000 lbs. vehicle on an 8,000 lbs. lift, then the weight of the vehicle needs to be evenly distributed on each of the four lifting points.

This same principle is applied when using the Atlas LMA as an accessory on your lift. You must distribute the weight as evenly as possible.

First, you must consider the weight of the LMA (600 lbs.) and deduct the 600 lbs. from the lifting capacity of your lift. Your 8,000 lbs. lift (with a properly positioned LMA) has a new lifting capacity of 7400 lbs.

The closer the LMA plate is positioned to the vertical columns, the greater the lifting capacity of the LMA. As the LMA adapter plates are moved farther apart (toward the lift pads of the lift), the lifting capacity of the LMA is reduced.

We recommend that the lift operator DEDUCT 3,000 lbs. lifting capacity of the above ground lift when the two LMA plates are spaced at the furthest wheelbase position (90"). When the LMA plates are positioned at the closest wheel base position (32"), then the weight capacity of the above ground lift with the attached LMA should be DECREASED by 2,000 lbs.

If you are using an 8,000 lbs. two post lift, and you have the wheelbase dimensions set at 32", then the NEW lifting capacity of the lift would be 6,000 lbs. If you position the LMA plates so that the wheelbase is 90", then the NEW lifting capacity would be 5,000 lbs.

If you are lifting a mower (or other vehicle) that is extremely heavy on one end, then the operator should position the LMA plate supporting the "heavy" end closer to the vertical column and extend the opposite LMA plate (supporting the "lighter" end) further out on the lift arm to accommodate the necessary wheelbase.
