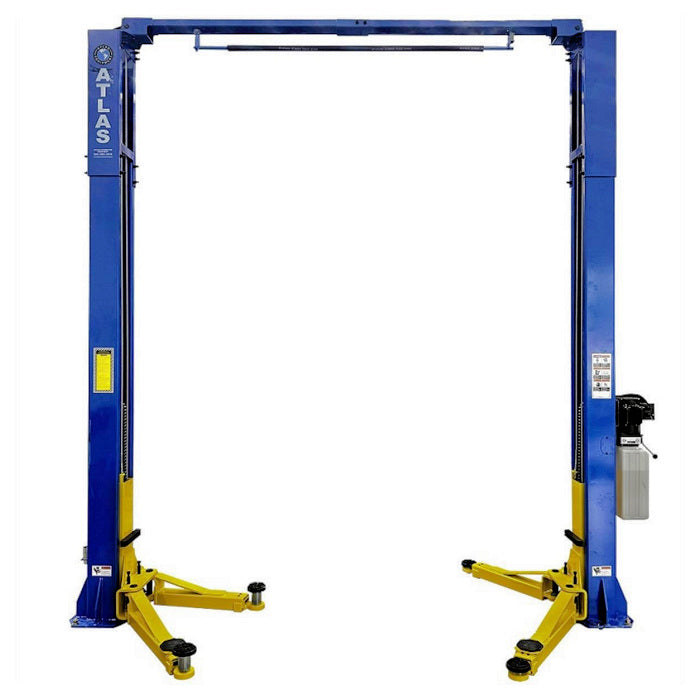

Atlas TPO-9 Overhead Two Post Lift

Name: Atlas TPO-9 Overhead Two Post Lift
Brand: ASEDeals
SKU: ATEXH-TPO-9
Price: 2999.0 USD
Availability: InStock

Out Of Stock SKU ATEXH-TPO-9 UPC 810524029957

OUR PRICE: $2,999.00

Regular Price: $3,149.00

$83.30 / mo

INCLUDES FREE SHIPPING*

Short Description

Atlas TPO-9 Overhead Two Post Lift
9,000 lbs. Capacity Clear-Floor Economical Light Duty
The Atlas TPO-9 Overhead Two Post lift is an economically designed overhead, clear-floor 2-post lift. The reliable chain-drive cylinders and dual safety system make this the perfect choice for "Mr. Homeowner" or small commercial shops looking to service cars, SUVs and light duty trucks. The TPO-9 has an overall height of 12 feet. The Atlas TPO-9 has symmetric columns and symmetric arms. The low pad height will allow the operator to position the lift arms under most small cars (with low pick up points) and heavier pickup trucks. The Atlas TPO-9 two post "chain over roller" lifts have a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain.

LIMITED AVILABILITY!
Once They're Gone, They're Gone.

Description

Atlas Automotive Equipment

Atlas TPO-9 Overhead Two Post Lift
9,000 lbs. Capacity Clear-Floor Economical Light Duty

The Atlas TPO-9 Overhead Two Post lift is an economically designed overhead, clear-floor 2-post lift. The reliable chain-drive cylinders and dual safety system make this the perfect choice for "Mr. Homeowner" or small commercial shops looking to service cars, SUVs and light duty trucks. The TPO-9 has an overall height of 12 feet. The Atlas TPO-9 has symmetric columns and symmetric arms. The low pad height will allow the operator to position the lift arms under most small cars (with low pick up points) and heavier pickup trucks. The Atlas TPO-9 two post "chain over roller" lifts have a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain.

Automatic Arm Restraints
Automatic arm restraints are needed to keep the arm "locked" into a position relative to the carriage. When the arms are at rest in the lowest position, the arm restraint pin (which extends below the carriage) is pressed up and the lock (teeth) mechanism is disengaged. The operator can then move the arms so that the lift pads can be properly positioned under the vehicle’s lift points. Once the carriage is raised (approximately 2 inches) the lock is reengaged and the arms cannot be moved. However, the operator may pull the knob or metal ring to manually unlock the arms. Lock restraints do not guarantee that a vehicle cannot be "moved" off of the lift pads. Operator should use care when working on vehicles that have an abundant amount of undercoating (lift pads may "slide") or a significant weight imbalance of the vehicle may occur due to removal of an engine or transmission. Also, "HEAVY wrenching" may result in a vehicle shifting weight on the arm pads. We recommend the use of tall jack stands under the vehicle to add another layer of safety.

Atlas TPO-9 Installation
The Atlas TPO-9 above ground lift should be installed on a concrete floor. This concrete floor should have a minimum of four (4) inches of concrete with 3000 PSI strength. Most of our above ground lift customers install their own car lifts. The average time to install the Atlas TPO-9 car lift is five hours. We provide detailed installation instructions with all our two post above ground lifts and our four post above ground lifts.

Electrical Requirements
The electric motor for the power unit requires 220 Volt (single phase) 60 Hz (+/- 5%, so 209-231 volts). We recommend using at least a 10 gauge (grounded) wire from the electrical panel. The power unit may or may not have a short pigtail (no plug) that can be wired to either an optional quick disconnect box (mounted on the lift column) or to a male/female plug combination. A 30 amp breaker is recommended.

Overhead Configuration
The overhead bar configuration leaves the floor area between the columns open, and allows the operator to easily roll a transmission jack or a tool box under the car.

Automatic Shut-Off Bar
The padded shut-off bar located below the cross beam prevents the top of the vehicle from being damaged by hitting the cross beam. The padded bar, which contacted automatically shuts off the motor on the power unit to prevent the vehicle from being lifted.

Features & Specs

Features

9,000 lbs. Capacity
Overhead Open-Floor Design
Overall Height 144" (12')
Symmetric Arms
Automatic Arm Restraints
Dual-Point Lock Release
Rubber Guards on Carriages
Dual Hydraulic Chain-Drive Cylinders
Secondary Lock System
Adjustable Screw-Up Adapters Included
Free 4 Piece Truck Adapter Set Included
Free Set of Sliding Arm Adapters Included
Mounting Hardware Included

Specifications

Capacity: 9,000 lbs.
Overall Height: 144" (12')
Overall Floor Width: 133 1/2" (11' 1 1/2")
Maximum Lift Height (Without Adapters): 76 1/2"
Maximum Lift Height (With Adapters): 79 1/2"
Minimum Arm Height: 4"
Inside Column: 111 5/8" (9" 3 5/8")
Drive Thru: 99 1/2" (8' 3 1/2")
Column Size: 7 1/4" x 11"
Column Thickness of Steel: 5mm
Base Of Lift: 14 1/4" x 18"
Motor: 220 Volt Single (1) Phase
Electrical Requirement: 30 Amp Breaker Recommended
Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Adapter Heights: 4 Each 2.75"
Arm Hole/Adapter Peg Size: 2"
Concrete Requirement: Minimum 4" of Concrete With 3000 PSI Rating
Shipping Dimensions: 113" L x 22" W x 40" H
Shipping Weight: 1,450 lbs.
Warranty: (2) Years Structural, (1) Year Hydraulic Parts Only, No Labor

Atlas 2-1 Warranty
2 Year Structural & 1 Year Hydraulic Warranty
This item is warranted for two (2) years on structural components and one (1) year on air or electric hydraulic power units, pneumatic power units, cylinders and major components from date of invoice. Wear items are covered by a 90 day warranty.

This LIMITED warranty policy does not include a labor warranty.

NOTE: ALL WARRANTY CLAIMS MUST BE PRE-APPROVED BY THE MANUFACTURER TO BE VALID.

The Manufacturer shall repair or replace at their option for this period those parts returned to the factory freight prepaid, which prove after inspection to be defective. This warranty will not apply unless the product is installed, used and maintained in accordance with the Manufacturers installation, operation and maintenance instructions.

This warranty applies to the ORIGINAL purchaser only, and is non-transferable. The warranty covers the products to be free of defects in material and workmanship but, does not cover normal maintenance or adjustments, damage or malfunction caused by: improper handling, installation, abuse, misuse, negligence, carelessness of operation or normal wear and tear. In addition, this warranty does not cover equipment when repairs or alterations have been made or attempted to the Manufacturer's products.
