$450 INSTANT REBATE

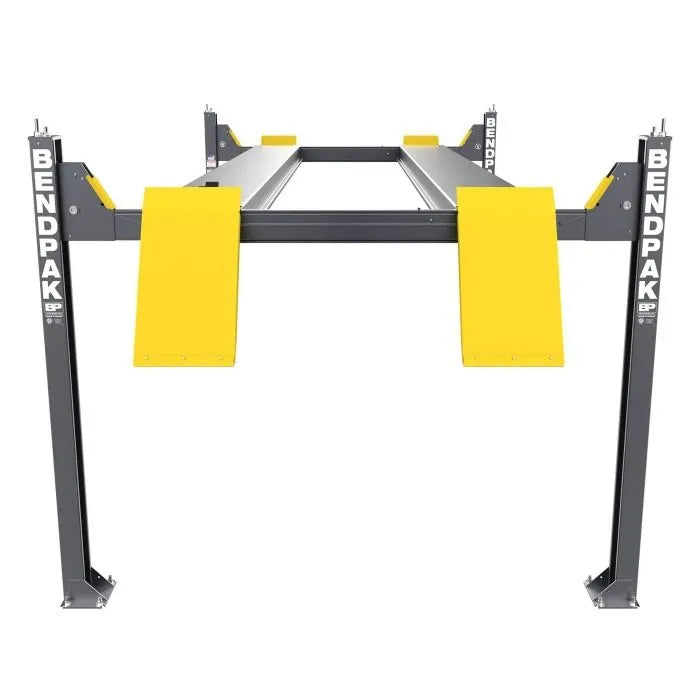

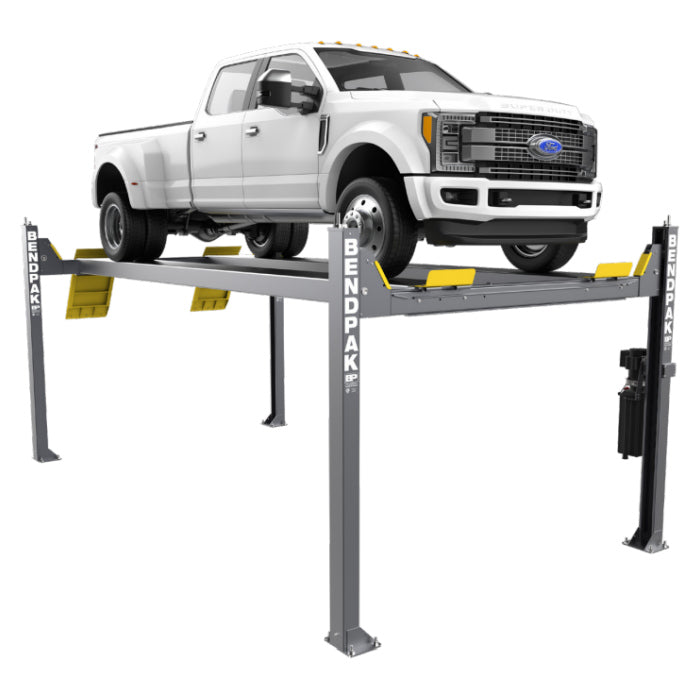

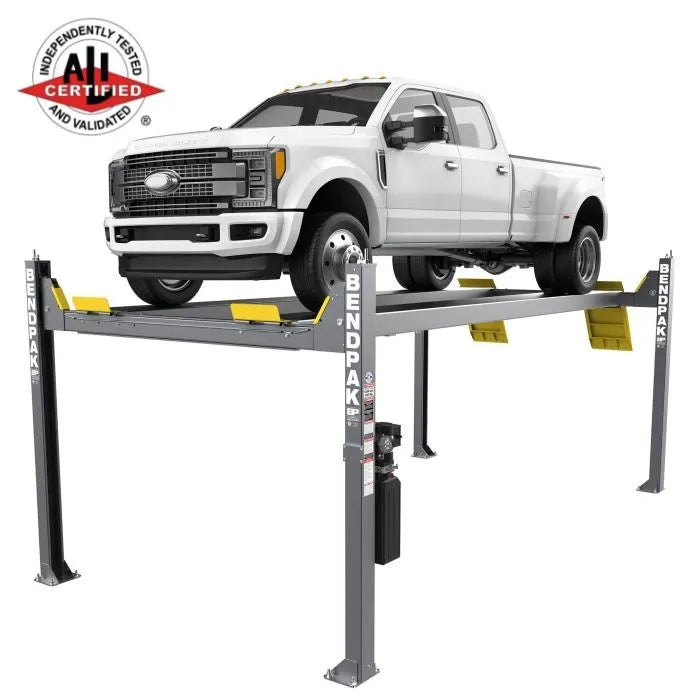

BendPak HDS-14XT Four Post Lift 14,000 lbs. Capacity

Name: BendPak HDS-14XT Four Post Lift 14,000 lbs. Capacity
Brand: ASEDeals
SKU: 5175624
Price: 8845.0 USD
Availability: InStock

In Stock SKU 5175624

OUR PRICE: $8,845.00

Regular Price: $9,295.00

$245.69 / mo

INCLUDES FREE SHIPPING*

Short Description

BendPak HDS-14XT Four Post Lift 14,000 lbs. Capacity
229" Runways 82" Rise Tall Extended Limo Style

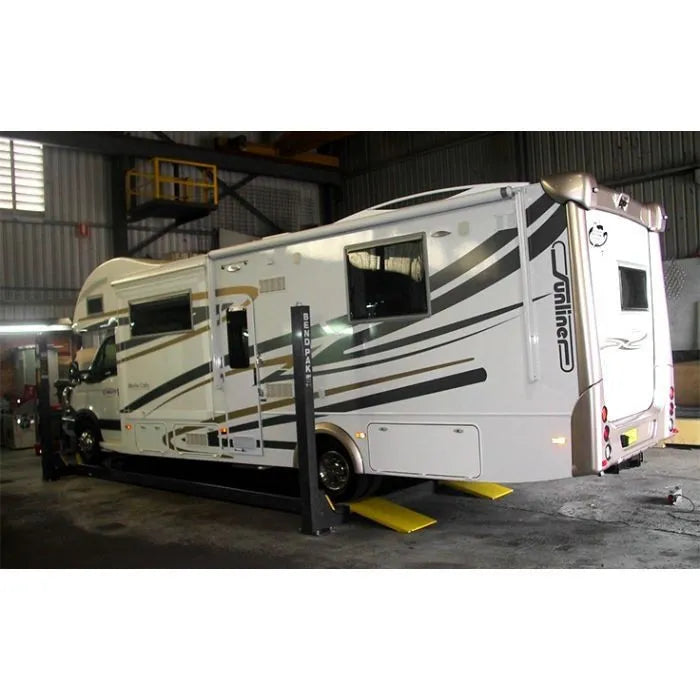

The BendPak HDS-14XT Four Post Lift is a longer and taller version of the popular HDS-14. A longer four-post lift is useful for vehicles like limos, SUVs and trucks, and that’s where the HDS-14XT comes in handy. We call it our "limo style" lift because of how much front-to-back clearance it offers, so you can make it over or under the lift with ease. This lift adds additional versatility and craftsmanship to your garage.

Description

BendPak HDS-14XT Four Post Lift 14,000 lbs. Capacity
229" Runways 82" Rise Tall Extended Limo Style

The BendPak HDS-14XT Four Post Lift is a longer and taller version of the popular HDS-14. A longer four-post lift is useful for vehicles like limos, SUVs and trucks, and that’s where the HDS-14XT comes in handy. We call it our "limo style" lift because of how much front-to-back clearance it offers, so you can make it over or under the lift with ease. This lift adds additional versatility and craftsmanship to your garage.

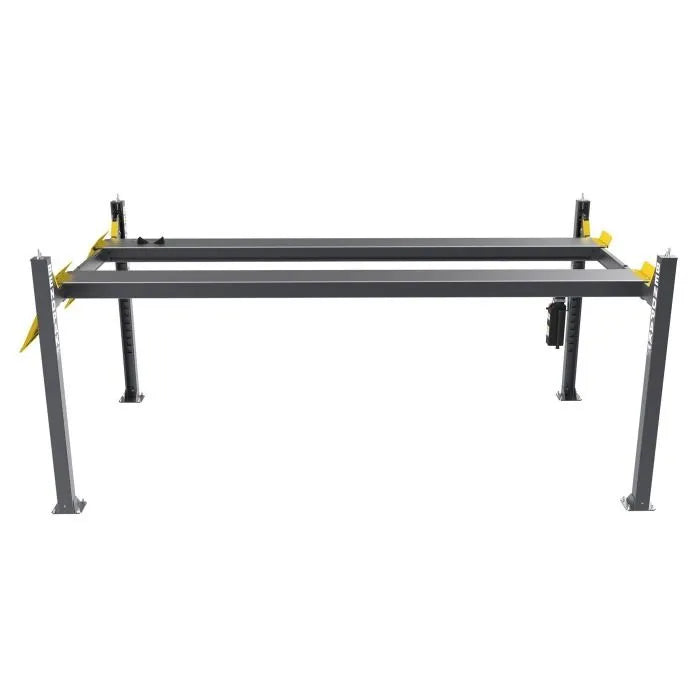

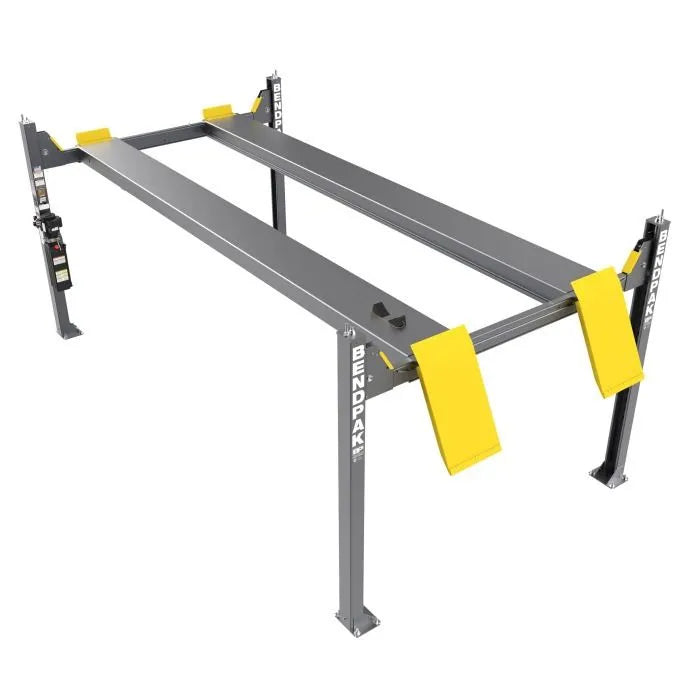

Extended Runways
14,000-lb. vehicles have wheelbases that need specialized equipment to keep them safe and supported. Our extended runways prevent wear and tear on your vehicle; driving onto a car lift runway should not feel like your truck is climbing Mt. Everest.

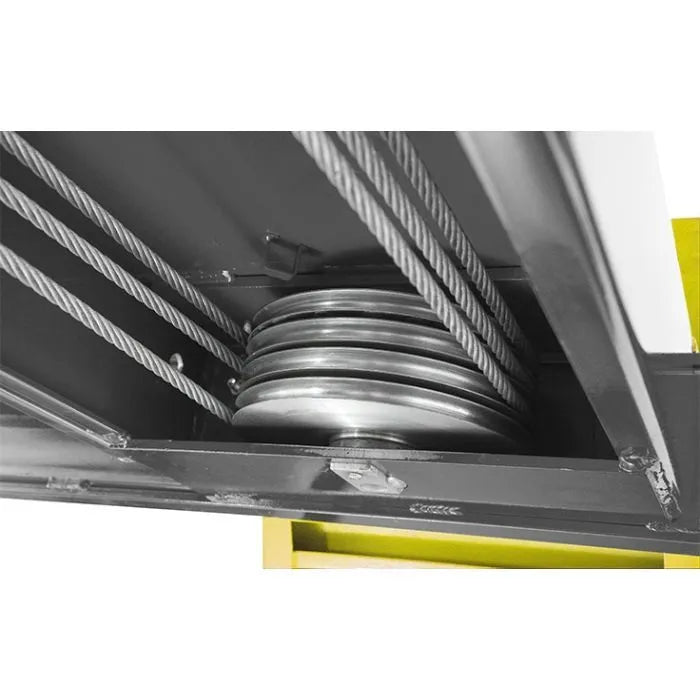

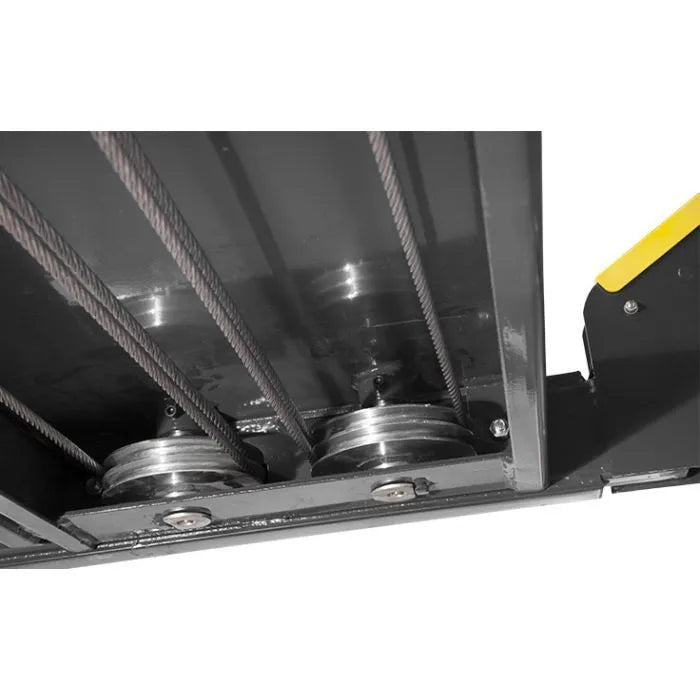

Dual-Hub Cable Sheaves
Dual-hub cable sheaves reduce stress, fatigue and wear. Huge 10.5" diameter cable sheaves within the runway and cross tubes combine with massive 2.25" diameter sheave axles. This dramatically improves cable wear and critical component lifespan, which means less service-related expenses down the road.

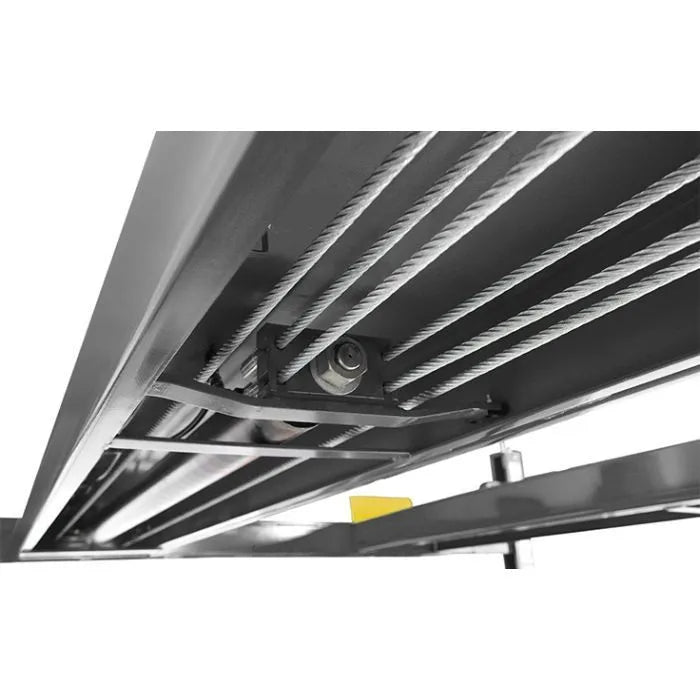

Heavy-Duty Aircraft Cable
This car lift features four, 1/2" diameter, 6 x 25 stainless-steel lifting cables that have a breaking strength of over 14,000 lbs. each. This aircraft-quality cable was specifically designed for lifting applications and provides a great balance between abrasion resistance and fatigue.

Large Base Plates
10" x 12" base plates provide a solid foundation for every 14K capacity four-post car lift.

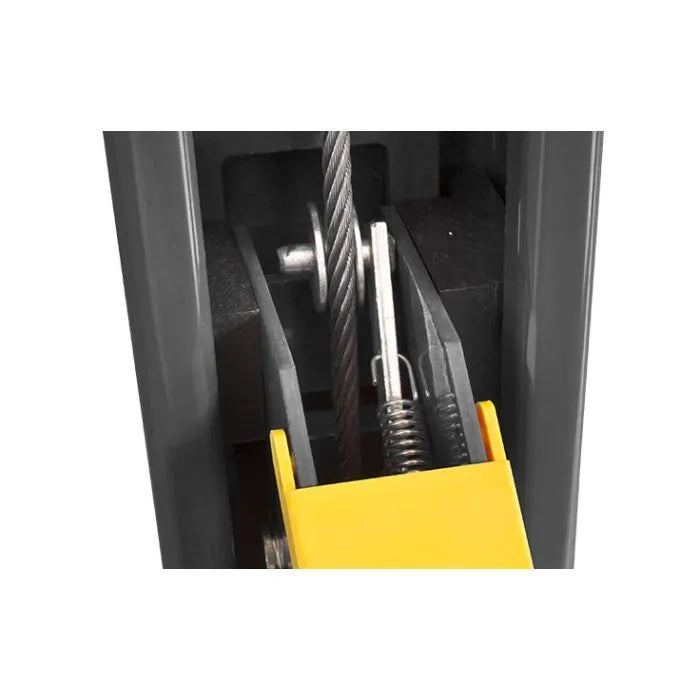

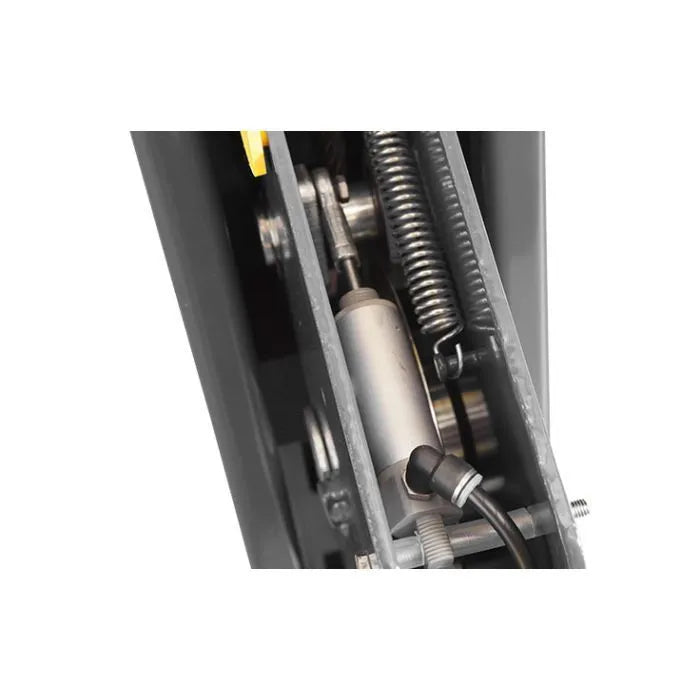

Spring-Loaded Safety Locks
Safety locks automatically engage continuously during rise, and adjustable safety ladders allow for precise runway leveling, even when installed on sloped floors.

Why should you purchase a BendPak lift from ASEdeals?

1) Guaranteed Lowest Prices - Listen, we monitor our competition's prices. We know we usually have the lowest price on most of our equipment most of the time. In the unlikely event you find any of our automotive lifts advertised anywhere on the web for less, just tell us where you saw them, and we'll beat them. It's that simple. Our prices will not be beaten!

2) Largest BendPak Distributor -This means that you enjoy the benefit of our size. Not only does this allow us to offer the best pricing available, If you have any warranty issues that you feel are not being addressed quickly enough, or to your satisfaction, we have the influence with the manufacturer to get your issue resolved right away.

3) Years of Experience - So many internet companies have popped up over the past few years, claiming to have all kinds of experience, and then when you dig a little deeper, you'll find out that they've only been around for a few years. We've been carrying Bend Pak equipment for over 17 years now. When you call and speak to us, you're not getting just an order taker that knows nothing about the product. We know these products better than most. Not only will get you answers to your questions, we will make sure that you get the proper lift for your application.

4) Reputation - Right along with the years of experience comes our reputation. Check out our reputation on all of the various car enthusiast forums out there, such as Garage Journal or Corvette Forum. You'll find countless satisfied customers, praising not only our prices, but also our integrity, honesty and ability to help you choose the right product for your application. And then, there's our hundreds of satisfied customer pictures and testimonials to back it up. We'll gladly put our reputation up against anybody's.

*Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2006 or ANSI/UL 201. Consult with ASEDeals for a complete list.

Features & Specs

Features

14,000 lbs. Lifting Capacity
CE Approved And Certified
Meets Or Exceeds The Standards Prescribed By European Standard EN-1493
Mid To Long-Style Approach Extended Ramps For Low Ground Clearance Vehicles
Runways Include Rail-Kit For Optional Accessories
Single Hydraulic Cylinder Mounted Underneath Runway
Fully Enclosed Lifting Cables, Safety Locks And Sheaves
Dual-Hub Cable Sheaves
Internal Anti-Sway Slider Blocks In Each Column
Pneumatic Push-Button Safety Release
Heavy-Duty 1/2" Aircraft Cable And 1.75" Roller Axles
Safety Locks Enclosed In Columns Minimize Pinch Points
Oversized Sheave Diameter Reduces Cable Fatigue
Oversized Self-Lubricating Cable Rollers
Multi-Position Spring-Loaded Safety Locks In Each Column
Customizable Power Unit Location
Independent Backup Slack-Cable Safety Latches
Large 10" X 12" Base Plates Provide Solid Foundation

Specifications

Model	HDS-14	HD-14T	HDS-14XT
SKU	5175170	5175004	5175624
Lifting Capacity*	14,000 lbs. (6,350 kg)	14,000 lbs. (6,350 kg)	14,000 lbs. (6,350 kg)
*Max Capacity / Front Axle	7,000 lbs. (3,175 kg)	7,000 lbs. (3,175 kg)	7,000 lbs. (3,175 kg)
*Max Capacity / Rear Axle	7,000 lbs. (3,175 kg)	7,000 lbs. (3,175 kg)	7,000 lbs. (3,175 kg)
A - Min. Runway Height	7.5" (191 mm)	7.5" (191 mm)	6.75" (171 mm)
B - Max. Rise	70" (1,778 mm)	82" (2,083 mm)	83" (2,104 mm)
C - Max. Lifting Height	77.5" (1,969 mm)	89" (2,261 mm)	89.5" (2,275 mm)
Time to Full Rise	60 seconds	65 seconds	65 seconds
D - Overall Width	130" (3,302 mm)	126" (3,200 mm)	130" (3,304 mm)
E - Outside Length	213" (5,410 mm)	205" (5,207 mm)	243" (6,172 mm)
F - Overall Length	242" (6,147 mm)	233.25" (5,924 mm)	272" (6,907 mm)
G - Height of Columns	92" (2,337 mm)	100" (2,540 mm)	104" (2,643 mm)
H - Width Between Columns	120" (3,048 mm)	115.75" (2,940 mm)	120" (3,050 mm)
I - Drive-Thru Clearance	98" (2,489 mm)	98" (2,489 mm)	98.25" (2,498 mm)
J - Runway Width	20" (508 mm)	20" (508 mm)	19" (482 mm)
K - Length of Runways	197.5" (5,017 mm)	195" (4,953 mm)	227.5" (5,777 mm)
L - Width Between Runways	34.5" (876 mm) or 41.5" (1,054 mm)	34.5" (876 mm) or 41.5" (1,054 mm)	35.75" (910 mm) or 42" (1,068 mm)
M - Runway Centerline	57.5" (1,461 mm) or 64.5" (1,638 mm)	57.5" (1,461 mm) or 64.5" (1,638 mm)	57.5" (1,460 mm) or 64.5" (1,642 mm)
N - Outside Edge of Runways	77.5" (1,969 mm) or 84.5" (2,146 mm)	77.5" (1,969 mm) or 84.5" (2,146 mm)	77.5" (1,968 mm) or 84.5" (2,150 mm)
Rated Capacity	140" (3,556 mm)	135" (3,429 mm)	135" (3,429 mm)
75% Capacity	120" (3,048 mm)	115" (2,921 mm)	115" (2,921 mm)
50% Capacity	100" (2,540 mm)	100" (2,540 mm)	95" (2,413 mm)
25% Capacity	80" (2,032 mm)	80" (2,032 mm)	80" (2,032 mm)
Locking Positions	15	17	17
Lock Spacing	Every 4" (102 mm)	Every 4" (102 mm)	Every 4" (102 mm)
Power Unit	220 VAC / 60 Hz / 1 Ph	220 VAC / 60 Hz / 1 Ph	220 VAC / 60 Hz / 1 Ph
Noise	45 dB	45 dB	45 dB
Shipping Weight	2,606 lbs. (1182 kg)	2,408 lbs. (1,092 kg)	2,740 lbs. (1,242 kg)
Shipping Dimensions	209" x 22" x 29" (5,309 x 558 x 737 mm)	204'' x 22'' x 30'' (5,182 x 584 x 762 mm)	239'' x 22'' x 29'' (6,070 x 558 x 737 mm)

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

*Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2006 or ANSI/UL 201. Consult with ASE Deals for a complete list.

Warranty: (5) Years on Structure, (2) Year on Hydraulics, (1) Year Electrical, (1) Year Labor

BendPak Two Post/Four Post Lifts Limited Warranty
LIMITED WARRANTY. Subject to the limitations of set forth below, Warrantor warrants that the Product sold hereunder conform to Warrantor's published specifications. WARRANTOR MAKES NO REPRESENTATION OR WARRANTY OF ANY OTHER KIND, EXPRESS OR IMPLIED, WITH RESPECT TO THE GOODS, WHETHER AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER.

Duration: From the date of purchase by original Purchaser or 60-24‐12 months from the date of shipment by BendPak or whichever comes first.

Five Years (60-Months) Warranty on the lift structure
Two Years (24‐Months) Warranty on the hydraulic cylinder(s) and power unit
One Year (12‐Months) Warranty on operating components
One Year (12‐Months) Warranty on electrical components (excluding power unit)
One Year (12‐Months) Labor Warranty on site or at factory*
One Year (12‐Months) Free‐Shipping** on ground‐freight charges related to warranty performance

Limited Warranty

Who gives this warranty (Warrantor): BendPak Inc., 1645 Lemonwood Dr., Santa Paula, CA 93060
Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
What products are covered by this warranty (Product): Any BendPak Two‐Post or Four‐Post Vehicle Service Lift***
What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below.
What is not covered under this warranty:

Any failure that results from Purchaser's abuse, neglect or failure to operate, maintain or service Product in accordance with instructions provided in the owner's manual(s) supplied.
Any damage caused by overloading Product beyond rated capacity.
Items or service normally required to maintain the Product, i.e. lubricants, oil, etc.
Items considered general wear parts such as rubber pads/blocks, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship.
Any component damaged in shipment or any failure caused by installing or operating lift under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings.
Motor or pump failure caused by rain, excessive humidity, corrosive environments or other contaminants.
Rusted components due to improper maintenance or corrosive environments.
Cosmetic defects that do not interfere with Product functionality.
Damage due to incorrect voltage or improper wiring.
Any failure that results from improper installation or use not according to specifications.
Damage caused by disasters such as fire, flood, wind, and lightning.
Damage caused by unauthorized attachments or modifications.

Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor's option, component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period. Warrantor will pay reasonable labor costs for the first 12 months only.
Responsibilities of Purchaser under this warranty/ notice of claims:

Provide dated proof of purchase and maintenance records.
In some cases, components may be required to be shipped to the nearest BendPak Authorized Service Center. Freight costs, after 12‐months, must be borne by the Purchaser.
Use reasonable care in the operation and maintenance of the Products as described in the owner's manual(s).
Immediately upon receipt of the Product, Purchaser shall inspect the same. Any claim for shortage must be made within ten days after Purchaser's receipt. All other claims, including claims for alleged defective Product, must be made within fifteen days after Purchaser learns of the facts upon which such claim is based, but in no event later than the applicable one, two or five year period specified above for the specified component(s). All claims not made in writing and received by Seller within the time periods specified above shall be deemed waived. With respect to any defects incapable of discovery until in use, all claims for any damages or losses as a result of such defects shall be deemed waived unless made in writing and received by Seller within fifteen days after Purchaser learns of the alleged defect giving rise to the claim and after the expiration of said periods, but in no event later than the applicable one, two or five year period specified above for the specified component(s). Purchaser expressly assumes all liability for all such damages or losses, irrespective of any use which shall have taken place or whether the alleged defect shall have occurred or been discovered prior to expiration of such periods.

When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.
*As determined by Warrantor in its sole discretion**Free‐shipping applies to direct shipping points within the 48 continental United States. Rural area shipping surcharge may apply for remote addresses. ***For all BendPak brand Full‐Rise Scissors Vehicle Service Lift (excluding specialty lifts, high rise, commercial parking, material handling, or models for particular purpose) manufactured on or following 1/1/2011.

Accessories/Options

More Information

BendPak HDS-14XT Four Post Lift Brochure (.pdf)

View Study In Lift Design PDF

WARNING!
Here are five questions you must consider before buying that bargain-lift!

Who is the manufacturer? How long have they been around? Many have gone out of business several times, each time leaving their prior customers who depend on them high and dry. What is the manufacturer's reputation? Are their manufacturing facilities and equipment state-of-the-art? For instance, Bend-Pak's four post lifts use a futuristic UHMW ultra-high molecular weight polyethylene load bearings. They never need lubrication and last virtually the life of the lift. BendPak's four post lifts also contain a slack cable safety. This is a secondary locking system that will extend safety latches should your cable fail, lose tension, or fall off a pulley. Bend-Pak is one of the leading manufacturers in the world and has been manufacturing automotive equipment for over forty five years.

What is the lift's quality? This is the most important consideration when purchasing a lift, or any product for that matter. How thick is the steel used to produce the columns? What is the quality of the steel used in the manufacturing process? Bend Pak's lifts are manufactured with the highest quality ASTM steel - only the best. Are the posts manufactured of single-piece construction? If they're not, you're sacrificing strength. BendPak's base plates are an extra thick steel late.
This lessens the stress on your floor as well as the bottoms of the posts. The result? - you guessed it. A safer lift! Are the welds quality welds, or are they inferior spot welds? What about the other components? If they are of questionable origin, you may not notice within the first year or two, but you will shortly after the warranty expires!

What about the cylinders? Bend Pak uses a top quality cylinder with pressure relief system mounted underneath the runways, so it's out of the way. Those bargain lift systems typically wear very early, and require continuous monitoring and maintenance. Bend-Pak's technology offers better reliability and smoother operation. And because they work under lower pressure, they last much longer. That bargain lift isn't saving you as much money as you first thought - is it?

Does the manufacturer sacrifice safety to save money? This is unacceptable to BendPak, and it should be to anyone who works under a lift! Does that bargain lift have redundant locks that automatically engage in the event of hydraulic or cable failure? Bend-Pak's lifts have a secondary slack cable safety. BendPak lifts incorporate these redundant safety features to ensure your safety. Only lifts approved by ETL and ALI (Automotive Lift Institute) will have this feature.
Does the lift comply with ETL and ALI standards? No one should even consider a lift that doesn't! Only a handfull of manufacturers do and of those that do, Bend Pak is one of the most affordable. Not sure if the other manufacturer is an ALI certified manufacturer? If they don't mention that they are - they most likely aren't. Beware manufacturers that claim they are approved and tested by anybody but ALI. ALI is the industry standard and the recognized industry watchdog. ALI and ETL approved lifts must conform with the most strict international safety and quality standards.

How much money is that bargain lift really saving you? Short term, it might save you a couple of hundred dollars, but then you factor in the down-time and the added maintenance and monitoring of their lifts. Then add the time wasted on unnecessary procedures. Shortly, you will begin to realize the lifetime of savings a quality lift like Bend-Pak will bring you. Furthermore, Bend-Pak offers on-site service if necessary. The bargain lift manufacturers that we know of don't offer on-site service. Plus, we've found that parts availability is an issue with the bargain lifts. Sure, they may have parts now, while this particular lift is still in production, but what about when they discontinue this model? Will parts still be available years later? Usually not. Remember, TIME=MONEY! If your technician is doing anything other than servicing a customer's vehicle, you're losing money!

Quality does matter!
Think smarter. Think long term. Think Bend Pak.

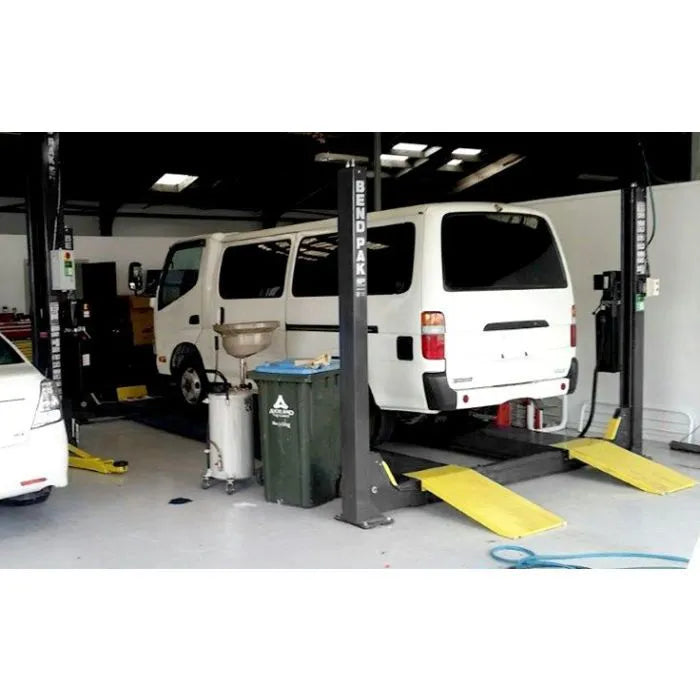

Customer Pictures & Testimonials:
