BendPak HD-14T Four Post Lift Extra Tall

Out Of Stock SKU 5175004 UPC 849672001003

OUR PRICE: $8,995.00

Regular Price: $9,449.00

$249.86 / mo
INCLUDES FREE SHIPPING*
asedeals.com widget logo

Short Description

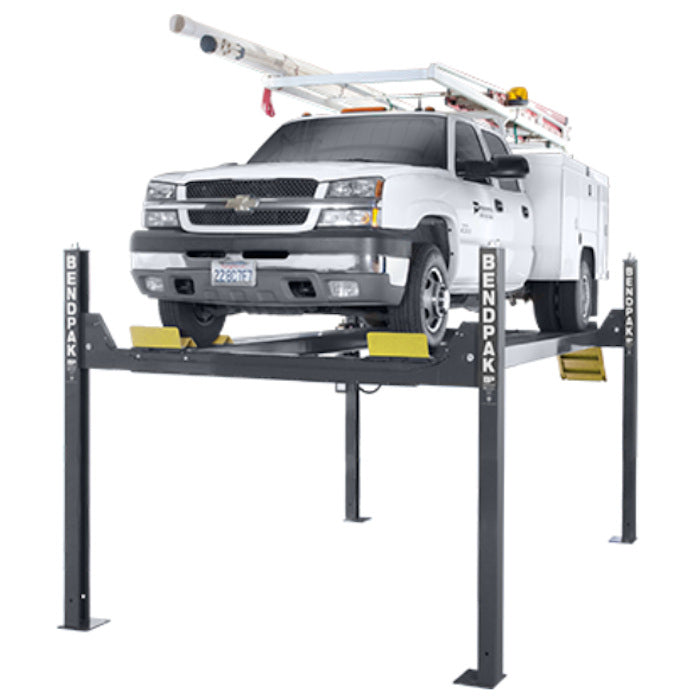

BendPak HD-14T Four Post Lift
14,000 lbs. Capacity Extra Tall
The commercial quality HD-14T is a dual-purpose lift that can be used for servicing vehicles as well as for storing one vehicle over another. It raises an extra 1 foot higher than the standard models to provide you with extra room to store taller automobiles underneath. BendPak's HDS series four post lifts are engineered beyond traditional industry standards. They are engineered, designed and fabricated to last longer, provide better performance, and increase safety, productivity and the overall user experience time after time, day after day, every time you lift a vehicle.

The HD-14T has been discontinued and replaced by the HD-14XT.

Description

BendPak Lifts

BendPak HD-14T Four Post Lift
14,000 lbs. Capacity Extra Tall

The Perfect Auto Lift For Any Garage -
great for service, and for storage

The commercial quality HD-14T is an extra high lifting version of BendPak's popular HD series four post lifts. It offers a whopping 82" of rise (with 78" underneath the runways at the top locking position. This allows your technician the ultimate headroom for working underneath the rack, as well as extra height to allow for storing taller automobile underneath as well. This is the most versatile lift in the line-up. With a healthy 14,000 lb. lifting capacity, you can accomplish almost anything. Add the popular air powered rolling jacks and you'll have a full service 4 post lift.

The HD-14T is the extra-tall model in the HD-14 series, meaning that it gives you an extra foot of lifting height over its shorter alternatives . If you are looking for the same great lifting power but with a shorter lifting height and variable runway lengths, consider the HDS-14 or the HDS-14X.

The BendPak HDS Series 4 post lifts are engineered by professionals, for professionals, and are made to meet the needs of even the most demanding automotive garage. Bend Pak designed the HDS four post lifts tough, with a wide range of innovative features to provide the serious auto shop owner with the best value for the money.

The competition will tell you there's no difference, or that their lift is just as good, but don't let them fool you. Others may tell you that the BendPak lift is overbuilt, and that you don't need to pay up for this type of construction. One look at the long list of features and components, and you'll be convinced that BendPak is the right choice for you. BendPak's engineers believe in doing things the right way. Look for BendPak lifts to offer maximum durability, longevity and greater performance - with every single lift. And they pay keen attention to detail. Rest easy with the confidence that you can improve your productivity and not worry about down time and safety. These four post lifts are true commercial grade hoists with all of the features and quality a professional could want - or demand. Professionals have been counting on them for over 45 years for all of their lifting needs.

There are three 14,000 lb capacity models to choose from. The HDS-14 standard length model, HDS-14X extra long model and the extra high lifting HD-14T four post lift models offer a generous 14,000 lb. capacity with long runways for any range of vehicle lengths.

Here are some of the more notable features of each 4 post lift -

Dual hub cable sheaves Extra large 10.5” diameter cable sheaves integrated in the runway and cross tube members along with extra large 2.25" diameter sheave axles reduce cable wear dramatically to help increase the longevity of all working components. This means less wear expenses and maintenance costs over the life of the lift. So even if that bargain brand lift cost you less money up front, it will cost you more in the long run.
BendPak HDS-14 Four Post Lift Sheaves

Heavy duty aircraft cable BendPak four post lifts include four ½” diameter 6 x 25 stainless steel premium grade lifting cables rated at 14,000 lbs. a piece. This specific grade of cable was chosen for this application because of it's ability to resist corrosion, fatigue and wear.

Lubrication Integrated in Grease fittings are included throughout the lift and are located on every sheave axle to ensure that they are well lubricated and they will run smoothly over the life of the lift. Simply inspecting and lubricating at regular intervals ensures that the product will last and continue to perform over the course of many years.

Hydraulic Cylinder Hidden Don't worry, the 3.5" cylinder is conveniently located up underneath one of the runways, so as to not interfere with any operational aspects and functionality of the lift. It is constructed of premium grade steel tubing exceeding ASTM specifications to ensure durability. And because it's tucked underneath one of the runways, it also keeps it safe from exposure and potential damage. The cylinder piston is a pilot fitted, single piece machined piston with high durometer mechanically loaded rod seals. The cylinder seals and cups greatly reduce potential for leakage, and the chrome rod is precision machined and polished of C-1045/50 micro alloy steel with the ultimate plating process for maximum cylinder life. The materials and attention to detail in the manufacturing process assure you of the greatest possible longevity for your investment.
BendPak 4 Post Lift Cylinder Under Runway

Flow restrictor A hydraulic flow restrictor is integrated into the system to provide a precise and controlled descent in the very unlikely event that the hydraulic hose were to fail.
BendPak 4 Post Lift Cylinder Flow Restrictor

Durable Powder Coat Finish can withstand the most harsh environments, chemicals and abuse. They perform the most comprehensive powder coat process available. First, parts are cleaned in 5 stages of phosphate bath tanks, and then immediately flash dried to prevent corrosion. All threaded holes and other surfaces are plugged and masked with high temperature tape and plugs and then wiped with thinner for purposes of removing any fingerprints and debris prior to final electrostatic conveyor line. After Parts are are coated with the spray gun, they are then moved along to the oven for curing, where they are baked at 400 degrees F. for 45 minutes. No other auto lift manufacturer pays so much attention to detail when fabricating their products.
BendPak Powder Coat

Large steel base plates are 10" x 12" and provide for a solid base for the four post lift.

Spring-loaded safety locks Engage automatically continuously during lifting process for maximum safety and the adjustable safety ladder locking system allows you to adjust or modify the locking position if your floor happens to be uneven.
BendPak Four Post Lift Spring Loaded Safety Locks

Push-button pneumatic lock release Allows you to release the safety locking mechanism quickly and easily and improves safety and reliability by greatly reducing the potential for a lock getting stuck.
BendPak 4 Post Lift Safety Release

Secondary locking system A secondary slack cable lock system is always ready to instantly engage in the highly unlikely event that a cable were to brake.
BendPak Four Post Lift Slack Cable Safety

Integrated design All working components are safely enclosed within the working structure of the auto lift - including cables, pulleys, airlines, safety latches and other working components.

Adjustable locking positions Each of the 4 columns has infinitely adjustable locking positions to help level out your lift if your floor is uneven.
BendPak 4 Post Lift Ladder Safety

Electric hydraulic power system A Premium electric / hydraulic power system is maintenance free and assures ultimate reliability and minimizes downtime potential. All controls are easily within reach of operator.
BendPak Four Post Lift Power Unit

Longer approach ramps were designed to be a little longer than competitors aiding in getting lower profile automobiles to get up on the runways without bottoming out.

Flexible protective conduit All airlines and Hydraulic hose lines are routed through a flexible and protective conduit to minimize potential damage and down time.

Optional Rolling bridge jacks These 7,000-pound capacity rolling jacks (model RJ-7) are pneumatically controlled by shop air and transform your 4 post lift into a full service, fully functioning lift. They allow you to raise the front or rear axle, or both axles if you get 2 for tire rotations and wheel and brake service. the air bridge jacks feature adjustable arms to reach at a wide variety of vehicle jacking points. The frame contact pads feature a rubber slip on pad to protect vehicle underside, and the jack can roll up and down the length of the runways. Every rolling jack features 3 different locking height positions and stackable truck and van adapters / extensions to allow access to a wide variety of vehicle dimensions. Includes air / hydraulic pump that is heavy commercial grade quality and requires a max operating pressure of 125 PSI at 10 to 20 CFM
BendPak Rolling Jacks

Why Should you purchase a Bend Pak lift from ASEdeals?

1) Guaranteed Lowest Prices - Listen, we monitor our competition's prices. We know we usually have the lowest price on most of our equipment most of the time. In the unlikely event you find any of our automotive lifts advertised anywhere on the web for less, just tell us where you saw them, and we'll beat them. It's that simple. Our prices will not be beaten!

2) Largest BendPak distributor -This means that you enjoy the benefit of our size. Not only does this allow us to offer the best pricing available, If you have any warranty issues that you feel are not being addressed quickly enough, or to your satisfaction, we have the influence with the manufacturer to get your issue resolved right away.

3) Years of Experience - So many internet companies have popped up over the past few years, claiming to have all kinds of experience, and then when you dig a little deeper, you'll find out that they've only been around for a few years. We've been carrying Bend Pak equipment for over 17 years now. When you call and speak to us, you're not getting just an order taker that knows nothing about the product. We know these products better than most. Not only will get you answers to your questions, we will make sure that you get the proper lift for your application.

4) Reputation - Right along with the years of experience comes our reputation. Check out our reputation on all of the various car enthusiast forums out there, such as Garage Journal or Corvette Forum. You'll find countless satisfied customers, praising not only our prices, but also our integrity, honesty and ability to help you choose the right product for your application. And then, there's our hundreds of satisfied customer pictures and testimonials to back it up. We'll gladly put our reputation up against anybody's.

*Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2006 or ANSI/UL 201. Consult with ASEDeals for a complete list.

Features & Specs

Features BendPak HD-14T Four Post Lift Extra Tall

  • 14,000 lbs. Lifting Capacity
  • Long approach ramps to allow low clearance cars access.
  • Extra long approach ramps optional for extremely low clearance sports cars.
  • Runways feature rail-kit channels to accomodate a variety of optional accessories like rolling jacks
  • Premium hydraulic cylinder conveniently located underneath runway
  • All working mechanical components are safely enclosed within the lift structure - including safety locking mechanisms, sheaves, pulleys, lifting cables
  • Anti-sway slider blocks mounted in each column will last the life of the lift
  • Pneumatic push button safety release mechanism is the most reliable design on the market
  • Super heavy duty 1/2 inch aircraft cable for extreme conditions
  • Safety locks are safely enclosed within the columns to minimize pinch points
  • Oversized cable sheaves feature extra large diameter to reduce cable wear
  • Over-sized cable rollers are self lubricating for low maintenance
  • Durable 1-3/4 inch roller axles
  • Safety locks are positioned in every column to allow for multiple locking positions
  • Power unit can be located in 2 different locations
  • Approach ramps feature built-in wheel chocks for vehicle rear wheel
  • Secondary backup slack-cable safety mechanism automatically engages in the event of cable failure
  • Drive-thru ramps are available as an optional accessory
  • Optional drip trays are available as well
  • Optional air powered rolling bridge jacks available for raising wheels off runways for access to wheels.
  • Top locking position 79"
  • ALI Certified and ETL approved

Specifications

Model HDS-14 HD-14T HDS-14XT
SKU 5175170 5175004 5175624
Lifting Capacity* 14,000 lbs. (6,350 kg) 14,000 lbs. (6,350 kg) 14,000 lbs. (6,350 kg)
*Max Capacity / Front Axle 7,000 lbs. (3,175 kg) 7,000 lbs. (3,175 kg) 7,000 lbs. (3,175 kg)
*Max Capacity / Rear Axle 7,000 lbs. (3,175 kg) 7,000 lbs. (3,175 kg) 7,000 lbs. (3,175 kg)
A - Min. Runway Height 7.5" (191 mm) 7.5" (191 mm) 6.75" (171 mm)
B - Max. Rise 70" (1,778 mm) 82" (2,083 mm) 83" (2,104 mm)
C - Max. Lifting Height 77.5" (1,969 mm) 89" (2,261 mm) 89.5" (2,275 mm)
Time to Full Rise 60 seconds 65 seconds 65 seconds
D - Overall Width 130" (3,302 mm) 126" (3,200 mm) 130" (3,304 mm)
E - Outside Length 213" (5,410 mm) 205" (5,207 mm) 243" (6,172 mm)
F - Overall Length 242" (6,147 mm) 233.25" (5,924 mm) 272" (6,907 mm)
G - Height of Columns 92" (2,337 mm) 100" (2,540 mm) 104" (2,643 mm)
H - Width Between Columns 120" (3,048 mm) 115.75" (2,940 mm) 120" (3,050 mm)
I - Drive-Thru Clearance 98" (2,489 mm) 98" (2,489 mm) 98.25" (2,498 mm)
J - Runway Width 20" (508 mm) 20" (508 mm) 19" (482 mm)
K - Length of Runways 197.5" (5,017 mm) 195" (4,953 mm) 227.5" (5,777 mm)
L - Width Between Runways 34.5" (876 mm) or
41.5" (1,054 mm)		 34.5" (876 mm) or
41.5" (1,054 mm)		 35.75" (910 mm) or
42" (1,068 mm)
M - Runway Centerline 57.5" (1,461 mm) or
64.5" (1,638 mm)		 57.5" (1,461 mm) or
64.5" (1,638 mm)		 57.5" (1,460 mm) or
64.5" (1,642 mm)
N - Outside Edge of Runways 77.5" (1,969 mm) or
84.5" (2,146 mm)		 77.5" (1,969 mm) or
84.5" (2,146 mm)		 77.5" (1,968 mm) or
84.5" (2,150 mm)
Rated Capacity 140" (3,556 mm) 135" (3,429 mm) 135" (3,429 mm)
75% Capacity 120" (3,048 mm) 115" (2,921 mm) 115" (2,921 mm)
50% Capacity 100" (2,540 mm) 100" (2,540 mm) 95" (2,413 mm)
25% Capacity 80" (2,032 mm) 80" (2,032 mm) 80" (2,032 mm)
Locking Positions 15 17 17
Lock Spacing Every 4" (102 mm) Every 4" (102 mm) Every 4" (102 mm)
Power Unit 220 VAC / 60 Hz / 1 Ph 220 VAC / 60 Hz / 1 Ph 220 VAC / 60 Hz / 1 Ph
Noise 45 dB 45 dB 45 dB
Shipping Weight 2,606 lbs. (1182 kg) 2,408 lbs. (1,092 kg) 2,740 lbs. (1,242 kg)
Shipping Dimensions 209" x 22" x 29"
(5,309 x 558 x 737 mm)		 204'' x 22'' x 30''
(5,182 x 584 x 762 mm)		 239'' x 22'' x 29''
(6,070 x 558 x 737 mm)


Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to  disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

*Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2006 or ANSI/UL 201. Consult with ASE Deals for a complete list.

  • Warranty: (5) Years on Structure, (2) Year on Hydraulics, (1) Year Electrical, (1) Year Labor

BendPak Two Post/Four Post Lifts Limited Warranty
LIMITED WARRANTY. Subject to the limitations of set forth below, Warrantor warrants that the Product sold hereunder conform to Warrantor's published specifications. WARRANTOR MAKES NO REPRESENTATION OR WARRANTY OF ANY OTHER KIND, EXPRESS OR IMPLIED, WITH RESPECT TO THE GOODS, WHETHER AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER.

Duration: From the date of purchase by original Purchaser or 60-24‐12 months from the date of shipment by BendPak or whichever comes first.

  • Five Years (60-Months) Warranty on the lift structure
  • Two Years (24‐Months) Warranty on the hydraulic cylinder(s) and power unit
  • One Year (12‐Months) Warranty on operating components
  • One Year (12‐Months) Warranty on electrical components (excluding power unit)
  • One Year (12‐Months) Labor Warranty on site or at factory*
  • One Year (12‐Months) Free‐Shipping** on ground‐freight charges related to warranty performance

Limited Warranty

  1. Who gives this warranty (Warrantor): BendPak Inc., 1645 Lemonwood Dr., Santa Paula, CA 93060
  2. Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
  3. What products are covered by this warranty (Product): Any BendPak Two‐Post or Four‐Post Vehicle Service Lift***
  4. What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below.
  5. What is not covered under this warranty:
    1. Any failure that results from Purchaser's abuse, neglect or failure to operate, maintain or service Product in accordance with instructions provided in the owner's manual(s) supplied.
    2. Any damage caused by overloading Product beyond rated capacity.
    3. Items or service normally required to maintain the Product, i.e. lubricants, oil, etc.
    4. Items considered general wear parts such as rubber pads/blocks, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship.
    5. Any component damaged in shipment or any failure caused by installing or operating lift under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings.
    6. Motor or pump failure caused by rain, excessive humidity, corrosive environments or other contaminants.
    7. Rusted components due to improper maintenance or corrosive environments.
    8. Cosmetic defects that do not interfere with Product functionality.
    9. Damage due to incorrect voltage or improper wiring.
    10. Any failure that results from improper installation or use not according to specifications.
    11. Damage caused by disasters such as fire, flood, wind, and lightning.
    12. Damage caused by unauthorized attachments or modifications.
  6. Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor's option, component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period. Warrantor will pay reasonable labor costs for the first 12 months only.
  7. Responsibilities of Purchaser under this warranty/ notice of claims:
    1. Provide dated proof of purchase and maintenance records.
    2. In some cases, components may be required to be shipped to the nearest BendPak Authorized Service Center. Freight costs, after 12‐months, must be borne by the Purchaser.
    3. Use reasonable care in the operation and maintenance of the Products as described in the owner's manual(s).
    4. Immediately upon receipt of the Product, Purchaser shall inspect the same. Any claim for shortage must be made within ten days after Purchaser's receipt. All other claims, including claims for alleged defective Product, must be made within fifteen days after Purchaser learns of the facts upon which such claim is based, but in no event later than the applicable one, two or five year period specified above for the specified component(s). All claims not made in writing and received by Seller within the time periods specified above shall be deemed waived. With respect to any defects incapable of discovery until in use, all claims for any damages or losses as a result of such defects shall be deemed waived unless made in writing and received by Seller within fifteen days after Purchaser learns of the alleged defect giving rise to the claim and after the expiration of said periods, but in no event later than the applicable one, two or five year period specified above for the specified component(s). Purchaser expressly assumes all liability for all such damages or losses, irrespective of any use which shall have taken place or whether the alleged defect shall have occurred or been discovered prior to expiration of such periods.
  8. When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.
  9. *As determined by Warrantor in its sole discretion**Free‐shipping applies to direct shipping points within the 48 continental United States. Rural area shipping surcharge may apply for remote addresses. ***For all BendPak brand Full‐Rise Scissors Vehicle Service Lift (excluding specialty lifts, high rise, commercial parking, material handling, or models for particular purpose) manufactured on or following 1/1/2011.

Accessories/Options

More Information

BendPak HDS-14 Four Post Lift Brochure (.pdf)

View Study In Lift Design PDF
BendPak Study In Lift Design

HD9XW Lift floorplan dimensional drawing

Four Post Lift Safe Balancing

BendPak Lifts 5 2 1 Warranty

WARNING!
Here are five questions you must consider before buying that bargain-lift!

Who is the manufacturer? How long have they been around? Many have gone out of business
several times, each time leaving their prior customers who depend on them high and dry. What is
the manufacturer's reputation? Are their manufacturing facilities and equipment state-of-the-art?
For instance, Bend-Pak's four post lifts use a futuristic UHMW ultra-high molecular weight
polyethylene load bearings. They never need lubrication and last virtually the life of the lift.
BendPak's four post lifts also contain a slack cable safety. This is a secondary locking system
that will extend safety latches should your cable fail, lose tension, or fall off a pulley.  Bend-Pak is
one of the leading manufacturers in the world and has been manufacturing automotive equipment
for over forty five years.

What is the lift's quality? This is the most important consideration when purchasing a lift, or
any product for that matter. How thick is the steel used to produce the columns? What is the
quality of the steel used in the manufacturing process? Bend Pak's lifts are manufactured with
the highest quality ASTM steel - only the best. Are the posts manufactured of single-piece construction?
If they're not, you're sacrificing strength. BendPak's base plates are an extra thick steel plate.
This lessens the stress on your floor as well as the bottoms of the posts. The result? - you
guessed it. A safer lift! Are the welds quality welds, or are they inferior spot welds? What about
the other components? If they are of questionable origin, you may not notice within the first year
or two, but you will shortly after the warranty expires!

What about the cylinders? Bend Pak uses a top quality cylinder with pressure relief system
mounted underneath the runways, so it's out of the way.  Those bargain lift systems typically
wear very early, and require continuous monitoring and maintenance. Bend-Pak's technology
offers better reliability and smoother operation. And because they work under lower pressure,
they last much longer. That bargain lift isn't saving you as much money as you first thought - is
it?

Does the manufacturer sacrifice safety to save money? This is unacceptable to BendPak, and
it should be to anyone who works under a lift! Does that bargain lift have redundant locks that
automatically engage in the event of hydraulic or cable failure? Bend-Pak's lifts have a secondary
slack cable safety. BendPak lifts incorporate these redundant safety features to ensure your
safety. Only lifts approved by ETL and ALI (Automotive Lift Institute) will have this feature.
Does the lift comply with ETL and ALI standards? No one should even consider a lift that
doesn't! Only a handful of manufacturers do and of those that do, Bend Pak is one of the most
affordable. Not sure if the other manufacturer is an ALI certified manufacturer? If they don't
mention that they are - they most likely aren't. Beware manufacturers that claim they are approved
and tested by anybody but ALI. ALI is the industry standard and the recognized industry watchdog.
ALI and ETL approved lifts must conform with the most strict international safety and quality standards.

How much money is that bargain lift really saving you? Short term, it might save you a
couple of hundred dollars, but then you factor in the down-time and the added maintenance and
monitoring of their lifts. Then add the time wasted on unnecessary procedures. Shortly, you will
begin to realize the lifetime of savings a quality lift like Bend-Pak will bring you. Furthermore,
Bend-Pak offers on-site service if necessary. The bargain lift manufacturers that we know of
don't offer on-site service. Plus, we've found that parts availability is an issue with the bargain
lifts. Sure, they may have parts now, while this particular lift is still in production, but what about
when they discontinue this model? Will parts still be available years later? Usually not.
Remember, TIME=MONEY! If your technician is doing anything other than servicing a
customer's vehicle, you're losing money!

Quality does matter!
Think smarter. Think long term. Think Bend Pak.





Customer Pictures & Testimonials:


'We have been purchasing our shop equipment from ASE for years, and have filled our shop with two post lifts, four post lifts, tire changers, and much more. We couldn't be happier with the service and pricing, as well as product recommendations. Very professional outfit.'
-Chris Wellings
-Key West Kia
-Key West, FL



Click Here To View Our Customer 4-Post Lift Pictures &Testimonials
BendPak Four Post Lift Testimonials



The BEND PAK Lifts - As seen on TV!
American Hot Rod
Monster Garage
Fast N Loud
West Coat Customs
Jay Leno's Garage

 Click Here For Owner’s Manual

Reviews

Browse for more products in the same category as this item:

4 Post Lifts > BendPak > Car Lifts > BendPak HD-14T Four Post Lift Extra Tall

You may also like
