BendPak HDSO-14AX + RBJ7000 + Airline Kit Package

Description

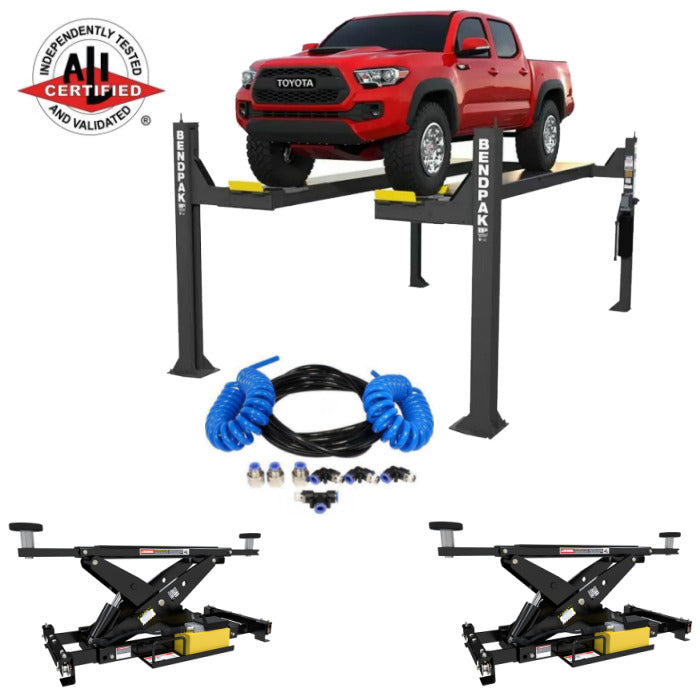

BendPak HDSO-14AX + RBJ7000 + Airline Kit Package (SKU# 5175901)
(1) HDS0-14AX + (2) RBJ7000 + (1) Airline Kit

HDSO-14AX Open-Front Design and 14,000 lbs. of Might
We engineered the HDSO-14AX alignment lift without a front crossbar, so operators can easily enter and exit from beneath the vehicle. Now the process of front-end adjustment becomes quick and trouble-free. This is a must for busy alignment bays. Additionally, for precise front-lift leveling, nothing beats our patented, adjustable front outrigger tubes. The infinitely adjustable pitch compensates for excessive loads and sloped floors.

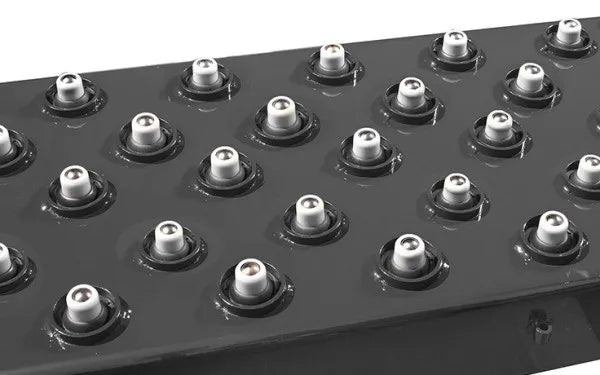

Slip plates

Rear-facing multi-caster slip plates and front-facing turn plates permit precise, free-floating alignment.

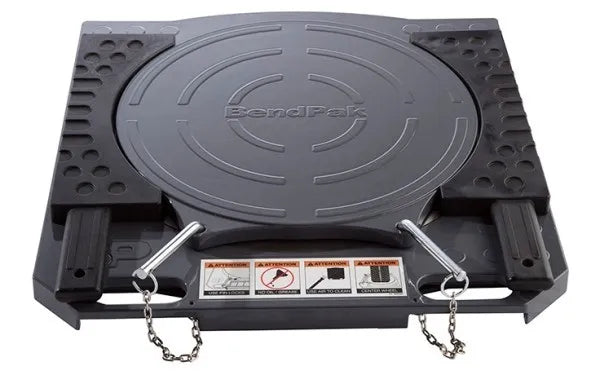

Turn plates

This alignment lift features two recessed turn plate pockets that let you freely position the corrosion-resistant, galvanized turn plates.

Dual-hub cable sheaves

BendPak alignment lifts include strong, durable and oversized 10.5" diameter cable sheaves within the runway and cross tubes, as well as 2.25" diameter sheave axles. These powerful components keep your car lift running for many years, far past the point other brands' lifts have already given out or required expensive parts replacements.

Heavy-duty aircraft cable

BendPak runs four aircraft-quality steel cables (that measure in at a robust 1/2" diameter, 6 x 25), within the columns. They are literally the ultimate standard for high-quality cable construction and safe lifting.

Adjustable height locking positions

Alignments are often done by different mechanics in a busy shop. The multiple locking heights allow different people to work on the HDSO-14AX alignment lift at the height appropriate for them. Since it's an open-front design, getting under is easy no matter how tall they are.

Built-in lubrication

Grease fittings are an essential component to every car lift we make. They keep the cable sheaves lubricated, so you don't have to worry about productivity and safety in our design.

Flow restrictor

Should anything catastrophic occur in your shop to disrupt the functionality of your lift, we want you to feel confident that BendPak keeps your vehicles and equipment safe. If the hydraulics are cut or lose all pressure, which would be extraordinary, the built-in hydraulic flow divider still ensures a safe, even descent at all times.

Spring-loaded safety locks

Our fully adjustable locks are also found on the HDSO-14AX alignment lift. Springs engage as the lock ascends into position. This design also helps keep the platforms even, even if there's a tiny slope to your garage flooring.

Push-button pneumatic lock release

Air locks make releasing the locks simultaneous, each and every time. The instant release ensures the alignment lift platforms descend evenly.

Secondary lock system

A backup lock system protects the alignment system in the event that cable slack is detected. When this occurs, the cable is immediately "grabbed", and the entire operation ceases immediately.

Integrated design

BendPak cables, cable sheaves and airlines run internally throughout the structure. Every one of these parts is susceptible to damage and extra wear if left exposed. We keep the look and feel of this alignment lift clean while protecting the most critical parts and components.

Electric-hydraulic power system

The power unit never needs to be maintained or adjusted. It's also so easy and safe to use, we recommend it for both home and commercial applications.

Longer approach ramps

Because our approach ramps are longer, they make it easier to load low ground-clearance vehicles. So easy, in fact, that you'll never scratch up the bottom of your car or struggle with the gas pedal to give enough gas without shooting onto the ramp at an unsafe speed. Simply glide on and start aligning.

Flexible protective conduit

The durable conduit that surrounds the airlines and hydraulic hoses prevents damage to the cables. It also keeps you safe from electrical shock.

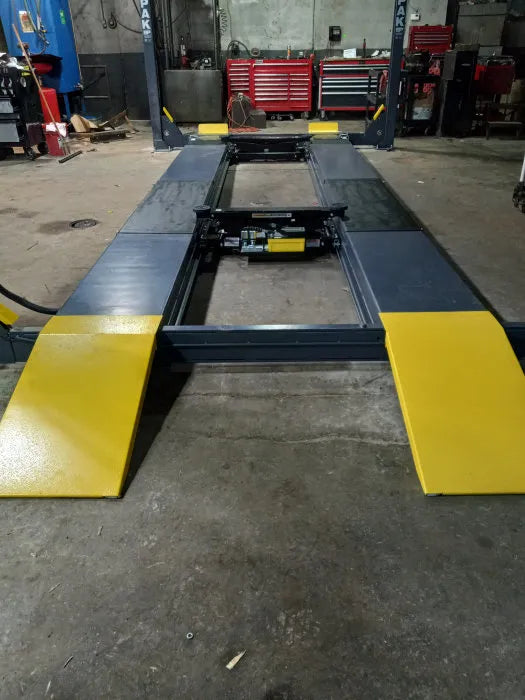

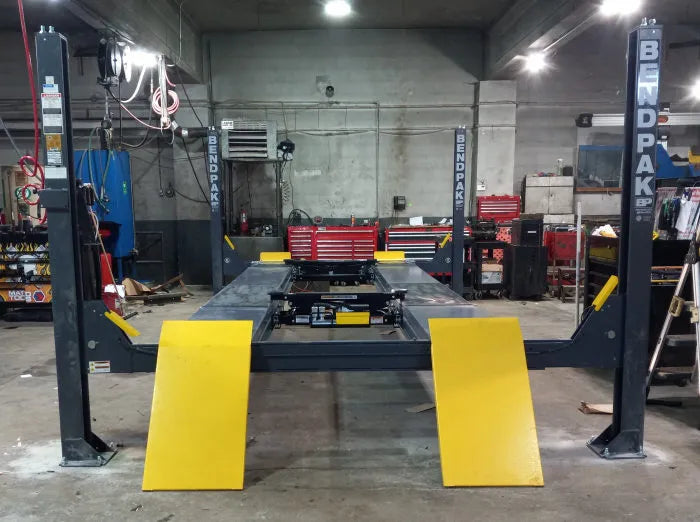

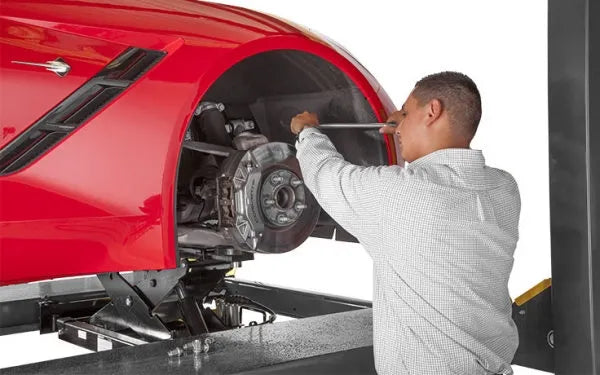

Rolling bridge jacks

Rolling bridge jacks turn your alignment lift into an all-purpose four-post lift. No need to transfer to a different car lift to perform wheel and brake service. Now you can change brake rotors right before you align the wheels, all on the same lift. Rolling bridge jacks are a safe and space-saving way to increase shop capability without purchasing more equipment.

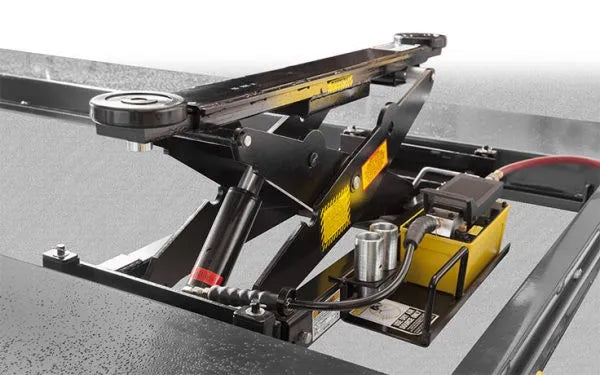

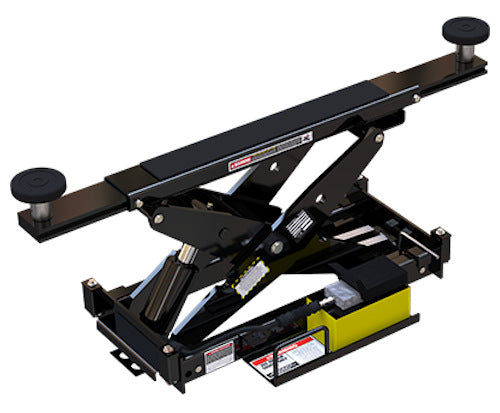

RBJ7000 4-Post Rolling Bridge Jack Lift for Full Wheel Service Capability

The HD-14 car lift is one of our most popular units for lifting medium-duty vehicles, as well as low-stance sports cars. Its extended approach ramps make it easy to safely engage your vehicle's wheels, but what do you do when it's time for a tire swap? Unless you want to expand your capabilities with a two-post lift, a simple pair of RBJ7000 rolling bridge jacks is necessary to lift the vehicle. (Each jack lifts half the vehicle frame.)

Rubber contact pads

BendPak rubber contact pads are included with every rolling bridge jack we sell. The RBJ7000 pads engage the lift points of large vehicle chassis with ease. We recommend purchasing the optional frame cradle pads for larger trucks and SUVs, as well.

Stackable adapters

Because different suspension rigs and vehicle bodies sit at different heights above the ground, the RBJ7000 rubber contact pads come with stackable adapters. This lets you reach the lift points without sacrificing how much rise you get from the jack. The adapters work on every vehicle type; all you need to know is whether the RBJ7000 is the right jack for what you want to lift.

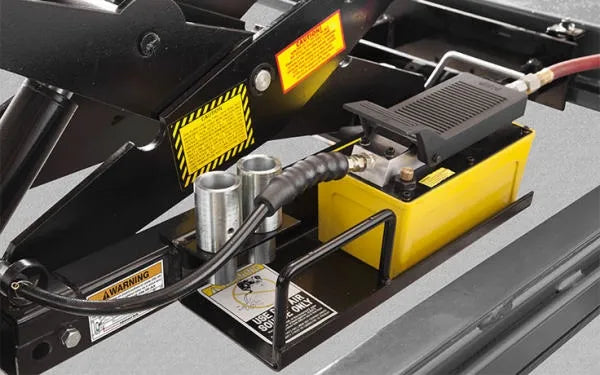

High-pressure hydraulic power unit

A single, air-hydraulic pump is fitted to the side of the RBJ7000 rolling bridge jack. Your car lift has its own electric-hydraulic system that runs independent of your jack's. After connecting the air line to the jack (needs 125 PSI and 10-20 CFM), an easy-to-use foot pedal activates the jack.

Three lock levels

For your convenience, BendPak rolling bridge jacks can be lifted to three different positions. They lock automatically as the jack rises and release together as the jack descends. Your car lift operations are separate from those of the bridge jack.

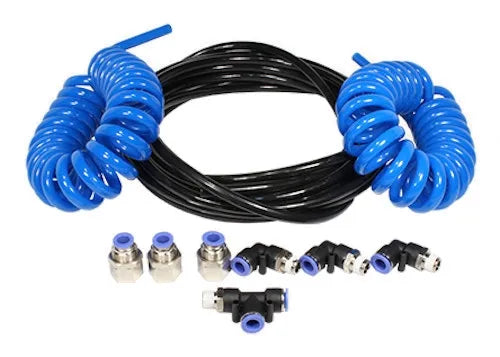

Provide Air to Two Bridge Jacks at Once

Rolling bridge jacks are great for extending the functionality of your BendPak four-post lift, and they're about to get a whole lot better. Install this helpful kit and elegantly hide the airlines beneath your lift's own runways. This Airline Kit comes with all the accessories you need to connect both of your rolling bridge jacks to your air compressor with ease.

The AK-14 Airline Kit comes with adapter fittings that allow you to connect airlines to your rolling bridge jack air/hydraulic pumps. With the fittings installed, you'll only need one hose to provide air for both of your rolling bridge jacks. Not only does this simplify the process, but the fittings in the Airline Kit also allow you to hide the airline up and away, mounting the airlines securely to the bottom of your lift's runways.

Messy airlines not only look bad, but they are a major tripping hazard. The Airline Kit gives you peace of mind while you work, and comes with everything you need to give your four-post lift, and your shop, a clean and efficient setup!
