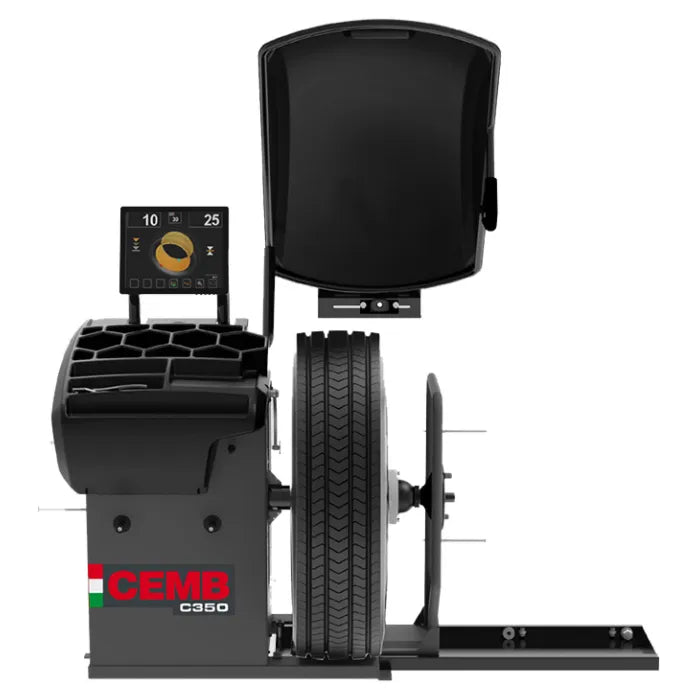

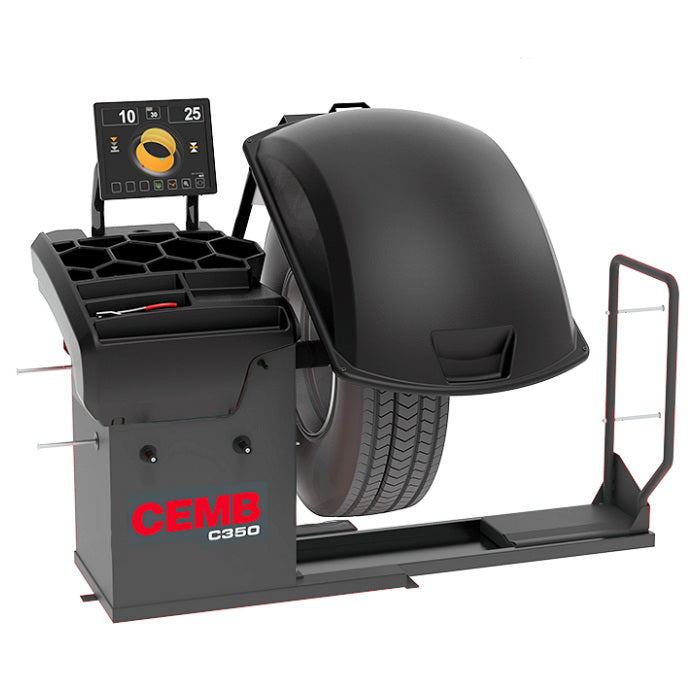

CEMB C350 Automatic Video Truck Wheel Balancer

Description

CEMB C350 Automatic Video Truck Wheel Balancer
Lifting Spindle 550 lbs. Capacity with EMS Sonar & HubMatch

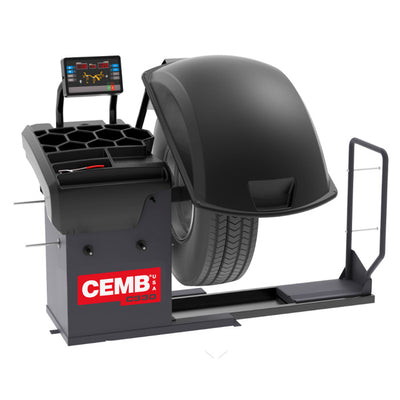

The CEMB C350 Video Automatic Truck Wheel Balancer is designed for truck, bus and car wheels up to 500 lbs. The innovative solution of the spindle shaft that lowers, guarantees a safer and easier centering even with large wheels. The measurement of radial and lateral run-out with the Sonar, combined with the modern and attractive design and the sturdy weight holder with optimized spaces, make the C350 the most complete solution in its category.

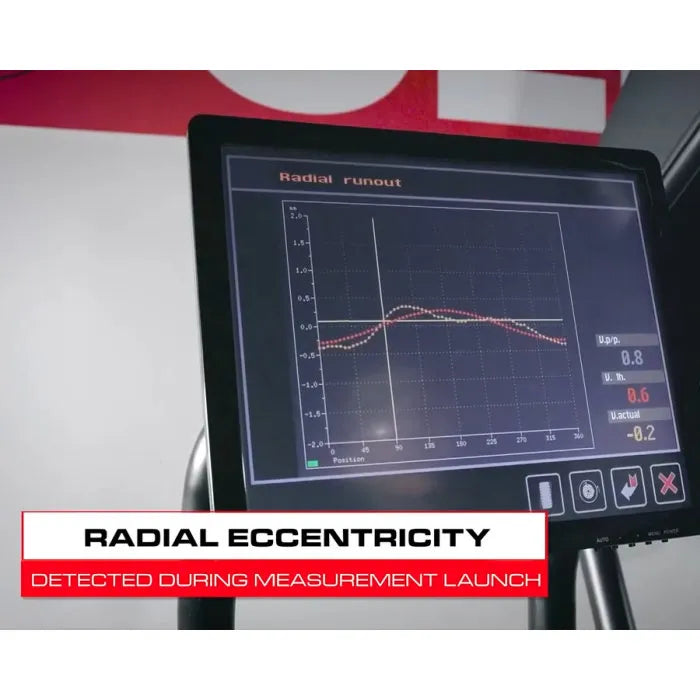

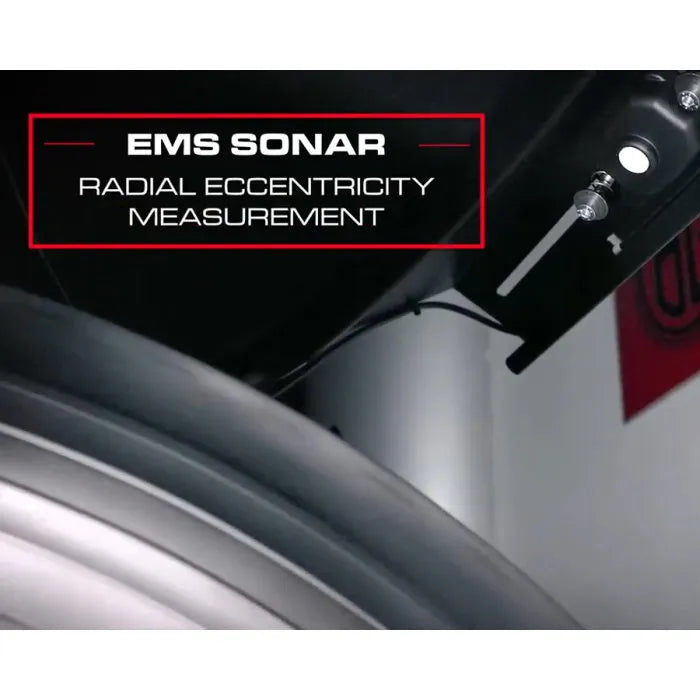

EMS Sonar

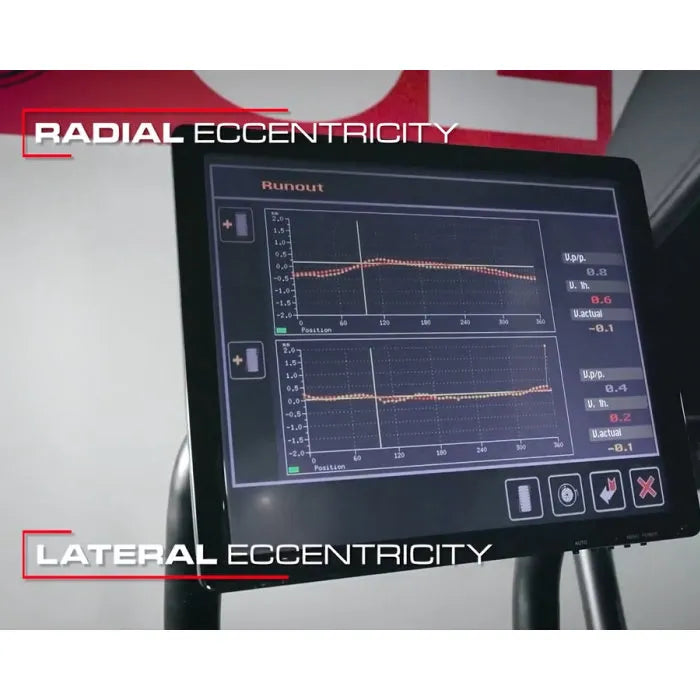

The EMS Sonar (Eccentricity Measurement Systems) has revolutionized wheel balancing since 1988, when CEMB first introduced it on their balancing machines. Thanks to the precision of the sonar sensors used, EMS Sonar is capable of detecting even the slightest irregularities or eccentricities in wheel rotation. The sensor is connected to the balancing machine and positioned near the wheel, detecting any irregularities or eccentricities in its rotation. The device utilizes precise sonar sensors to measure the distance between the wheel's center and outer edges during rotation. These measurements determine the wheel's eccentricity, which is the deviation of its geometric center from the true rotational axis. By analyzing the data collected by the device, the machine provides accurate information about the extent of the wheel's eccentricity. This information is essential for identifying and correcting any irregularities in the wheel, ensuring a smooth and safe ride.

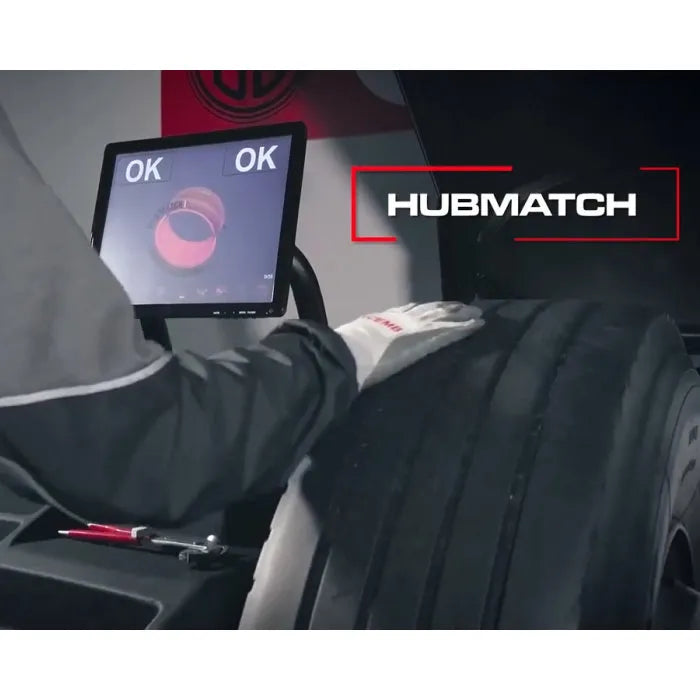

HubMatch
Balancing process often does not solve all wheel vibration problems. Wheels must be balanced and also be "round when rolling on the vehicle", i.e. need not to have a high eccentricity, in order to be sure that the vehicle moves without annoying vibrations. The new CEMB HubMatch combines refined off-car balancing capabilities and features with a guided on-car eccentricity cancellation process. HubMatch guides the operator during the process, significantly reduces floor-floor cycle time and provides an improved ride quality. In one single spin, HubMatch detects the unbalance as well as the highest point of the wheel (1st harmonics), and displays it on-screen to enable mounting of wheel on vehicle so that simply matching mechanical clearances when positioning the rim on the hub will eliminate the eccentricity. HubMatch balancers solve all vibration problems on wheels combining the best balancing features to the eccentricity cancellation process.

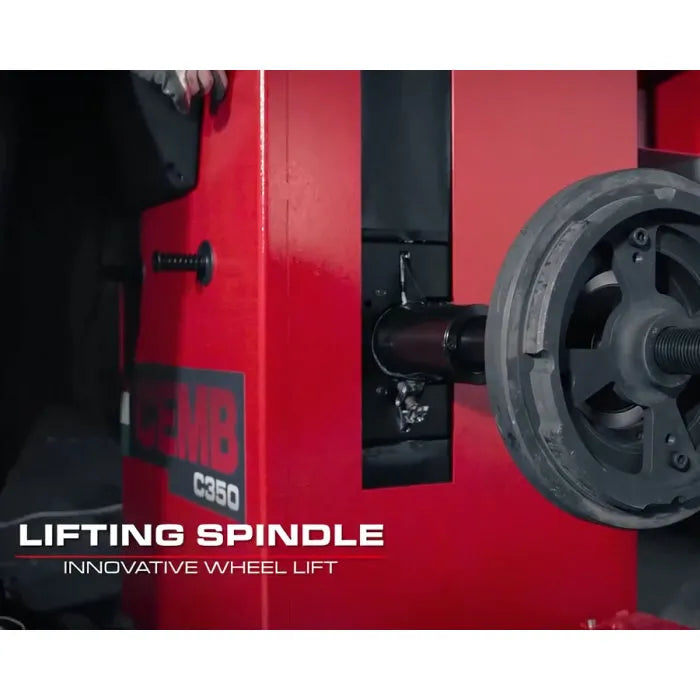

Innovative Wheel Lifting Spindle
With the new range of truck wheel balancers that has been introduced, the innovative integrated Lifting Spindle allows the operator to work easily and safely even on large wheels. Wheels are loaded onto the spindle, which rises and lowers, when on the ground ensuring perfect centering with minimum effort while preventing the wheel from falling due to the excessive weight. Wheel loading on the lift is very easy and risk-free thanks to the lowest sliding trolley available on the market (only 59 mm).

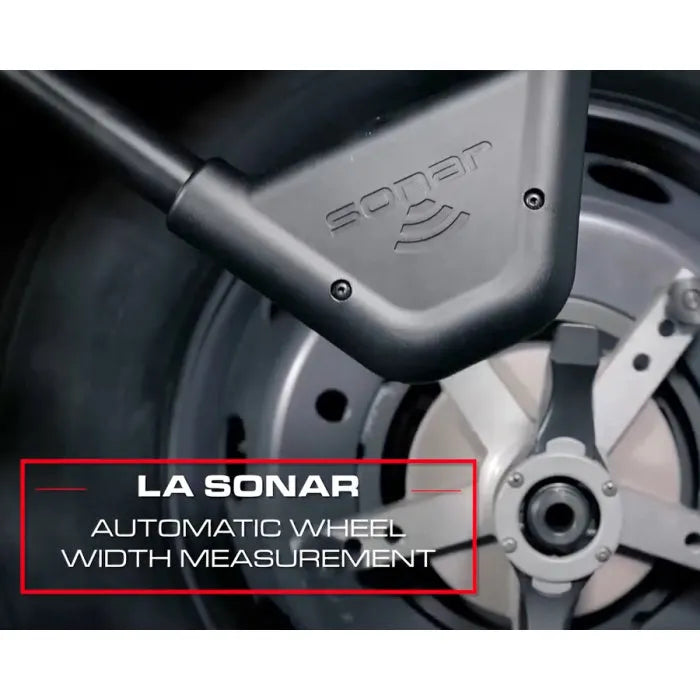

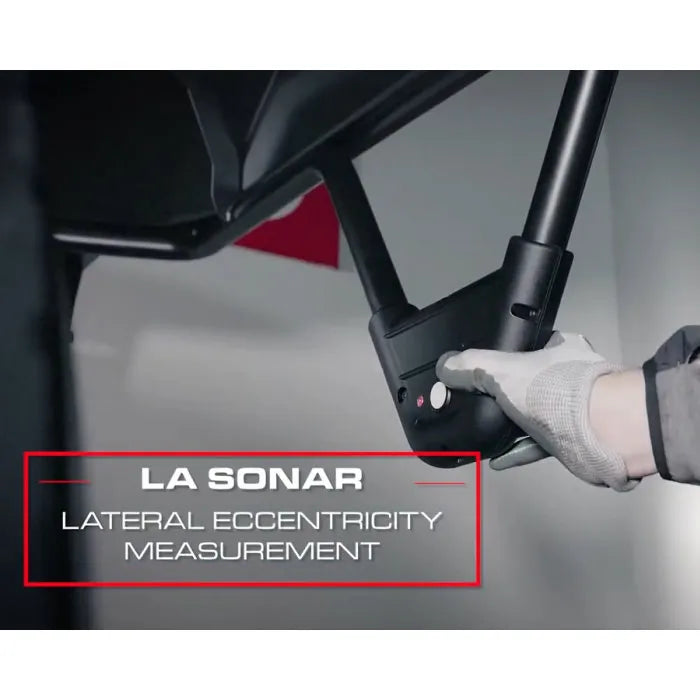

LA Sonar
Quick and practical measuring system. LA sonar device designed for contactless automatic wheel width measurement.

Laser Line
Sophisticated red line laser indicator to facilitate the correct positioning of the adhesive counterweights in the 6 o'clock position, increasing the balancing accuracy.

Automatic Gauge
Extended gauge for diameter and distance measurement of rims up to 32".

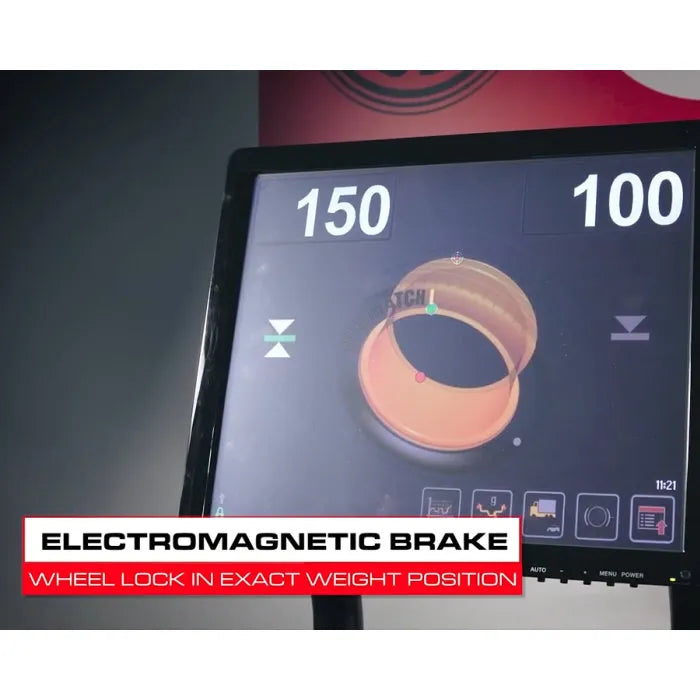

Electromagnetic Brake
The electromagnetic brake for the lock of the wheel in the exact weight position facilitates the balancing procedure.

Functional Weight Tray
The sturdy rotational weight tray has been designed to make the most the available space. The differentiated compartments allow a simple housing of cones, clamp weights, adhesive weights, grippers etc…

Perfect Centering, Accurate Balancing
The spindle shaft rises and lowers to facilitate wheel loading, ensuring perfect centering, ideal condition for better balancing accuracy. Loading on the ground, mount the wheel on the spindle, lift.

Safe Wheel Clamping Thanks To Mobile Spindle
No risk for the operator since the wheel, when raises, is already clamped on the spindle, in complete safety.

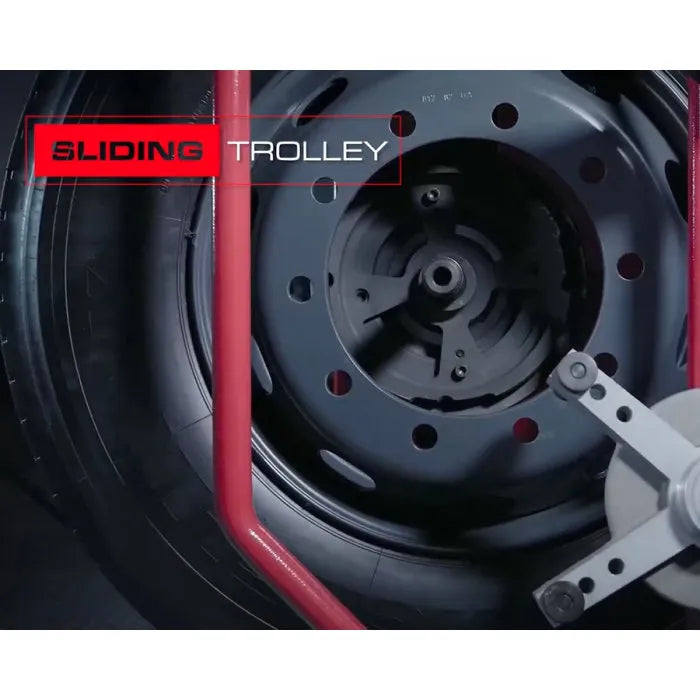

Easier And Faster Wheel Handling
The sliding trolley, with a height of only 59 mm, the lowest available on the market, allows a faster and easier loading of the wheel, with reduced effort for the operator.

CEMB wheel balancers constitute a wide range of innovative and patented solutions, recognizable for their capability to combine excellent balancing performances, robustness and ease of use.

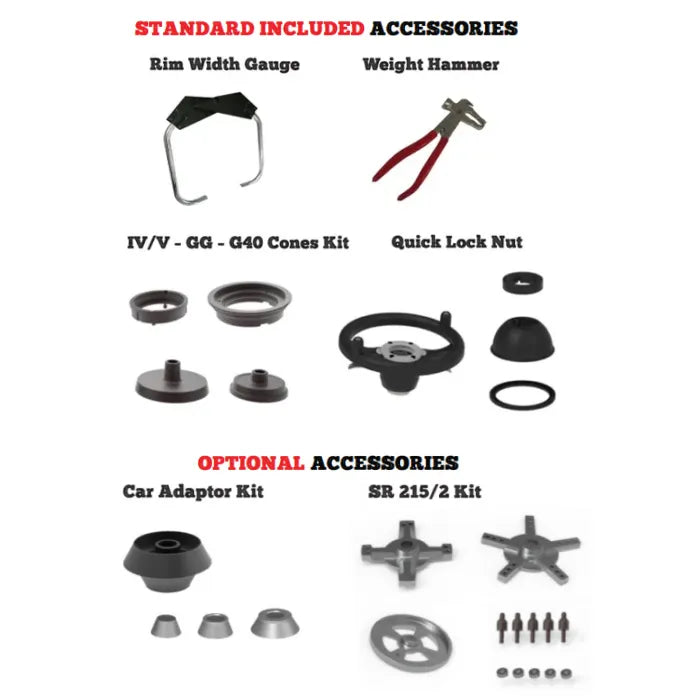

Accessories/Options
