Corghi Exact 70 CCD Wheel Aligner

Features & Specs

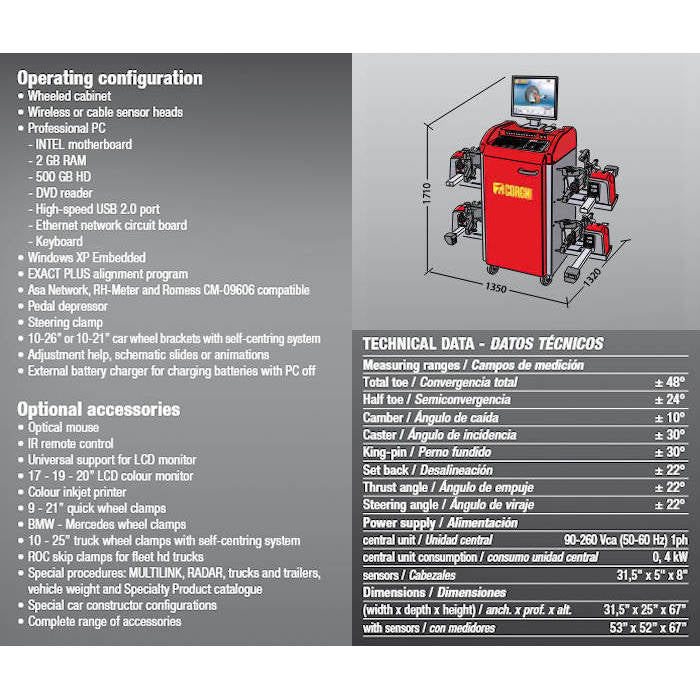

Operating Configuration

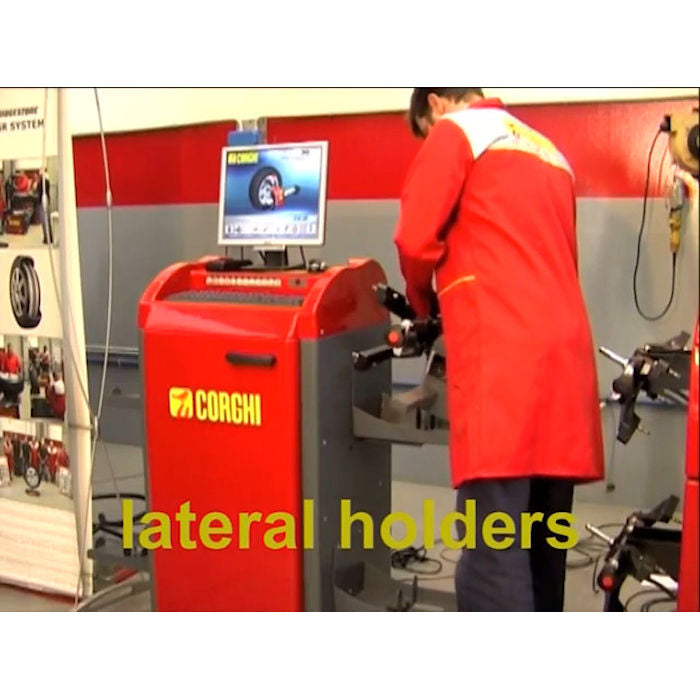

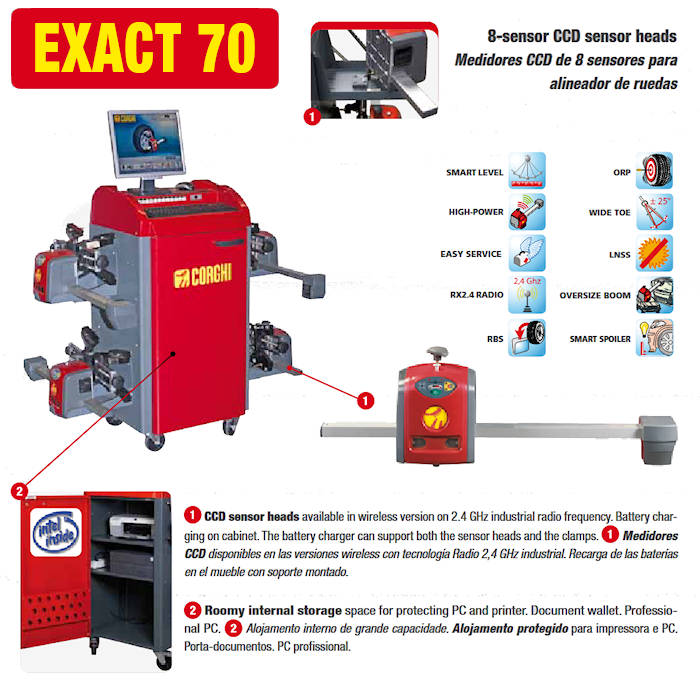

• Wheeled Cabinet
• Wireless or Cable Sensor Heads
• Professional PC
• Intel Motherboard
• 2 GB Ram
• 500 GB HD
• DVD Reader
• High-Speed USB 2.0 Port
• Ethernet Network Circuit Board

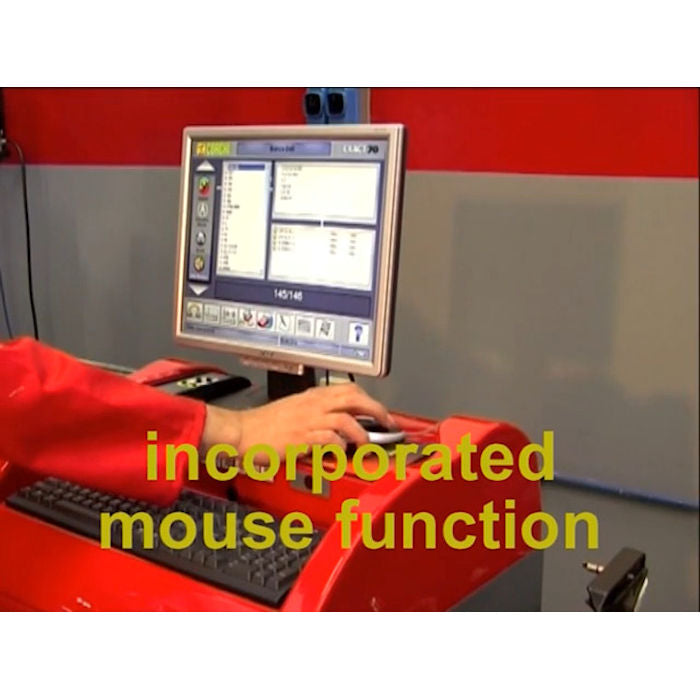

• Keyboard
• Windows XP Embedded

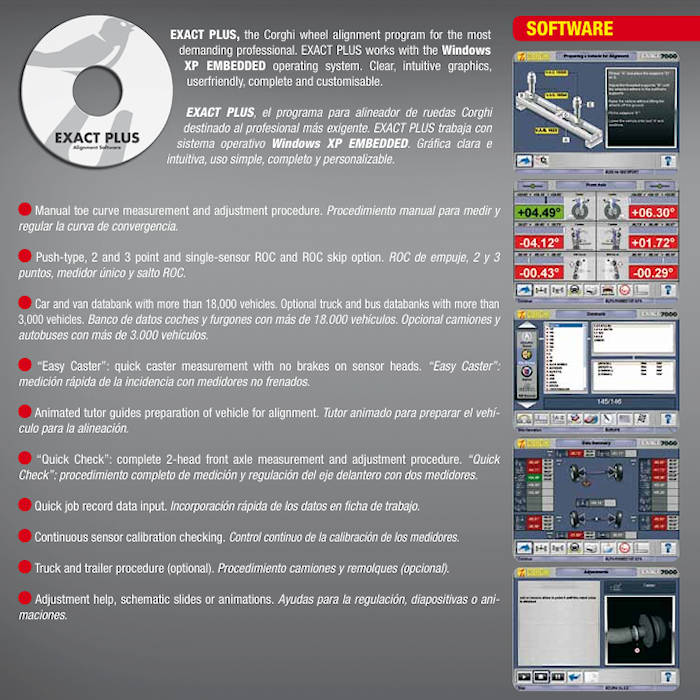

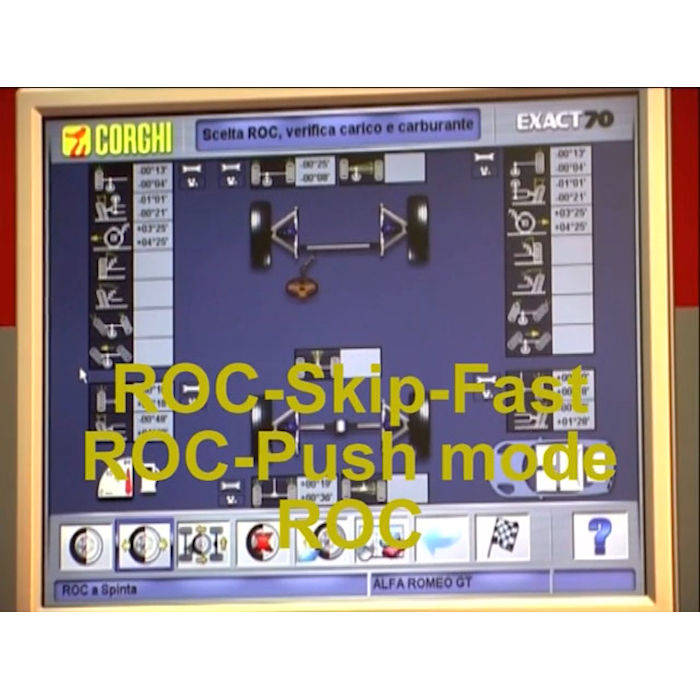

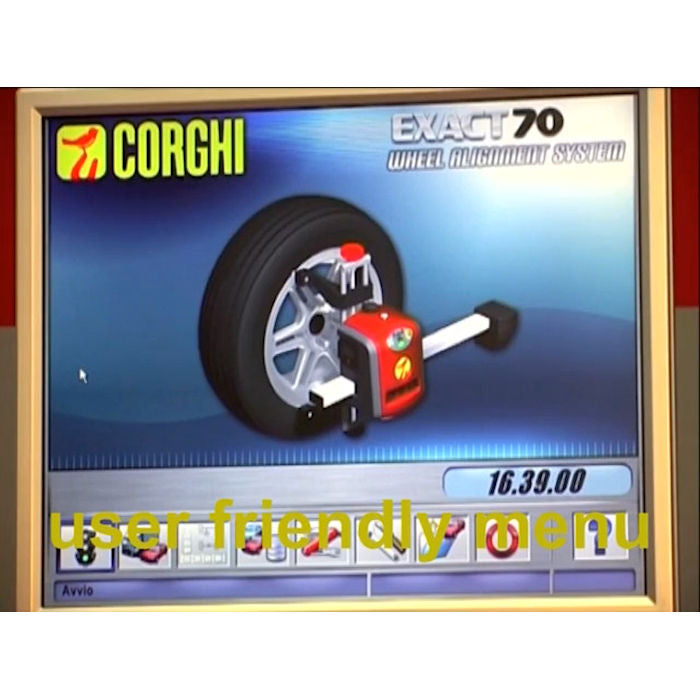

• Exact Plus Alignment Program
• Asa Network, RH-Meter And Romess CM-09606 Compatible
• Pedal Depressor
• Steering Clamp

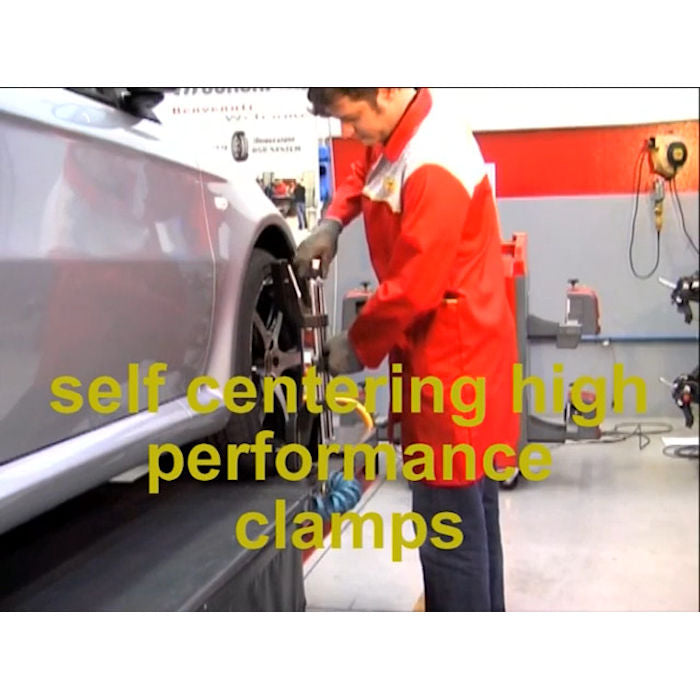

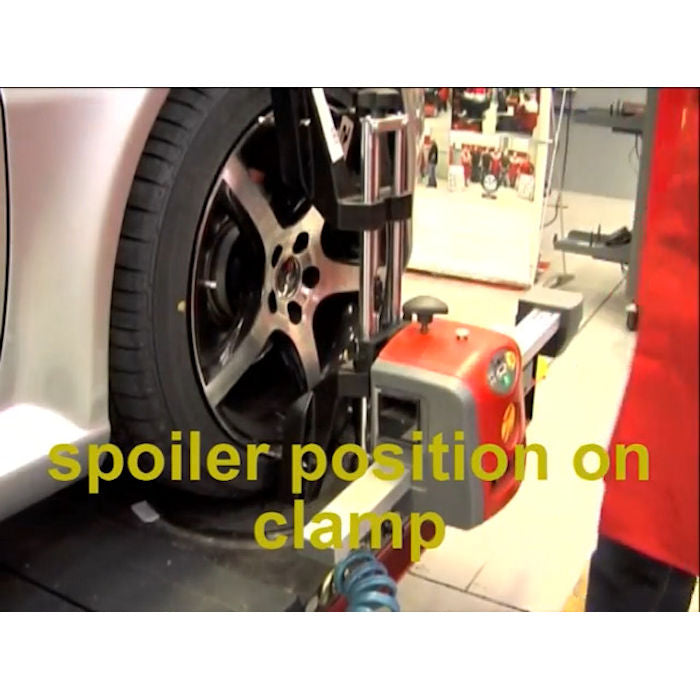

• 10-26" or 10-21" Car Wheel Brackets With Self-Centring System

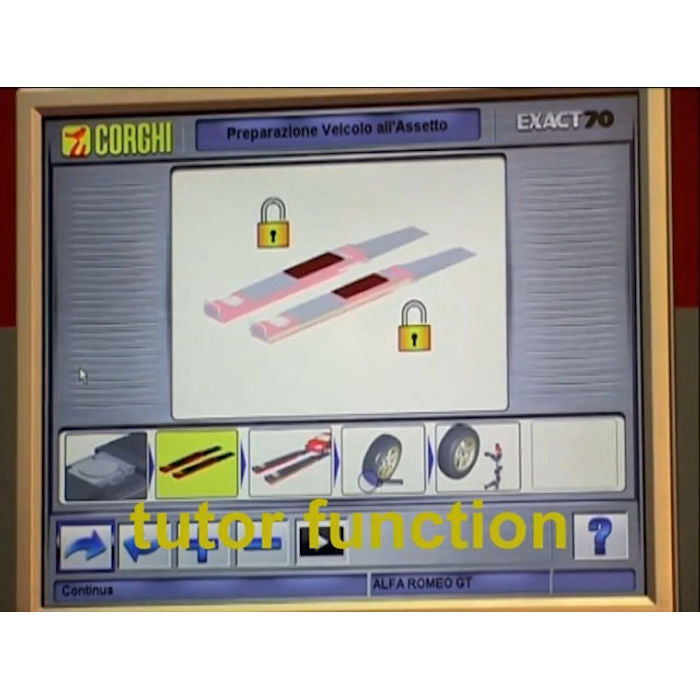

• Adjustment Help, Schematic Slides or Animations

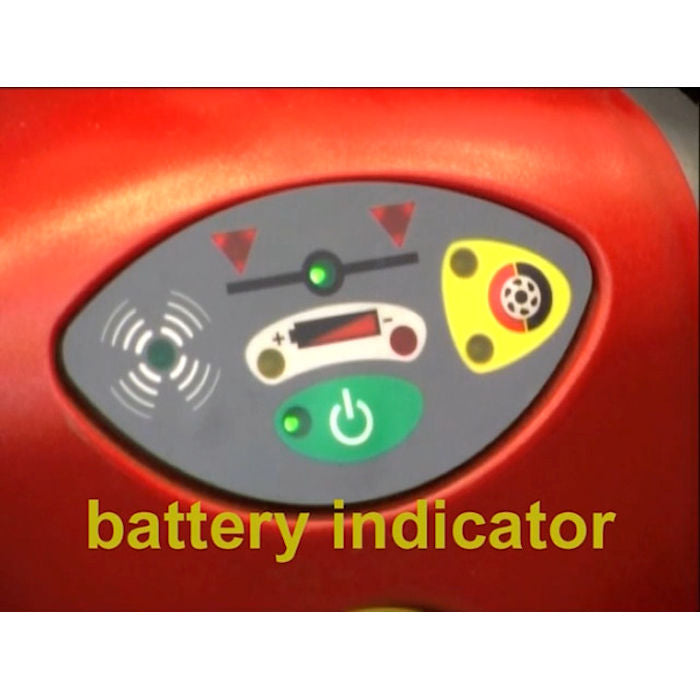

• External Battery Charger For Charging Batteries With PC Off

Optional Accessories

• Optical Mouse
• IR Remote Control
• Universal Support For LCD Monitor
• 17 - 19 - 20" LCD Colour Monitor
• Colour Inkjet Printer
• 9 - 21" Quick Wheel Clamps
• BMW - Mercedes Wheel Clamps
• 10 - 25" Truck Wheel Clamps With Self-Centring System
• ROC Skip Clamps For Fleet Hd Trucks
• Special Procedures: Multilink, Radar, Trucks And Trailers,
• Vehicle Weight And Specialty Product Catalogue
• Special Car Constructor Configurations
• Complete Range Of Accessories

Measuring Ranges

• Total Toe: ± 48°
• Half Toe: ± 24°
• Camber: ± 10°
• Caster: ± 30°
• King-Pin: ± 30°
• Set Back: ± 22°
• Thrust Angle: ± 22°
• Steering Angle: ± 22°

Specifications

• Central Unit: 90-260 Vca (50-60 Hz) 1ph
• Central Unit Consumption: 0.4 kW
• Sensors: 31.5" x 5" x 8"
• Dimensions: 31.5" W x 25" D x 67" H
• Dimensions With Sensors: 53" W x 52" D x 67" H
• Warranty: (3) Years Parts, (1) Year Labor

Corghi USA Limited Warranty Statement
General Terms
Corghi USA expressly warrants its products will be free from defects in material and/or workmanship for the time period specified. Corghi USA must be informed in writing within (7) days after discovery of a defect. Corghi USA reserves the right to repair or replace a product at our discretion. Consumable products and accessories such as but not limited to; plastic protection parts, bead breaker pads, inflation hoses, and rollers, are not covered under this warranty.

This warranty does not cover any damage resulting from abuse or failure to perform any necessary maintenance (i.e. damage due to or resulting from, faulty installation, neglect, misuse, improper electrical connections or electrical surges, problems resulting from excessive water, contaminated air system, or pollutant of any nature, fire or freight damage).

Corghi machines are warranted to be free of defects as follows:

Tire Changers:
A2030, A2024TI, 2024LL, A9824, A9824LL, A9830, A9222, Service Pro 124, Service Pro 324, BC200S, A2002 - (3) years parts and (1) year labor. Additional Transmission Warranty Models: A9222 - (5) years parts only. A2030, A2024TI, 2024LL, A9824, A9824LL, A9830 - (10) years parts only. AM50, AM500, AM5000, Master J, Master Code, Master28 - (3) years parts and (1) year labor. HD700, HD1300, HD1400, Monster TT, HD1800, Service Pro 440, Service Pro 426 - (3) years parts and (1) year labor. NOTE: Rubber pads, air lines, gauges, mount/demount heads, and swabs - (90) day warranty.

Wheel Balancers:
PL60, Service Pro 750, EM9250, EM9280, EM9580, EM9780, EM9980C, ET1450, ET88 - (3) years parts and (1) year labor.

Alignment Machines and Specialty Equipment:
(3) years parts and (1) year labor.

Disclaimer & Limitation on Liability
Corghi USA agreement to repair a tire changer or balancer is expressly in lieu of all other warranties, express, implies or statutory, including any warranties for merchantability and fitness for a particular purpose. Corghi USA maximum liability shall be limited to the cost of the machine. In no event shall Corghi USA be responsible for owner's lost profits, goodwill or other incidental or consequential damages. Corghi USA is not responsible for equipment or accessories damages in shipment. Freight claims are to be made directly with the carrier. We will be more than happy to assist you with any questions regarding filing claims.
