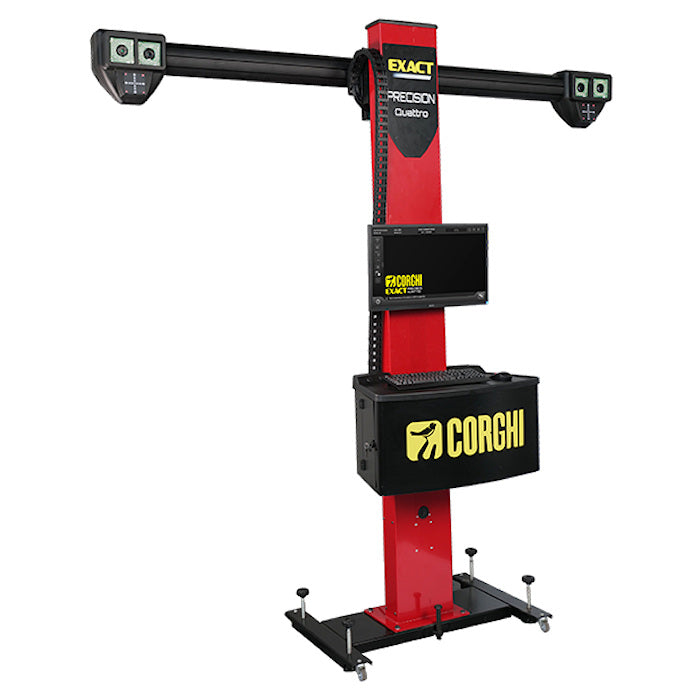

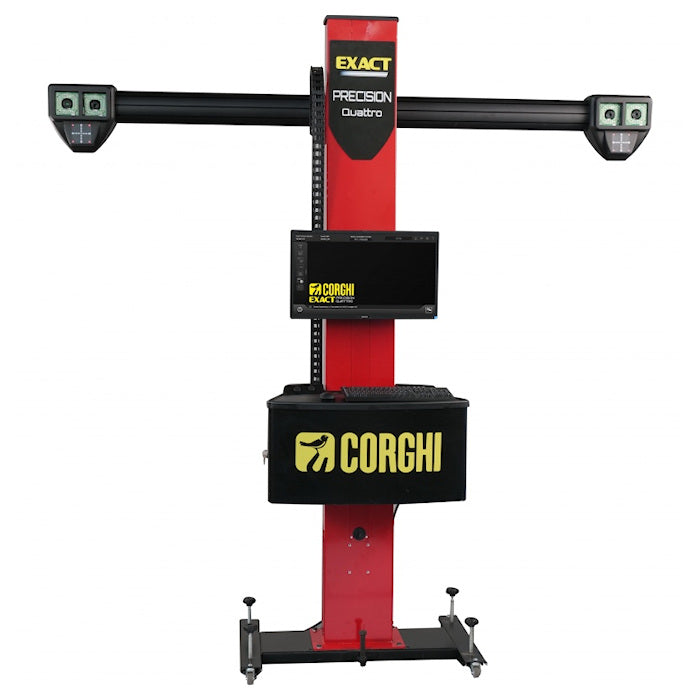

Corghi Exact Precision Quattro 3D Wheel Aligner

Name: Corghi Exact Precision Quattro 3D Wheel Aligner
Brand: ASEDeals
SKU: 0-34103001/00
Price: 24600.0 USD
Availability: InStock

In Stock SKU 0-34103001/00

OUR PRICE: $24,600.00

Regular Price: ~~$25,839.00~~

$683.33 / mo

INCLUDES FREE SHIPPING*

Short Description

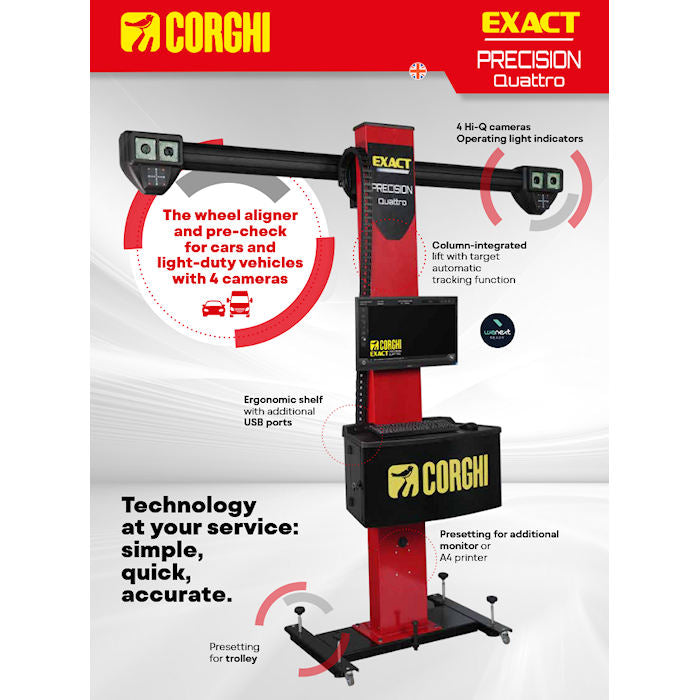

Corghi Exact Precision Quattro 3D Wheel Aligner
Passive Targets And 4 High-Resolution Digital Cameras
Technology At Your Service: Simple, Quick Accurate.
The Corghi Exact Precision Quattro 3D Wheel Aligner is the new wheel aligner with passive targets and 4 high-resolution digital cameras, to ensure measurement maximum precision and accuracy. The automation of wheel alignment operations and the extreme reliability of components enhance its productivity. Premium PC with the latest Windows Professional operating system, new Exact Alignment TOP software including a complete database with multi-brand technical specifications are part of the rich standard equipment.

With these features, Exact Precision Quattro stands as an industry benchmark and a safe investment for wheel alignment professionals.

Description

Corghi

Corghi Exact Precision Quattro 3D Wheel Aligner
Passive Targets And 4 High-Resolution Digital Cameras
Technology At Your Service: Simple, Quick Accurate.

The Corghi Exact Precision Quattro 3D Wheel Aligner is the new wheel aligner with passive targets and 4 high-resolution digital cameras, to ensure measurement maximum precision and accuracy. The automation of wheel alignment operations and the extreme reliability of components enhance its productivity. Premium PC with the latest Windows Professional operating system, new Exact Alignment TOP software including a complete database with multi-brand technical specifications are part of the rich standard equipment.

With these features, Exact Precision Quattro stands as an industry benchmark and a safe investment for wheel alignment professionals.

New Exact Alignment TOP Software For the Wheel Alignment Professional
New modern and professional graphic interface specifically developed for the wheel alignment specialist. Rich with new features, such as the lower progress bar, the convenient vertical pop up selection menu, and enhanced data visibility in the operating area. It also features useful quick selection icons for the most common functions and simple wizards with clear instructions for less experienced operators. The procedure is fully customizable with an always up-to-date and comprehensive database.

Database Selection
International Database including more than 84,000 cars and light-duty vehicles, divided by markets, with integrated search bar. The simplified "SMART"selection helps the operator speed up vehicle identification.

ROC - Runout Compensation
Quick selection of the desired type of compensation. The new optimized "ROC SMART" procedure is also available.

Steering
User-friendly procedure with option to select a suitable steering angle (at 10° or 20°) during the operation. Maximum available steering (as an option).

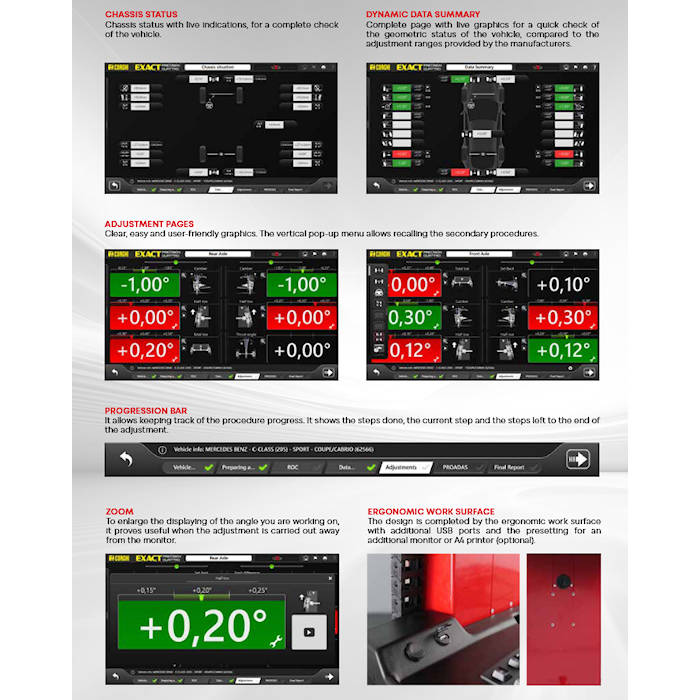

Chassis Status
Chassis status with live indications, for a complete check of the vehicle.

Dynamic Data Summary
Complete page with live graphics for a quick check of the geometric status of the vehicle, compared to the adjustment ranges provided by the manufacturers.

Adjustment Pages
Clear, easy and user-friendly graphics. The vertical pop-up menu allows recalling the secondary procedures.

Progression Bar
It allows keeping track of the procedure progress. It shows the steps done, the current step and the steps left to the end of the adjustment.

Zoom
To enlarge the displaying of the angle you are working on, it proves useful when the adjustment is carried out away from the monitor.

Ergonomic Work Surface
he design is completed by the ergonomic work surface with additional USB ports and the presetting for an additional monitor or A4 printer (optional).

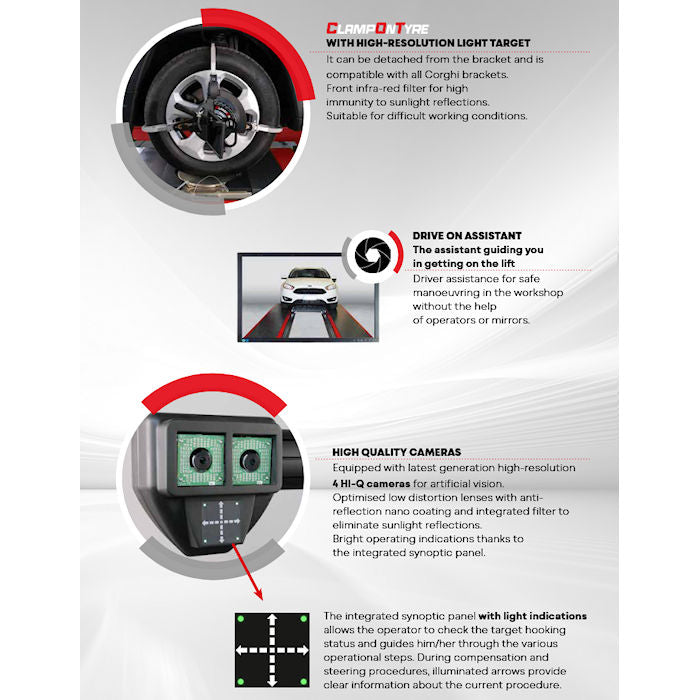

ClampOnTyre With High-Resolution Light Target
It can be detached from the bracket and is compatible with all Corghi brackets. Front infra-red filter for high immunity to sunlight reflections. Suitable for difficult working conditions.

Drive On Assistant
The assistant guiding you in getting on the lift. Driver assistance for safe maneuvering in the workshop without the help of operators or mirrors.

High Quality Cameras
Equipped with latest generation high-resolution 4 HI-Q cameras for artificial vision. Optimized low distortion lenses with anti-reflection nano coating and integrated filter to eliminate sunlight reflections. Bright operating indications thanks to the integrated synoptic panel. The integrated synoptic panel with light indications allows the operator to check the target hooking status and guides him/her through the various operational steps. During compensation and steering procedures, illuminated arrows provide clear information about the current procedure.

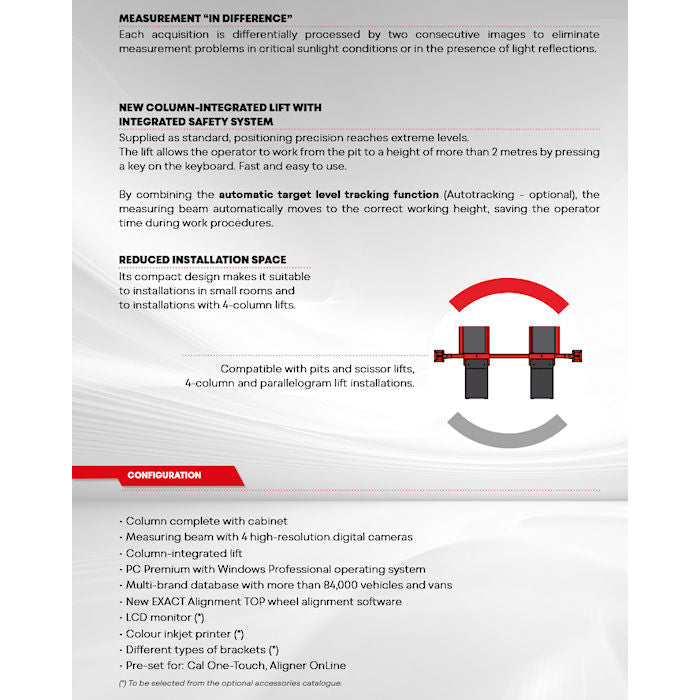

Measurement "In Difference"
Each acquisition is differentially processed by two consecutive images to eliminate measurement problems in critical sunlight conditions or in the presence of light reflections.

New Column-Integrated Lift With Integrated Safety System
Supplied as standard, positioning precision reaches extreme levels. The lift allows the operator to work from the pit to a height of more than 2 meters by pressing a key on the keyboard. Fast and easy to use.

Reduced Installation Space
By combining the automatic target level tracking function (Autotracking - optional), the measuring beam automatically moves to the correct working height, saving the operator time during work procedures. Its compact design makes it suitable to installations in small rooms and to installations with 4-column lifts. Compatible with pits and scissor lifts, 4-column and parallelogram lift installations.

Configuration

Column Complete With Cabinet
Measuring Beam With 4 High-Resolution Digital Cameras
Column-Integrated Lift
PC Premium With Windows Professional Operating System
Multi-Brand Database With More Than 84,000 Vehicles And Vans
New Exact Alignment TOP Wheel Alignment Software
LCD Monitor (*)
Color Inkjet Printer (*)
Different Types Of Brackets (*)
Pre-Set For: Cal One-Touch, Aligner Online
(*) To Be Selected From The Optional Accessories Catalogue

Wheel Aligner Compatible With PROADAS
The wheel aligner is compatible with the new PROADAS universal system used for the calibration of driver assistance systems on new-generation vehicles.

Using the wheel aligner cameras, the system for calibrating the camera and radar on board the vehicle can be aligned precisely and quickly. Manufacturers recommend calibrating ADAS systems after aligning the vehicle. For further information, visit the PROADAS product sections on Corghi website.

Features & Specs

Features

The Wheel Aligner For Everyone
Simplicity Combined With Top Notch Performance
High-Resolution HI-Q 2-Camera Reading System
High Quality Components And Modern Design
Pre-Check System Standard
User Friendly Software For Precise And Quick Alignment Measurements
0.01° Data Display
Intuitive 2-Key Operation With Easily Accessible Tutor Help
Easy Access To All Adjustment Values
User-Friendly Corghi Icon Graphics
Simple and Efficient, Easy To Learn, Fast To Select
Ergonomic Worktop Complete With PC Holder & Keyboard & Printer Platform
Light-Duty And High-Resolution Targets Are Detatchable
Compatible With All Corghi Brackets And feature Infra-Red Filter
Select Your Preferred Targets (Standard Or ClampOnTyre)
Includes 10" to 26" 4-Point Clamps
Standard Trolley Platform For High Precision East Mount Process
Standard Drive On Assist Camera
Compatible With PROADAS (Optional)
10" to 26" Sensor Holder (With Adaptor)
Lift Level Automatic Tracking Function (Optional)

Software Features

Multilanguage Windows 10 IoT Operating System
User Friendly Procedure
A First Class International Database With Over 84,000 Vehicles
Live Graphic Indications
User Databank For Insert Or Modification Vehicle Data
Chassis Measurement Data
Factory-Calibrated, Calibration Checked Only Upon Installation, No Periodic Calibrations Required
Databank On HD
Job Operation Customer Data Bank, To Recall And Memorize All Customer Data

Measuring Ranges

Total Toe: ± 20°
Half Toe: ± 10°
Camber: ± 10°
Caster: ± 30°
King-Pin: ± 30°
Set Back: ± 22°
Thrust Angle: ± 10
Steering Difference: ± 20°

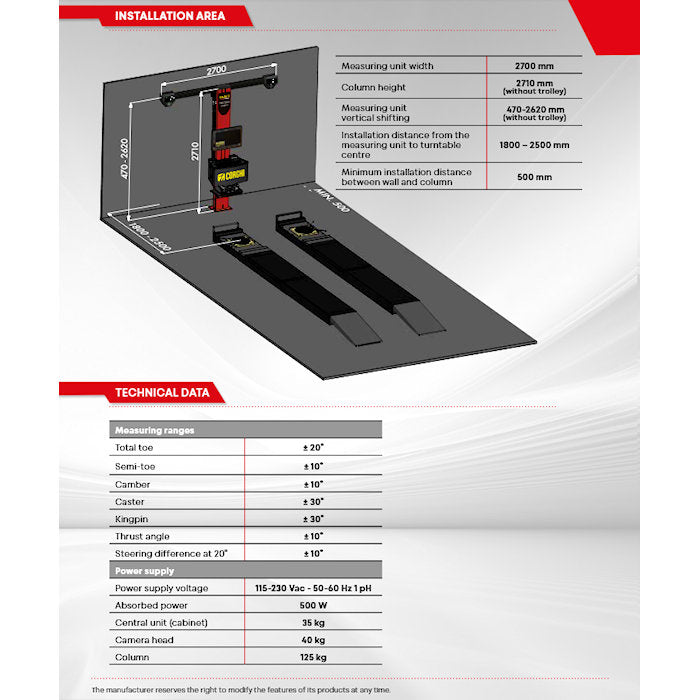

Installation Area

Measuring Unit Width: 2,700 mm
Column Height: 2,710 mm (Without Trolley)
Measuring Unit Vertical Shifting: 470-2,620 mm (Without Trolley)
Installation Distance From Measuring Unit To Turntable Centre: 1,800-2,500 mm
Minimum Installation Distance Between Wall and Column: 500 mm

Specifications

Power Supply Voltage: 115/230VAC - 50/60Hz - 1 Ph
Power Absorption: 500W
PC Holder: 11 kg
Camera Beam: 26 kg
Column: 66 kg
Camera Resolution: 2592 × 1944 10,000,000 Pixel
Warranty: (3) Years Parts, (1) Year Labor

Corghi USA Limited Warranty Statement
General Terms
Corghi USA expressly warrants its products will be free from defects in material and/or workmanship for the time period specified. Corghi USA must be informed in writing within (7) days after discovery of a defect. Corghi USA reserves the right to repair or replace a product at our discretion. Consumable products and accessories such as but not limited to; plastic protection parts, bead breaker pads, inflation hoses, and rollers, are not covered under this warranty.

This warranty does not cover any damage resulting from abuse or failure to perform any necessary maintenance (i.e. damage due to or resulting from, faulty installation, neglect, misuse, improper electrical connections or electrical surges, problems resulting from excessive water, contaminated air system, or pollutant of any nature, fire or freight damage).

Corghi machines are warranted to be free of defects as follows:

Tire Changers:
A2030, A2024TI, 2024LL, A9824, A9824LL, A9830, A9222, Service Pro 124, Service Pro 324, BC200S, A2002 - (3) years parts and (1) year labor. Additional Transmission Warranty Models: A9222 - (5) years parts only. A2030, A2024TI, 2024LL, A9824, A9824LL, A9830 - (10) years parts only. AM50, AM500, AM5000, Master J, Master Code, Master28 - (3) years parts and (1) year labor. HD700, HD1300, HD1400, Monster TT, HD1800, Service Pro 440, Service Pro 426 - (3) years parts and (1) year labor. NOTE: Rubber pads, air lines, gauges, mount/demount heads, and swabs - (90) day warranty.

Wheel Balancers:
PL60, Service Pro 750, EM9250, EM9280, EM9580, EM9780, EM9980C, ET1450, ET88 - (3) years parts and (1) year labor.

Alignment Machines and Specialty Equipment:
(3) years parts and (1) year labor.

Disclaimer & Limitation on Liability
Corghi USA agreement to repair a tire changer or balancer is expressly in lieu of all other warranties, express, implies or statutory, including any warranties for merchantability and fitness for a particular purpose. Corghi USA maximum liability shall be limited to the cost of the machine. In no event shall Corghi USA be responsible for owner's lost profits, goodwill or other incidental or consequential damages. Corghi USA is not responsible for equipment or accessories damages in shipment. Freight claims are to be made directly with the carrier. We will be more than happy to assist you with any questions regarding filing claims.

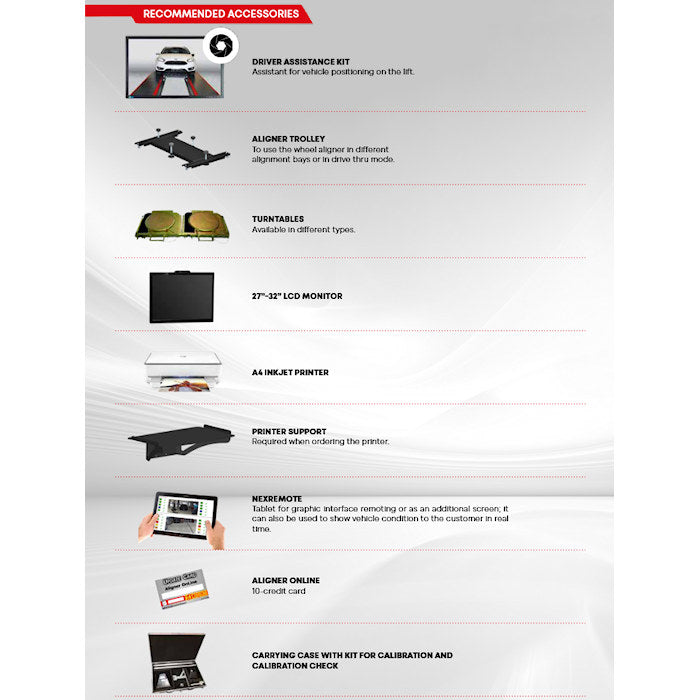

Accessories/Options
