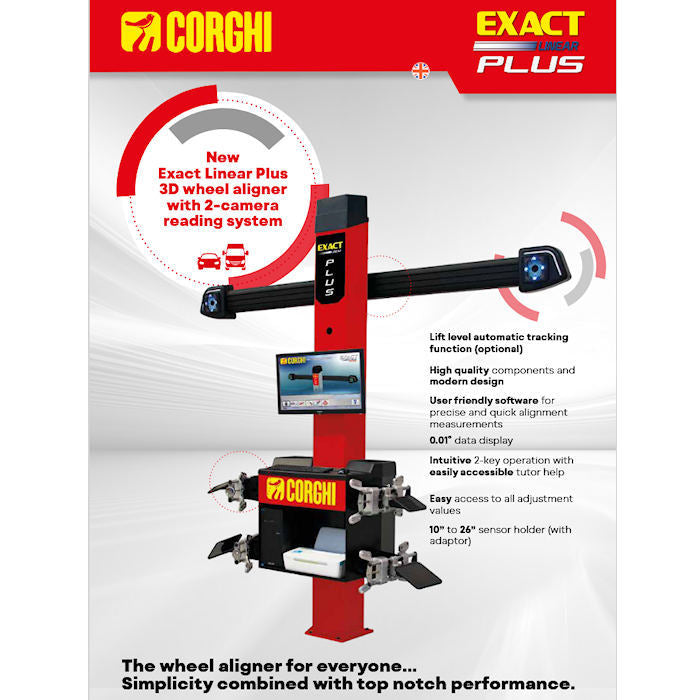

Corghi Exact Linear Plus 3D Wheel Aligner

Features & Specs

Features

• The Wheel Aligner For Everyone
• Simplicity Combined With Top Notch Performance
• High-Resolution HI-Q 2-Camera Reading System
• High Quality Components And Modern Design
• User Friendly Software For Precise And Quick Alignment Measurements
• 0.01° Data Display
• Intuitive 2-Key Operation With Easily Accessible Tutor Help
• Easy Access To All Adjustment Values

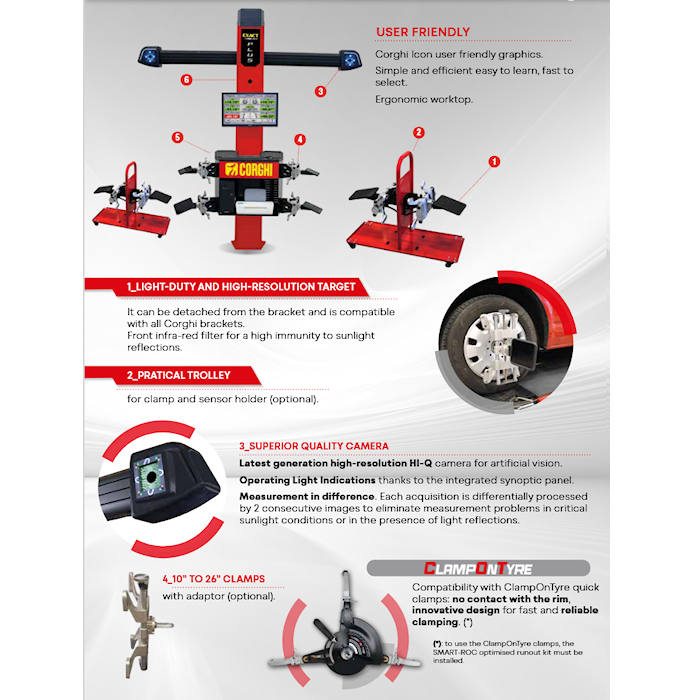

• User-Friendly Corghi Icon Graphics
• Simple and Efficient, Easy To Learn, Fast To Select
• Ergonomic Worktop Complete With PC Holder & Keyboard & Printer Platform
• Light-Duty And High-Resolution Targets Are Detatchable
• Compatible With All Corghi Brackets And feature Infra-Red Filter
• Includes 10" to 26" 4-Point Clamps
• Standard Drive On Assist Camera
• Compatible With PROADAS (Optional)
• Compatible With ClampOnTyre Quick Clamps (Optional)
• 10" to 26" Sensor Holder (With Adaptor)
• Lift Level Automatic Tracking Function (Optional)

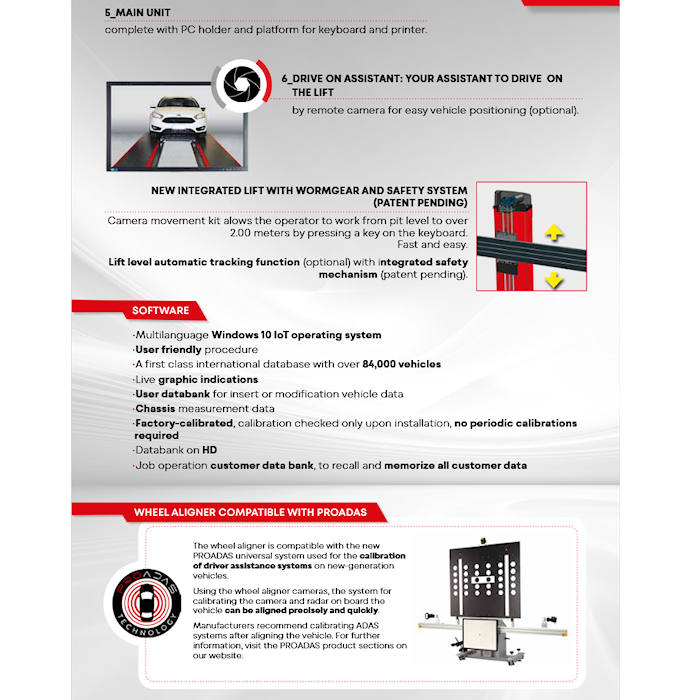

Software Features

• Multilanguage Windows 10 IoT Operating System
• User Friendly Procedure
• A First Class International Database With Over 84,000 Vehicles
• Live Graphic Indications
• User Databank For Insert Or Modification Vehicle Data
• Chassis Measurement Data
• Factory-Calibrated, Calibration Checked Only Upon Installation, No Periodic Calibrations Required
• Databank On HD
• Job Operation Customer Data Bank, To Recall And Memorize All Customer Data

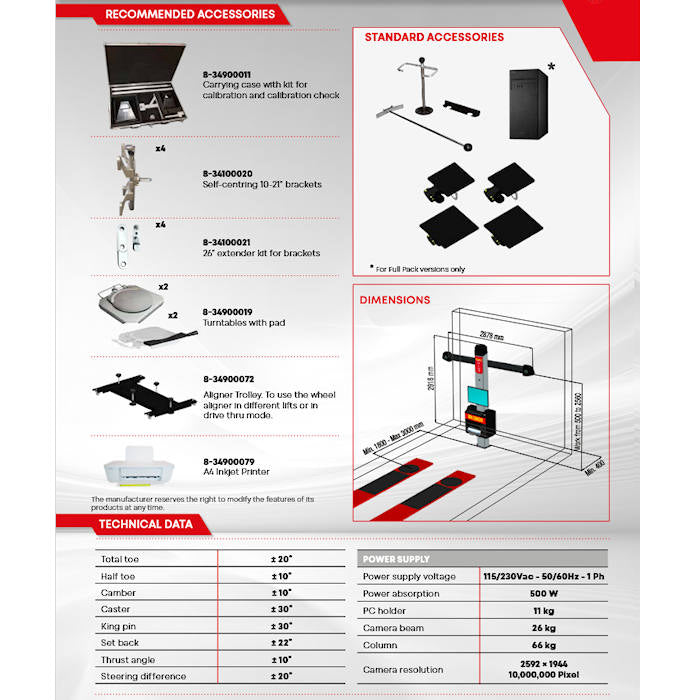

Measuring Ranges

• Total Toe: ± 20°
• Half Toe: ± 10°
• Camber: ± 10°
• Caster: ± 30°
• King-Pin: ± 30°
• Set Back: ± 22°
• Thrust Angle: ± 10
• Steering Difference: ± 20°

Specifications

• Power Supply Voltage: 115/230VAC - 50/60Hz - 1 Ph
• Power Absorption: 500W
• PC Holder: 11 kg
• Camera Beam: 26 kg
• Column: 66 kg
• Camera Resolution: 2592 × 1944 10,000,000 Pixel
• Warranty: (3) Years Parts, (1) Year Labor

Corghi USA Limited Warranty Statement
General Terms
Corghi USA expressly warrants its products will be free from defects in material and/or workmanship for the time period specified. Corghi USA must be informed in writing within (7) days after discovery of a defect. Corghi USA reserves the right to repair or replace a product at our discretion. Consumable products and accessories such as but not limited to; plastic protection parts, bead breaker pads, inflation hoses, and rollers, are not covered under this warranty.

This warranty does not cover any damage resulting from abuse or failure to perform any necessary maintenance (i.e. damage due to or resulting from, faulty installation, neglect, misuse, improper electrical connections or electrical surges, problems resulting from excessive water, contaminated air system, or pollutant of any nature, fire or freight damage).

Corghi machines are warranted to be free of defects as follows:

Tire Changers:
A2030, A2024TI, 2024LL, A9824, A9824LL, A9830, A9222, Service Pro 124, Service Pro 324, BC200S, A2002 - (3) years parts and (1) year labor. Additional Transmission Warranty Models: A9222 - (5) years parts only. A2030, A2024TI, 2024LL, A9824, A9824LL, A9830 - (10) years parts only. AM50, AM500, AM5000, Master J, Master Code, Master28 - (3) years parts and (1) year labor. HD700, HD1300, HD1400, Monster TT, HD1800, Service Pro 440, Service Pro 426 - (3) years parts and (1) year labor. NOTE: Rubber pads, air lines, gauges, mount/demount heads, and swabs - (90) day warranty.

Wheel Balancers:
PL60, Service Pro 750, EM9250, EM9280, EM9580, EM9780, EM9980C, ET1450, ET88 - (3) years parts and (1) year labor.

Alignment Machines and Specialty Equipment:
(3) years parts and (1) year labor.

Disclaimer & Limitation on Liability
Corghi USA agreement to repair a tire changer or balancer is expressly in lieu of all other warranties, express, implies or statutory, including any warranties for merchantability and fitness for a particular purpose. Corghi USA maximum liability shall be limited to the cost of the machine. In no event shall Corghi USA be responsible for owner's lost profits, goodwill or other incidental or consequential damages. Corghi USA is not responsible for equipment or accessories damages in shipment. Freight claims are to be made directly with the carrier. We will be more than happy to assist you with any questions regarding filing claims.
