MAHLE CAD-15FCO Ford Cab Adapters

Name: MAHLE CAD-15FCO Ford Cab Adapters
Brand: ASEDeals
SKU: 485 80132 00
Price: 2657.0 USD
Availability: InStock

In Stock SKU 485 80132 00

OUR PRICE: $2,657.00

Regular Price: $2,789.00

$73.80 / mo

INCLUDES FREE SHIPPING*

Short Description

MAHLE CAD-15FCO Ford Cab Adapters
1,500 lbs. Capacity Each

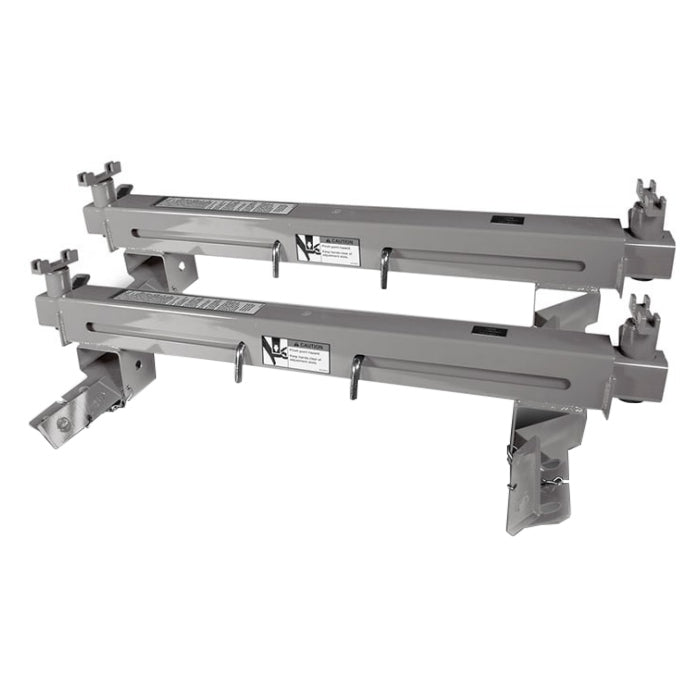

The MAHLE CAD-15FCO Ford Cab Adapters are designed to raise a truck cab by contacting the under-cab pinch welds when using a mobile column lift. The CAD-15FCO Ford Cab Adapters have a maximum capacity of 1,500 lbs. each.

For Use With MAHLE Mobile Column Lift Models
CML-7 & CML-9

Manufactured by Gray Made In USA

Description

MAHLE CAD-15FCO Ford Cab Adapters
1,500 lbs. Capacity Each

The MAHLE CAD-15FCO Ford Cab Adapters are designed to raise a truck cab by contacting the under-cab pinch welds when using a mobile column lift. The CAD-15FCO Ford Cab Adapters have a maximum capacity of 1,500 lbs. each.

For Use With MAHLE Mobile Column Lift Models

CML-7 & CML-9

Features & Specs

Features

For Use With MAHLE Mobile Column Lift Models
CML-7 & CML-9

Specifications

Maximum Capacity: 1,500 lbs. (680 kg) Each
Overall Width: 12" (30.5 cm)
Overall Length: 69.5" (176.5 cm)
Minimum Starting Height: 10" (25.4 cm)
Minimum Lift Saddle Spread-Center to Center: 40" (101.6 cm)
Maximum Lift Saddle Spread-Center to Center: 65.5" (166.6 cm)
Minimum Lift Saddle Clearance from Cross Member: 1.5" (3.8 cm)
Maximum Lift Saddle Clearance from Cross Member w/ Extension: 4.75" (9.75") / 12 cm (24.8 cm)
Lift Saddle Opening: 0.5" (1.3 cm)
Shipping Weight: 55 lbs. (25 kg) Each
