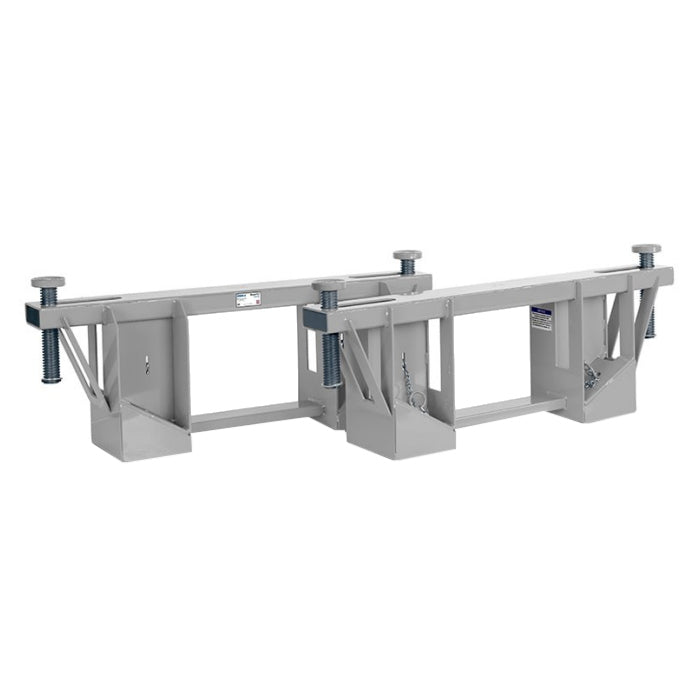

MAHLE CAD-EL End Lift Adapters

Features & Specs

Features

• For Use With MAHLE Mobile Column Lift Models
• CML-7 & CML-9

Specifications

• Maximum Capacity: 9,000 lbs. (4,082 kg) Each
• Overall Width: 11.5" (29.2 cm)
• Overall Length: 37" (94 cm)
• Minimum Starting Height: 16" (40.6 cm)
• Minimum Lift Pad Spread-Center to Center: 20" (50.8 cm)
• Maximum Lift Pad Spread-Center to Center: 32" (81.3 cm)
• Minimum Lift Pad Clearance from Cross Member: 5" (12.7 cm)
• Maximum Lift Pad Clearance from Cross Member: 7.5" (19.1 cm)
• Lift Pad Diameter: 3" (7.6 cm)
• Base Pad Spread-Center to Center: 26.5" (67.3 cm)
• Shipping Weight: 80 lbs. (36.3 kg) Each
