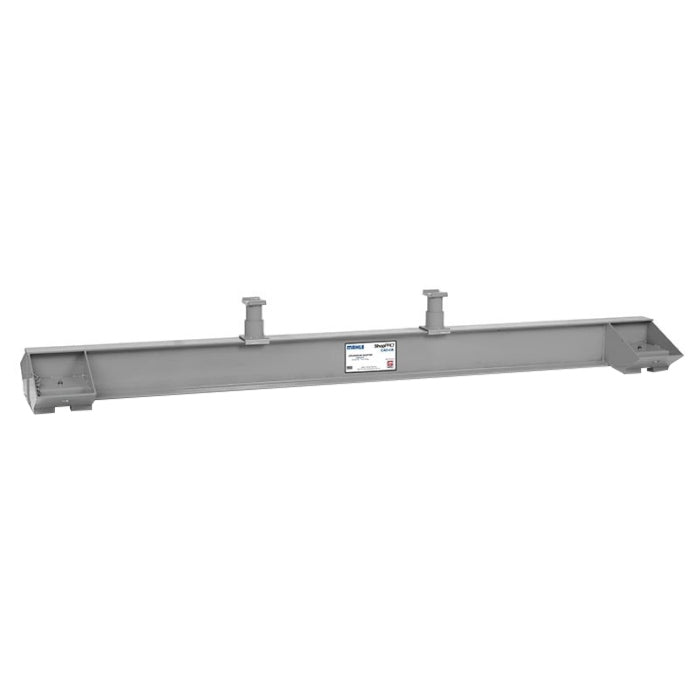

MAHLE CAD-CB Cross Beam Adapter

Features & Specs

Features

• For Use With MAHLE Mobile Column Lift Models
• CML-7 & CML-9

Optional Accessories

• CAD-120ML Trailer King Pin Adapter

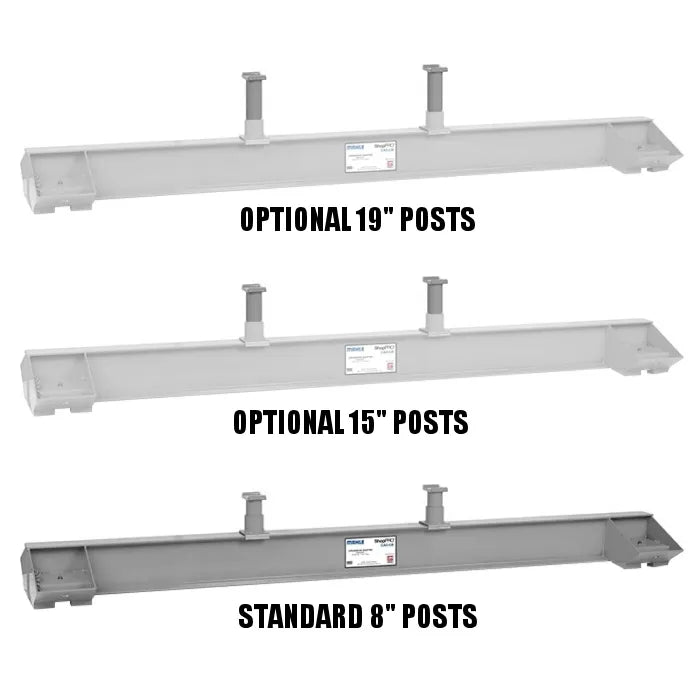

• CAD-CBEX5 15" Height Extension Post Kit
• CAD-CBEX9 19.5" Height Extension Post Kit

Specifications

• Maximum Capacity: 32,000 lbs. (14,515 kg)
• Overall Length: 137" (348 cm)
• Overall Width: 31.5" (80 cm)
• Minimum Starting Height: 19" (48.3 cm)
• Height from Top Beam to Lift Pad: 8.1" (20.6 cm)
• Lift Pad Size: 4.0" X 4.5" (10.1 cm X 11.4 cm)
• Lift Pad Rotation: 360°
• Minimum Lift Pad Spread-Center to Center: 25" (63.5 cm)
• Maximum Lift Pad Spread-Center to Center: 109.5" (278.3 cm)
• Ground Clearance: 0.9" (2.3 cm)
• Caster Diameter: 4" (10.1 cm)
• Shipping Weight: 560 lbs. (254 kg)
