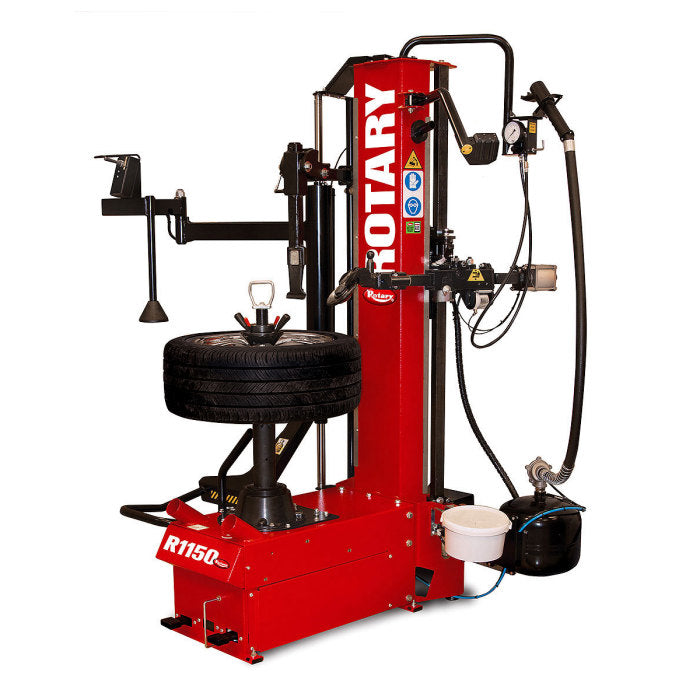

Rotary R1150 Leverless Tire Changer

Features & Specs

Features

• Leverless Mount / Demount Tool
• Requires No Tools
• 0-15 RPM Variable Speed Turntable Motor
• Quick-Locking Wheel Centering Adapter
• Locking System Suitable for Reverse Rims
• Easy Roller Bead-Breaking Feature
• Easy to Use 2-Button Controls for Roller Position
• Integrated Pneumatic Wheel Lift
• Pedal Operated Inflation with Side Bead Blaster
• Full Range of Bead Clamps and Adapters
• Double Cone
• Tire Paste Lubricant and Brush
• Handle Wheels with 10" - 30" Diameter
• Center Locking Design
• Power-Assisted Bead Press Arm Seats Bead to Rim
• Quick-Lock Rim Clamping Device with Guard
• Foot Pedal Controls for Inflation, Rotation and Wheel Lift

Standard Equipment

• Standard inflator / side bead blaster
• Pneumatic wheel lift
• Double cone
• Reverse protection
• Tire paste lubricant and brush
• Ships with NEMA L6-20P plug

Specifications

• Clamping Range: 10"-30"
• Clamping Range Position 1: 10"-26"
• Clamping Range Position 1: 12"-28"
• Clamping Range Position 1: 14"-30"
• Maximum Wheel Width: 15"
• Maximum Wheel Diameter: 45"
• Maximum Lift Capacity: 178 lbs.
• Maximum Torque: 120 Kgm
• Bead Breaker Power (Each Arm): 2,645 Ft/L lbs.
• Bead Breaker Movement: Automatic
• Rotation Motor: 2Hp / 1,5 Kw invemotor 1Hp / +0,75 Kw motor
• Recommended Air Supply: 115-145 PSI / 8-10 bar
• Power Supply: 220v / 1Ø / 60 Hz
• Weight: 1,100 lbs.
• Machine Warranty: (3) Years Functional, (1) Year Labor

Rotary Wheel Service Warranty Statement
All Rotary Wheel Service serialized products are covered under warranty for a period of three years to the original owner. Important: The warranty period begins once the product is invoiced to an authorized Distributor/ Purchaser/ Account. This date can be adjusted by submitting to VSG Customer Service the Warranty Activation Form indicating either the installation date or proof of retail purchase date. This warranty covers any failure of the serialized product under normal use and service, caused by a defect in VSG material or factory workmanship ("Warrantable Failure"). VSG shall pay for reasonable costs of transportation and labor for replacement of warrantable parts only during the first 12 months of the warranty period.​

Accessories are warranted to the original owner for a period of one year from the retail invoice date. If a retail invoice cannot be produced, the date of the original VSG invoice shall initiate the one-year warranty period. ​

VSG warrants against defects in material and factory workmanship only. VSG does not cover wear or wear out of covered parts due to normal wear and tear.​

VSG, at its option, will repair or replace any part that is found to have failed due to a Warrantable Failure. VSG, at its discretion, may require the part returned to VSG for inspection to determine warrantability.​

This warranty does not cover normal maintenance or adjustments, including routine calibrations, remedies for routine maintenance; damage or malfunction caused by, but not limited to improper handling, installation, abuse, misuse, negligence, carelessness of operation; or force majeure events. In addition, this warranty does not cover equipment on which unauthorized repairs or alterations have been attempted and/or made to the product.​

This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall VSG be liable for any special, consequential, or incidental damages of any kind including but not limited to damages for breach of or delay in performance of the warranty.​

This warranty shall be governed by the laws of the State of Indiana and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson.
