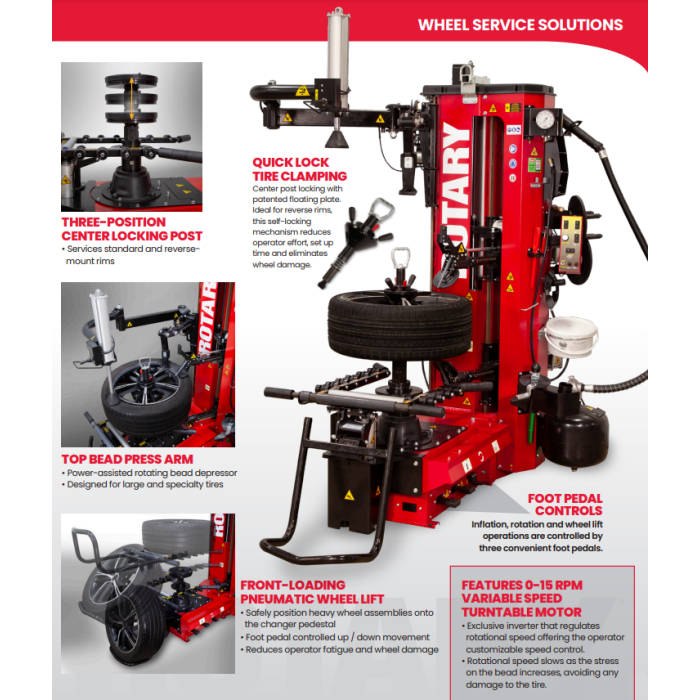

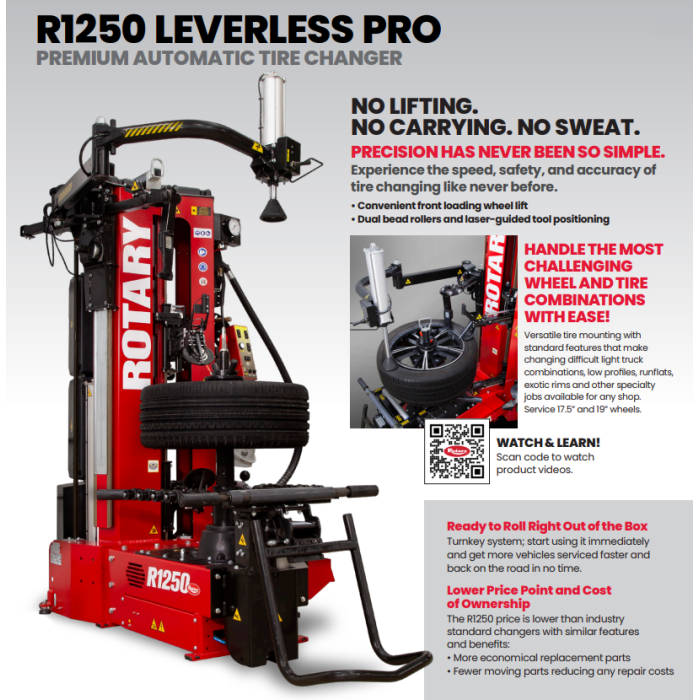

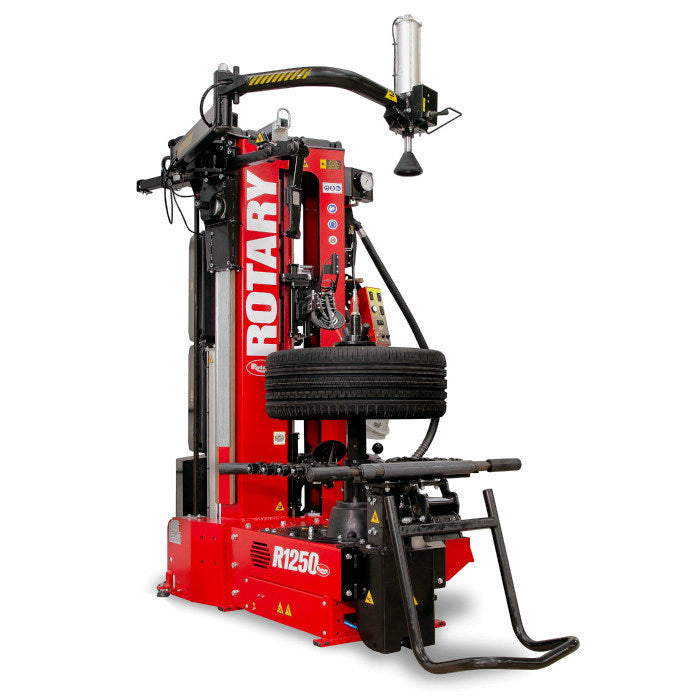

Rotary R1250 Leverless Pro Automatic Tire Changer

Features & Specs

Features

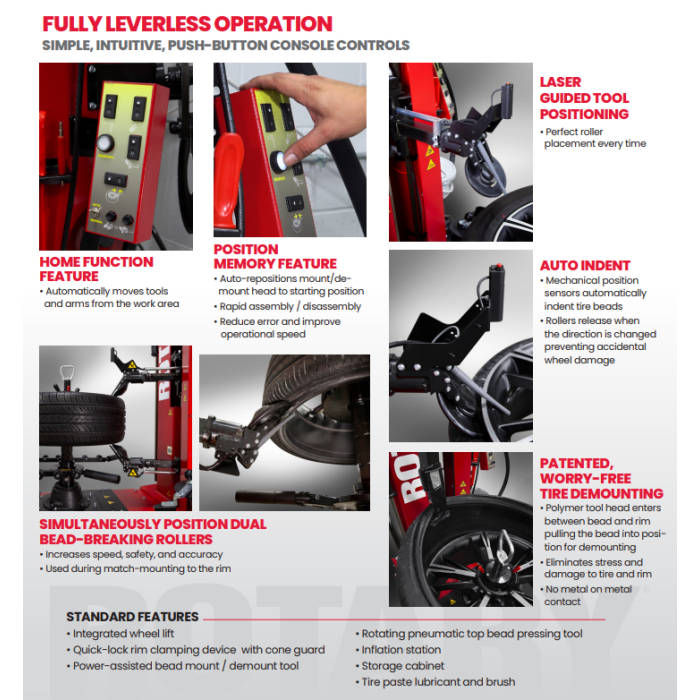

• Premium Automatic Tire Changer
• No Lifting. No Carrying. No Sweat.

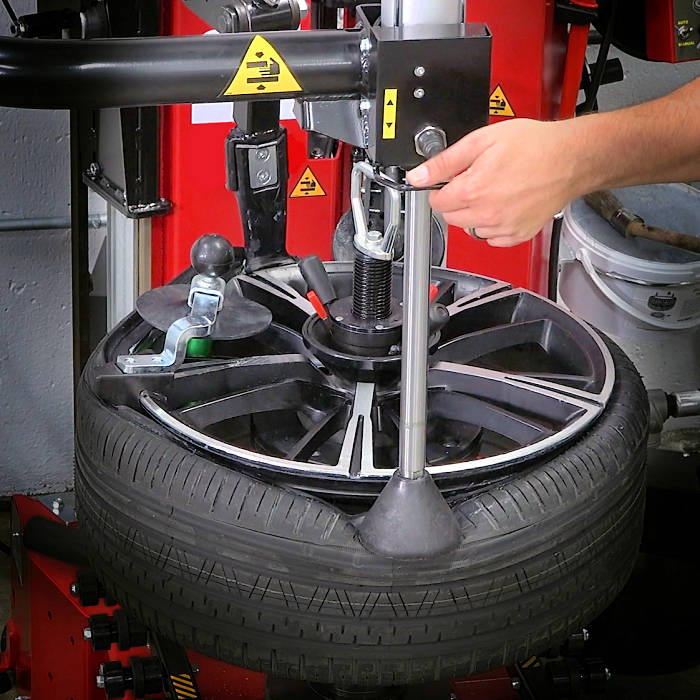

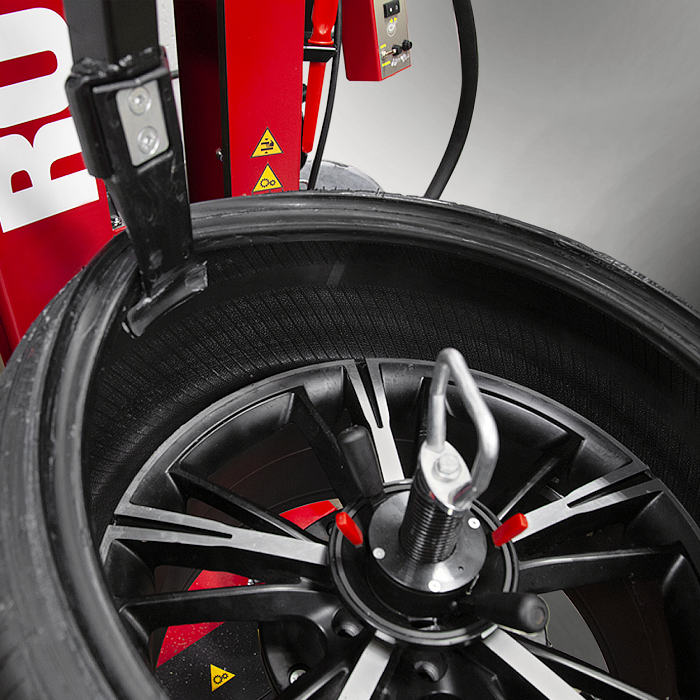

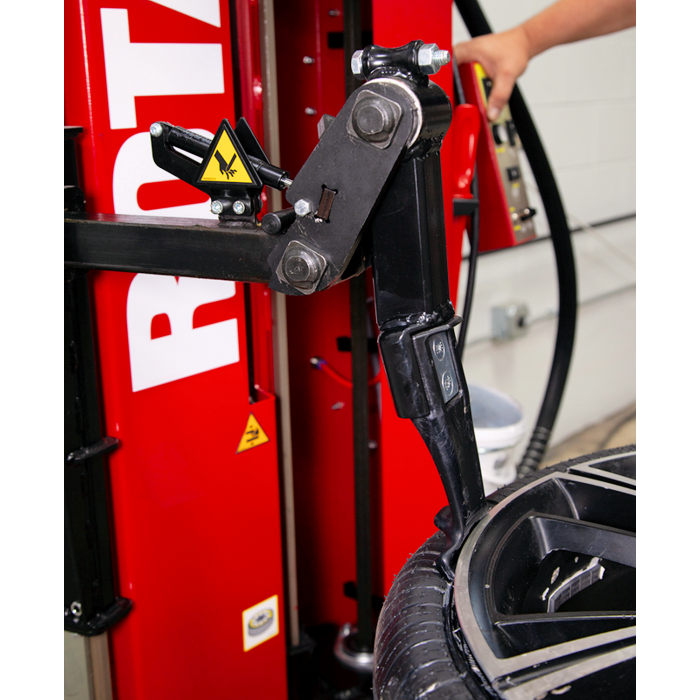

• Patented Worry-Free Tire Demounting
• Quick Lock Tire Clamping

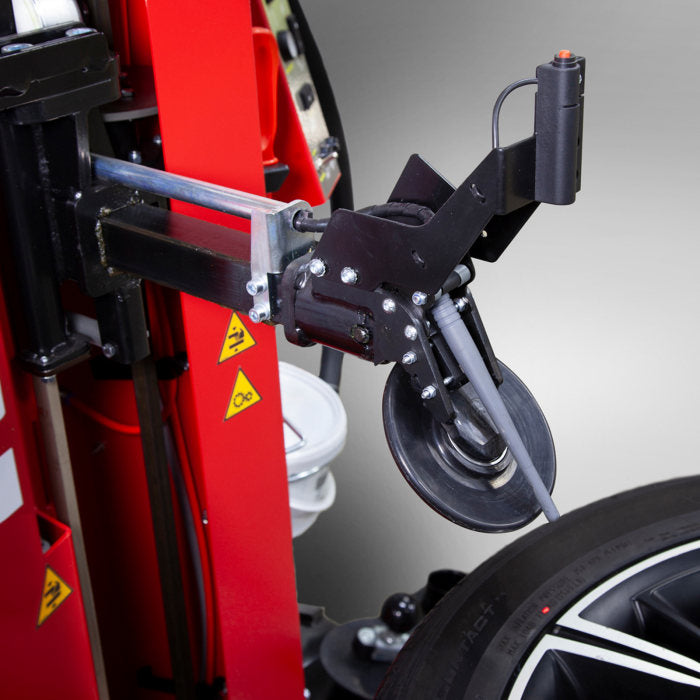

• Pinpoint Precision Laser Guided Tool Positioning

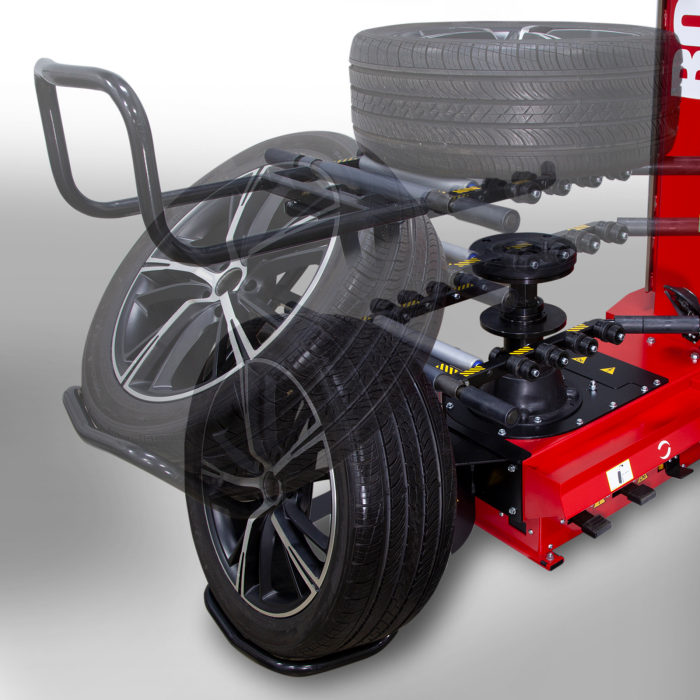

• Convenient Front Loading Wheel Lift

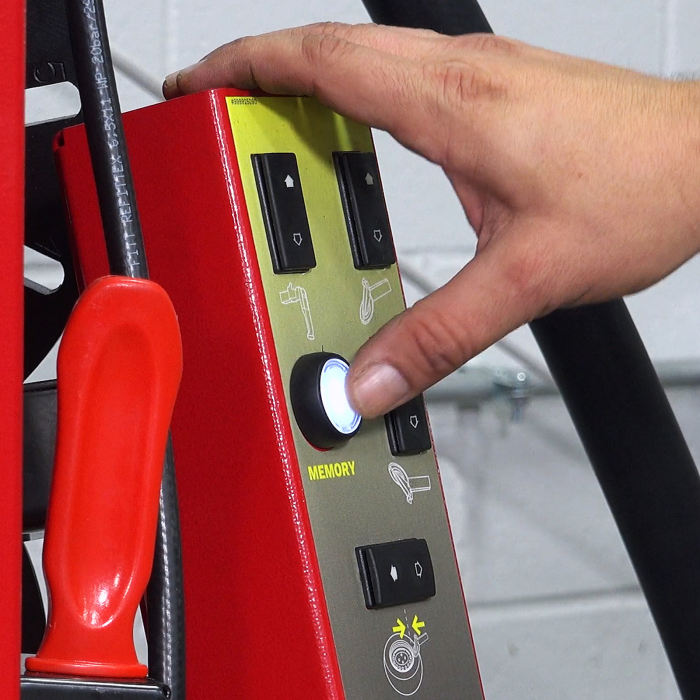

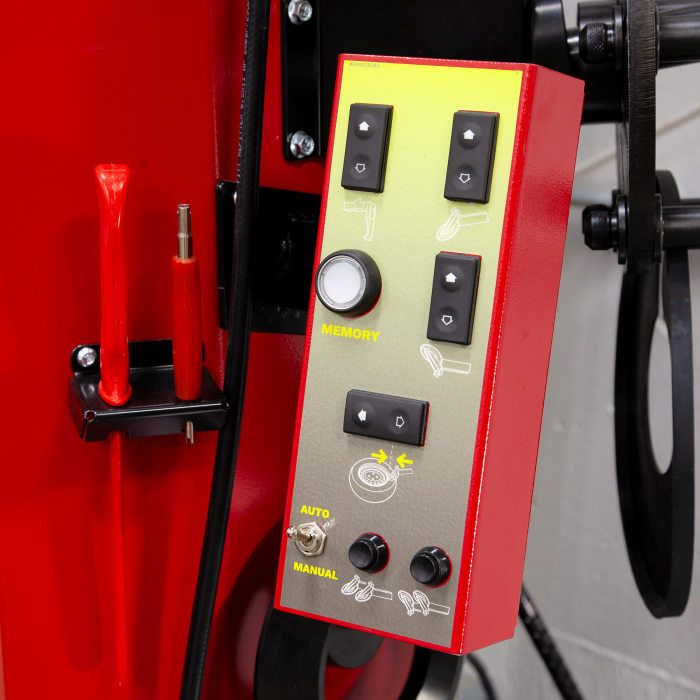

• Fast and Easy Pinpoint Operation with "Home" and "Memory" Position Memory Functions

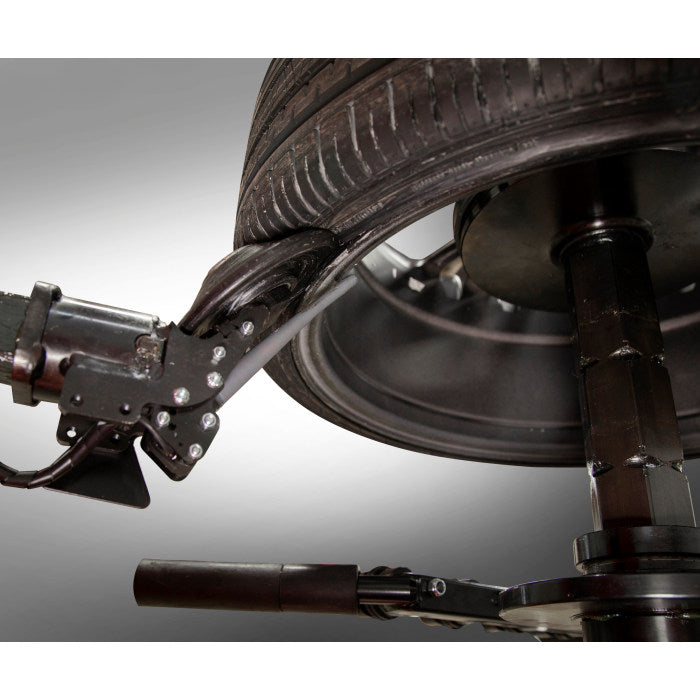

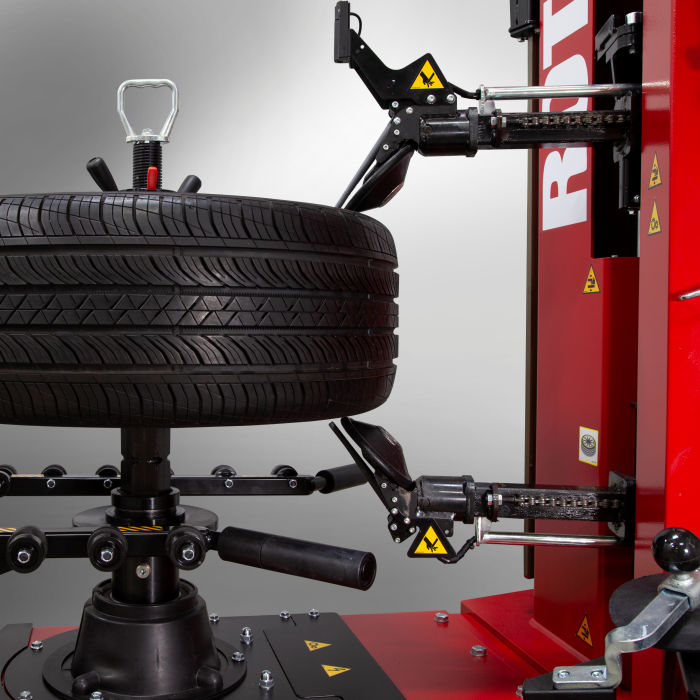

• Easy Rolling with Dual Bead Rollers
• Mechanical Position Sensors Automatically Indent Tire Beads

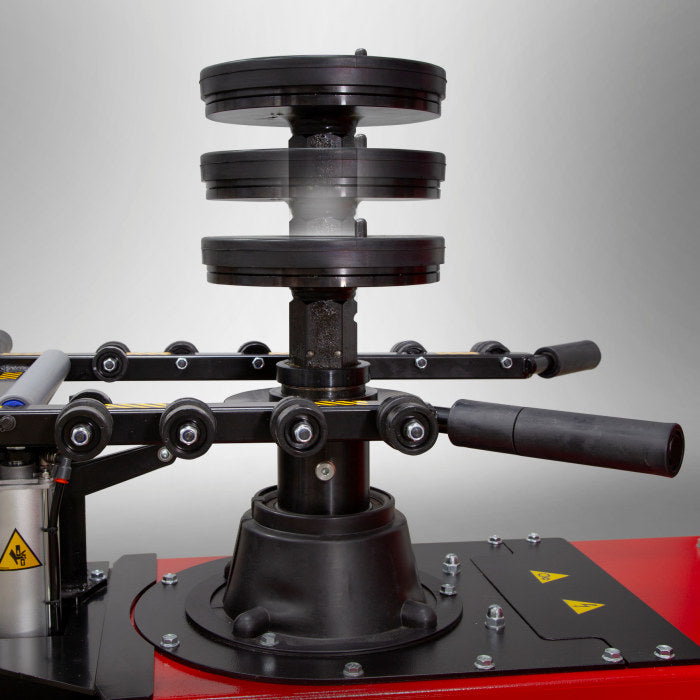

• Three Position Center Locking Post

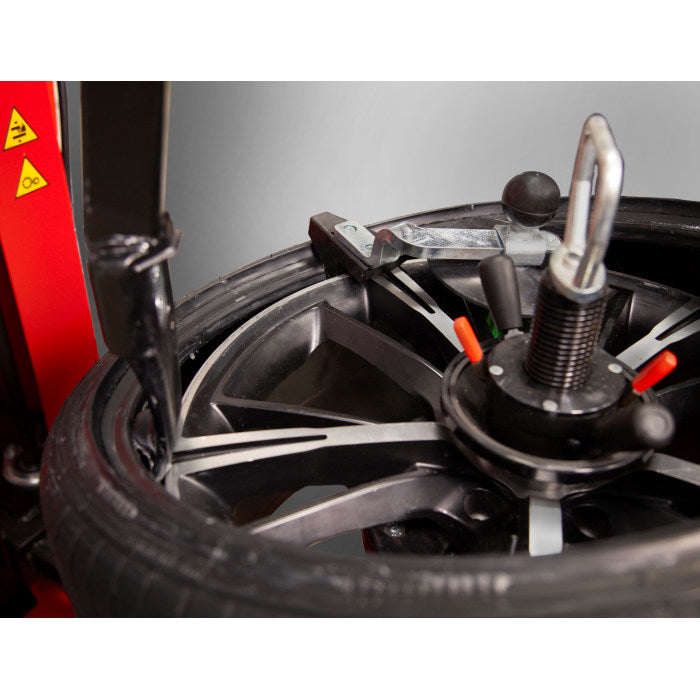

• Power Assisted Top Bead Press Arm For Large And Specialty Tires

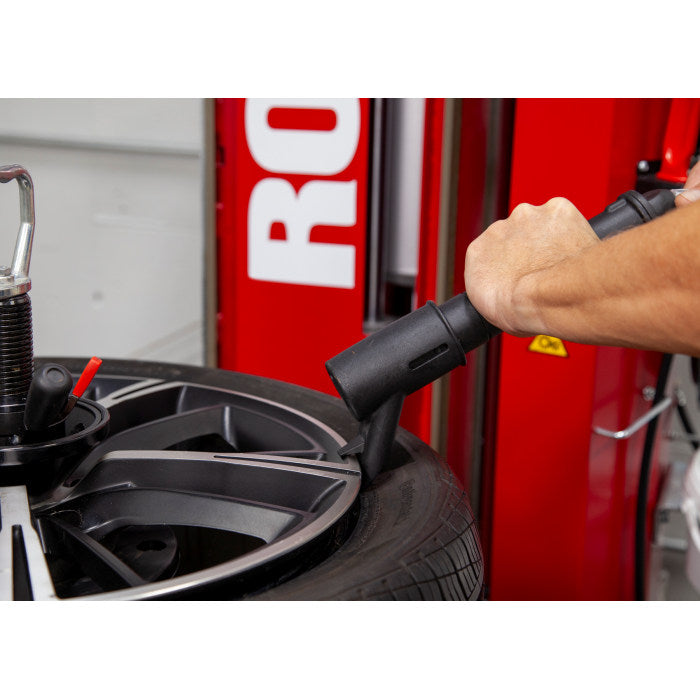

• Patented Top Bead Blast Inflation System

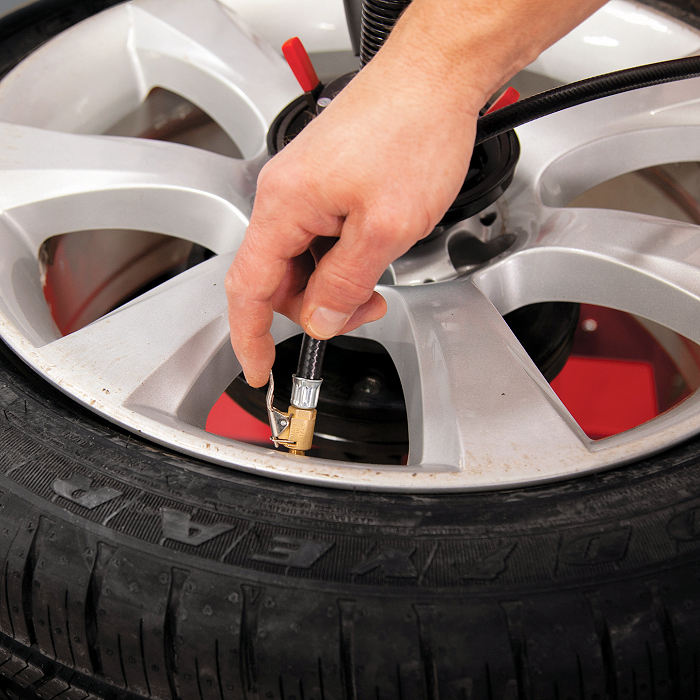

• Pedal Operated Tire Inflation With Gauge
• Ready To Go Right Out Of the Box

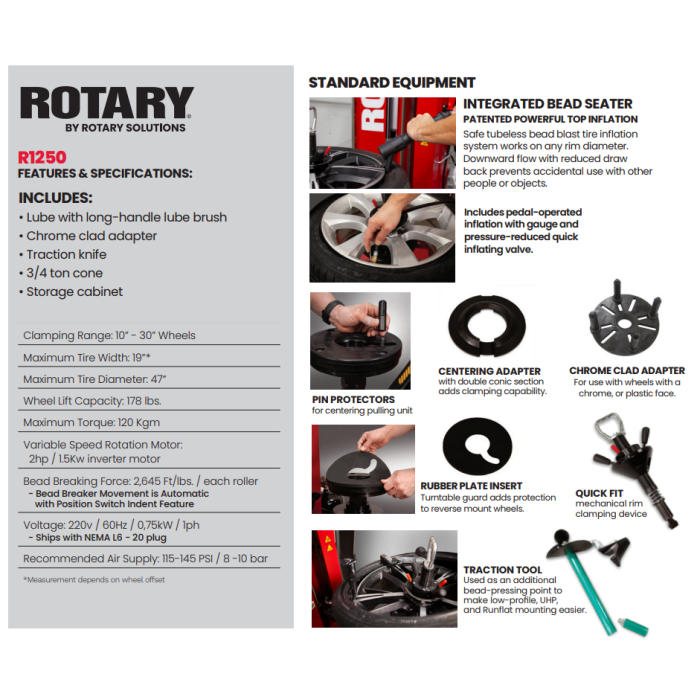

Standard Accessories

• Lube With Long-Handle Lube Brush
• Chrome Clad Adapter
• Traction Knife
• 3/4 Ton Cone
• Storage Cabinet
• Pin Protectors
• Centering Adapter
• Rubber Plate Insert
• Quick Fit Clamp
• Traction Tool

Optional Accessories

• VSG1000A158 Universal Flange Adapter
• VSG1000A86 Mirror for Leverless Changers
• VSG1000A152 Light Truck Adapter
• VSG1000A102 110mm Long 5 Stud Kit For Reverse Rims

Specifications

• Clamping Range: 10"-30"
• Maximum Tire Width: 15"*
• Maximum Tire Diameter: 47"
• Wheel Lift Capacity: 178 lbs.
• Maximum Torque: 120 Kgm
• Variable Speed Rotation Motor: 2hp (1.5Kw) Inverter Motor
• Bead Breaking Force: 2,645 ft/lbs Each Roller
• Voltage: 220v 60Hz 1 Ph 0.75kW
• Recommended Air Supply: 115-145 PSI (8-10 bar)
• Warranty: (3) Years Functional, (1) Year Labor

Bead Breaker Movement is Automatic with Position Switch Indent Feature
Ships with NEMA L6 - 20 Plug
*Measurement depends on wheel offset

Rotary Wheel Service Warranty Statement
All Rotary Wheel Service serialized products are covered under warranty for a period of three years to the original owner. Important: The warranty period begins once the product is invoiced to an authorized Distributor/ Purchaser/ Account. This date can be adjusted by submitting to VSG Customer Service the Warranty Activation Form indicating either the installation date or proof of retail purchase date. This warranty covers any failure of the serialized product under normal use and service, caused by a defect in VSG material or factory workmanship ("Warrantable Failure"). VSG shall pay for reasonable costs of transportation and labor for replacement of warrantable parts only during the first 12 months of the warranty period.​

Accessories are warranted to the original owner for a period of one year from the retail invoice date. If a retail invoice cannot be produced, the date of the original VSG invoice shall initiate the one-year warranty period. ​

VSG warrants against defects in material and factory workmanship only. VSG does not cover wear or wear out of covered parts due to normal wear and tear.​

VSG, at its option, will repair or replace any part that is found to have failed due to a Warrantable Failure. VSG, at its discretion, may require the part returned to VSG for inspection to determine warrantability.​

This warranty does not cover normal maintenance or adjustments, including routine calibrations, remedies for routine maintenance; damage or malfunction caused by, but not limited to improper handling, installation, abuse, misuse, negligence, carelessness of operation; or force majeure events. In addition, this warranty does not cover equipment on which unauthorized repairs or alterations have been attempted and/or made to the product.​

This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall VSG be liable for any special, consequential, or incidental damages of any kind including but not limited to damages for breach of or delay in performance of the warranty.​

This warranty shall be governed by the laws of the State of Indiana and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson.
