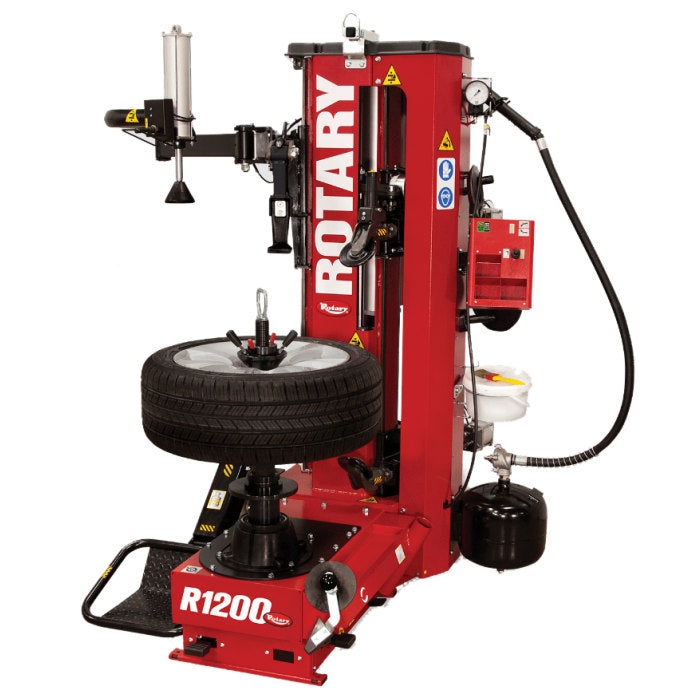

Rotary R1200 Leverless Pro Tire Changer

Name: Rotary R1200 Leverless Pro Tire Changer
Brand: ASEDeals
SKU: R1200
Price: 17386.0 USD
Availability: InStock

In Stock SKU R1200

OUR PRICE: $17,386.00

Regular Price: $18,259.00

$482.94 / mo

INCLUDES FREE SHIPPING*

Short Description

Rotary R1200 Leverless Pro Tire Changer
Premium Center Locking Changer with Variable Speed Control

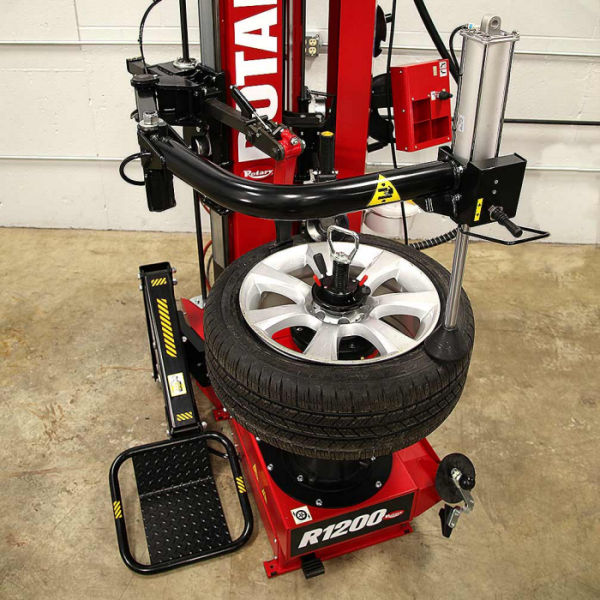

Rotary’s new R1200 Leverless Pro Dual Bead Breaker Tire Changer provides your shop with a tire-changing powerhouse, keeping the most difficult to change wheels safe from damage. This changer has chain synchronized bead breaker arms with power-assisted positioning. The leverless mount/demount tool, upper and lower rollers easily index together with the same single control.

The R1200 by Rotary has a professional leverless design that helps keep wheels safe while introducing your shop to productivity-enhancing features like synchronized bead breaker arms, power-assisted positioning, auto-indentation, and more.

Description

Rotary R1200 Leverless Pro Tire Changer
Premium Center Locking Changer with Variable Speed Control

Rotary’s new R1200 Leverless Pro Dual Bead Breaker Tire Changer provides your shop with a tire-changing powerhouse, keeping the most difficult to change wheels safe from damage. This changer has chain synchronized bead breaker arms with power-assisted positioning. The leverless mount/demount tool, upper and lower rollers easily index together with the same single control.

AUTOMATIC LEVERLESS TIRE CHANGER WITH
SYNCHRONIZED DUAL BEAD BREAKING ROLLERS

HUB MOUNTED, DUAL ROLLER SYSTEM REQUIRES NO TOOLS
There’s no metal-to-metal contact with patented leverless mount / demount tool. The three-position center post clamping system increases productivity and reduces the risk of wheel damage.

EASY TO USE CONTROLS
The easy roller bead breaker system and mount / demount tool simultaneously position in one simple movement. Demount and mount the most challenging tire and wheel combinations on the market - normal and reverse rims, run flat, and SST.

FEATURES 0-15 RPM VARIABLE SPEED TURNTABLE MOTOR
The motor is equipped with an exclusive inverter that regulates rotational speed offering the operator customizable speed control. Rotational speed slows as the stress on the bead increases, avoiding any damage to the tire.

Rotary quality wheel and tire equipment...
changing tires has never been this easy, safe and affordable.

STANDARD with THE R1200

Integrated wheel lift
Quick-lock rim clamping device with cone guard
Power-assisted bead mount / demount tool
Rotating pneumatic top bead pressing tool
Inflation station
Storage cabinet
Tire paste lubricant and brush

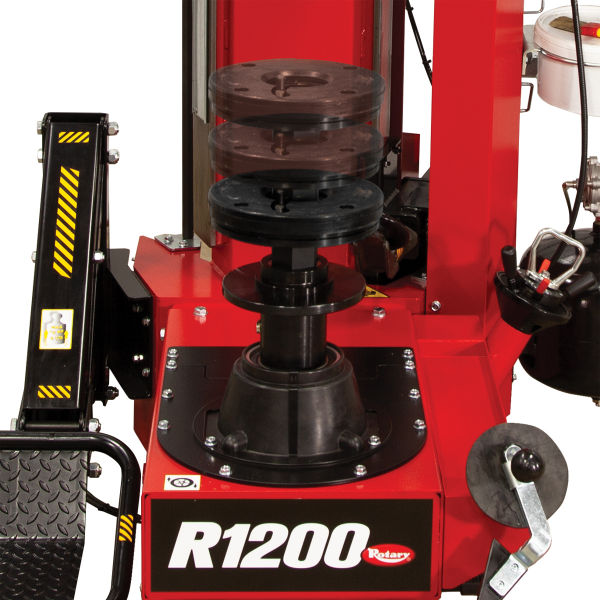

3-POSITION PEDESTAL WITH SELF-LOCKING PLATE
Service both standard and reverse rims with this adjustable center post. Handle wheels with a 10" to 30" rim diameter.

EXTRA-GRIP CLAMPING
The floating plate features a self-locking central pin with cone. Gripping pressure is automatically increased during rotation.

RUBBER PLATE INSERT
Standard turntable guard adds protection to reverse mount wheels during operation.

FOOT PEDAL CONTROLS
Inflation, rotation and wheel lift operations are controlled by three foot pedals.

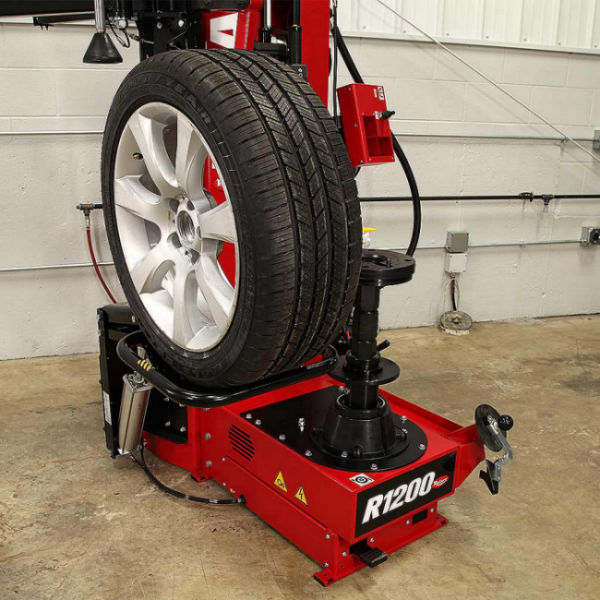

PNEUMATIC WHEEL LIFT
Foot pedal controlled up / down movement.

QUICK FIT RIM CLAMPING
Fast and safe mechanical clamping process with Quick Nut, secures the rim through the hub eliminating damage.

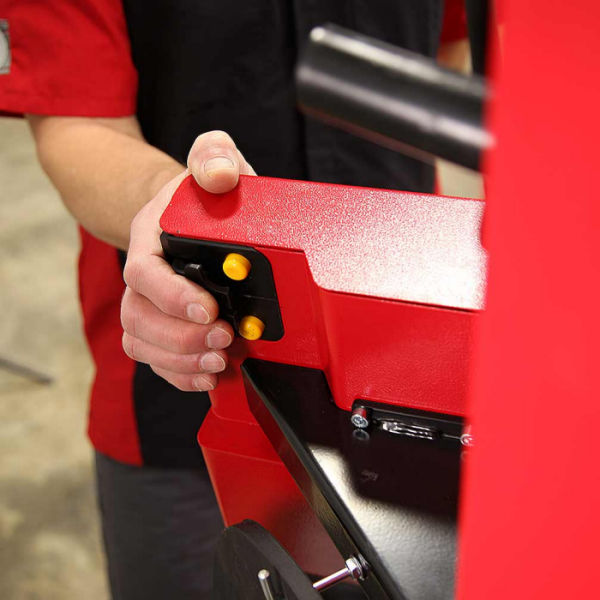

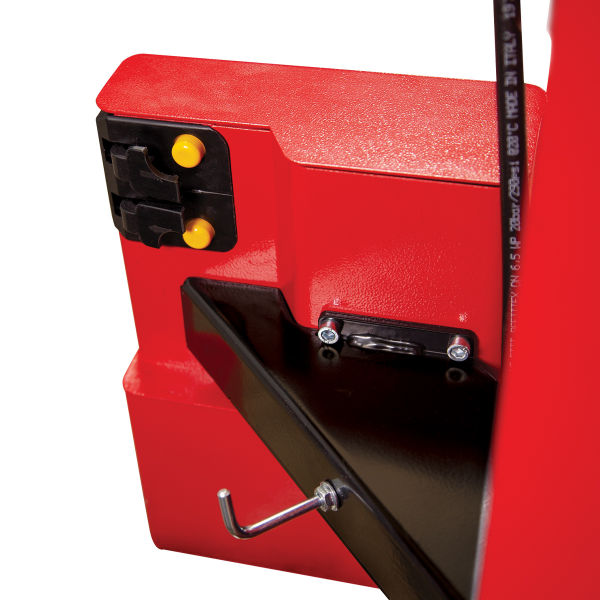

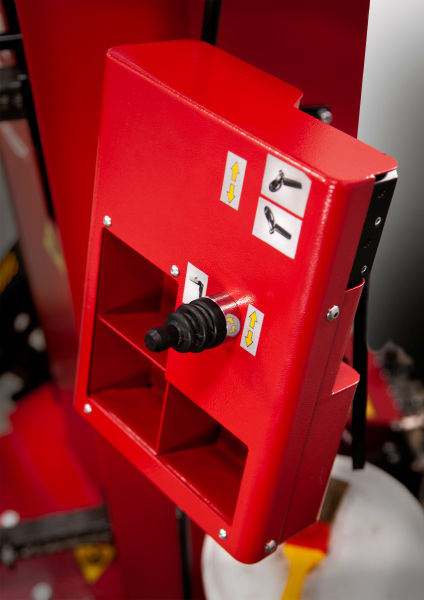

EASY CONTROLS
Easy to use two-button controls are operated from a single location. Up / Down positioning of dual rollers. Up / Down toggle of tool head height.

AUTO INDENT FEATURE
Both rollers have an indent button and AUTOMATICALY release when the direction is changed preventing accidental wheel damage.

COMPLETELY LEVERLESS EASY ROLLER OPERATION
Bead breaker rollers and mount / demount tool are simultaneously positioned in one simple movement.

EASILY POSITION DUAL BEAD-BREAKING ROLLERS
Accurate positioning and operation of both rollers and the mount/demount tool. All driven by robust chain system and not a cable.

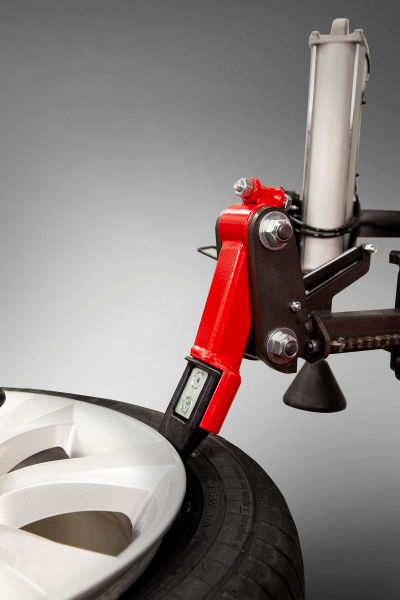

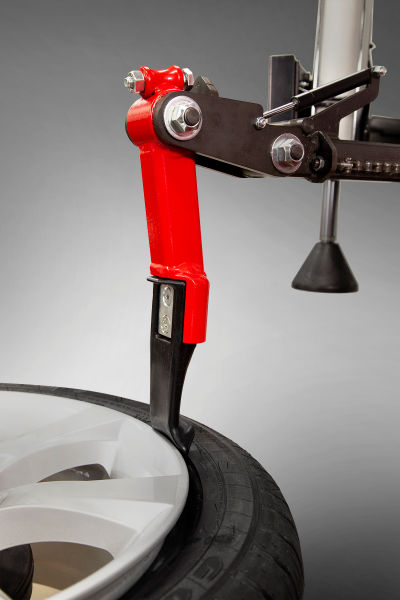

TOOL HEAD TIRE DEMOUNTING
The protective polymer tool head enters between bead and rim and progressively pulls the bead into position for demounting. Eliminate stress and damage to the tire and rim with safe and fast service.

TIRE MOUNTING HANDLE THE MOST CHALLENGING COMBINATIONS
Versatile easy mounting with plastic tool, dual rollers top bead helper arm and standard bead pusher. Change difficult light truck combinations, low profiles, runflats, exotic rims and other specialty jobs. Service 17.5" and 19.5" super duty wheels.

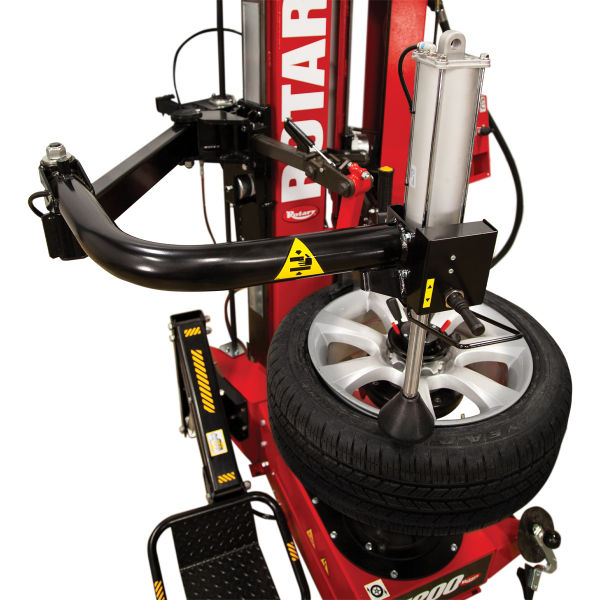

ROTATING TOP BEAD PRESS ARM
Power assisted pneumatic bead pushing depressor designed for both large and specialty tires.

WHEEL AND TIRE MATCH MOUNT CAPABLE
Indexing a tire can be done after tire is mounted. Clamp both rollers to pinch the tire. Lubricate the tire, rotate the wheel to match the indicators on the wheel and tire.

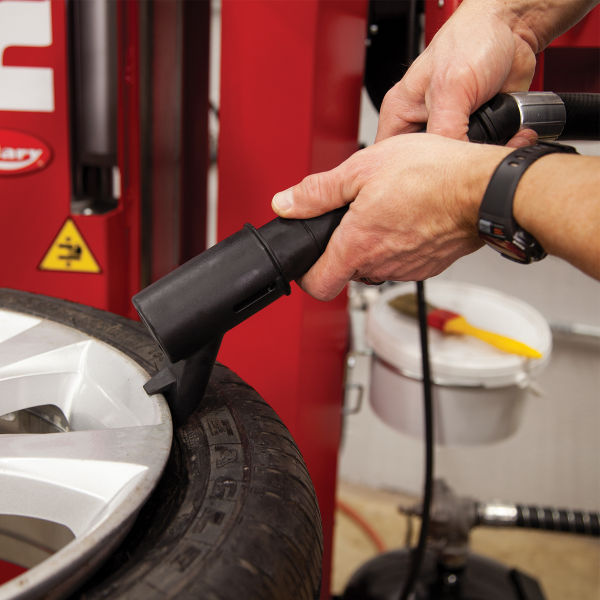

PATENTED POWERFUL TOP INFLATION
Safe tubeless bead blast tire inflation system works on any rim diameter.

Downward inflation flow with reduced draw back.
Designed to prevent accidental use with other people or objects.

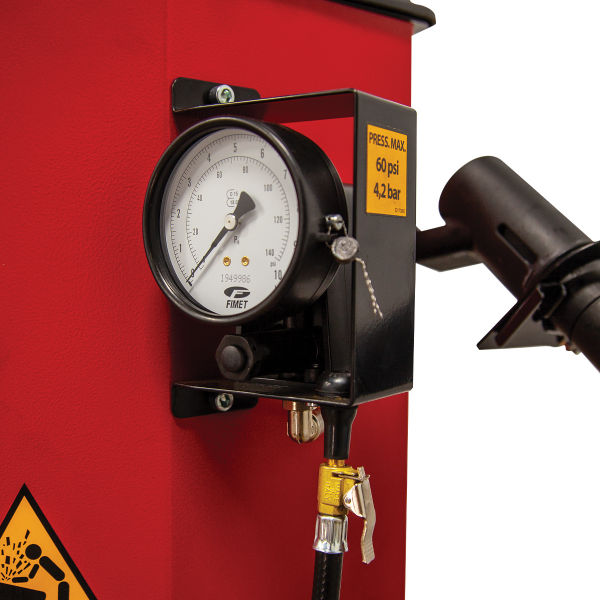

Standard with pedal-operated inflation with gauge and pressure-reduced quick inflating valve.

Features & Specs

Features

Synchronized Leverless Operation
Dual Bead Rollers
Variable Speed Motor
Integrated Wheel Lift
Quick-Lock Tire Clamping
Three-Position Pedestal
Fully Synchronized Dual Bead Rollers
Premium Leverless Mount / Demount Tool
Requires No Tools
Match Mount Indexing
0-15 RPM Variable Speed Turntable Motor
Integrated Pneumatic Wheel Lift
3-Position Adjustable Height Quick-Locking Center Post
Handle Wheels with 10" - 30" Diameter
Center Locking Design
Power-Assisted Bead Press Arm Seats Bead to Rim
Quick-Lock Rim Clamping Device with Guard
Easy to Use 2-Button Controls
Centering Adapter / Double Conic
Rubber Turntable Guard
Pin Protectors for Centering Pulling Unit
Foot Pedal Controls for Inflation, Rotation and Wheel Lift
Blast Inflation Station
Storage Cabinet
Tire Paste Lubricant and Brush

Standard Equipment

Quick Fit Mechanical Rim Clamping Device
Rubber Turntable Guard

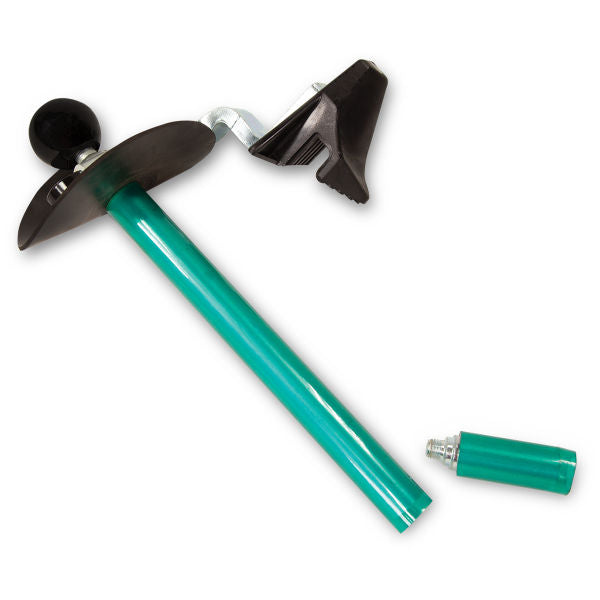

Bead Pusher with Rolling System
Centering Adapter
Pin Protectors
Storage Cabinet
Tire Paste Lubricant and Brush

Specifications

Clamping Range: 10"-30"
Clamping Range Position 1: 10"-26"
Clamping Range Position 1: 12"-28"
Clamping Range Position 1: 14"-30"
Maximum Wheel Width: 19"
Maximum Wheel Diameter: 45"
Maximum Lift Capacity: 178 lbs.
Maximum Torque: 120 Kgm
Bead Breaker Power (Each Arm): 2,645 Ft/L lbs.
Bead Breaker Movement: Automatic / Manual Indent
Rotation Motor: 2Hp / 1,5 Kw invemotor 1Hp / +0,75 Kw motor
Recommended Air Supply: 115-145 PSI / 8-10 bar
Power Supply: 220v / 1Ø / 60 Hz
Weight: 1,100 lbs.
Machine Warranty: (3) Years Functional, (1) Year Labor

Rotary Wheel Service Warranty Statement
All Rotary Wheel Service serialized products are covered under warranty for a period of three years to the original owner. Important: The warranty period begins once the product is invoiced to an authorized Distributor/ Purchaser/ Account. This date can be adjusted by submitting to VSG Customer Service the Warranty Activation Form indicating either the installation date or proof of retail purchase date. This warranty covers any failure of the serialized product under normal use and service, caused by a defect in VSG material or factory workmanship ("Warrantable Failure"). VSG shall pay for reasonable costs of transportation and labor for replacement of warrantable parts only during the first 12 months of the warranty period.

Accessories are warranted to the original owner for a period of one year from the retail invoice date. If a retail invoice cannot be produced, the date of the original VSG invoice shall initiate the one-year warranty period.

VSG warrants against defects in material and factory workmanship only. VSG does not cover wear or wear out of covered parts due to normal wear and tear.

VSG, at its option, will repair or replace any part that is found to have failed due to a Warrantable Failure. VSG, at its discretion, may require the part returned to VSG for inspection to determine warrantability.

This warranty does not cover normal maintenance or adjustments, including routine calibrations, remedies for routine maintenance; damage or malfunction caused by, but not limited to improper handling, installation, abuse, misuse, negligence, carelessness of operation; or force majeure events. In addition, this warranty does not cover equipment on which unauthorized repairs or alterations have been attempted and/or made to the product.

This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall VSG be liable for any special, consequential, or incidental damages of any kind including but not limited to damages for breach of or delay in performance of the warranty.

This warranty shall be governed by the laws of the State of Indiana and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson.
