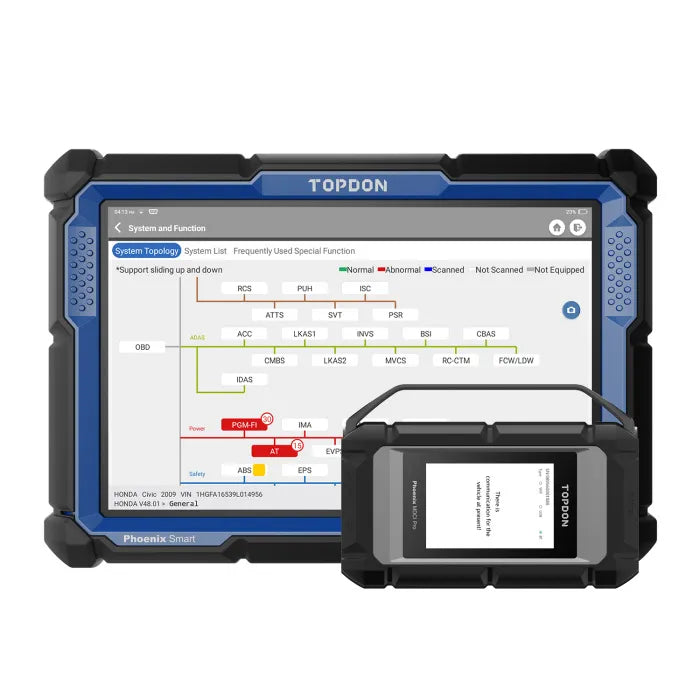

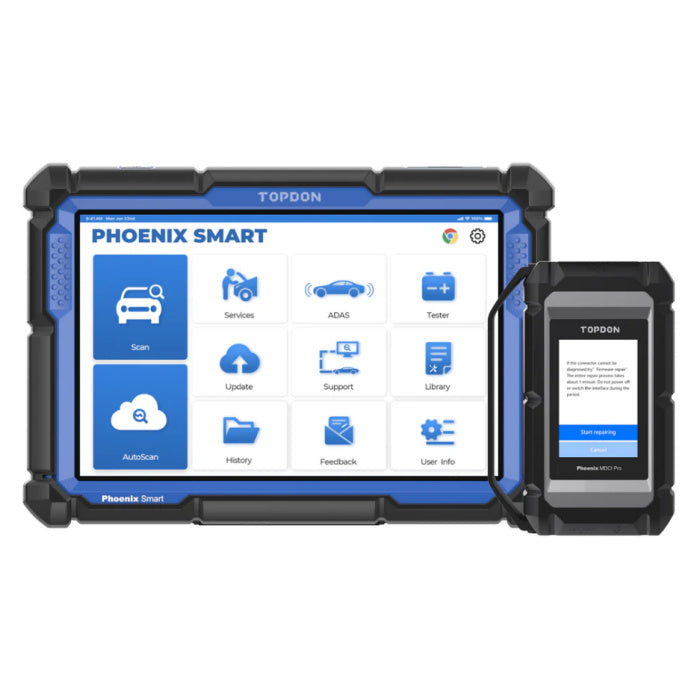

TOPDON Phoenix Smart Integrated Diagnostic Tablet

Features & Specs

Features

• MDCI Pro equipped with J2534, DoIP, CanFD, Mega-Can, D-PDU, and RP1210 Protocols
• Access to Advanced Functions
• Cloud-based Programming
• Online Coding
• Supports ADAS Calibration and Battery Testing
• Full-System Diagnostic for Over 200 Models

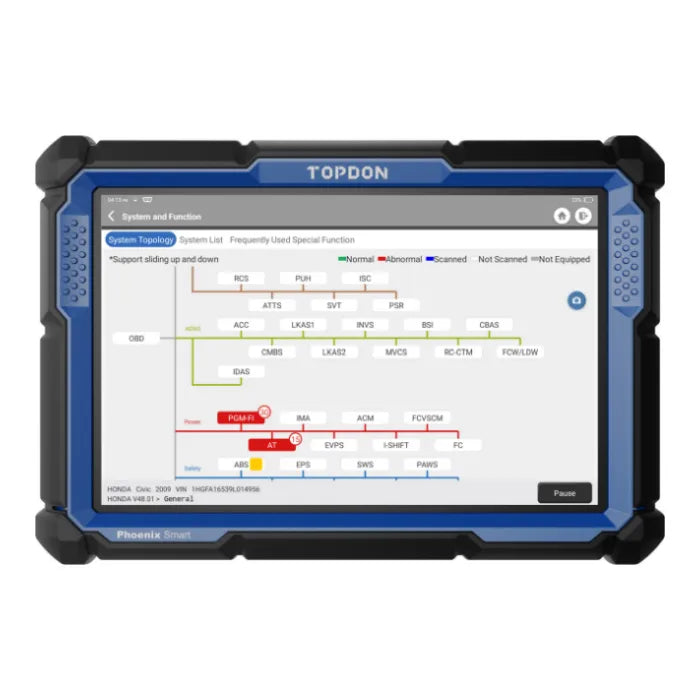

• Topology Mapping for A Clear Picture of All Systems
• FCA Secure Gateway Access to Newly Released Cars

What's in the Box

• Phoenix Smart
• Phoenix MDCI Pro (VCI Dongle)
• OBDI Adapter BOX Transfer Line
• OBDII Extension Cable
• Cigarette Lighter Cable
• Type A to B Cable
• Type-C to USB Cable
• Battery Clamps/Cable Set
• Power Adapter
• (4) Fuse (AC250V/5A, φ5x20mm)
• (2) Fuse (AC250V/5A, φ6x30mm)
• User Manual
• Password Envelope
• Non-16pin Adaptor Cable Kit
• B-20 (BMW)
• BZ-38 (BENZ)
• CR-6 (CHRYSLER)
• FT-3 (FIAT)
• G/V-12 (GM/VAG)
• HA-3 (HONDA)
• M/H-12+16 (MITUBISHI/HYUNDAI)
• NN-14+16 (NISSAN)
• TA-17 (TOYOTA)
• TA-22 (TOYOTA)

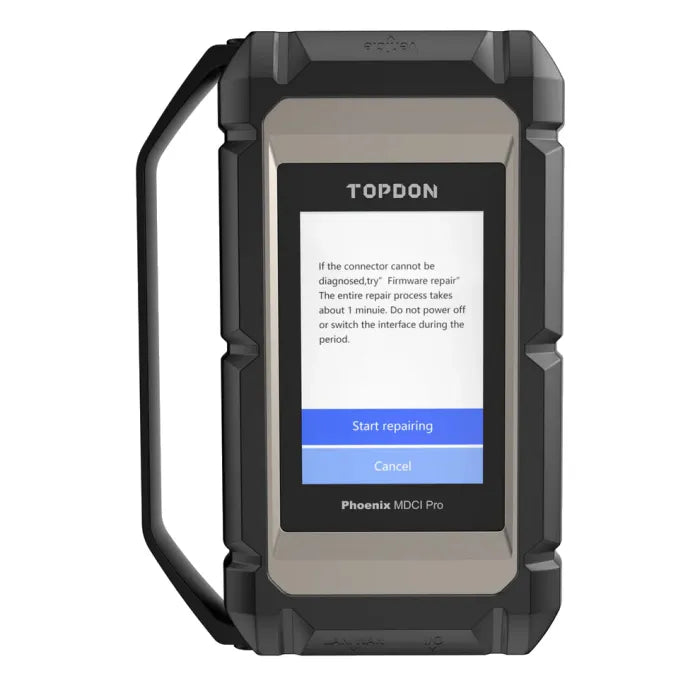

Phoenix MDCI PRO Specifications

• Display: TFT, 3.97 inches, 320 x 480 pixels
• CPU: Cortex-A7 + Cortex-M7, Dual Processor
• Operating System: Linux
• RAM: 256M
• ROM: 8G
• Wi-Fi: 2.4GHz/5GHz, Dual Band
• Operating Voltage: 9~36 V
• Working Temperature: 0℃~50℃ (32℉~122℉)
• Dimensions: 196 x 135 x 42.8 mm (7.72 x 5.31 x 1.69 inches)
• New Protocols Supported: J2534, CAN FD, DoIP, D-PDU, RP1210

Phoenix Smart Specifications

• Display: LCD 10.1 inches touchscreen, 1280 x 800
• CPU: 4-Core Processor, 2.0 GHz, Android 10.0
• RAM: 4G
• ROM: 128G
• Battery: 12600 mAh / 3.8V
• Operating Voltage: 9~18V
• Storage Temperature: -20℃ to 60℃ (-4℉ to 140℉)
• Working Temperature: 0℃ to 50℃ (32℉ to 122℉)
• Dimensions: 278 x 191 x 48mm (10.94 x 7.52 x 1.89 inches)
• Package Size: 468 x 320 x 143mm (18.43 x 12.60 x 5.63 inches)
• Net Weight: 1.55kg (3.42 lb)
• Multilingual Support: English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Finnish
• Software Upgrades: (2) Years Free
• Warranty: (2) Years
