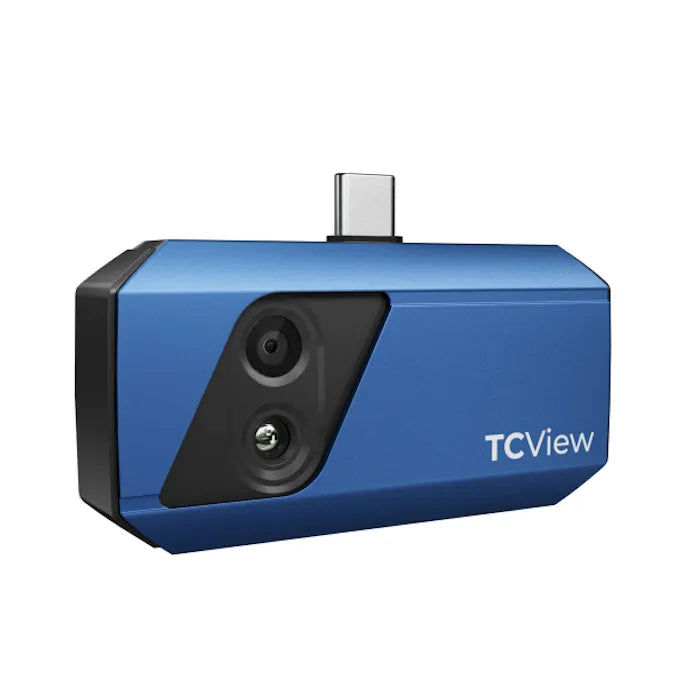

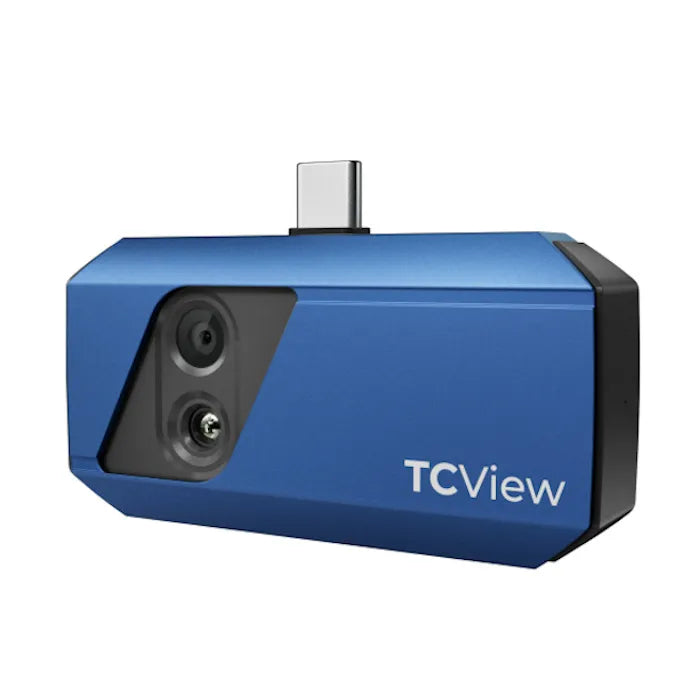

TOPDON TCView Plus Dual Lens Infrared Thermal Camera

Features & Specs

Features

• Dual Lens To Unveil The Unseen
• Enhanced Image Quality
• Extensive & Accurate Temperature Measurement
• Portable & Durable
• Various Applications
• More Advanced Features with Thermal Imaging Software

What's in the Box

• TC001 Plus Thermal Imaging Camera
• 50 cm Extension Cable
• Carrying Bag
• Cleaning Cloth
• User Manual

Specifications

• Operating System: Android/Windows Devices
• Operating Voltage: 5V
• Calibration Temperature Measurement Distance: 0.2m~5m
• Identification Distance: 0.1~50m
• Recognition Distance: 50~80m
• Detection Distance: 80~320m
• Measurement Accuracy: ±2°C or ±2%
• Infrared Light Resolution: 256x192
• Focal Range: 3.2mm
• FOV: 56°X42°
• Spectral Range: 8 - 14μm
• NETD: <40mK
• Temperature Resolution: 0.1℃
• Frame Rate: 25Hz
• Measurement Range: -20 to 550 °C (-4 to 1022℉)
• Professional Function: Mechanical & Electrical
• Image Modes: Thermal Imaging, Dual Fusion
• Measuring Modes: Dot, Line, Plane
• Video Recording: Yes
• Video Transfer via USB: Yes
• WiFi: No
• PC-Based Analysis Software: Yes
• Visible Light Camera Lens: 1 Megapixel
• Pseudo Color Bar: 10 Colors (Iron Red, White Hot, Black Hot, Arctic, Rainbow, Red Hot, Medical, Jungle, Golden Red, Shimmer, Aureate) (Customized Mode)
• High/Low Temperature Alarms: High/Low Temperature Warning
• Automatic Power-off Time: No
• Temperature Units: Celsius, Fahrenheit
• Operating Temperature: -10°C to +50°C
• Tripod Screw Hole: No
• Drop, Impact, and Vibration: 2.0 m
• IP Rating: NA
• Certifications: UN38.3/DGM/CE/FCC/RoHS/UKCA
• Gross Weight: 220 g
• Device Weight: 30 g
• Package Size: 140 x 102 x 46 mm
• Languages Supported: 13 languages (English, Chinese, Japanese, French, Spanish, Italian, Portuguese, German, Polish, Russian, Dutch, Czech, Ukrainian)
• Updates: Downloading from the official website, or downloading available updates from the app
• Warranty: (1) Year
