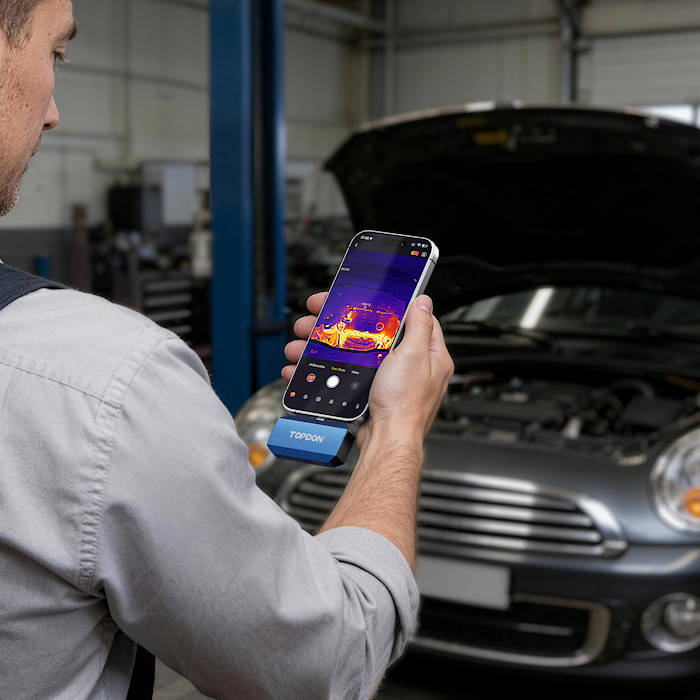

TOPDON TC001MAX Dual Lens Thermal Camera

Features & Specs

Features

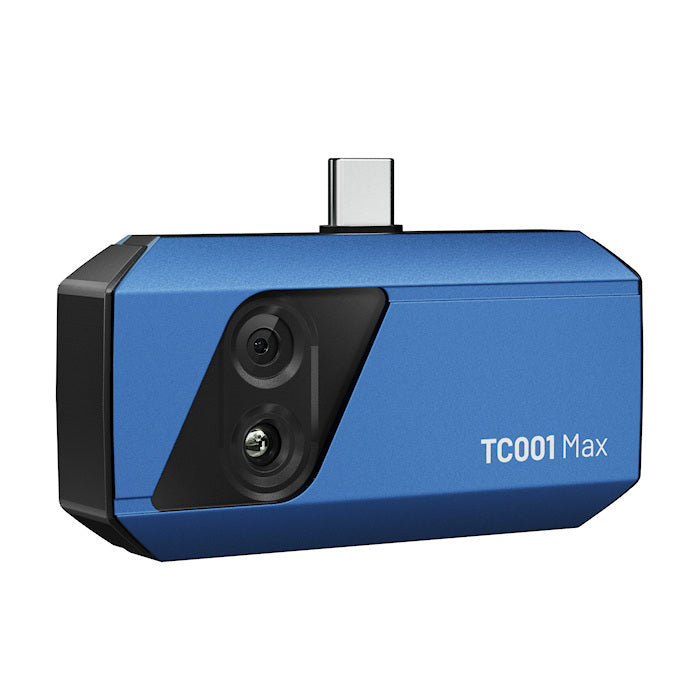

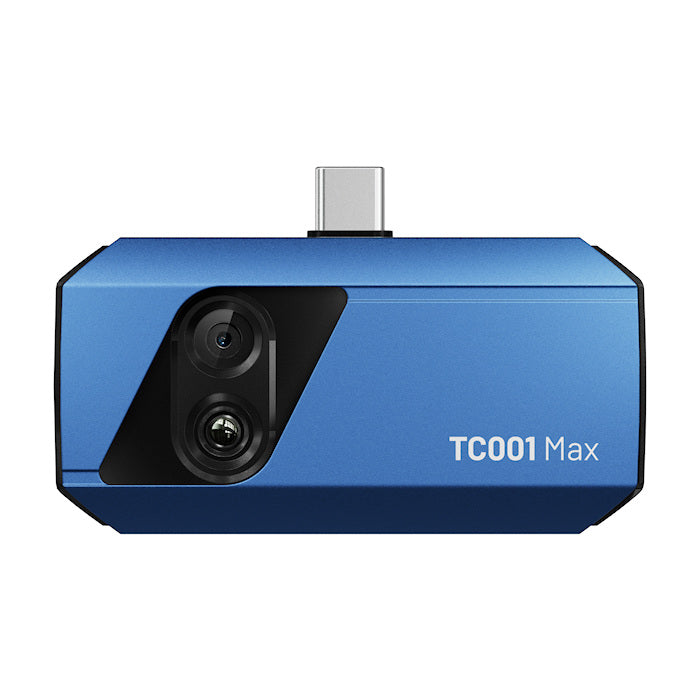

• Dual-Lens Thermal Camera
• iOS, Android, and Windows Compatibility

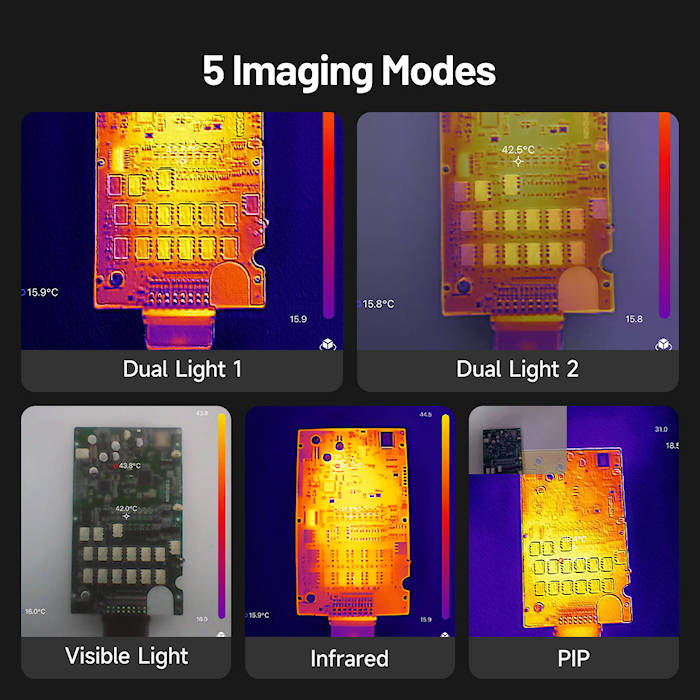

• Dual-Lens Visible Light and Thermal Fusion
• TISR-Enhanced High-Res Images
• Smooth, High-Sensitivity Imaging
• Wide Temperature Range with Reliable Accuracy
• Ultra-Lightweight, Portable, and Power-Efficient
• Latest App Support with TopInfrared and TopView

What's Included

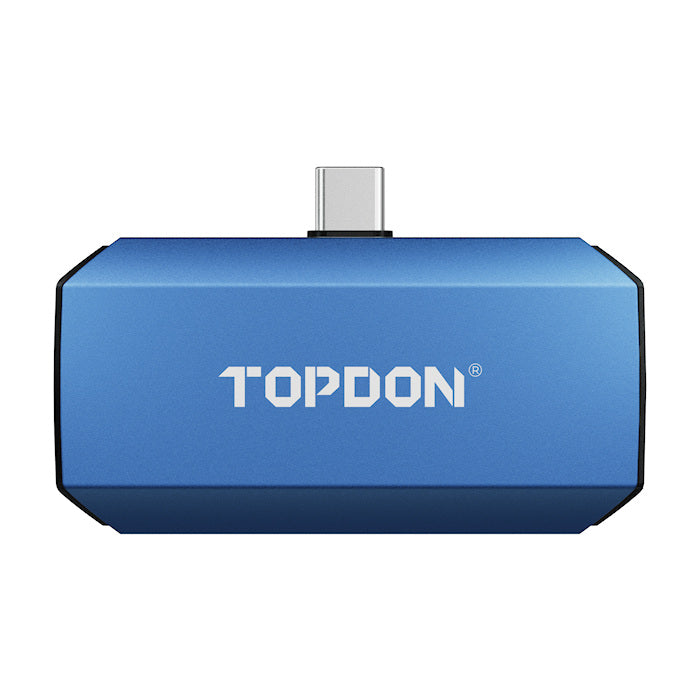

• TC001 Max
• USB-A to USB-C Cable
• Adapters: USB-C to USB-C & USB-C to Lightning
• Microfiber Cleaning Cloth
• Carrying Bag
• User Manual

Specifications

• System Compatibility: iOS, Android, Windows

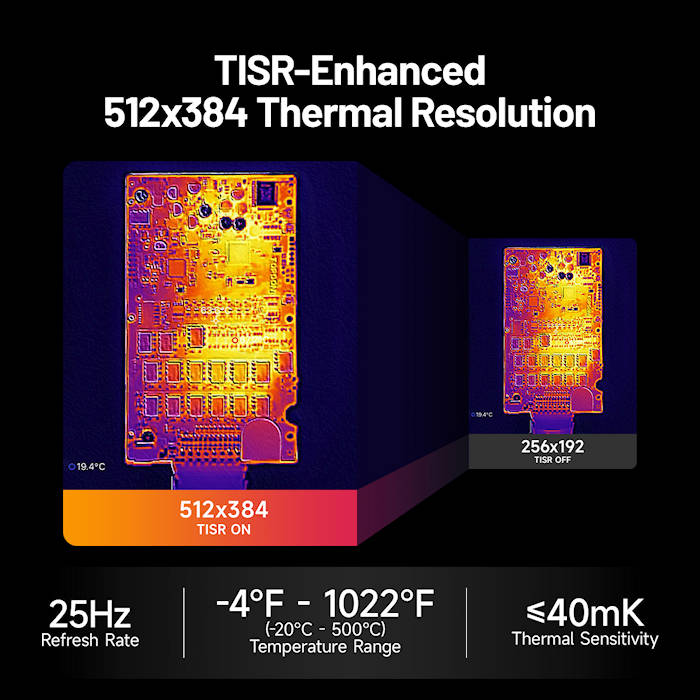

• Infrared Resolution: 256 × 192 (Enhanced to 512 × 384 with TISR)
• Visible-Light Camera: 1.5MP
• Refresh Rate: 25Hz
• Thermal Sensitivity (NETD): ≤40mK
• Temperature Range: -4°F to 1,022°F (-20°C to 550°C)
• Accuracy: ±2°C or ±2%
• Lens: 3.2mm fixed-focus
• Weight: 33g
• Retail Package Dimensions: 5.51" L x 3.94" W x 1.97" H
• Retail Package Weight: 0.49 lbs.
• Warranty: (1) Year Limited
