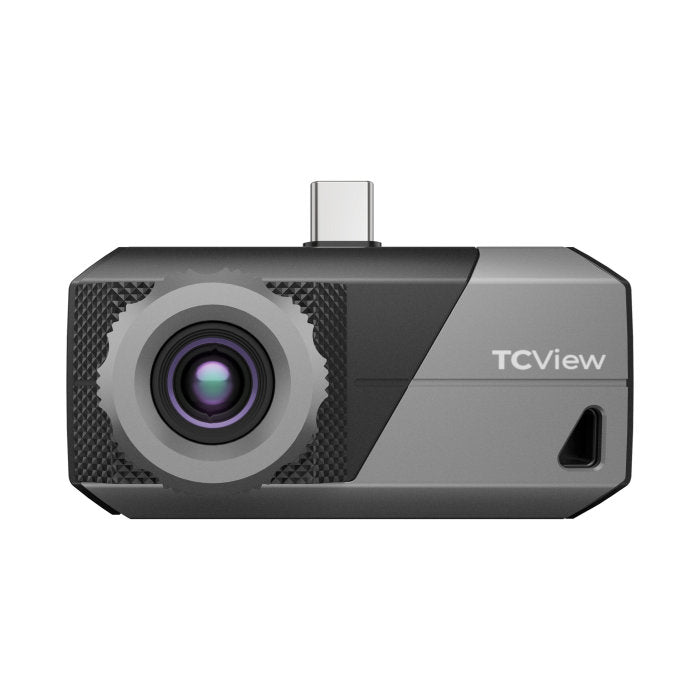

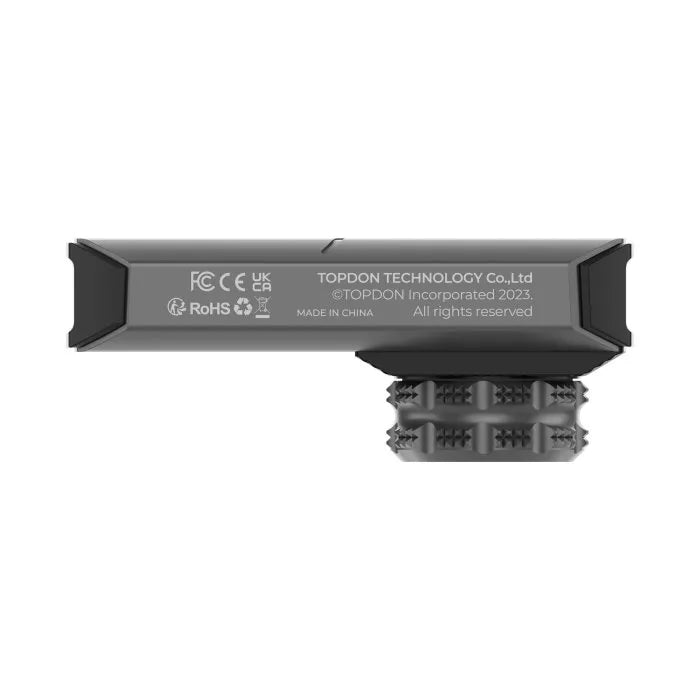

TOPDON TCView Infrared Thermal Camera with Adjustable Lens

Features & Specs

Features

• Thermal Imaging Camera for Android Devices 9mm Adjustable Lens
• Superior Image Quality With An IR Resolution Of 256x192
• Where Clarity Takes Center Stage

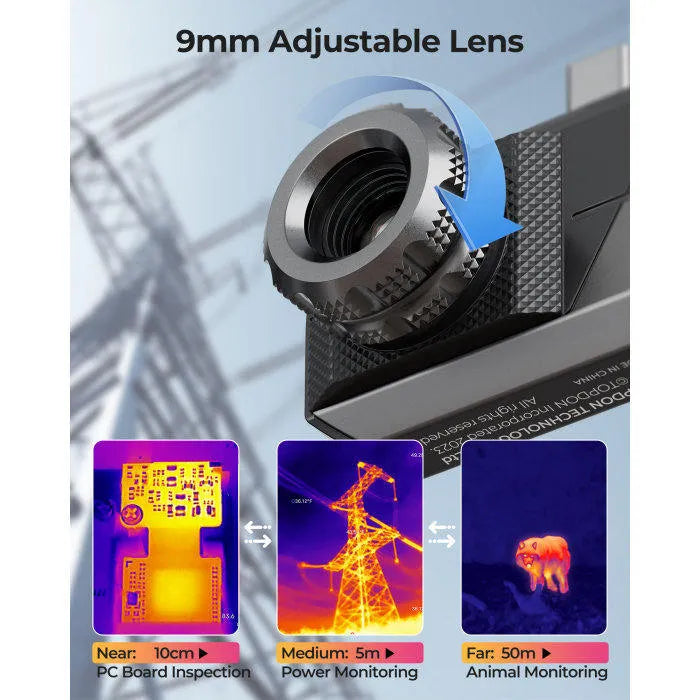

• Adjustable Lenses: Clear Vision From Near To Far
• Precision Pathfinders of Heat and Cold
• Fast Vision, Faster Action
• Swipe To Highlight Temperature Variance
• Boundless Vision, Always Clear
• Dual Light Mode: Combine the visual image and infrared image
• Smart Temperature Alert
• Temperature Real-time Waveform
• Image Secondary Analysis
• 10 Color Palettes
• Works With PC
• Image & Video
• Customized Infrared Reports

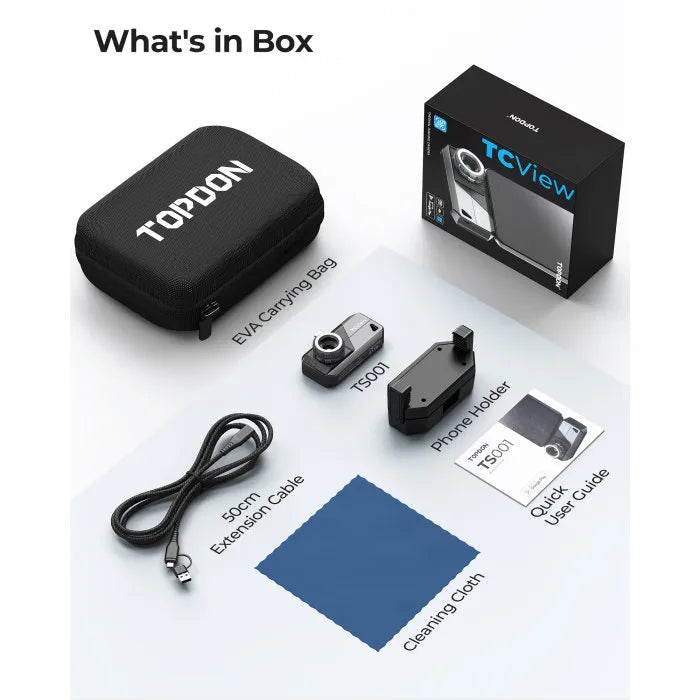

What's in the Box

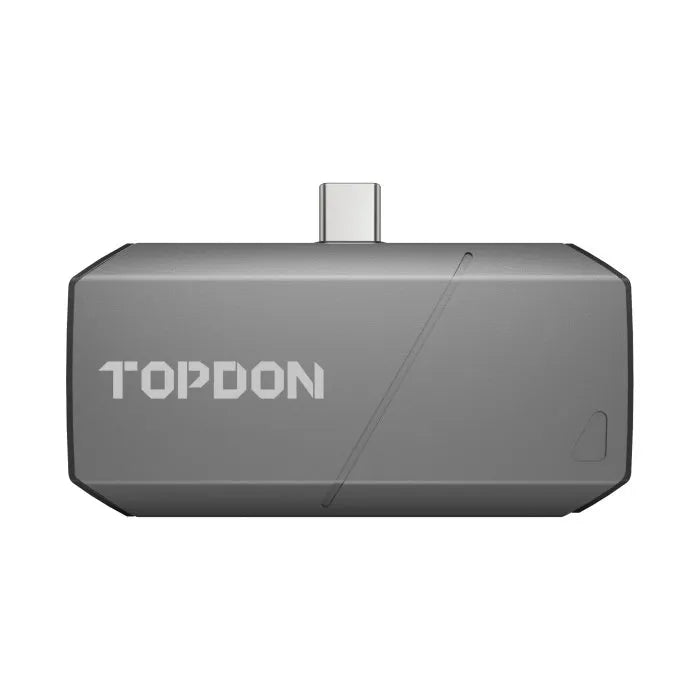

• TS001 Thermal Imaging Camera
• USB Data Cable
• Lens Cap

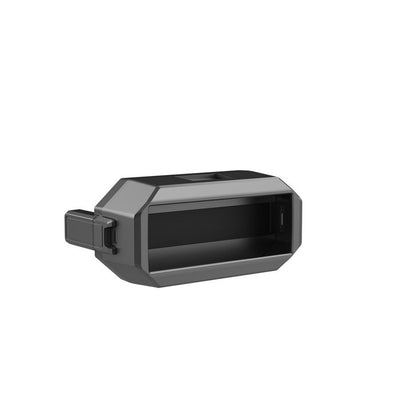

• Thermal Camera Holder
• Cleaning Cloth
• Quick User Guide
• Carrying Case
• Package Box

Specifications

• Spectral Range: 8~14µm
• Object Temperature Range Fahrenheit: -4°F to 302°F, 302°F to 1022°F
• Object Temperature Range Celsius: -20°C to 150°C, 150°C to 550°C
• IR Resolution: 256 x 192
• NETD: <40mK
• Image Frequency: 25 Hz
• Temperature Accuracy: ±3°C or ±3%
• Temperature Resolution: 0.1°C
• Focal Length: 9mm
• Frame Rate: 25Hz
• Field of View: 13° x 10°

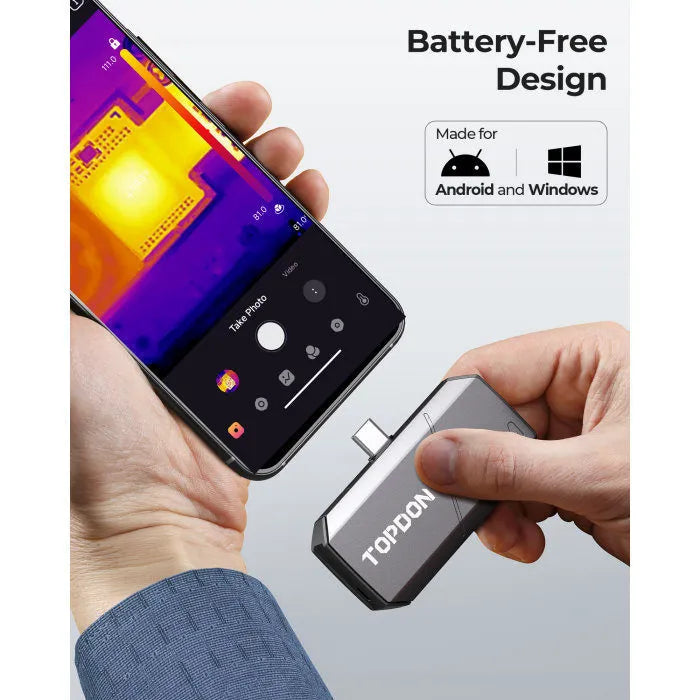

• Operating Systems: Compatible With Android Phones, Android Tablets, & Windows Laptops
• Extension Cable Length: 50cm
• Working Temperature Fahrenheit: 14F°~131F°
• Working Temperature Celsius: -10°C~55°C
• Storage Temperature Fahrenheit: -4°F°~140F°
• Storage Temperature Celsius: -20°C~60°C
• Product Dimensions: 1.1" W x 2.76" L x 1.73" H
• Product Weight: 0.1 lbs.
• Shipping Dimensions: 5.12" W x 5.91" L x 2.76" H
• Shipping Weight: 0.92 lbs.
• Warranty: (1) Year
