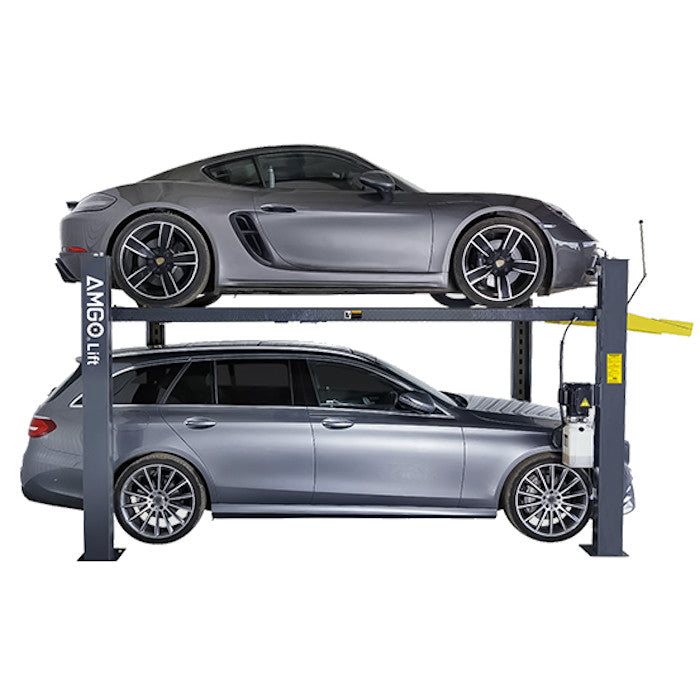

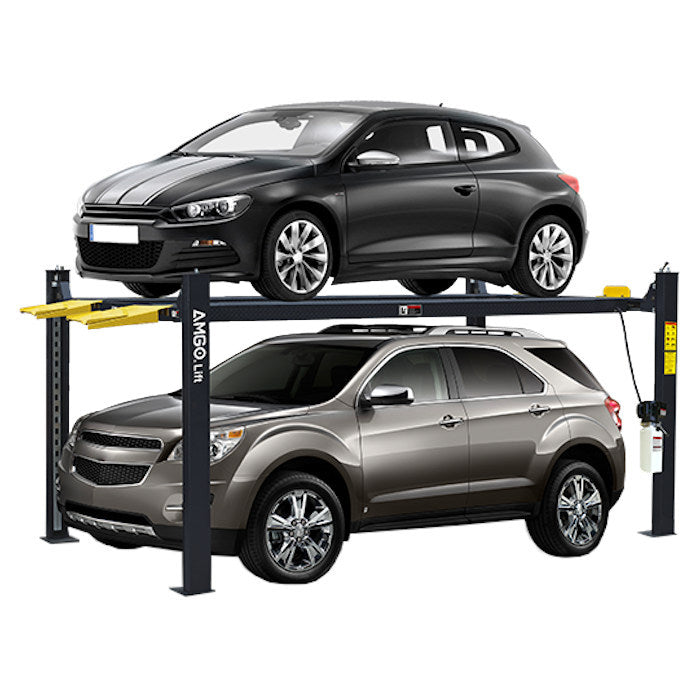

AMGO 408-HP Four Post Parking Lift
In Stock SKU 408-HP
OUR PRICE: $5,460.00
Regular Price: $5,739.00
Short Description
AMGO 408-HP Commercial Grade Four PoståÊ
Parking Lift 8,000 lbs. CapacityåÊ
The AMGO 408-HP is a true space-saving powerhouse. It is the perfect service lift for shops and home car ports with limited floor space with performance maximization in mind. The 408-HP requires no special foundation or complicated installation and is about the size of a typical parking space. These features, and more, make the AMGO 408-HP one of the best commercial or private use lifts in the world. The 408-HP is the perfect choice for commercial shops or residential car ports trying to save space with a capacity of 8,000 lbs. The 408-HP shares almost the same features as the 408-P but adds an additional 14" of high lifting, making it easier to park vehicles with taller dimensions.åÊ
ALL ACCESSORIES ARE SOLD SEPARATELY åÊ-åÊOptional Parts Include:åÊ

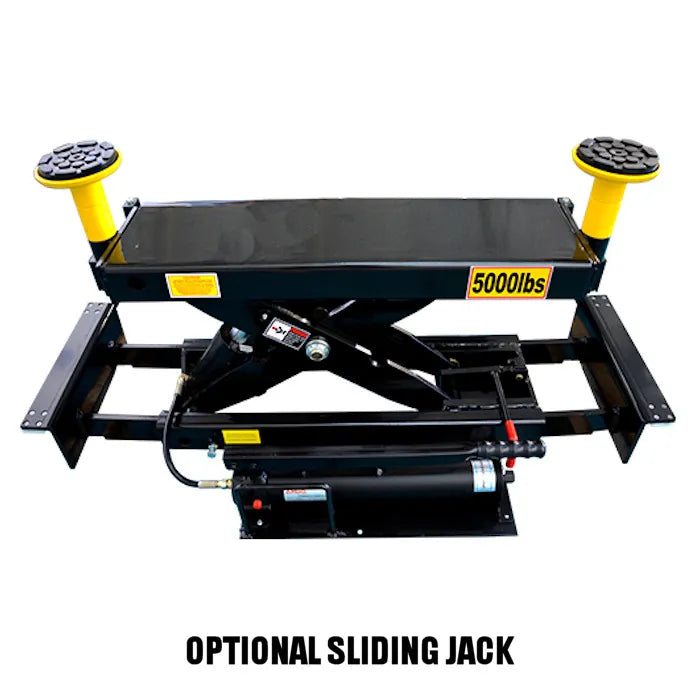

Sliding Jack, Aluminum Alloy Drive In Ramps, Caster Kit, 90å¡ Installation Plate for Power Unit, Jack Tray, and Drip Trays.åÊ
NEW! More Bang For The BuckåÊ
Promotional Combo Bundle Includes:åÊ
(1) 408-HP Lift, (4) Drip Trays, (4) Casters, (1) Jack TrayåÊ
Description
AMGO 408-HP Commercial Grade Four Post
Parking Lift 8,000 lbs. Capacity
The AMGO 408-HP is a true space-saving powerhouse. It is the perfect service lift for shops and home car ports with limited floor space with performance maximization in mind. The 408-HP requires no special foundation or complicated installation and is about the size of a typical parking space. These features, and more, make the AMGO 408-HP one of the best commercial or private use lifts in the world. The 408-HP is the perfect choice for commercial shops or residential car ports trying to save space with a capacity of 8,000 lbs. The 408-HP shares almost the same features as the 408-P but adds an additional 14" of high lifting, making it easier to park vehicles with taller dimensions.
ALL ACCESSORIES ARE SOLD SEPARATELY åÊ-åÊOptional Parts Include:
Sliding Jack, Aluminum Alloy Drive In Ramps, Caster Kit, 90å¡ Installation Plate for Power Unit, Jack Tray, and Drip Trays.
NEW! More Bang For The BuckåÊ
Promotional Combo Bundle Includes:
(1) 408-HP Lift, (4) Drip Trays, (4) Casters, (1) Jack Tray
AMGO Hydraulic Corporation pays special attention to product design, material purchasing, and manufacturing technology. We perform all work in-house which enables us to control costs while providing high-quality products. We hold each process to a high standard to provide you with the best, time-tested, highest-quality products possible. All AMGO products are made to high-quality standards while using high-quality parts, self-lubricating UHMW Polyethylene sliders, bronze bushings, and NOK seals, just to name a few. This commitment to quality makes our products more reliable, with greater longevity, while requiring less service.
Not only does AMGO Hydraulic Corporation aim to continuously innovate and improve the products we offer, but we also seek to provide the best possible service before, during, and after the sale. We provide after sales service to give our customers quick responses through our manufacturing and service center, located in Manning, South Carolina. Whether you are a large service center with locations throughout the globe, or a weekend hobbyist, our goal is of complete world-wide customer satisfaction. If a problem does exist in any way with our products you can expect a prompt and courteous response, with your satisfaction being our end goal.
AMGO Hydraulic Corporation's dedication to quality, innovation, safety, and service is what sets us apart form the competitors. We have one goal in mind, making the best products available with complete customer satisfaction, and we will not rest until this goal is achieved. When you decide to take the next step in safety, performance, and quality turn to the professionals of AMGO Hydraulic Corporation to find and produce the right products for your business.
Features & Specs
Features
- 8,000 lbs. Lifting Capacity
- AMGO ETL Certified Power Unit Comes Standard
- High Quality Cylinder Designed and Made To High Standard

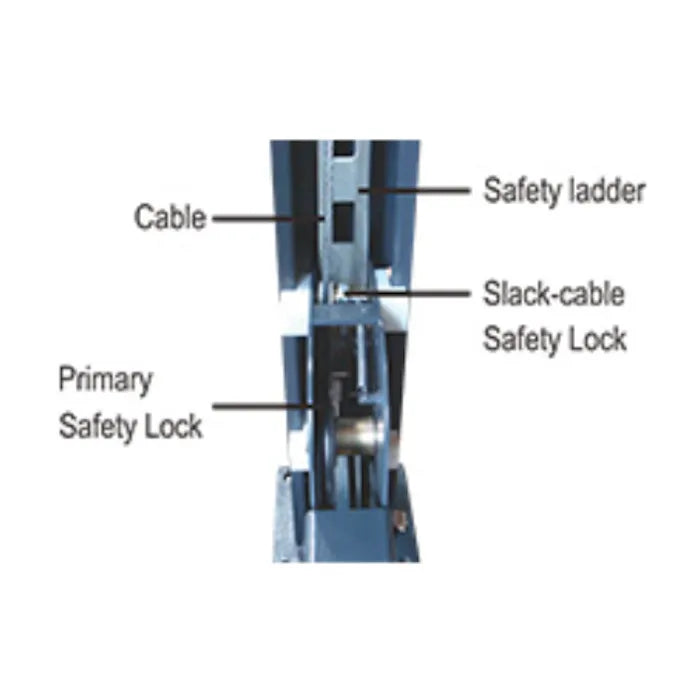

- AMGO's Patented Design Concealed Safety Lock Control Device

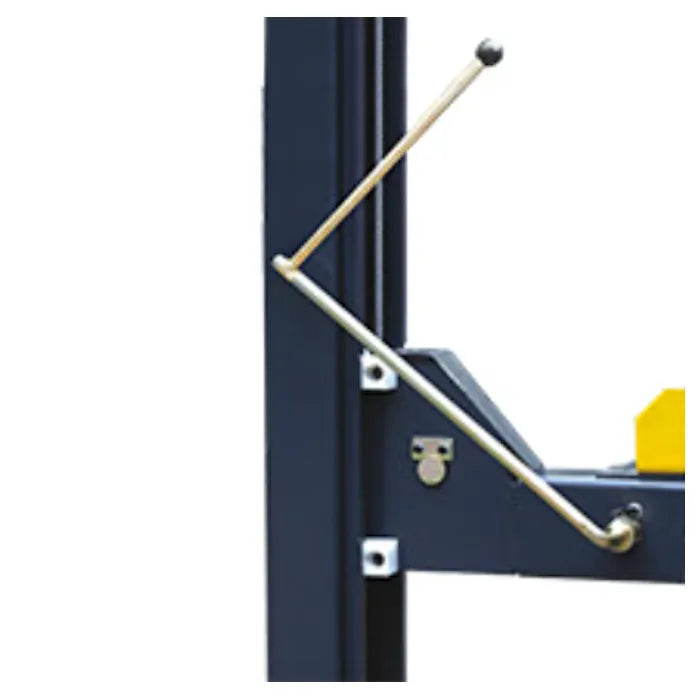

- Manual Single-Point Lock Release
- Aero Standard Cables Included Standard
- Double-S Shaped Columns Are Utilized To Enhance Strength

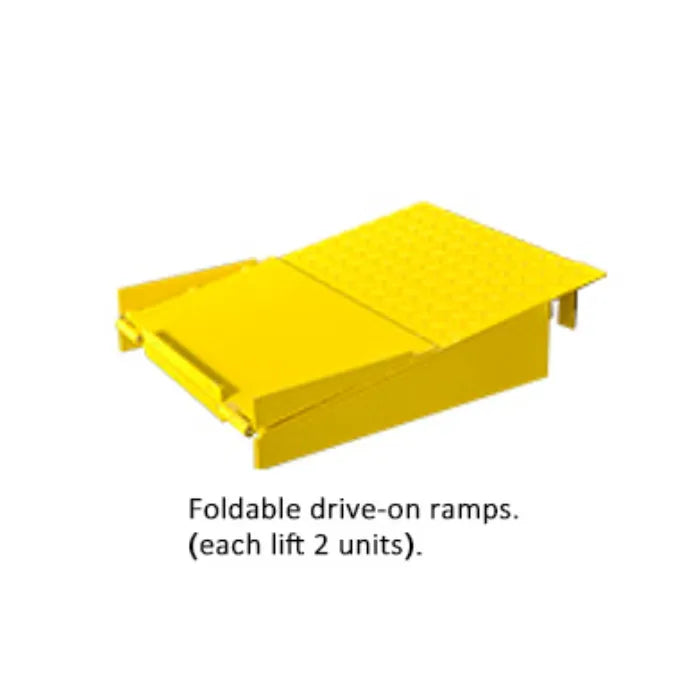

- Non-Slip Platforms Come With Foldable Drive-In Ramps Standard

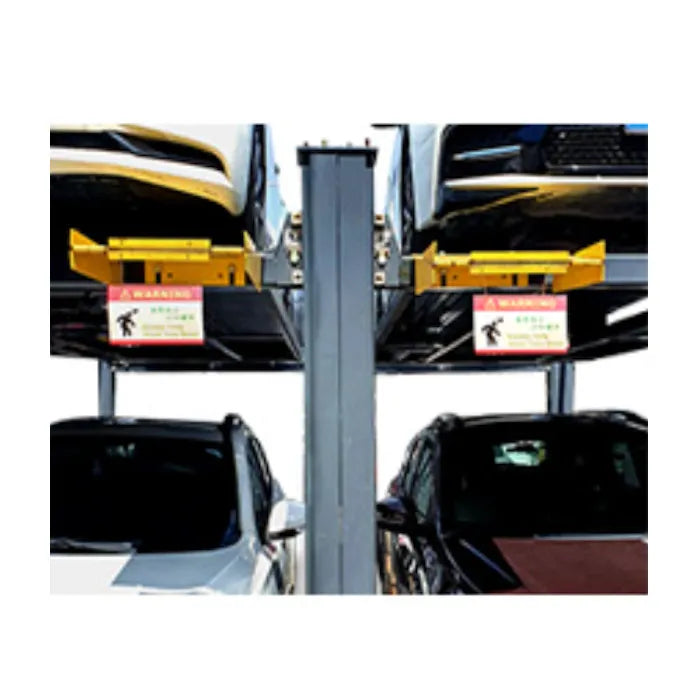

- Support Back To Back Installation To Minimize Space Occupancy
- Power Side Column Can Be Installed At Any Corner
- Extremely High Lifting Is Suitable To Park Taller Vehicles For 408-HP

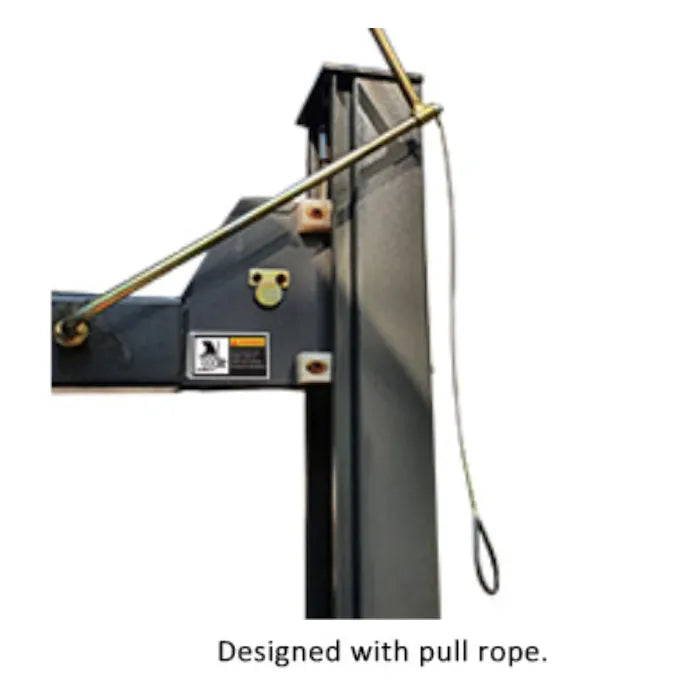

- Pull Rope Comes Standard For 408-HP
Optional Accessories
- Jack Tray: No. 40808
- 90å¡ Motor Bracket: No. 40802

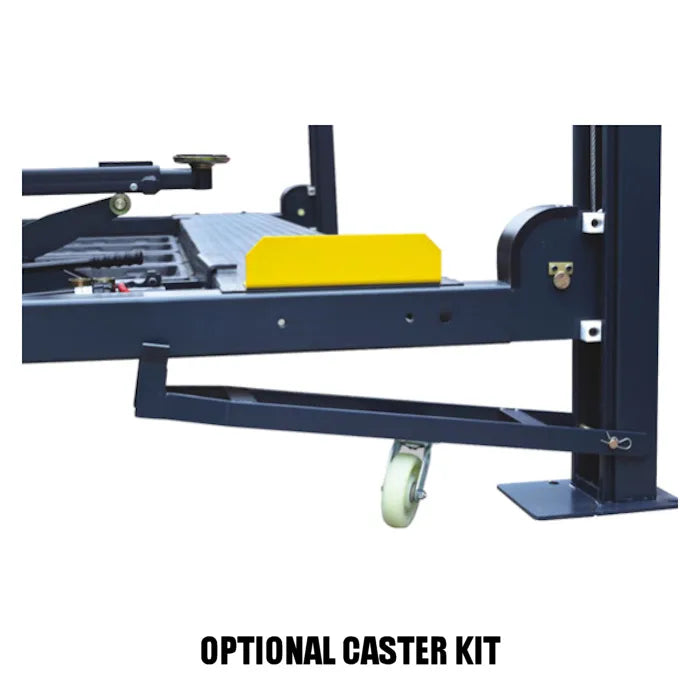

- Set of (4) Caster Kit: No. 40801

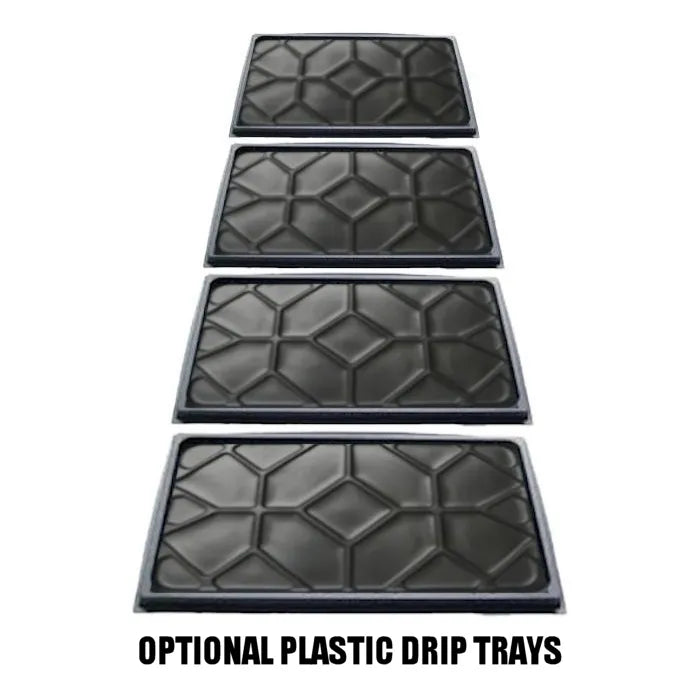

- Set of (4) Plastic Oil Trays: No. 40806
- Four Post LED Light Kit: No. 40103

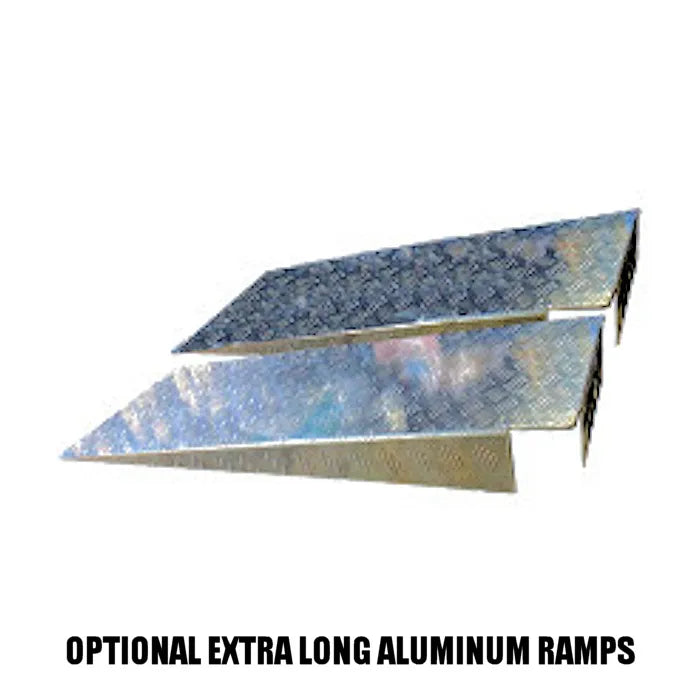

- Extra Long Aluminum Ramps: No. 40805
- J5H Manual Rolling Jack: No. J5H

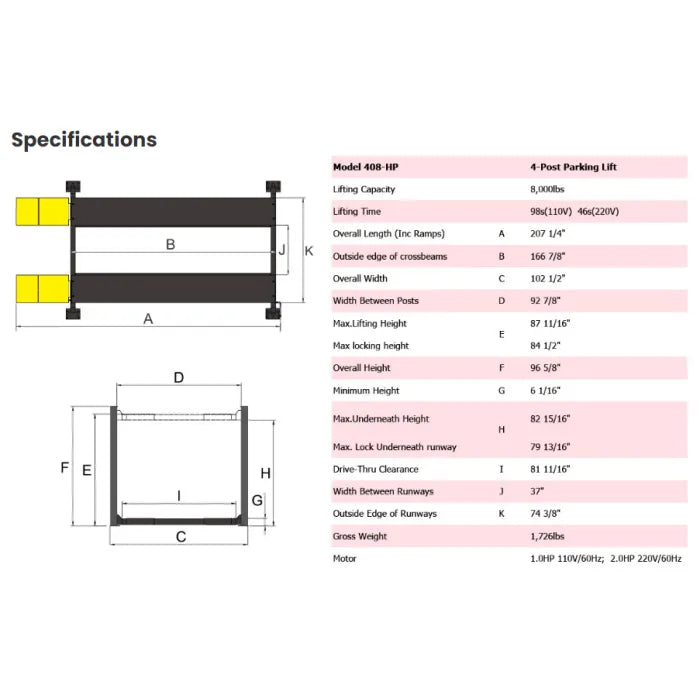

Specifications
| Model Number | 408-P | 408-HP |
|---|---|---|
| Lifting Capacity | 8,000 lbs. | 8,000 lbs. |
| Lifting Time | 98s (110V) / 40s (220V) | 98s (110V) / 46s (220V) |
| A - Overall Length (Inc Ramps) | 207 1/4" | 207 1/4" |
| B - Overall Edge of Crossbeams | 166 7/8" | 166 7/8" |
| C - Overall Width | 102 1/2" | 102 1/2" |
| D - Width Between Posts | 92 7/8" | 92 7/8" |
| E - Max Lifting Height | 73 11/16" | 87 11/16" |
| E - Max Locking Height | 70 9/16" | 84 1/2" |
| F - Overall Height | 82 7/8" | 96 5/8" |
| G - Minimum Height | 6 1/16" | 6 1/16" |
| H - Max Underneath Height | 69" | 82 15/16" |
| H - Max Lock Underneath Runway | 65 13/16" | 79 13/16" |
| I - Drive-Thru Clearance | 81 11/16" | 81 11/16" |
| J - Width Between Runways | 37" | 37" |
| K - Outside Edge of Runways | 74 3/8" | 74 3/8" |
| 110V Motor | 1.0HP 110V 60Hz 1Ph | 1.0HP 110V 60Hz 1Ph |
| 2200V Motor | 2.0HP 220V 60Hz 1Ph | 2.0HP 220V 60Hz 1Ph |
| Gross Weight | 1,585 lbs. | 1,585 lbs. |
åÊ
AMGO Hydraulics offers the Best Warranty in the Industry
AMGO Hydraulics offers the Best Warranty in the Industry
5 Year Warranty for Steel Structure
3 Year Warranty for Hydraulic Parts
2 Year Warranty for Electrical Components
Any items received that fall into the warranty category, (inoperable, or manufacturer's defect) should be handled under manufacturer's written warranty conditions. Customer should call AMGO Hydraulic Corporation to have us troubleshoot problem by phone first. Warranty conditions will be provided with all shipments. We will happily assist customers with any warranty service.
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows: 1. Steel Structure Components (including columns, carriages, lifting arms, top beam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate, etc.) Warranty for Five (5) Years. 2. Hydraulic Parts (including cylinders, oil seal, oil hose, fitting etc.) Warranty for Three (3) Years. 3. Other Parts(not including consumption parts such as rubber pads), electrical components, power unit have Warranty for Two (2) Years. Warranty coverage would be applicable to the 48 contiguous states. If outside the 48 contiguous states, please call AMGO Hydraulic Corporation. If warranty parts are needed, AMGO Hydraulic Corporation will send them out at our own cost at standard ground shipping rate. If customer needs parts more quickly, it will be the customer's responsibility to pay for expedited shipping charges. AMGO Hydraulic Corporation will not compensate customers for down time when their equipment is out of service. AMGO Hydraulic Corporation will not compensate customers for time lost if freight is not delivered on the date or time estimated by the freight company.
Accessories/Options
AMGO J5H Manual Rolling Jack 5,000 lbs. Capacity
OUR PRICE: $1,265.00
Regular Price: $1,329.00
AMGO 408-P Four Post Parking Lift
OUR PRICE: $4,740.00
Regular Price: $4,979.00
AMGO 409-HP Four Post Parking Lift
OUR PRICE: $7,824.00
Regular Price: $8,219.00
AMGO 40801 Caster Kit for Parking Lifts
OUR PRICE: $402.00
Regular Price: $429.00
AMGO 40802 90° Motor Bracket for Parking Lifts
OUR PRICE: $75.00
Regular Price: $79.00
AMGO 407-P Four Post Parking Lift
OUR PRICE: $4,510.00
Regular Price: $4,739.00
AMGO 40808 Jack Tray for Parking Lifts
OUR PRICE: $154.00
Regular Price: $169.00
AMGO 40806 Drip Trays for Parking Lifts
OUR PRICE: $94.00
Regular Price: $99.00
AMGO 40103 Four Post LED Light Kit
OUR PRICE: $330.00
Regular Price: $349.00
AMGO 40805 Extra Long Aluminum Ramps for Parking Lifts
OUR PRICE: $630.00
Regular Price: $669.00
More Information
AMGO 408-P 408-HP Four Post Lift Brochure (.pdf)
AMGO 408-P 408-HP Four Post Lift Manual (.pdf)
åÊ
'All installation hardware was included in the package. The installation instructions were clear and easy to follow. The 408-P worked perfectly with my 9' wide garage door and 10' 3" ceiling height. I would highly recommend this lift for parking and maintenance. Works great for storing my two Corvettes.'
-Danny Harmon
