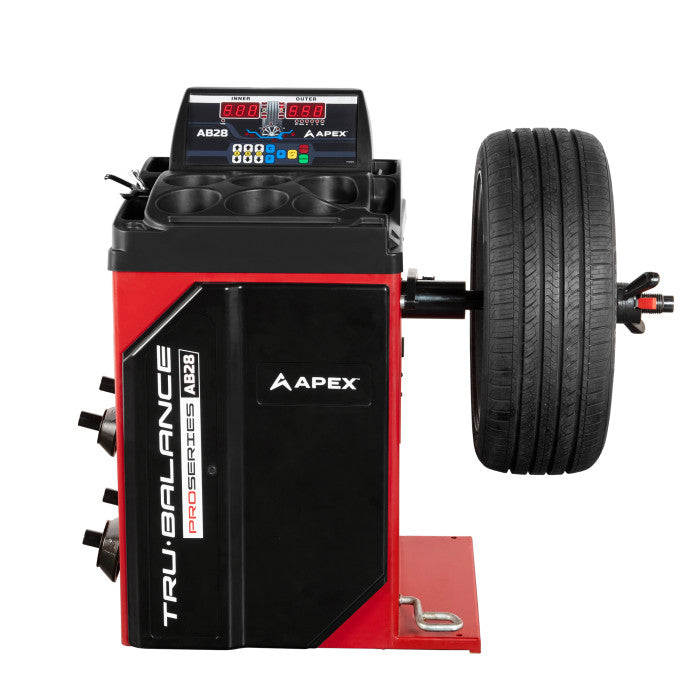

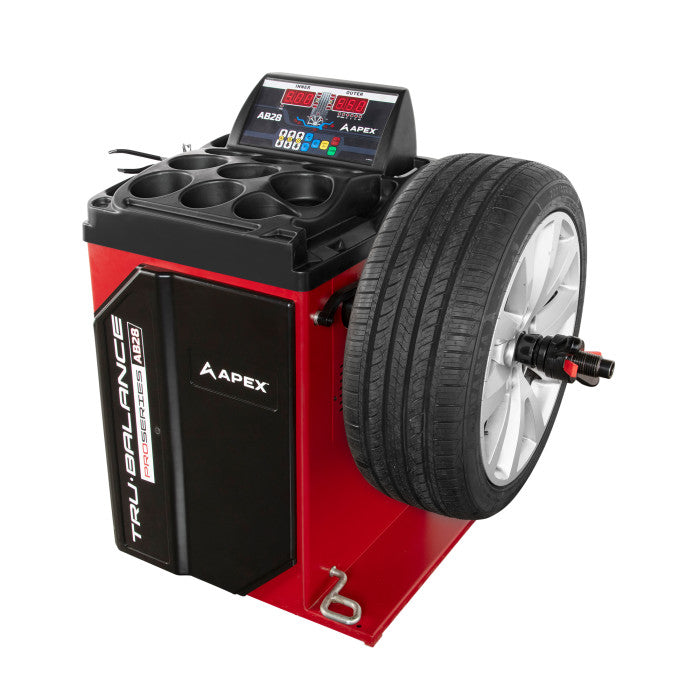

APEX AB28 Digital Wheel Balancer

Name: APEX AB28 Digital Wheel Balancer
Brand: ASEDeals
SKU: 5140352
Price: 2695.0 USD
Availability: InStock

In Stock SKU 5140352 UPC 849672043133

OUR PRICE: $2,695.00

Regular Price: ~~$2,829.00~~

$74.86 / mo

INCLUDES FREE SHIPPING*

Short Description

APEX AB28 Digital Wheel Balancer
Passenger, Light Truck, and Performance Wheels 110V or 220V
The APEX AB28 is a commercial-accuracy digital wheel balancer built for growing shops that need fast, repeatable balance results without unnecessary complexity. Designed to handle passenger cars, light trucks, and performance wheels with confidence, the AB28 delivers smooth operation, precise measurements, and efficient workflow, all backed by BendPak engineering and industry-leading warranty and support.

Description

APEX AB28 Digital Wheel Balancer
Passenger, Light Truck, and Performance Wheels 110V or 220V

The APEX AB28 is a commercial-accuracy digital wheel balancer built for growing shops that need fast, repeatable balance results without unnecessary complexity. Designed to handle passenger cars, light trucks, and performance wheels with confidence, the AB28 delivers smooth operation, precise measurements, and efficient workflow, all backed by BendPak engineering and industry-leading warranty and support.

Commercial Accuracy Without Commercial Complexity
The APEX AB28 is engineered for shops and serious garages that demand accurate, vibration-free balance results but do not need overly complicated systems or inflated pricing. It delivers dependable performance for daily balancing work while keeping operation straightforward, fast, and efficient.

Designed to support passenger vehicles, light trucks, and modern performance wheels, the AB28 is a practical solution for one to three bay shops, growing service operations, and side-hustle businesses that want professional results without unnecessary overhead.

Precision Digital Measurement You Can Trust
At the heart of the AB28 is advanced digital sensor technology engineered to deliver repeatable, accurate balance readings down to hundredths of an ounce. A direct-axis drive system ensures smooth, vibration-free rotation, allowing the machine to measure imbalance forces accurately without distortion or noise.

Fast cycle times keep vehicles moving through the shop efficiently, while clear visual guidance helps technicians place weights correctly the first time, reducing rework and improving customer satisfaction.

Multi-Directional Load Sensing for Modern Wheels
The AB28 uses high-precision quartz piezoelectric load sensors that measure imbalance forces in multiple directions simultaneously. By detecting longitudinal, transverse, and shear forces at once, the system delivers consistent accuracy across a wide range of wheel and tire combinations.

This multi-axis sensing capability is especially important when balancing modern alloy, low-profile, and performance wheels where precision matters and small inaccuracies can translate into noticeable vibration.

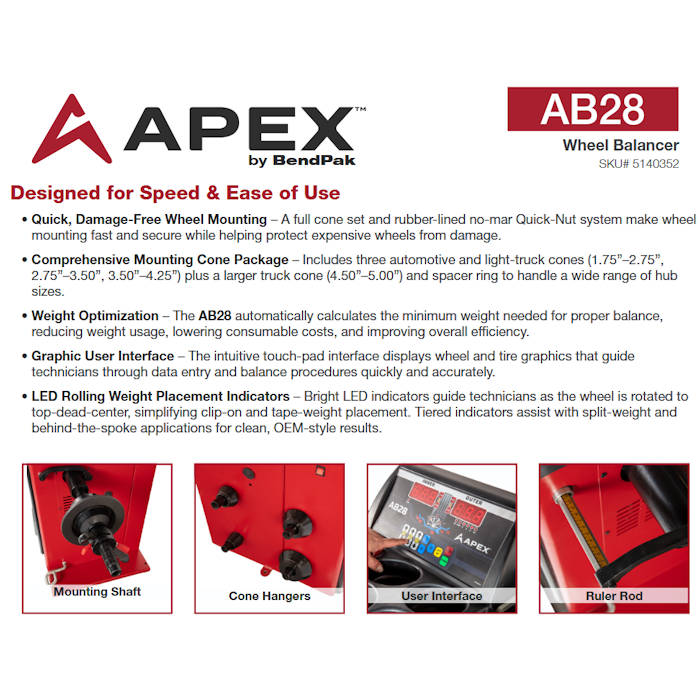

Designed for Speed and Ease of Use
Every aspect of the AB28 is designed to improve daily workflow. The intuitive graphic interface guides technicians through wheel data entry and balancing procedures quickly and clearly. Bright LED indicators assist with exact weight placement, simplifying clip-on, tape, split, and behind-the-spoke applications.

Automatic braking holds the wheel precisely at the correct position for weight placement, reducing guesswork and speeding up the balancing process.

Wheel Protection Built In
The AB28 includes a no-mar Quick-Nut system and a comprehensive cone package to secure wheels quickly while helping protect expensive finishes. Rubber-lined components and precision-machined mounting surfaces reduce the risk of cosmetic damage during setup and removal.

This built-in protection makes the AB28 well suited for shops that regularly service custom, performance, and OE alloy wheels.

Built for Daily Use and Long-Term Reliability
Heavy-duty construction, precision-machined components, and a rigid balancer shaft ensure stable operation and long service life. Low operating speeds reduce stress on components while maintaining fast balance cycles.

Backed by BendPak’s U.S.-based technical support and industry-leading warranty and support structure, the AB28 provides long-term confidence for shops investing in dependable balancing equipment.

A Smart Performance and Value Solution
The APEX AB28 delivers the accuracy, speed, and reliability shops need in a streamlined, value-focused package. It is the right choice for businesses that want professional-grade balance results without overpaying for features that do not improve real-world performance.

Features & Specs

Features

Advanced Digital Sensor Technology
Delivers fast, repeatable balance accuracy down to hundredths of an ounce.
Multi-Directional Quartz Load Sensors
Measures imbalance forces across multiple axes for consistent, precise results.
Direct-Axis Drive System
Provides smooth, vibration-free rotation for accurate measurement.
Fast Balance Cycle Times
Improves shop throughput and reduces vehicle wait times.
Graphic User Interface
Intuitive display guides technicians through data entry and balancing procedures.
LED Weight Placement Indicators
Clearly guides exact clip-on, tape, and split-weight placement.
No-Mar Quick-Nut Mounting System
Speeds wheel mounting while helping protect wheel finishes.
Comprehensive Cone Package Included
Supports a wide range of passenger, light truck, and performance wheels.
Automatic Wheel Braking
Holds the wheel precisely at weight placement positions.
Heavy-Duty Shaft and Rigid Construction
Ensures stable operation and long-term durability under daily use.

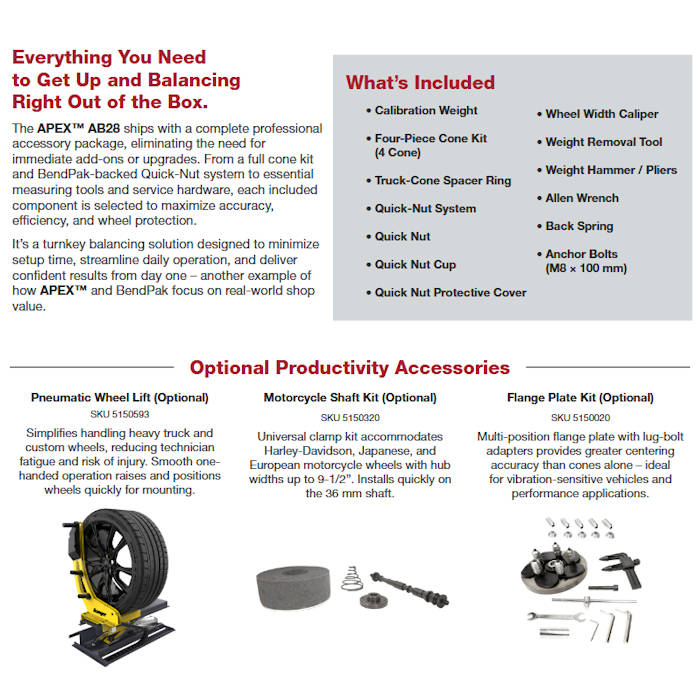

What's Included

Calibration Weight
Four-Piece Cone Kit (4 Cone)
Truck-Cone Spacer Ring
Quick-Nut System
Quick Nut
Quick Nut Cup
Quick Nut Protective Cover
Wheel Width Caliper
Weight Removal Tool
Weight Hammer / Pliers
Allen Wrench
Back Spring
Anchor Bolts (M8 × 100 mm)

Optional Accessories

#5150593 Pneumatic Wheel Lift
#5150320 Motorcycle Shaft Kit

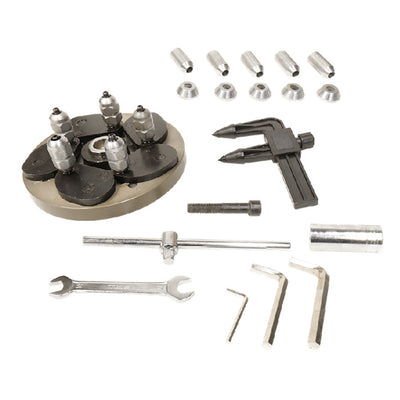

#5150020 Flange Plate Kit

Specifications

Motor: 0.5 HP / 0.37kw 110/220V
Cycle Time: 5 - 7 Seconds (avg.)
Balancing Modes: Dynamic / Static / 3-Alloy
Drive System: Belt Drive
Wheel Braking: Foot Pedal
Cones Included: Single-Plane / 4 pcs
Max. Tire Diameter: 44" (1,118 mm)
Max. Tire Weight: 145 lbs. (65 kg)
Wheel Diameter Capacity: 12" - 28" (305 - 711 mm)
Wheel Width Capacity: 4" - 15" (102 - 381 mm)
Balancing Increments: 0.25 or 0.01 oz
Balancing Speed: 260 RPM
Accuracy: +/- 1 gram (.035 oz)
Resolution: 0.01 ounce, 1.4°
Shipping Dimension: 38" x 30" x 46" (965 x 762 x 1,168 mm)
Shipping Weight: 276 lbs. (125 kg)
Warranty: (1) Year on Equipment Structure, (1) Year on Cylinders, Motor, Switches, and Components, (6) Months Labor and Freight

APEX Wheel Service Limited Warranty
Subject to the terms below, BendPak Inc. ("Warrantor") warrants that the Product conforms to Warrantor’s published specifications and is free from defects in materials and workmanship. NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE MADE.

Duration

1 Year (12 Months): Equipment structure
1 Year (12 Months): Pneumatic cylinders, motor, electronic switches, and operating components
6 Months: Onsite labor and freight related to warranty service

Limited Warranty

Warrantor: BendPak Inc., 30440 Agoura Road, Agoura Hills, CA 91301.
Purchaser: The original Purchaser (other than for resale).
Covered Products: Any APEX brand Tire Changer or Wheel Balancer manufactured on or after 1/1/2026.
Coverage: Manufacturer defects due to materials or workmanship under normal use and service.
Exclusions
This warranty does not cover:

This warranty is non-transferable and terminates upon sale or transfer of the Product to any subsequent owner.
Abuse, neglect, overloading, or failure to follow installation, operation, or maintenance instructions.
Damage during shipment, or from contact with tools or surroundings.
Wear items (rubber pads, cables, etc.) unless defective in material or workmanship.
Routine maintenance or consumables (lubricants, oils, etc.).
Corrosion or rust from poor maintenance or corrosive environments.
Motor or pump failure due to moisture, contaminants, or improper voltage/wiring.
Cosmetic imperfections that do not affect functionality.
Damage from natural disasters, accidents, or unauthorized modifications.
Any indirect, incidental, or consequential loss, including property damage or downtime.

Warrantor' s Responsibility

At its sole discretion, Warrantor will repair or replace any defective component during the warranty period.

Purchaser' s Responsibility

Provide dated proof of purchase and maintenance records.
Inspect product upon receipt; report shortages within 10 days and defects within 15 days of discovery.
Return defective components if requested. Freight after six (6) months is the Purchaser' s responsibility.
Use and maintain the Product per the owner' s manual.
Claims not submitted in writing within the above timeframes are deemed waived.

Service

Warranty service will be performed according to standard scheduling and parts availability at an authorized service location.

Limitation of Liability

Warrantor has no obligation for products altered, damaged, misused, or improperly maintained. In no event shall either party be liable for lost profits, incidental or consequential damages.
APEX products are provided as is, without any warranty beyond the terms stated herein. Warrantor may revise warranty terms by written notice or posting on www.bendpak.com, effective 30 days from notice or posting.

This Limited Warranty represents the entire agreement between Warrantor and Purchaser and supersedes all prior written or oral warranties.
