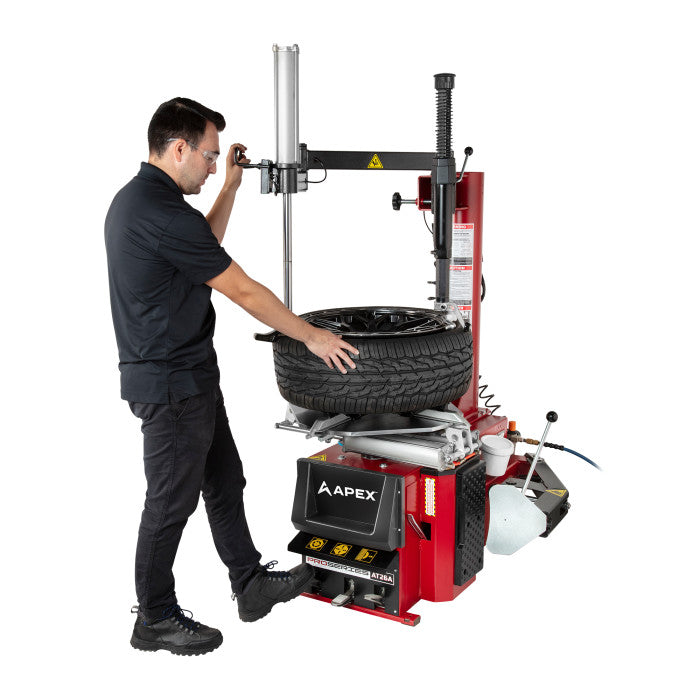

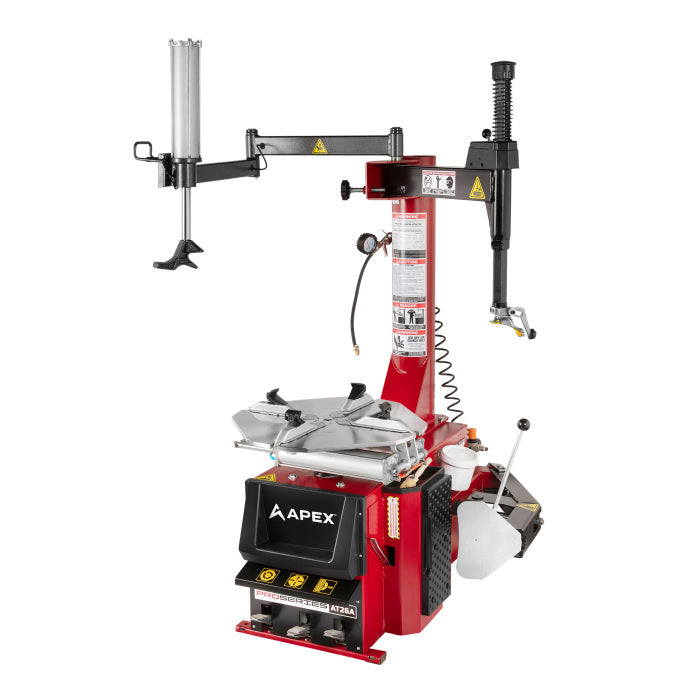

APEX AT26A Swing-Arm Tire Changer with Assist Tower

Name: APEX AT26A Swing-Arm Tire Changer with Assist Tower
Brand: ASEDeals
SKU: 5140350
Price: 3595.0 USD
Availability: InStock

In Stock SKU 5140350 UPC 849672043119

OUR PRICE: $3,595.00

Regular Price: ~~$3,779.00~~

$99.86 / mo

INCLUDES FREE SHIPPING*

Short Description

APEX AT26A Swing-Arm Tire Changer with Assist Tower
12-26 Inch Rim Capacity With Assist Tower 110V or 220V
The APEX AT26A is a performance-driven swing arm tire changer built for growing shops and serious garages that demand commercial capability without commercial-grade pricing. Featuring a high-torque electric turntable, pneumatic assist tower, and robust bead-breaking system, the AT26A handles today’s low-profile, stiff sidewall, and oversized wheels with speed, control, and confidence. Backed by BendPak engineering and industry-leading warranty and support, it delivers real shop performance at a smart value.

Description

APEX AT26A Swing-Arm Tire Changer with Assist Tower
12-26 Inch Rim Capacity With Assist Tower 110V or 220V

The APEX AT26A is a performance-driven swing arm tire changer built for growing shops and serious garages that demand commercial capability without commercial-grade pricing. Featuring a high-torque electric turntable, pneumatic assist tower, and robust bead-breaking system, the AT26A handles today’s low-profile, stiff sidewall, and oversized wheels with speed, control, and confidence. Backed by BendPak engineering and industry-leading warranty and support, it delivers real shop performance at a smart value.

Built for Real Tire Work, Not Light Duty Toys
The APEX AT26A is designed for shops and serious home garages that regularly service modern wheels and tires and need equipment that can keep up. From low-profile performance tires to larger light-truck assemblies, the AT26A delivers the power, rigidity, and control required to work efficiently and protect expensive wheels in the process.

This is not a hobby-grade machine. The AT26A is built on BendPak’s proven engineering standards, using heavy-duty components, rigid construction, and precision controls to deliver consistent results day after day. It is the right fit for growing shops, side-hustle businesses, track support operations, and performance-focused garages that want commercial capability without overbuying into industrial pricing.

High-Torque Power with Controlled Precision
At the core of the AT26A is a high-torque electric turntable drive that provides smooth, controlled rotation in both directions. Reversible operation allows technicians to adjust rotation instantly during mounting and demounting, reducing bead stress and minimizing the risk of tire or wheel damage.

Unlike entry-level machines that rely on abrupt or inconsistent motion, the AT26A’s controlled rotation gives the bead time to relax and move properly, making it easier to work with stiff sidewalls, run-flat designs, and performance tires that demand a more delicate approach.

Pneumatic Assist for Today’s Tough Tires
Modern tires are heavier, stiffer, and less forgiving than ever. That is why the AT26A includes a full pneumatic assist tower as standard equipment.

The assist system stabilizes the tire, holds beads in the drop center, and provides controlled leverage during mounting and demounting. This dramatically reduces technician effort while improving safety, consistency, and wheel protection. The result is faster service, fewer mistakes, and less physical strain during long days in the shop.

Designed to Protect Expensive Wheels
Performance wheels are not cheap, and neither are the mistakes that damage them. The AT26A is designed to protect wheels at every step of the process.

It includes both a hardened steel mount and demount head for durability and a polymer head for delicate finishes. Plastic clamp covers and protective components are standard, not optional upgrades. This allows technicians to work confidently on painted, powder-coated, machined, and clear-coated wheels without risking cosmetic damage.

Built for Long-Term Reliability
Every major component of the AT26A is engineered for longevity. A brushless AC motor delivers consistent power with reduced maintenance. The sealed, maintenance-free gearbox ensures smooth operation and long service life. Premium pneumatic components reduce vibration, resist corrosion, and maintain consistent performance under daily use.

This focus on durability keeps downtime low, service life long, and total cost of ownership predictable.

Backed by BendPak Support and Industry-Leading Warranty
The AT26A is backed by BendPak’s U.S.-based customer service, technical support, and an industry-leading warranty and support structure. That means parts availability, real technical help, and long-term backing that protects your investment well beyond the initial purchase.

It is performance you can trust, value you can justify, and support you can rely on.

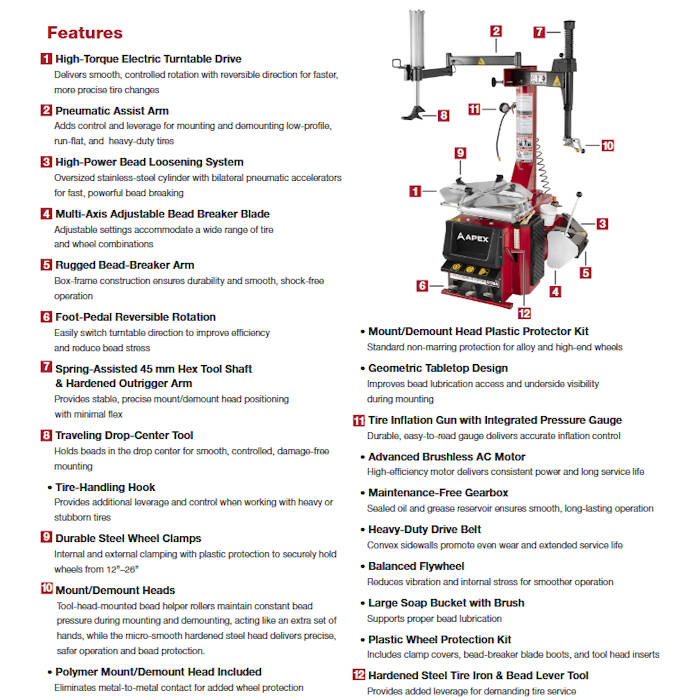

Features & Specs

Features

High-Torque Electric Turntable Drive
Provides smooth, controlled rotation with reversible direction for precise mounting and demounting on modern tire designs.
Pneumatic Assist Tower
Stabilizes stiff, low-profile, and heavy tires while holding beads in the drop center for safer, easier installation.
High-Power Bead Breaking System
Oversized pneumatic cylinder delivers fast, consistent bead loosening on stubborn tire assemblies.
Multi-Axis Adjustable Bead Breaker Blade
Allows optimal approach angles for a wide range of wheel and tire combinations while reducing flex and wear.
Spring-Assisted Tool Shaft and Rigid Swing Arm
Ensures precise tool positioning with minimal deflection, improving repeatability and reducing wheel damage risk.
Dual Mount and Demount Heads Included
Includes both hardened steel and polymer heads so technicians can choose durability or wheel protection as needed.
Wheel Protection Components Standard
Plastic clamp covers and protective accessories are included to prevent metal-to-metal contact on delicate wheels.
Brushless AC Motor
Delivers consistent power with reduced heat, noise, and long-term maintenance requirements.
Maintenance-Free Gearbox
Sealed lubrication system ensures smooth operation and long service life without routine servicing.
Ergonomic Control Layout
Upfront, intuitive controls improve workflow efficiency and reduce operator fatigue.

What's Included

Large Soap Bucket with Brush
Plastic Wheel Protection Kit
Hardened Steel Tire Iron & Bead Lever

Optional Accessories

#5140353 Post-Mounted Hand-Spin Wheel Balancer
#5328111 Motorcycle and ATV Turntable Clamps
#5327636 Back Head Plastic Inserts Set of 5
#5328119 Front Head Plastic Inserts Set of 5

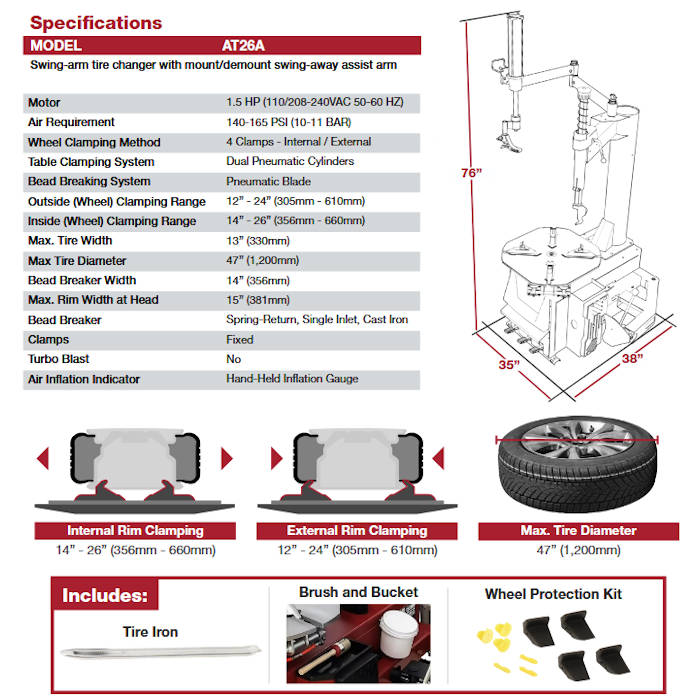

Specifications

Assist Arm: Central Assist Arm
Drive System Type: Electric / Air
Internal Rim Clamping: 14" - 26" (356 - 660 mm)
External Rim Clamping: 12" - 24" (305 - 610 mm)
Turntable Tire Width Capacity (Mounting): 15" (381 mm)
Bead Breaker Tire Width Capacity (Demounting): 14" (356 mm)
Max. Tire Diameter: 50" (1,270 mm)
Motor: 1.1KW 110/220V
Air Inflation Indicator: Hand-Held Inflation Gauge
Product Dimensions: 50" L x 38" W x 39" H (1270 x 965 x 991 mm)
Shipping Weight: 632 lbs.
Warranty: (1) Year on Equipment Structure, (1) Year on Cylinders, Motor, Switches, and Components, (6) Months Labor and Freight

APEX Wheel Service Limited Warranty
Subject to the terms below, BendPak Inc. ("Warrantor") warrants that the Product conforms to Warrantor’s published specifications and is free from defects in materials and workmanship. NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE MADE.

Duration

1 Year (12 Months): Equipment structure
1 Year (12 Months): Pneumatic cylinders, motor, electronic switches, and operating components
6 Months: Onsite labor and freight related to warranty service

Limited Warranty

Warrantor: BendPak Inc., 30440 Agoura Road, Agoura Hills, CA 91301.
Purchaser: The original Purchaser (other than for resale).
Covered Products: Any APEX brand Tire Changer or Wheel Balancer manufactured on or after 1/1/2026.
Coverage: Manufacturer defects due to materials or workmanship under normal use and service.
Exclusions
This warranty does not cover:

This warranty is non-transferable and terminates upon sale or transfer of the Product to any subsequent owner.
Abuse, neglect, overloading, or failure to follow installation, operation, or maintenance instructions.
Damage during shipment, or from contact with tools or surroundings.
Wear items (rubber pads, cables, etc.) unless defective in material or workmanship.
Routine maintenance or consumables (lubricants, oils, etc.).
Corrosion or rust from poor maintenance or corrosive environments.
Motor or pump failure due to moisture, contaminants, or improper voltage/wiring.
Cosmetic imperfections that do not affect functionality.
Damage from natural disasters, accidents, or unauthorized modifications.
Any indirect, incidental, or consequential loss, including property damage or downtime.

Warrantor' s Responsibility

At its sole discretion, Warrantor will repair or replace any defective component during the warranty period.

Purchaser' s Responsibility

Provide dated proof of purchase and maintenance records.
Inspect product upon receipt; report shortages within 10 days and defects within 15 days of discovery.
Return defective components if requested. Freight after six (6) months is the Purchaser' s responsibility.
Use and maintain the Product per the owner' s manual.
Claims not submitted in writing within the above timeframes are deemed waived.

Service

Warranty service will be performed according to standard scheduling and parts availability at an authorized service location.

Limitation of Liability

Warrantor has no obligation for products altered, damaged, misused, or improperly maintained. In no event shall either party be liable for lost profits, incidental or consequential damages.
APEX products are provided as is, without any warranty beyond the terms stated herein. Warrantor may revise warranty terms by written notice or posting on www.bendpak.com, effective 30 days from notice or posting.

This Limited Warranty represents the entire agreement between Warrantor and Purchaser and supersedes all prior written or oral warranties.
