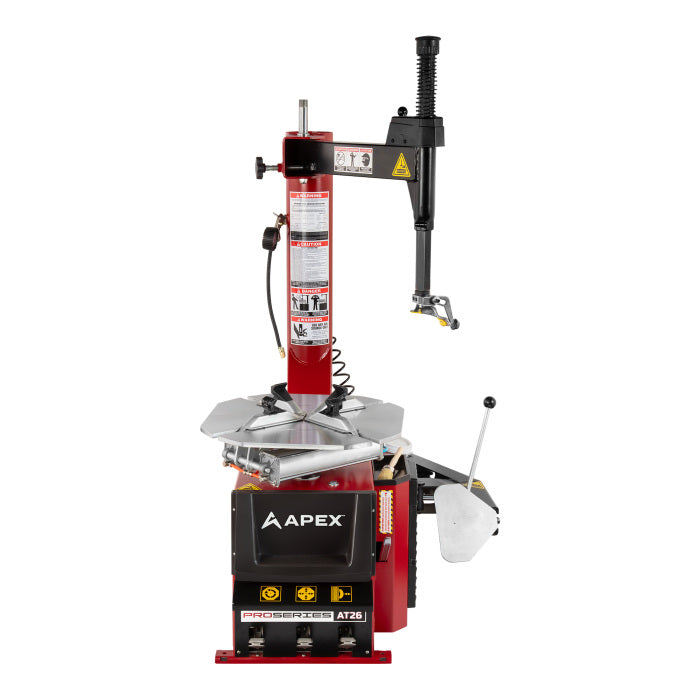

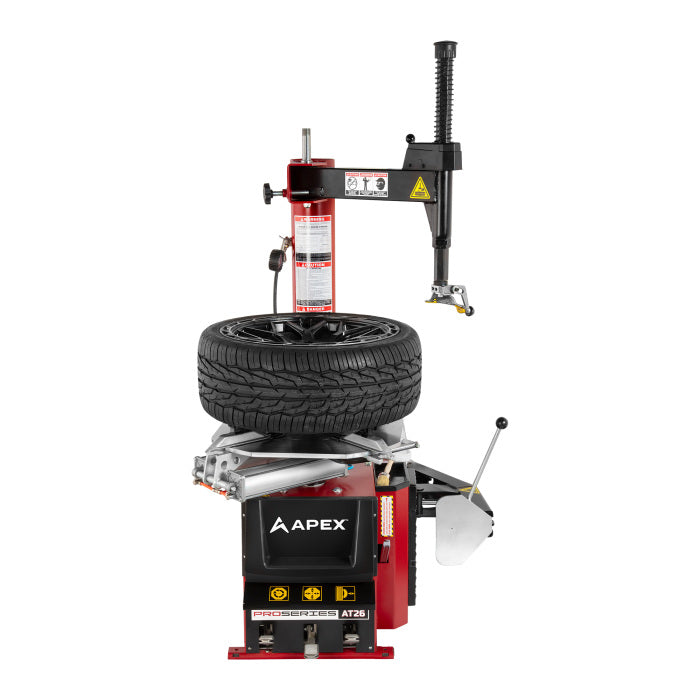

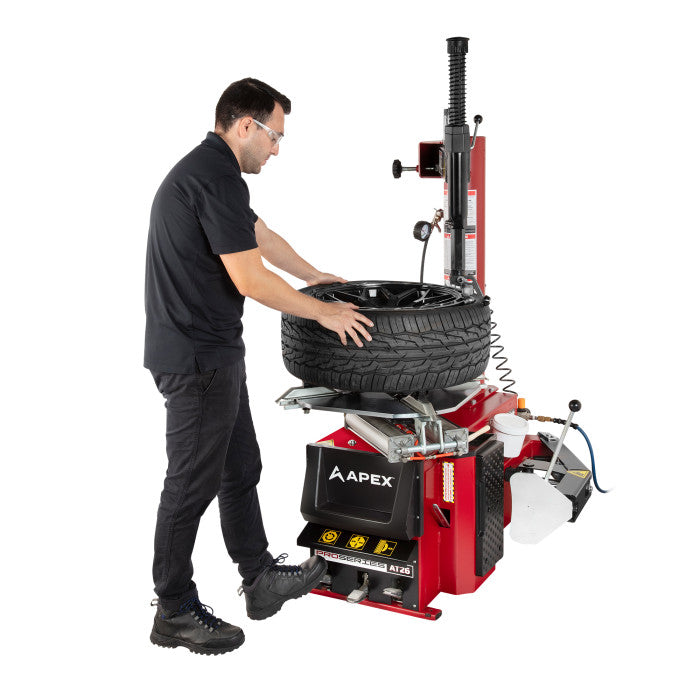

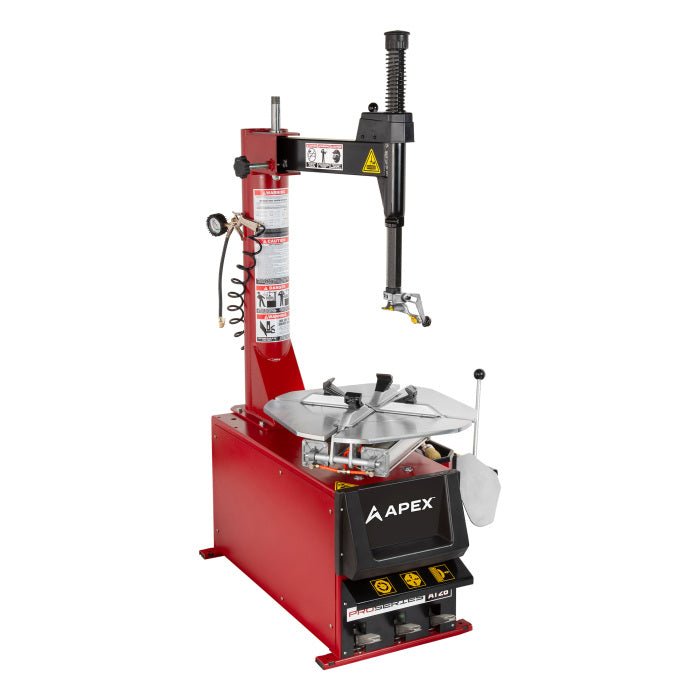

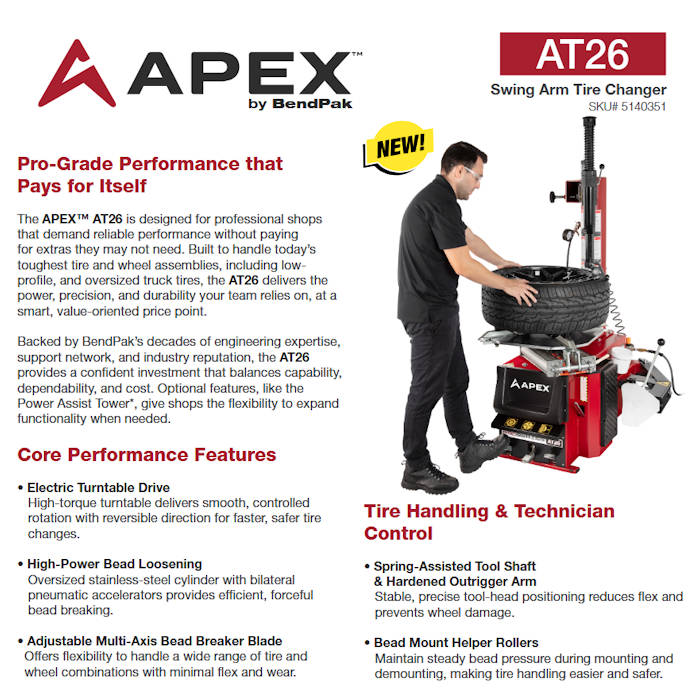

APEX AT26 Swing-Arm Tire Changer

Features & Specs

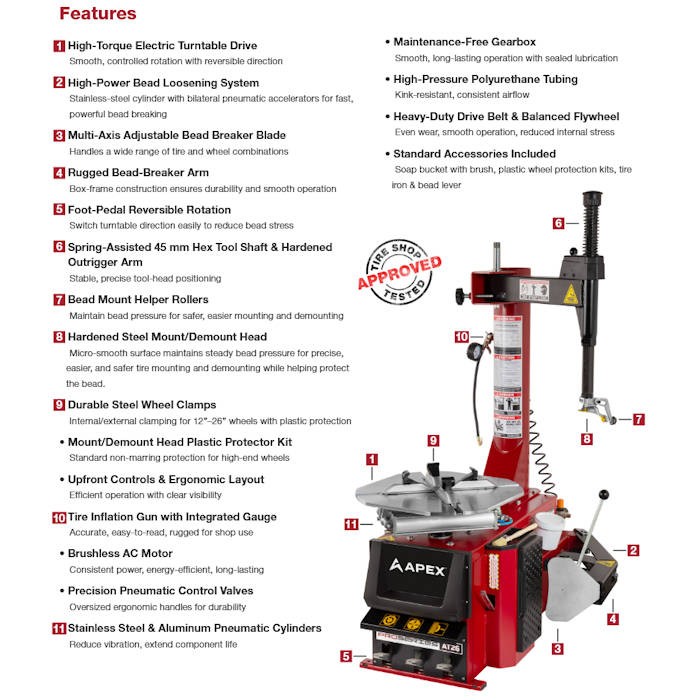

Features

• High-Torque Electric Turntable Drive
• Provides smooth, controlled rotation with reversible direction for precise mounting and demounting.
• High-Power Bead Breaking System
• Oversized pneumatic cylinder delivers fast, consistent bead loosening on stubborn tire assemblies.
• Multi-Axis Adjustable Bead Breaker Blade
• Allows optimal approach angles for a wide range of wheel and tire combinations while reducing flex and wear.
• Rigid Swing Arm Tower and Spring-Assisted Tool Shaft
• Ensures precise tool positioning with minimal deflection for improved repeatability and wheel protection.
• Dual Mount and Demount Heads Included
• Includes both hardened steel and polymer heads for durability or delicate wheel finishes.
• Wheel Protection Components Standard
• Plastic clamp covers and protective accessories prevent metal-to-metal contact on high-value wheels.
• Brushless AC Motor
• Delivers consistent power with reduced heat, noise, and long-term maintenance.
• Maintenance-Free Gearbox
• Sealed lubrication system ensures smooth operation and long service life without routine servicing.
• Ergonomic Control Layout
• Upfront, intuitive controls improve workflow efficiency and reduce operator fatigue.

What's Included

• Large Soap Bucket with Brush
• Plastic Wheel Protection Kit
• Hardened Steel Tire Iron & Bead Lever

Optional Accessories

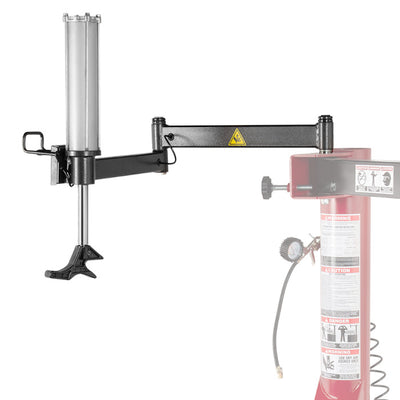

• #5321123 Power Assist Tower

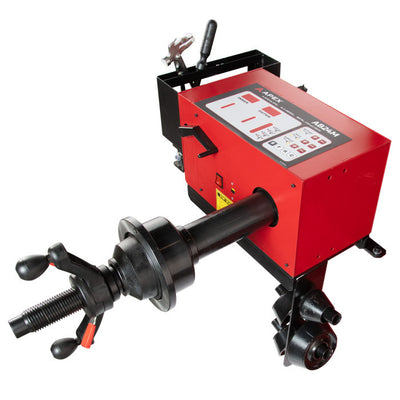

• #5140353 Post-Mounted Hand-Spin Wheel Balancer
• #5328111 Motorcycle and ATV Turntable Clamps

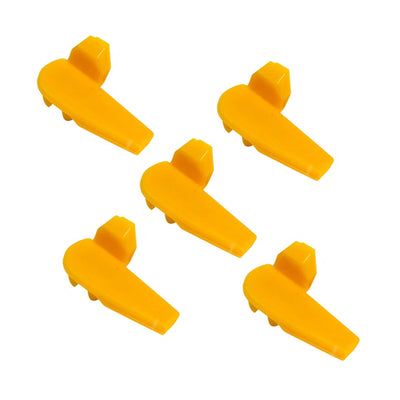

• #5327636 Back Head Plastic Inserts Set of 5

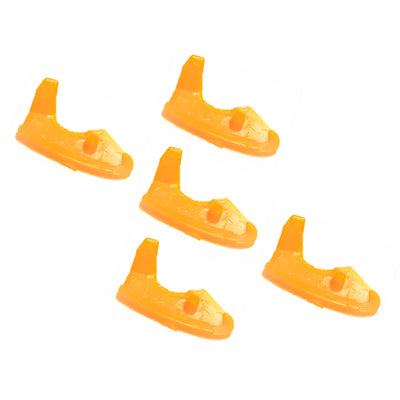

• #5328119 Front Head Plastic Inserts Set of 5

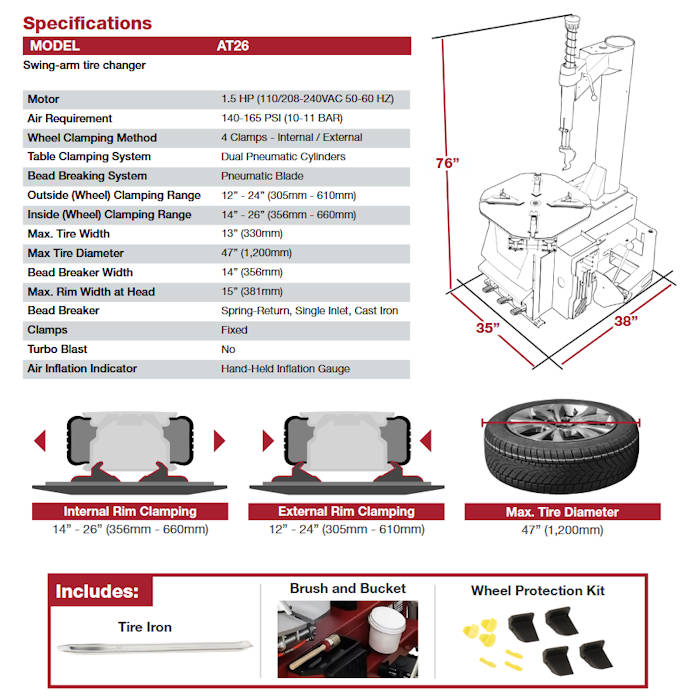

Specifications

• Assist Arm: Not Included
• Drive System Type: Electric / Air
• Internal Rim Clamping: 14" - 26" (356 - 660 mm)
• External Rim Clamping: 12" - 24" (305 - 610 mm)
• Turntable Tire Width Capacity (Mounting): 15" (381 mm)
• Bead Breaker Tire Width Capacity (Demounting): 14" (356 mm)
• Max. Tire Diameter: 50" (1,270 mm)
• Motor: 1.1KW 110/220V
• Air Inflation Indicator: Hand-Held Inflation Gauge
• Product Dimensions: 50" L x 38" W x 39" H (1270 x 965 x 991 mm)
• Shipping Weight: 590 lbs.
• Warranty: (1) Year on Equipment Structure, (1) Year on Cylinders, Motor, Switches, and Components, (6) Months Labor and Freight

APEX Wheel Service Limited Warranty
Subject to the terms below, BendPak Inc. ("Warrantor") warrants that the Product conforms to Warrantor’s published specifications and is free from defects in materials and workmanship. NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE MADE.

Duration

• 1 Year (12 Months): Equipment structure
• 1 Year (12 Months): Pneumatic cylinders, motor, electronic switches, and operating components
• 6 Months: Onsite labor and freight related to warranty service

Limited Warranty

1. Warrantor: BendPak Inc., 30440 Agoura Road, Agoura Hills, CA 91301.
2. Purchaser: The original Purchaser (other than for resale).
3. Covered Products: Any APEX brand Tire Changer or Wheel Balancer manufactured on or after 1/1/2026.
4. Coverage: Manufacturer defects due to materials or workmanship under normal use and service.
5. Exclusions
   This warranty does not cover:
1. This warranty is non-transferable and terminates upon sale or transfer of the Product to any subsequent owner.
2. Abuse, neglect, overloading, or failure to follow installation, operation, or maintenance instructions.
3. Damage during shipment, or from contact with tools or surroundings.
4. Wear items (rubber pads, cables, etc.) unless defective in material or workmanship.
5. Routine maintenance or consumables (lubricants, oils, etc.).
6. Corrosion or rust from poor maintenance or corrosive environments.
7. Motor or pump failure due to moisture, contaminants, or improper voltage/wiring.
8. Cosmetic imperfections that do not affect functionality.
9. Damage from natural disasters, accidents, or unauthorized modifications.
10. Any indirect, incidental, or consequential loss, including property damage or downtime.
6. Warrantor' s Responsibility
1. At its sole discretion, Warrantor will repair or replace any defective component during the warranty period.
7. Purchaser' s Responsibility
1. Provide dated proof of purchase and maintenance records.
2. Inspect product upon receipt; report shortages within 10 days and defects within 15 days of discovery.
3. Return defective components if requested. Freight after six (6) months is the Purchaser' s responsibility.
4. Use and maintain the Product per the owner' s manual.
5. Claims not submitted in writing within the above timeframes are deemed waived.
8. Service
1. Warranty service will be performed according to standard scheduling and parts availability at an authorized service location.
9. Limitation of Liability
1. Warrantor has no obligation for products altered, damaged, misused, or improperly maintained. In no event shall either party be liable for lost profits, incidental or consequential damages.
2. APEX products are provided as is, without any warranty beyond the terms stated herein. Warrantor may revise warranty terms by written notice or posting on www.bendpak.com, effective 30 days from notice or posting.

This Limited Warranty represents the entire agreement between Warrantor and Purchaser and supersedes all prior written or oral warranties.
