Corghi HD1300 Heavy-Duty Truck Tire Changer

Name: Corghi HD1300 Heavy-Duty Truck Tire Changer
Brand: ASEDeals
SKU: 0-12104504/00
Price: 25650.0 USD
Availability: InStock

In Stock SKU 0-12104504/00

OUR PRICE: $25,650.00

Regular Price: ~~$26,939.00~~

$712.50 / mo

INCLUDES FREE SHIPPING*

Short Description

Corghi HD1300 Heavy-Duty Tire Changer
14"-56" Rim Clamping 51" Tire Width 3,700 lbs. Capacity
The Corghi HD1300 Heavy-Duty Tire Changer takes the extraordinary versatility of its heavy-duty tire changers even further, combining impressive productivity with compact dimensions. The HD700 is designed for demounting and mounting inner tube and tubeless type tires for trucks, buses and industrial vehicles with annular groove or elastic ring type rims. The greatest strength of this electrohydraulic tire changer is that it can be used to work easily on any rim size from 14"-56", tire width up to 51", tire diameter up to 86", and wheel weight up to 3,700 lbs. Compact dimensions make the HD1300 a practical and versatile tool, while still ensuring the stability and functionality necessary to work profitably on this type of wheel.

Description

Corghi

Corghi HD1300 Heavy-Duty Tire Changer
14"-56" Rim Clamping 51" Tire Width 3,700 lbs. Capacity

The Corghi HD1300 Heavy-Duty Tire Changer takes the extraordinary versatility of its heavy-duty tire changers even further, combining impressive productivity with compact dimensions. The HD700 is designed for demounting and mounting inner tube and tubeless type tires for trucks, buses and industrial vehicles with annular groove or elastic ring type rims. The greatest strength of this electrohydraulic tire changer is that it can be used to work easily on any rim size from 14"-56", tire width up to 51", tire diameter up to 86", and wheel weight up to 3,700 lbs. Compact dimensions make the HD1300 a practical and versatile tool, while still ensuring the stability and functionality necessary to work profitably on this type of wheel.

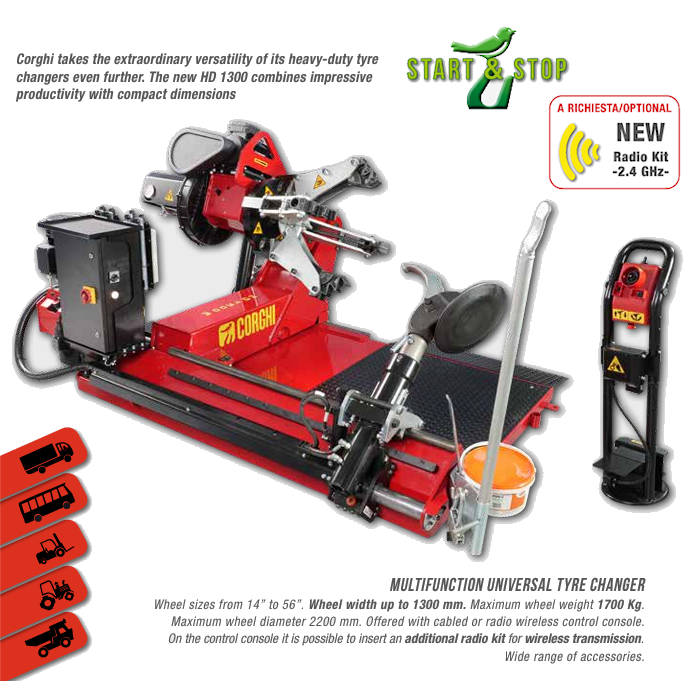

Multifunction Electrohydraulic Tire Changer
For trucks, buses, tractors and earth moving equipment with groove or elastic ring type rim wheels and with tubeless or inner tube type tires.

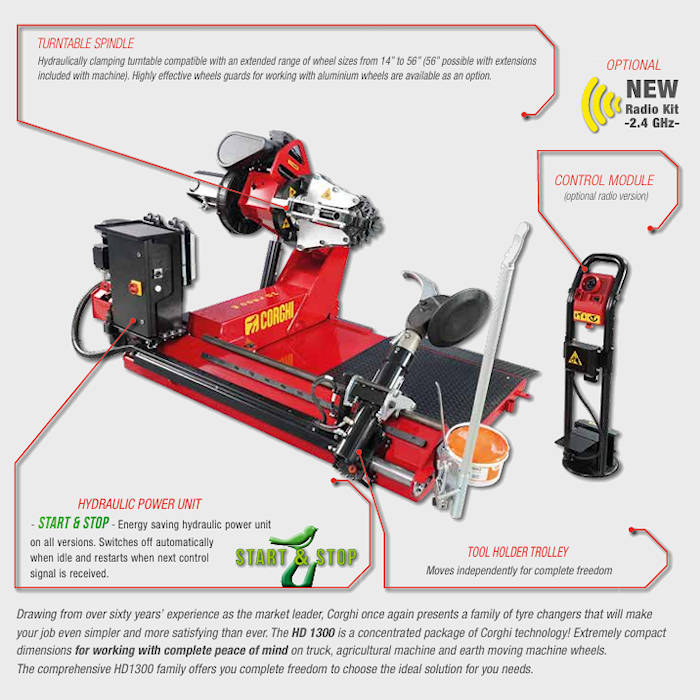

Start & Stop
Energy saving hydraulic power unit on all versions. Switches off automatically when idle and restarts when next control signal is received.

Tool Holder Trolley
The HD1300 feature a sturdy and robust manually operated tool holder arm moves independently for complete freedom.

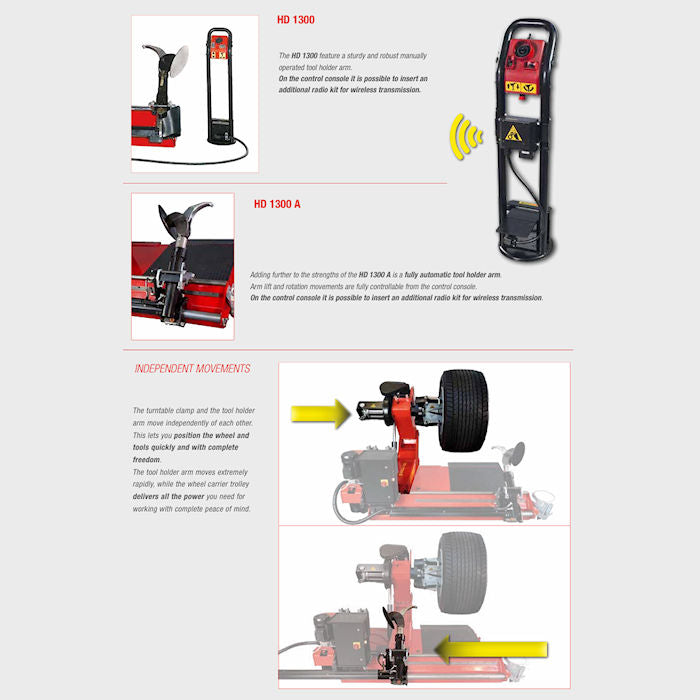

Independent Movements
The turntable clamp and the tool holder arm move independently of each other. This lets you position the wheel and tools quickly and with complete freedom. The tool holder arm moves extremely rapidly, while the wheel carrier trolley delivers all the power you need for working with complete peace of mind.

Optional Automatic Tool Holder Arm & Optional Wireless Console
Adding further to the strengths of the HD1300 A is a fully automatic tool holder arm. Arm lift and rotation movements are fully controllable from the control console. On the control console it is possible to insert an additional radio kit for wireless transmission.

Drawing from over sixty years’ experience as the market leader, Corghi once again presents a family of tire changers that will make your job even simpler and more satisfying than ever. The HD1300 is a concentrated package of Corghi technology! Extremely compact dimensions for working with complete peace of mind on truck, agricultural machine and earth moving machine wheels. The comprehensive HD1300 family offers you complete freedom to choose the ideal solution for you needs.

Features & Specs

Operating Configuration

Most Popular For Farming & Agricultural
Speeds Up Process For Farming & Agricultural And Provides Longevity
For Use With Mounting/Demounting Facilities
Wheel Clamping From 14" To 56"
Maximum Tire Width 51"
Maximum Wheel Weight 3,700 lbs.
Maximum Tire Diameter 86"
Independent Moving Tool Holder Trolley
Wide Range Of Accessories
Extremely Compact Dimensions
Work With Complete Peace Of Mind On Truck, Agricultural Machine, And Earth Moving Machine Wheels
Available With Cabled Or Wireless Radio Control Console (Optional)

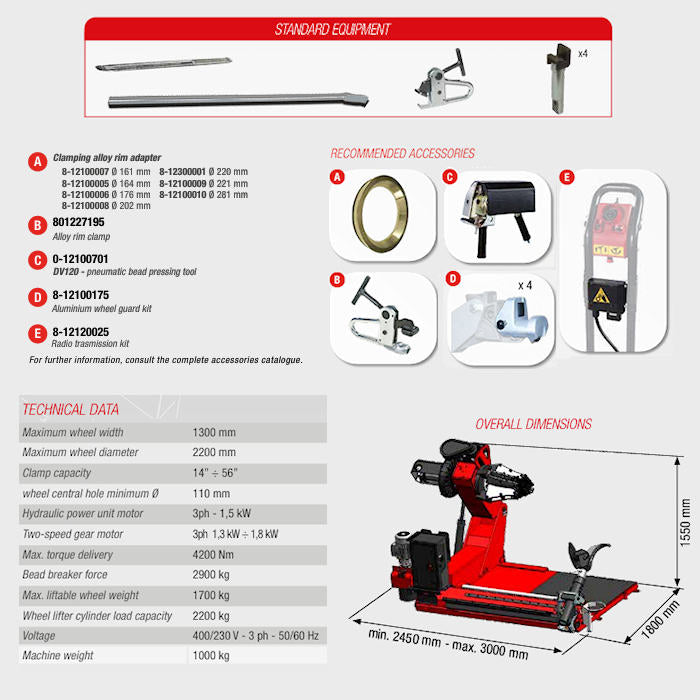

Specifications

Max Wheel Width: 1,300 mm
Max Wheel Diameter: 2,200 mm
Clamp Capacity: 14"-56"
Wheel Central Hole Minimum: 110 mm
Hydraulic Power Unit: 3 Ph - 1.5 Kw
Two-Speed Gear Motor: 3 Ph 1.3 Kw-1.8 Kw
Max Torque Delivery: 4,200 Nm
Bead Breaker Force: 2,900 Kg
Max Liftable Wheel Weight: 1,700 Kg
Wheel Lifter Cylinder Load Capacity: 2,200 Kg
Voltage: 400/230 V - 3 Ph - 50/60 Hz
Machine Weight: 1,000 Kg
Warranty: (3) Years Parts, (1) Year Labor

Corghi USA Limited Warranty Statement
General Terms
Corghi USA expressly warrants its products will be free from defects in material and/or workmanship for the time period specified. Corghi USA must be informed in writing within (7) days after discovery of a defect. Corghi USA reserves the right to repair or replace a product at our discretion. Consumable products and accessories such as but not limited to; plastic protection parts, bead breaker pads, inflation hoses, and rollers, are not covered under this warranty.

This warranty does not cover any damage resulting from abuse or failure to perform any necessary maintenance (i.e. damage due to or resulting from, faulty installation, neglect, misuse, improper electrical connections or electrical surges, problems resulting from excessive water, contaminated air system, or pollutant of any nature, fire or freight damage).

Corghi machines are warranted to be free of defects as follows:

Tire Changers:
A2030, A2024TI, 2024LL, A9824, A9824LL, A9830, A9222, Service Pro 124, Service Pro 324, BC200S, A2002 - (3) years parts and (1) year labor. Additional Transmission Warranty Models: A9222 - (5) years parts only. A2030, A2024TI, 2024LL, A9824, A9824LL, A9830 - (10) years parts only. AM50, AM500, AM5000, Master J, Master Code, Master28 - (3) years parts and (1) year labor. HD700, HD1300, HD1400, Monster TT, HD1800, Service Pro 440, Service Pro 426 - (3) years parts and (1) year labor. NOTE: Rubber pads, air lines, gauges, mount/demount heads, and swabs - (90) day warranty.

Wheel Balancers:
PL60, Service Pro 750, EM9250, EM9280, EM9580, EM9780, EM9980C, ET1450, ET88 - (3) years parts and (1) year labor.

Alignment Machines and Specialty Equipment:
(3) years parts and (1) year labor.

Disclaimer & Limitation on Liability
Corghi USA agreement to repair a tire changer or balancer is expressly in lieu of all other warranties, express, implies or statutory, including any warranties for merchantability and fitness for a particular purpose. Corghi USA maximum liability shall be limited to the cost of the machine. In no event shall Corghi USA be responsible for owner's lost profits, goodwill or other incidental or consequential damages. Corghi USA is not responsible for equipment or accessories damages in shipment. Freight claims are to be made directly with the carrier. We will be more than happy to assist you with any questions regarding filing claims.

Accessories/Options

More Information

Corghi HD1300 Tire Changer Brochure (.pdf)

Corghi 2026 Customer Loyalty Program

When you purchase a Corghi machine between 1/1/26 and 12/31/26 you are qualified to enter the Customer Loyalty Program. After emailing or faxing the completed form below, you will receive a "Corghi Cash" coupon, good towards the purchase of a subsequent machine. This coupon is only valid for 6 months. The coupon value will be either 10% or 5% of the machine & associated accessories just purchased. This is based on the subtotal. Taxes, freight, and other charges are not included. The value is 10% if second machine goes to the same location or 5% if the machine is purchased for an alternative company owned location.

Corghi Customer Loyalty Program Application (.pdf)
