Corghi HD1400 Heavy-Duty Truck Tire Changer

Name: Corghi HD1400 Heavy-Duty Truck Tire Changer
Brand: ASEDeals
SKU: 0-12100409/00
Price: 31650.0 USD
Availability: InStock

In Stock SKU 0-12100409/00

OUR PRICE: $31,650.00

Regular Price: ~~$33,239.00~~

$879.16 / mo

INCLUDES FREE SHIPPING*

Short Description

Corghi HD1400 Heavy-Duty Tire Changer
14"-58" Rim Clamping 58" Tire Width 4,189 lbs. Capacity

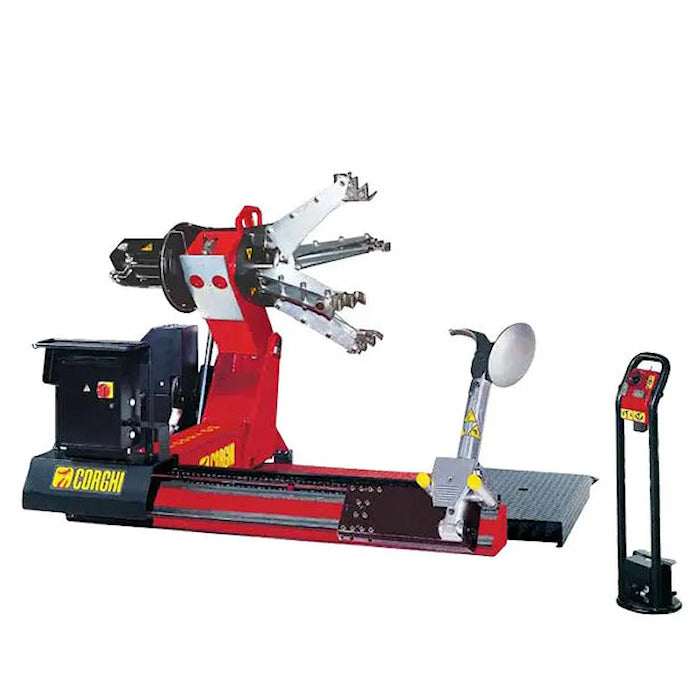

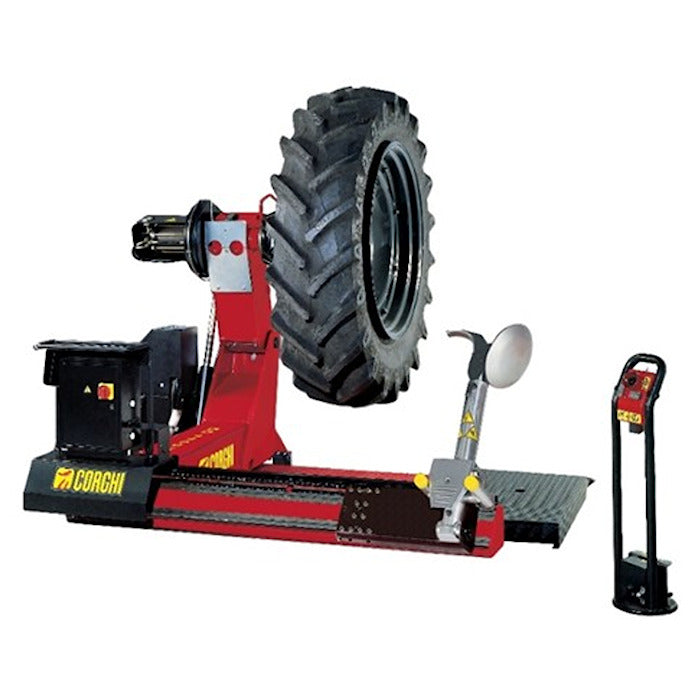

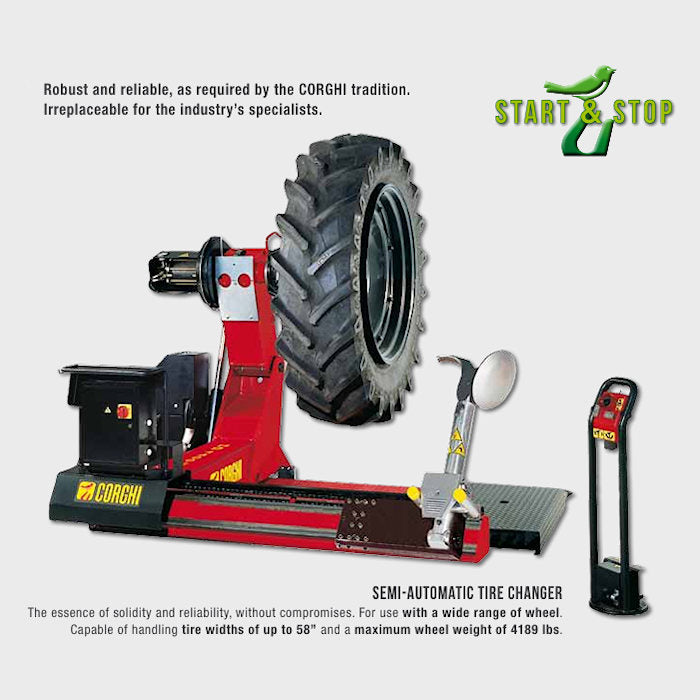

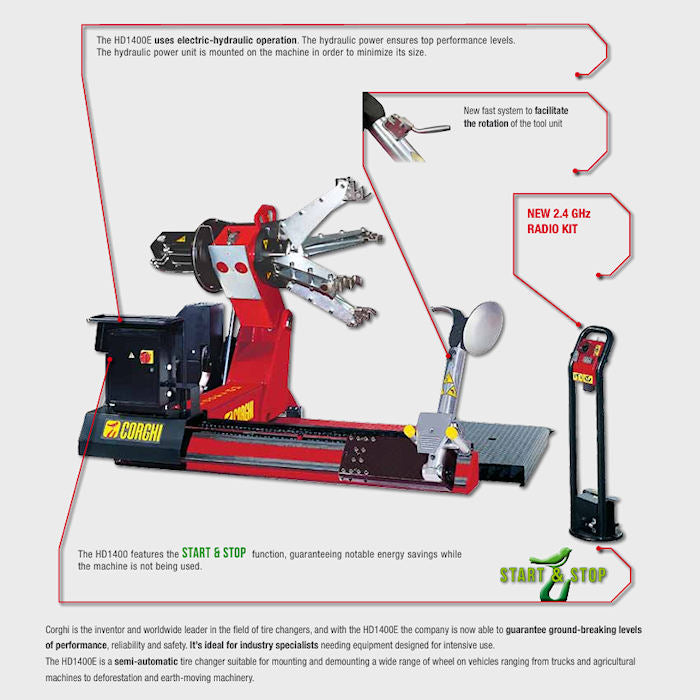

The Corghi HD1400 Heavy-Duty Tire Changer is the essence of solidity and reliability, without compromises. For use with a wide range of wheels. Capable of handling tire widths of up to 58" and a maximum wheel weight of 4,189 lbs. The HD1400 is a semi-automatic heavy-duty tire changer that uses electrohydraulic power to ensure top performance levels. The hydraulic power unit is mounted on the machine in order to minimize it's size. Featured include a new fast system to facilitate the rotation of the tool unit and the START & STOP function guarantees notable energy savings while the machine is not being used. The HD1400 is robust and reliable, as required by the Corghi tradition. Irreplaceable for the industry's specialists.

Description

Corghi

Corghi HD1400 Heavy-Duty Tire Changer
14"-58" Rim Clamping 58" Tire Width 4,189 lbs. Capacity

The Corghi HD1400 Heavy-Duty Tire Changer is the essence of solidity and reliability, without compromises. For use with a wide range of wheels. Capable of handling tire widths of up to 58" and a maximum wheel weight of 4,189 lbs. The HD1400 is a semi-automatic heavy-duty tire changer that uses electrohydraulic power to ensure top performance levels. The hydraulic power unit is mounted on the machine in order to minimize it's size. Featured include a new fast system to facilitate the rotation of the tool unit and the START & STOP function guarantees notable energy savings while the machine is not being used. The HD1400 is robust and reliable, as required by the Corghi tradition. Irreplaceable for the industry's specialists.

Multifunction Electrohydraulic Tire Changer
For trucks, buses, tractors and earth moving equipment with groove or elastic ring type rim wheels and with tubeless or inner tube type tires.

Wheel Weight Up To 4,189 lbs.
Corghi's continuous technological developments have allowed it to take advantage of the latest materials in order to increase the maximum wheel weight up to 4,189 lbs.

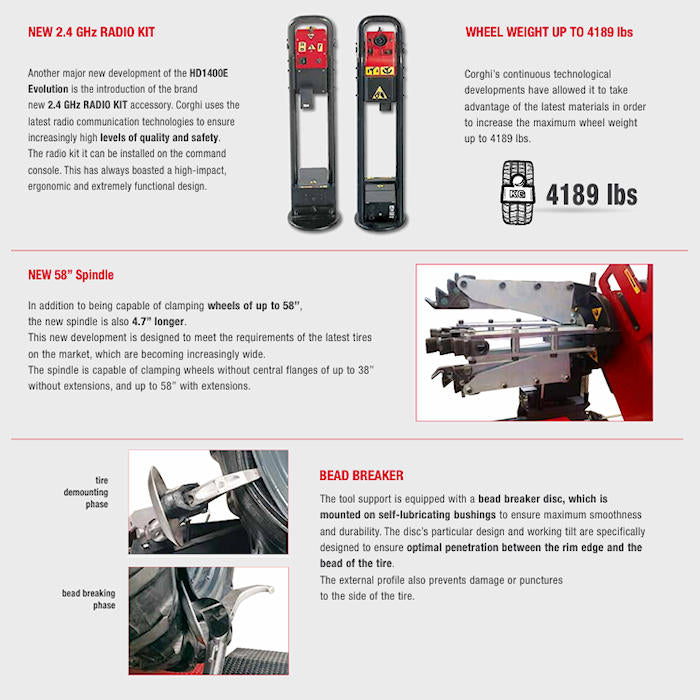

New 58" Spindle
In addition to being capable of clamping wheels of up to 58", the new spindle is also 4.7" longer. This new development is designed to meet the requirements of the latest tires on the market, which are becoming increasingly wide. The spindle is capable of clamping wheels without central flanges of up to 38" without extensions, and up to 58" with extensions.

Bead Breaker
The tool support is equipped with a bead breaker disc, which is mounted on self-lubricating bushings to ensure maximum smoothness and durability. The disc’s particular design and working tilt are specifically designed to ensure optimal penetration between the rim edge and the bead of the tire. The external profile also prevents damage or punctures to the side of the tire.

Optional 2.4Ghz Wireless Radio Kit
Another major new development of the HD1400 is the introduction of the brand new 2.4 GHz Radio Kit accessory. Corghi uses the latest radio communication technologies to ensure increasingly high levels of quality and safety. The radio kit it can be installed on the command console. This has always boasted a high-impact, ergonomic and extremely functional design.

Corghi is the inventor and worldwide leader in the field of tire changers, and with the HD1400 the company is now able to guarantee ground-breaking levels of performance, reliability and safety. It' ideal for industry specialists needing equipment designed for intensive use. The HD1400 is a semi-automatic tire changer suitable for mounting and demounting a wide range of wheel on vehicles ranging from trucks and agricultural machines to deforestation and earth-moving machinery.

Features & Specs

Operating Configuration

Semi-Automatic Electrohydraulic Heavy-Duty Tire Changer
Wheel Clamping From 14"-58"
Maximum Tire Width 58"
Maximum Wheel Weight 4,189 lbs.
Maximum Tire Diameter 98"
Independent Moving Tool Holder Trolley
The Essence Of Solidity And Reliability, Without Compromises
For Use With A Wide Range Of Wheels
Available With Cabled Or Wireless Radio Control Console (Optional)

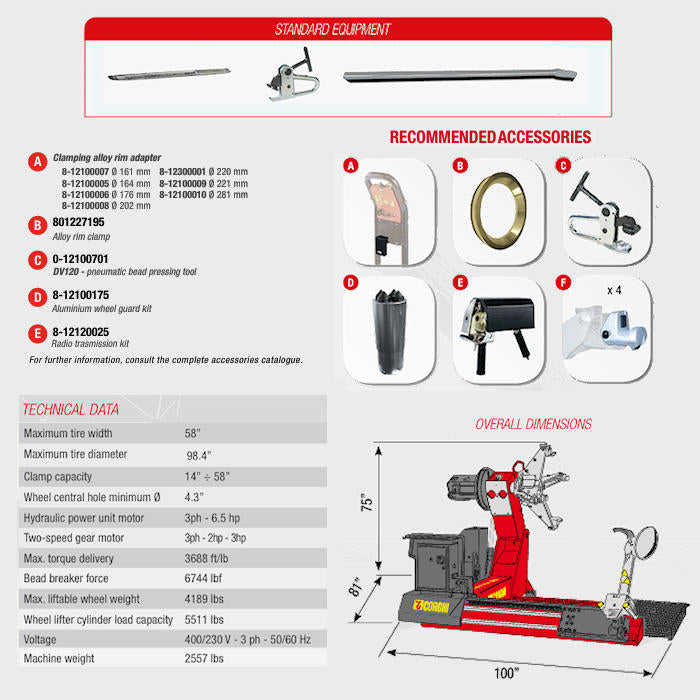

Specifications

Max Wheel Width: 58"
Max Tire Diameter: 98.4"
Clamp Capacity: 14"-58"
Wheel Central Hole Minimum: 4.3"
Hydraulic Power Unit: 3 Ph - 6.5 Kw
Two-Speed Gear Motor: 3 Ph 2 Hp - 3 Hp
Max Torque Delivery: 3,688 Ft/Lbs.
Bead Breaker Force: 6,744 Lbf
Max Liftable Wheel Weight: 4,189 lbs.
Wheel Lifter Cylinder Load Capacity: 5,511 lbs.
Voltage: 400/230 V - 3 Ph - 50/60 Hz
Machine Weight: 2,557 lbs.
Warranty: (3) Years Parts, (1) Year Labor
