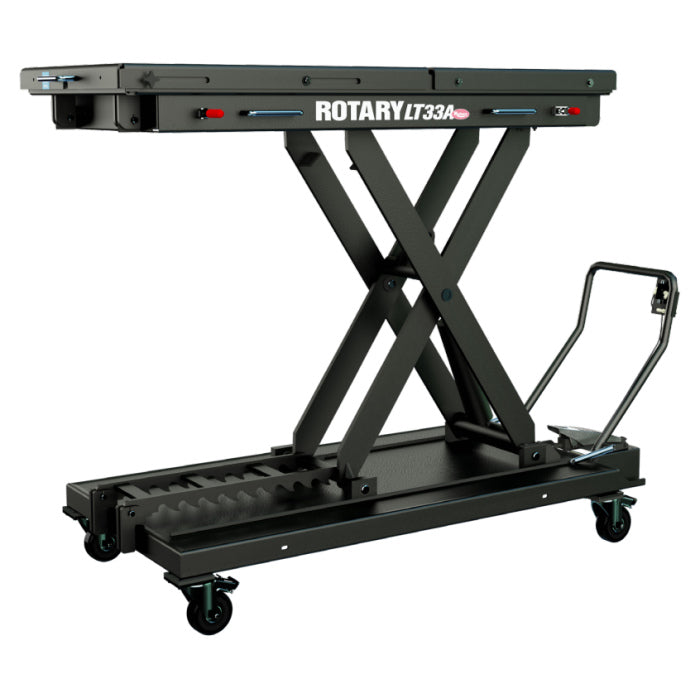

Rotary LT33A Air Hydraulic Lift Table

Description

Rotary LT33A Air Hydraulic Lift Table
3,300 lbs. Lifting Capacity

Built by the makers of the world's most trusted vehicle lifts, Rotary's patent-pending LT33A Air Hydraulic Lift Table is designed to handle EV batteries and other heavy vehicle components with ease! The LT33A provides shops with the ultimate in versatility, flexibility and safety while maximizing space, productivity and revenue. Equipped with air-operated mechanics and fortified with mechanical locks, the LT33A ensures smooth and secure lifting operations every time. With its extra-wide base providing unparalleled stability, you can trust the LT33A to keep your workspace steady and secure, even during the most demanding tasks.

We can't pull a rabbit out of a hat, but we can provide your shop supernatural strength with just a push of a button!
You'll be spellbound by Rotary's LT33A Air Hydraulic Lift Table. With a 3,300 lbs. lifting capacity, the LT33A easily lifts EV batteries, engines, transmissions and other heavy vehicle components - like magic!

Your technicians will be impressed with the tricks this table can perform, including the flexibility to make full tilt and positional adjustments while under load, plus expandable configuration capabilities for further functionality.
The LT33A delivers the extraordinary performance your shop has been waiting for. You'll need to see it to believe it!

Prepare for the future with the capacity and capability of the new LT33A mobile lifting table. Get ready to safely service electric vehicles. Rotary’s LT33A lift table is designed and built by the maker of the most trusted lifts in the vehicle service industry. Modeled to service batteries on hybrid and electric vehicles, boost your service options today.

Experience the ultimate flexibility in lift positioning and ease of use with these patent-pending features. The LT33A single section scissor lift design has a wide, stable base to help technicians securely and efficiently remove, and install heavy vehicle components from electric battery packs, engines, and transmissions.

Split Sliding Top
The lift platform extends an additional 8" allowing the table to shift in sections, eliminating the need to move the entire table for multi-positioning of larger loads. Platform easily locks and unlocks for fine adjustment of under vehicle placement.

Rear Platform Tilt
Conveniently adjust the table while under load with no need to remove battery, parts, or tools from platform. Fine adjust the tabletop with the object being removed or installed on the vehicle by positively tilting from the rear by up to 1°. To tilt, thread jack screws located at the rear of lift table upward using allen wrench or allen socket until correct angle is met. The table platform adjusts up to a 1° tilt angle to adapt to an uneven floor to be level with vehicle.

Side To Side Platform Alignment
Easily shift tabletop left or right by 1" by unlatching red toggle handles on mid table and pushing or pulling “U" shaped handles until desired position is reached. Reclamp handles to lock the new platform position.

Air Released Mechanical Locks
This redundant safety measure secures the lift (versus relying solely on the hydraulic system) with additional locking security. Standard with 9 locking positions at every 2-3/4", the first lock is at a 32" table top height.

Air System Controls
Standard air over hydraulic pump is easier to operate and far more accessible than manual, electric or battery pumps. Air connection is conveniently placed for easy access. Air lock release is operated by a simple toggle switch

Foot Pedal Controls Raise And Lower Lift
Push top of foot pedal to lower table. Push rear of foot pedal to raise table.

Fixturing Holes On Lift Top Surface
Threaded 10mm holes on tabletop for attaching mounts and brackets allow for a broader array of service functions.

Multi-Directional Casters
Large 360-degree casters with rotational locks provide easier movement and directional control. Locking a single caster enables easier movement versus swivel casters on only one end of lift. When moving the lift table, the casters may be locked directionally by pressing the blue foot tab downward. For ease of fore/aft movement only lock one front caster. Lock the lift table into desired position by pressing only the caster locking foot tab.

Accessories/Options
