Rotary R1070 Pro CCD Wheel Alignment System

Name: Rotary R1070 Pro CCD Wheel Alignment System
Brand: ASEDeals
SKU: R1070
Price: 11133.0 USD
Availability: InStock

Out Of Stock SKU R1070

OUR PRICE: $11,133.00

Regular Price: $15,642.00

$309.25 / mo

INCLUDES FREE SHIPPING*

Short Description

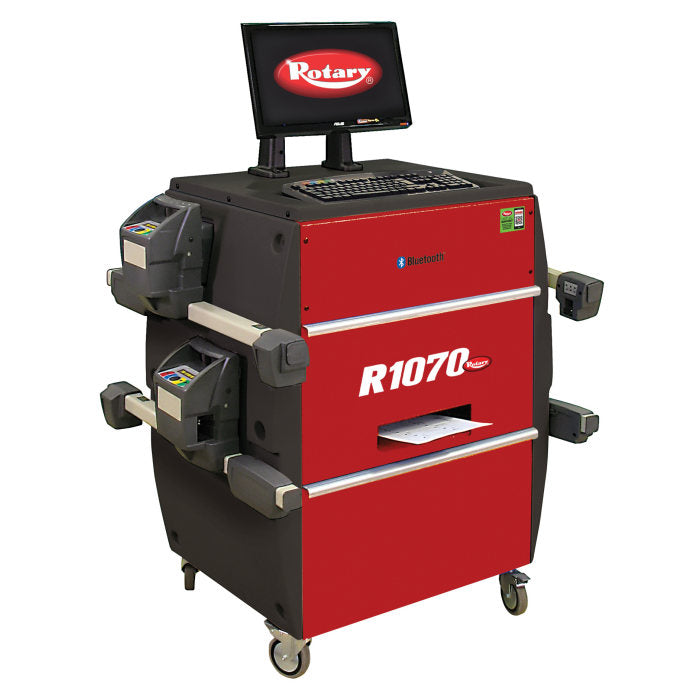

Rotary R1070 Pro CCD Wheel Alignment System
Total Drive Auto and Light Truck Aligner
Rotary's R1070 Pro CCD Wheel Alignment System is the total package when it comes to 3D wheel alignment. Simply access programs by selecting 5 command keys that guide the alignment tech through the step by step measuring process. It's equipped with a powerful PC, an A4 printer and a robust mobile cabinet for attaching and charging the wheel clamps. This 8-CCD sensor wheel alignment system uses infrared transmission among measuring heads and Bluetooth communication between the front head and the control unit. Quickly enter vehicle information by model or VIN number and begin the process via a 3D animated workflow.

CLOSEOUT PRICING For A Limited Time Only!
When They're Gone - They're Gone!

Description

Rotary Wheel Service Equipment

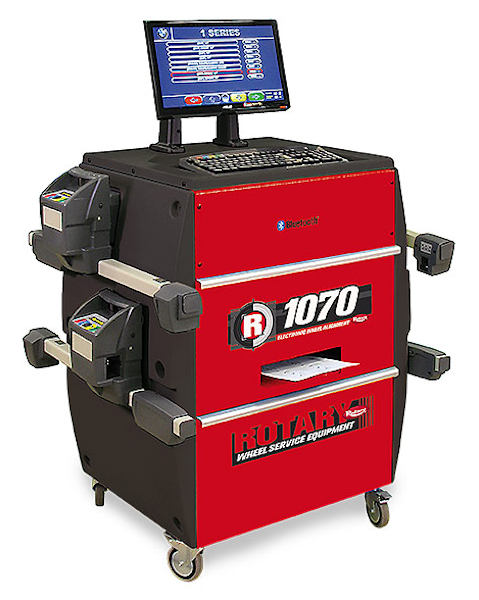

Rotary R1070 Pro CCD Wheel Alignment System
Total Drive Auto and Light Truck Aligner

Rotary's R1070 Pro CCD Wheel Alignment System is the total package when it comes to 3D wheel alignment. Simply access programs by selecting 5 command keys that guide the alignment tech through the step by step measuring process. It's equipped with a powerful PC, an A4 printer and a robust mobile cabinet for attaching and charging the wheel clamps. This 8-CCD sensor wheel alignment system uses infrared transmission among measuring heads and Bluetooth communication between the front head and the control unit. Quickly enter vehicle information by model or VIN number and begin the process via a 3D animated workflow.

ALIGNMENT SPEED WITH 8-CCD SENSOR SYSTEM
Infrared transmission among measuring heads and Bluetooth communication between the front head and the control unit. Access programs through 5 command keys that guide the alignment tech through the step by step measuring process. Enter vehicle information and begin the process via a 3D animated workflow. Programs and data are displayed in easy to use graphics.

PORTABLE TOWER-FREE SYSTEM
Maximize available workspace without obstructions. Position wheeled aligner console anywhere it is convenient.

EASY VEHICLE SELECTION
Enter vehicle by model or V.I.N. number. Summary and comparison of diagnosis / repair values on a single screen.

EASY DATA
Data management and display program with more than 90,000 vehicle data sheets. Includes a customer data bank for recording 20,000 jobs. Can search by customer name or vehicle plate.

ANIMATED INSTRUCTIONS / 3D ANIMATION
User's instructions by animated graphics.

EASY ALIGNMENT DISPLAYS

QUICK RUN OUT*
Measure wheel run out by moving the vehicle by only 30°. *Run out not required on most vehicles.

QUICK DIAGNOSTIC
The quick measurement of axle set back, wheelbase and track width, may highlight any errors in the vehicles chassis symmetry.

10° / 20° CCD STEERING ACKERMANN
The steering procedure is carried out electronically through the CCD sensors. Caster and SAI are precisely measured.

VEHICLE SPOILER PROGRAM
Automatically activated to measure sport and tuned car bodies.

Features & Specs

Features

Quick Charge Supports
8-CCD Measuring Heads
LED Repeater
3 Point + Quick Locking Tire Clamps
Infrared Measuring
Bluetooth Communication
Wheeled Control Unit
Safe Print Documentation
3D Graphic Animation Interface
Wireless Keyboard
Integrated Quick Charge Hangers
Program Features
- Easy Vehicle Selection
- East Data
- Animated Instructions
- 3D Animation
- Quick Runout
- Quick Diagnostic
- 10° / 20° CCD Steering Ackermann
- Vehicle Spoiler Program

Standard Equipment

(1) Control Unit with PC, 19" Monitor, Keyboard, Printer, and Battery Charger
(2) Front and (2) Rear Measuring Head
(4) STDA35E 3-Point Clamps with Targets
(6) Sets of Extensions for Dually Wheels
(1) Brake Pedal Depressor
(1) Steering Wheel Lock
Instruction Manual on USB Drive
One Year Free Specification Updates

Specifications	Accuracy	Measuring Range	Total Measuring Range
Front Axle
Total toe	+/- 2’	+/- 2°	+/- 20°
Partial toe	+/- 1′	+/- 1°	+/- 20′
Set-back	+/- 2’	+/- 2°	+/- 5°
Camber	+/- 2’	+/- 3°	+/- 10°
Caster	+/- 5′	+/- 10°	+/- 18°
King-pin	+/- 5′	+/- 10°	+/- 18°
Rear Axle
Total toe	+/- 2′	+/- 2°	+/- 20°
Partial toe	+/- 1′	+/- 1°	+/- 20°
Set-back	+/- 2′	+/- 2°	+/- 5°
Camber	+/- 2′	+/- 3°	+/- 10°
Thrust angle	+/- 2′	+/- 2°	+/- 5°
Power Supply	110v / 1Ø / 60 Hz
Warranty	Machine Warranty: (3) Years Functional, (1) Year Labor

Rotary Wheel Service Warranty Statement
All Rotary Wheel Service serialized products are covered under warranty for a period of three years to the original owner. Important: The warranty period begins once the product is invoiced to an authorized Distributor/ Purchaser/ Account. This date can be adjusted by submitting to VSG Customer Service the Warranty Activation Form indicating either the installation date or proof of retail purchase date. This warranty covers any failure of the serialized product under normal use and service, caused by a defect in VSG material or factory workmanship ("Warrantable Failure"). VSG shall pay for reasonable costs of transportation and labor for replacement of warrantable parts only during the first 12 months of the warranty period.

Accessories are warranted to the original owner for a period of one year from the retail invoice date. If a retail invoice cannot be produced, the date of the original VSG invoice shall initiate the one-year warranty period.

VSG warrants against defects in material and factory workmanship only. VSG does not cover wear or wear out of covered parts due to normal wear and tear.

VSG, at its option, will repair or replace any part that is found to have failed due to a Warrantable Failure. VSG, at its discretion, may require the part returned to VSG for inspection to determine warrantability.

This warranty does not cover normal maintenance or adjustments, including routine calibrations, remedies for routine maintenance; damage or malfunction caused by, but not limited to improper handling, installation, abuse, misuse, negligence, carelessness of operation; or force majeure events. In addition, this warranty does not cover equipment on which unauthorized repairs or alterations have been attempted and/or made to the product.

This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall VSG be liable for any special, consequential, or incidental damages of any kind including but not limited to damages for breach of or delay in performance of the warranty.

This warranty shall be governed by the laws of the State of Indiana and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson.
