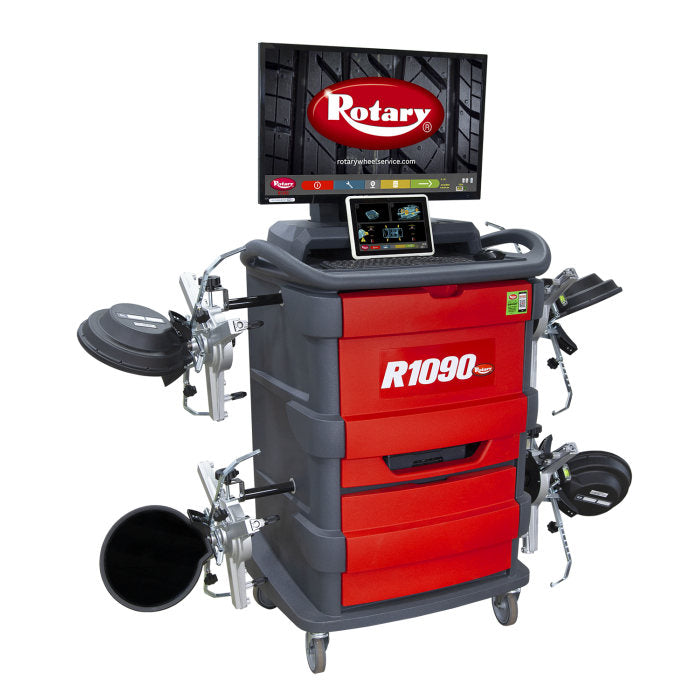

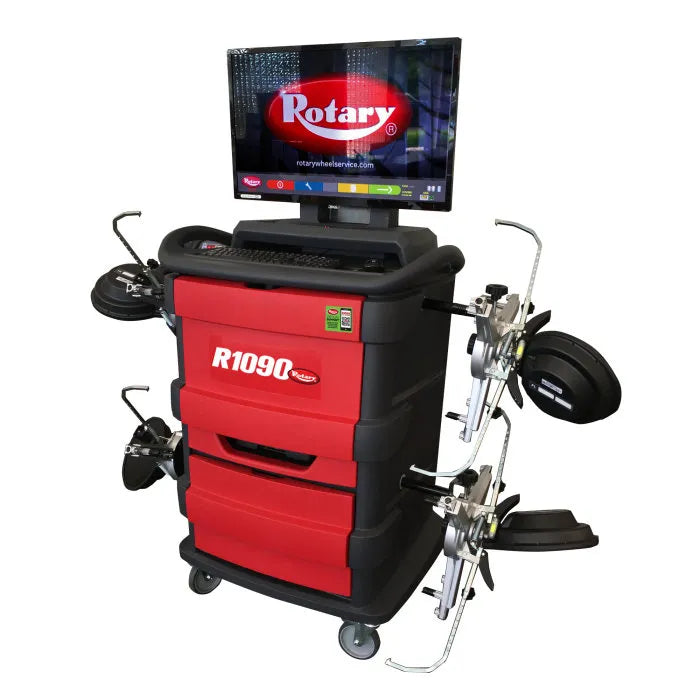

Rotary R1090 Pro 3D Alignment System

Name: Rotary R1090 Pro 3D Alignment System
Brand: ASEDeals
SKU: R1090
Price: 25785.0 USD
Availability: InStock

In Stock SKU R1090

OUR PRICE: $25,785.00

Regular Price: $27,079.00

$716.25 / mo

INCLUDES FREE SHIPPING*

Short Description

Rotary R1090 Pro 3D Alignment System
High Performance System with Solid Vision Technology
Rotary's R1090 Pro 3D Alignment System has less of a learning curve to run our software, less space required for the machine in any bay, less total cost involved to start doing alignments yourself. The R1090 Pro 3D is your next alignment system.

Description

Rotary Wheel Service Equipment

Rotary R1090 Pro 3D Alignment System
High Performance System with Solid Vison Technology

Rotary's R1090 Pro 3D Alignment System has less of a learning curve to run our software, less space required for the machine in any bay, less total cost involved to start doing alignments yourself. The R1090 Pro 3D is your next alignment system. EQUIPPED WITH FIXED CAMERAS, TIRE GRABBING CLAMPS
AND REMOTE CONTROLLED SENSORS

Automatic positioning of the cameras
Automatic recognition of the targets
ADAS ready

3D CAMERAS COMMUNICATE VIA BLUETOOTH
No cables or interruptions during alignment process. Bluetooth transmission between measuring heads and control unit.

AUTOMATIC LIFT LEVEL COMPENSATION
This innovative wireless system can be used on a number of service of lifts thanks to its automatic flatness compensation.

AUTOMATIC CAMERA POSITIONING - ALIGNMENT READINGS IN SECONDS
No adapters required while obtaining caster readings.

NO MINIMUM BAY SIZE REQUIRED
Wireless capability with the mobility to move from bay to bay.

FAST AND EASY SET UP
Fast and easy setup with Console or Tablet Operated System - Includes Android Tablet as a Remote indicator. Handheld tablet allows techs to read and make adjustments anywhere in the bay! Easy to follow alignment process with updated graphics that feature a time saving On Rack Test Drive Program

Animated instructions
Easy to read results
Adjustment Illustrations
Live adjustments
Email or print alignment report

NEW PORTABLE CABINET
New portable cabinet with increased storage. Compact size for workshops with limited space.

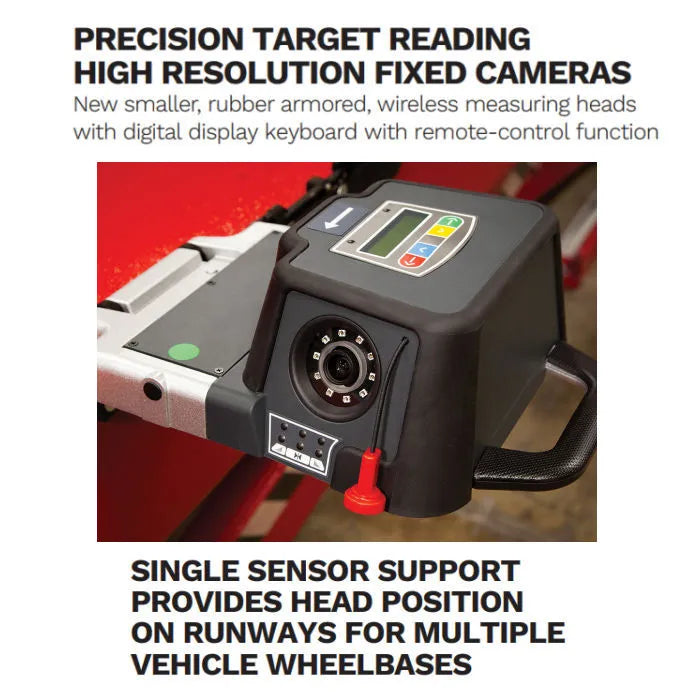

PRECISION TARGET READING HIGH RESOLUTION FIXED CAMERAS
New smaller, rubber armored, wireless measuring heads with digital display keyboard with remote-control function.

SINGLE SENSOR SUPPORT
Single sensor support provides head position on runways for multiple vehicle wheelbases. Quick clamp to the lift, this pivoting support avoids damage with obstacles while lowering. Requires a single head position to measure different wheel base vehicles.

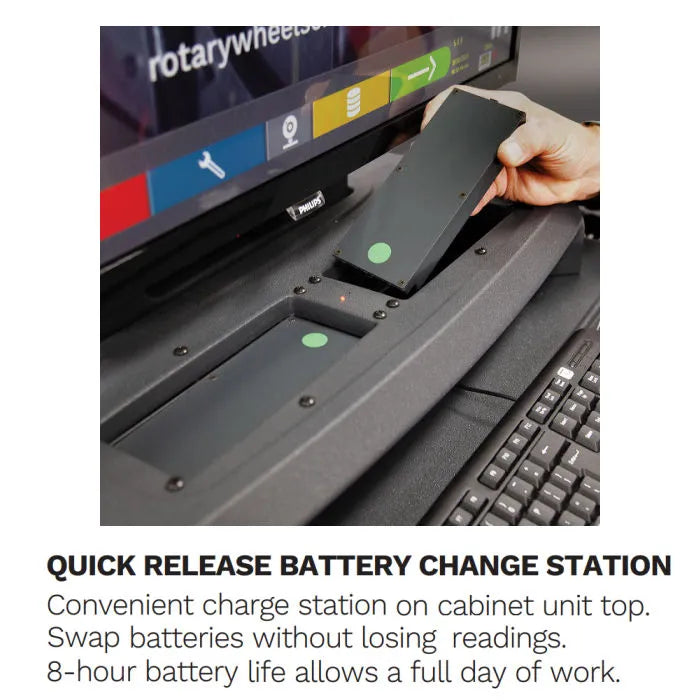

QUICK RELEASE BATTERY CHANGE STATION
Convenient charge station on cabinet unit top. Swap batteries without losing readings. 8-hour battery life allows a full day of work.

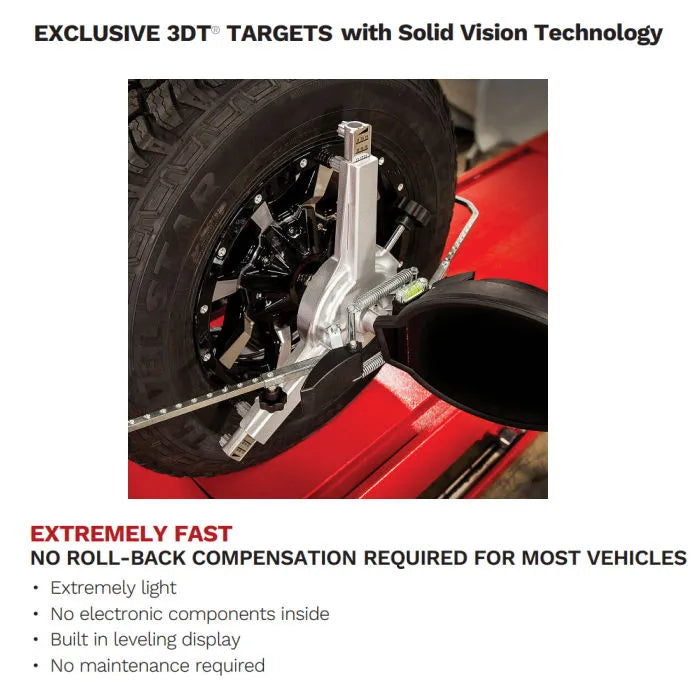

EXCLUSIVE 3DT TARGETS
Exclusive 3DT Targets with Solid Vision Technology

Extremely Fast
No Roll-Back Compensation for Most Vehicles
Extremely Light
No Electronic Components Inside
Built In Leveling Display
No Maintenance Required

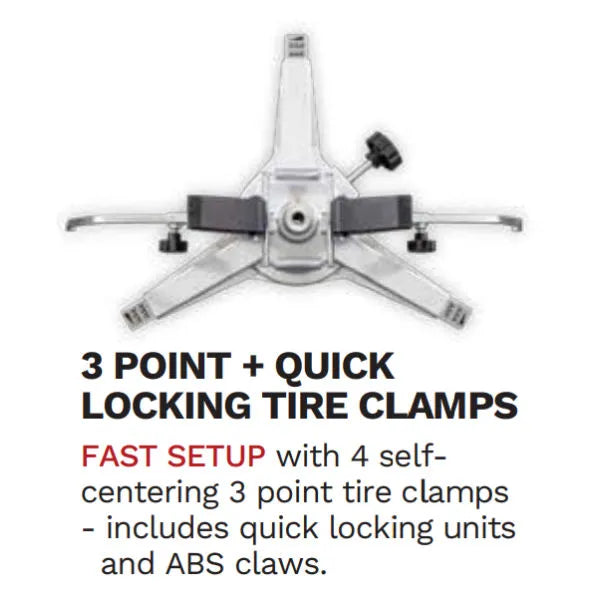

3 POINT + QUICK LOCKING TIRE CLAMPS
Fast setup with 4 selfcentering 3 point tire clamps - includes quick locking units and ABS claws.

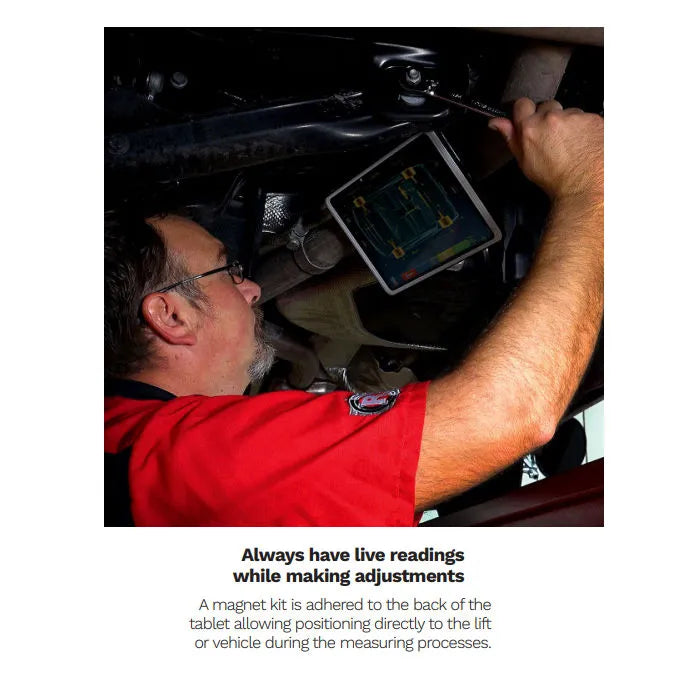

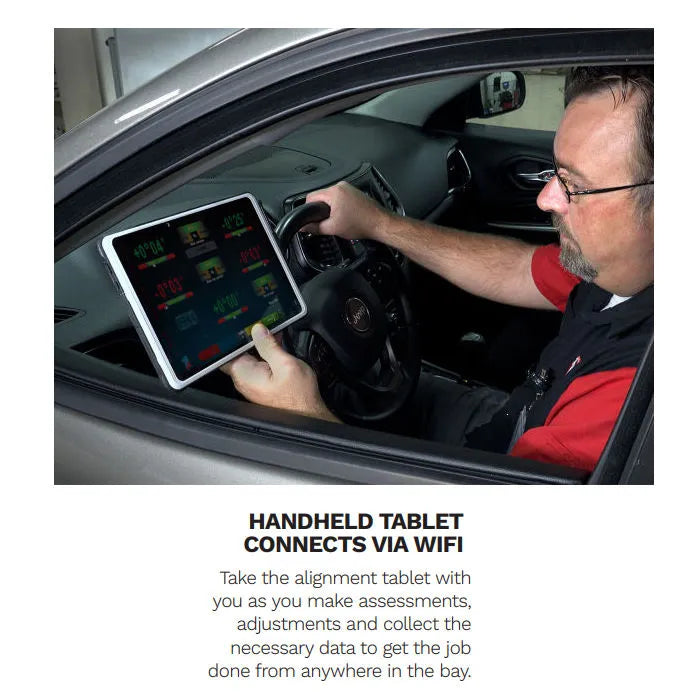

HANDHELD TABLET CONNECTS VIA WIFI
Take the alignment tablet with you as you make assessments, adjustments and collect the necessary data to get the job done from anywhere in the bay. Always have live readings while making adjustments. A magnet kit is adhered to the back of the tablet allowing positioning directly to the lift or vehicle during the measuring processes.

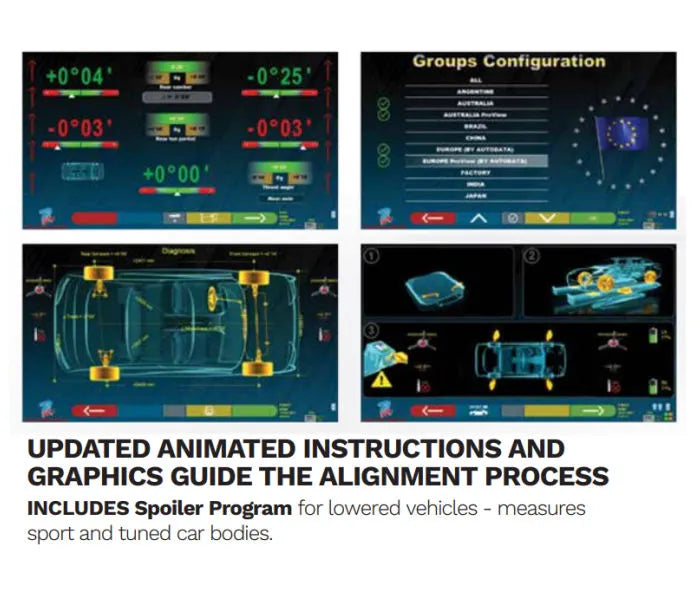

UPDATED ANIMATED INSTRUCTIONS
Updated animated instructions and graphics guide the alignment process - includes Spoiler Program for lowered vehicles - measures sport and tuned car bodies.

TOWER FREE SYSTEM
Maximize available workspace. Don't give up valuable bayspace in your shop.

NO MINIMUM BAY SIZE REQUIRED
No fixed obstacles or obstruction in front of lift. Portable aligner console can be positioned anywhere for the ultimate convenience.

NO COMPENSATION or ROLL BACK*
No physical rolling or pushing of the vehicle to make runout compensation. Automatic and instant 3D target visualization. *FOR MOST VEHICLES

NO INTERRUPTIONS
Perfect transmission signals. Always.

NO LIMITATIONS
Can be used at any height! No need to dedicate bays for alignment service only. Use the aligner in more than one bay location with optional sensor supports.

Features & Specs

Features

High Performance System with Solid Vision Technology
Includes Fixed Cameras, Tire Grabbing Clamps, Remote Sensors
Automatic Camera Positioning
Exclusive 3DT Targets
3 Point + Quick Locking Tire Clamps
Automatic Target Recognition
ADAS Ready
Fast and Easy Setup
Console or Table Operated System
Includes Android Tablet as Remote Indicator
3D Cameras Communicate via Bluetooth
Automatic Lift Level Compensation
Animated Instructions
Easy To Read Results
Enhanced Graphic Interface
Adjustment Illustrations
Live Adjustments
Email or Print Alignment Report
Single Sensor Support
Quick Release Battery Change Station
New Portable Cabinet with Increased Storage
Tower Free System
No Minimum Bay Size Required
No Compensation or or Roll Back
No Interruptions
No Limitations

Standard Equipment

(1) Control Unit with PC, 32" Monitor, Keyboard, Printer, Mouse and Mouse Pad
Android Tablet for Running the Connect APP
Wi-Fi Dongle
Remote Control Located on Each Sensor
(2) Measuring Heads
(2) Sets of Extra Batteries
(4) STDA35E/3D 3-Point Clamps with Targets
(6) Sets of Extensions for Dually Wheels
(1) Brake Pedal Depressor
(1) Steering Wheel Lock
Instruction Manual
Runs on Windows 10
Two Years Free Vehicle Data Updates

Specifications	Accuracy	Measuring Range	Total Measuring Range
Front Axle
Total toe	+/- 2’	+/- 2°	+/- 20°
Partial toe	+/- 1′	+/- 1°	+/- 20′
Set-back	+/- 2’	+/- 2°	+/- 5°
Camber	+/- 2’	+/- 3°	+/- 10°
Caster	+/- 5′	+/- 10°	+/- 18°
King-pin	+/- 5′	+/- 10°	+/- 18°
Rear Axle
Total toe	+/- 2′	+/- 2°	+/- 20°
Partial toe	+/- 1′	+/- 1°	+/- 20°
Set-back	+/- 2′	+/- 2°	+/- 5°
Camber	+/- 2′	+/- 3°	+/- 10°
Thrust angle	+/- 2′	+/- 2°	+/- 5°
Power Supply	110v / 1Ø / 60 Hz
Warranty	Machine Warranty: (3) Years Functional, (1) Year Labor

Rotary Wheel Service Warranty Statement
All Rotary Wheel Service serialized products are covered under warranty for a period of three years to the original owner. Important: The warranty period begins once the product is invoiced to an authorized Distributor/ Purchaser/ Account. This date can be adjusted by submitting to VSG Customer Service the Warranty Activation Form indicating either the installation date or proof of retail purchase date. This warranty covers any failure of the serialized product under normal use and service, caused by a defect in VSG material or factory workmanship ("Warrantable Failure"). VSG shall pay for reasonable costs of transportation and labor for replacement of warrantable parts only during the first 12 months of the warranty period.

Accessories are warranted to the original owner for a period of one year from the retail invoice date. If a retail invoice cannot be produced, the date of the original VSG invoice shall initiate the one-year warranty period.

VSG warrants against defects in material and factory workmanship only. VSG does not cover wear or wear out of covered parts due to normal wear and tear.

VSG, at its option, will repair or replace any part that is found to have failed due to a Warrantable Failure. VSG, at its discretion, may require the part returned to VSG for inspection to determine warrantability.

This warranty does not cover normal maintenance or adjustments, including routine calibrations, remedies for routine maintenance; damage or malfunction caused by, but not limited to improper handling, installation, abuse, misuse, negligence, carelessness of operation; or force majeure events. In addition, this warranty does not cover equipment on which unauthorized repairs or alterations have been attempted and/or made to the product.

This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall VSG be liable for any special, consequential, or incidental damages of any kind including but not limited to damages for breach of or delay in performance of the warranty.

This warranty shall be governed by the laws of the State of Indiana and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson.
