Rotary R5000HD Commercial Truck Alignment System

Name: Rotary R5000HD Commercial Truck Alignment System
Brand: ASEDeals
SKU: R5000HD
Price: 24439.0 USD
Availability: InStock

In Stock SKU R5000HD

OUR PRICE: $24,439.00

Regular Price: $25,669.00

$678.86 / mo

INCLUDES FREE SHIPPING*

Short Description

Rotary R5000HD Commercial Truck Alignment System
CTA Pro Commercial Truck System
Rotary's R5000HD Commercial Truck Alignment System will produce significantly higher income production with much faster operating times without any loss of accuracy. Choose the R5000HD for your shop and add alignment to the offering of services you can provide today. Suited for larger commercial vehicles, the double inclometer allows caster adjustment without steering. No run out clamps enable the user to skip out of any compensation procedures.

Description

Rotary R5000HD Commercial Truck Alignment System
CTA Pro Commercial Truck System

Rotary's R5000HD Commercial Truck Alignment System will produce significantly higher income production with much faster operating times without any loss of accuracy. Choose the R5000HD for your shop and add alignment to the offering of services you can provide today. Suited for larger commercial vehicles, the double inclometer allows caster adjustment without steering.

No run out clamps enable the user to skip out of any compensation procedures. This 6-CCD sensor wheel alignment system features infra-red transmission among measuring heads and bluetooth transmission between front measuring heads and control unit. Special side supports allow housing and recharging the measuring head batteries. Portable aligner console can be conveniently positioned anywhere in available bay space.

SPEED AND EFFICIENCY
Speed and efficiency with 6-CCD sensor alignment system. Infra-red transmission among measuring heads and bluetooth transmission between front measuring heads and control unit.

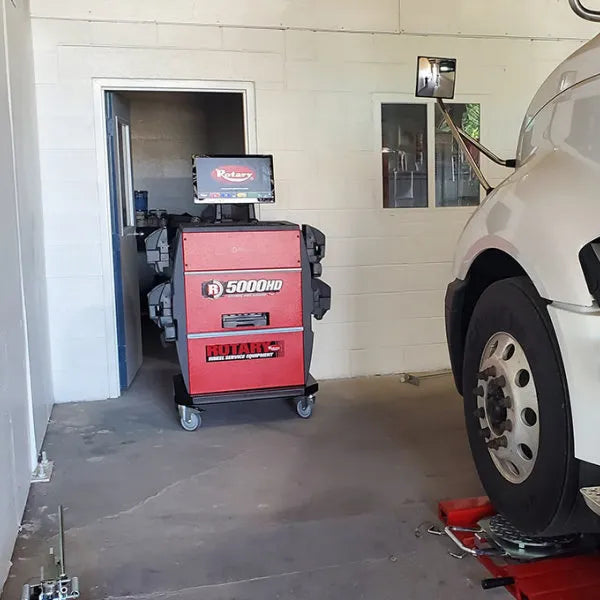

NO MEASURING TOWER NEEDED WITH PORTABLE CONSOLE
Maximize workspace without obstacles or obstructions. Position in any available bay space. Measure on the floor, a lift or pit.

SIMPLE SYSTEM
Simple system with less training time. The double inclinometer allows caster adjustment without steering. No run out clamps enable user to skip out of any compensation procedures. See faster operating times with no loss of accuracy.

PROGRAM FEATURES
Data management data bank with vehicle data sheets already entered. Customer data bank for recording jobs. Search by customer name or vehicle plate number. Summary and comparison of diagnosis/repair values on a single screen. Measurement of multiple axles vehicles using an extremely easy-to-follow procedure.

INSTRUCTIONS WITH ANIMATED GRAPHICS
Instructions with animated graphics allow for immediate operation. Measure axle offset electrically without wasting time manually measuring.

FAST SETUP
Accurately reference wheel center without raising wheel position to perform run-out compensation. Save 15-20 minutes of set up. Measure up to 8 axles as a trailer aligner.

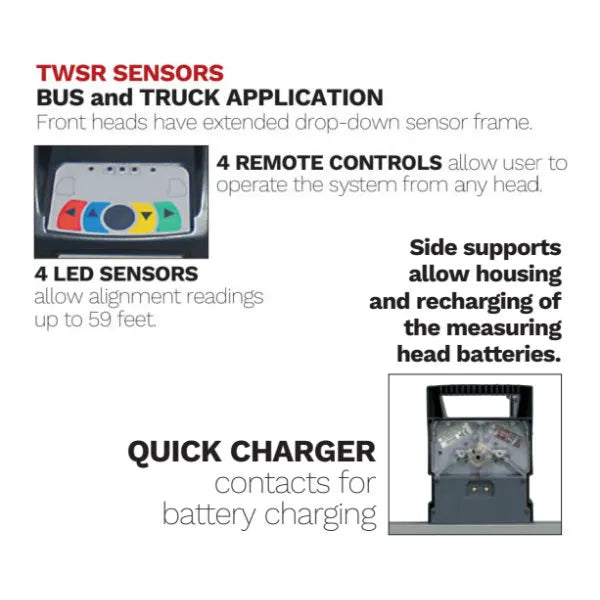

TWSR SENSORS

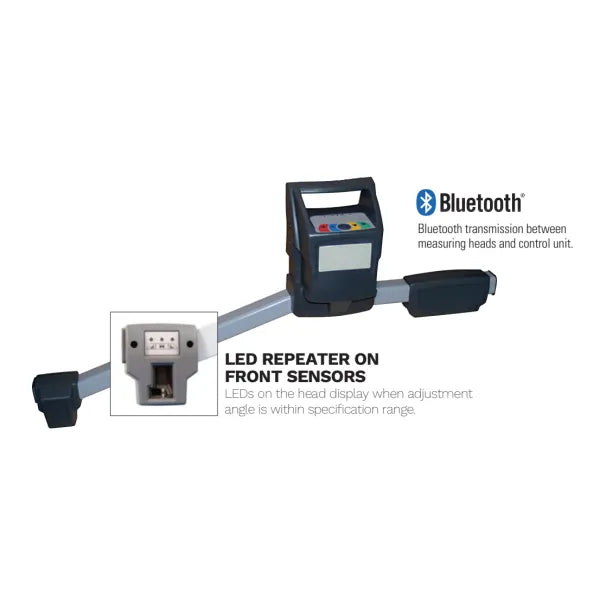

Bus and Truck Application - Front heads have extended drop-down sensor frame. 4 Remote Controls allow user to operate the system from any head. 4 LED Sensors allow alignment readings up to 59 feet. LED Repeater on front sensors. LEDs on the head display when adjustment angle is within specification range.

QUICK CHARGER
Quick charger with contacts for battery charging. Side supports allow housing and recharging of the measuring head batteries.

Features & Specs

Features

Speed and Efficiency
6-CCD Sensor Alignment System
No Measuring Tower Needed
Simple System with Less Training Time
Data Management
Instructions with Animated Graphics
TWSR Sensors for Bus & Truck Application
4 Remote Controls
Fast Setup
LED Repeater in Front Sensors
Quick Charger

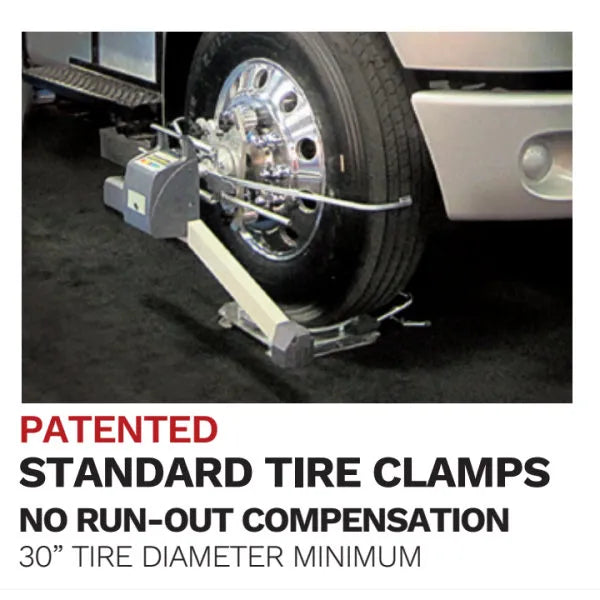

Standard Fast Clamps
Bluetooth Communication
No Run-Out Compensation
19" Color Monitor
4 LED Sensors

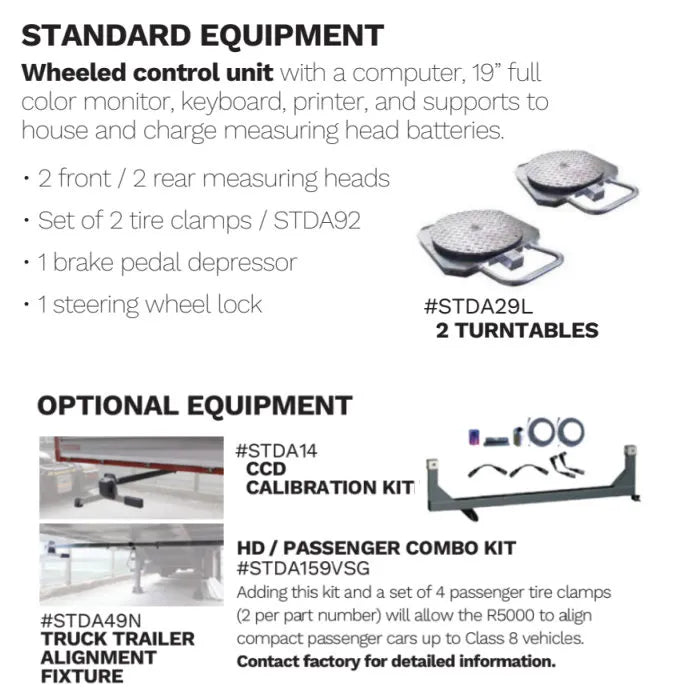

Standard Equipment

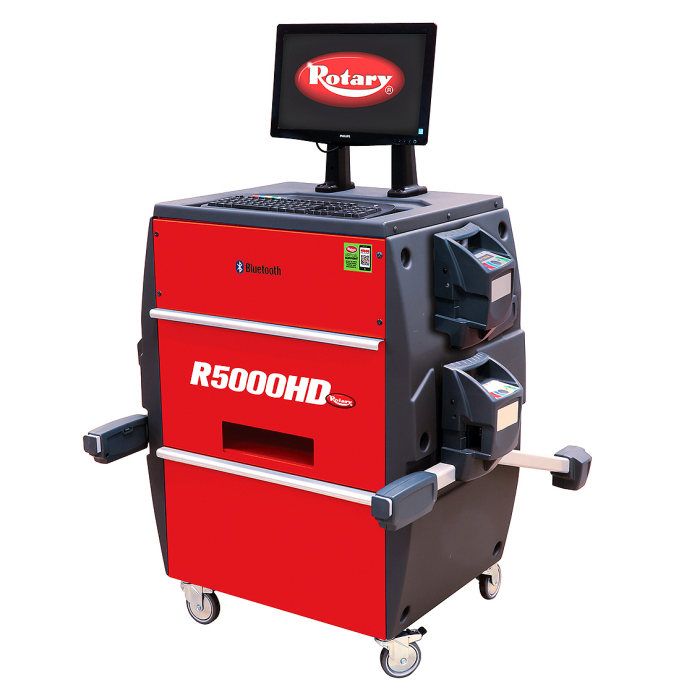

(1) Wheeled Control Unit with PC, 19" Monitor, Keyboard, Printer, and Battery Charger
(2) Front and (2) Rear Measuring Head

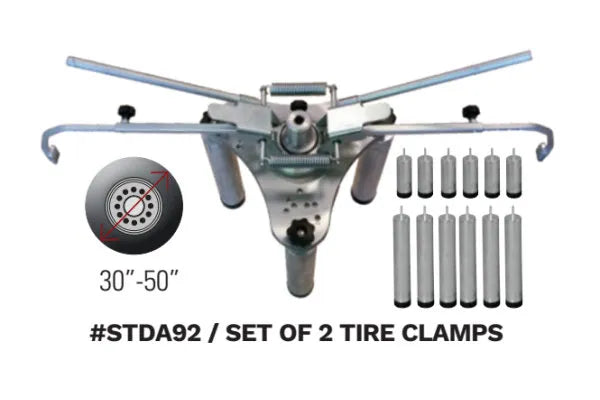

(2) STDA92 Tire Clamps
(2) STDA29L Turntables
(1) Brake Pedal Depressor
(1) Steering Wheel Lock

R1090 Alignment System	Accuracy	Measuring Range	Total Measuring Range
Front Axle
Total toe	+/- 2’	+/- 2°	+/- 20°
Partial toe	+/- 1′	+/- 1°	+ / – 2˚ 30’
Set-back	+/- 2’	+/- 2°	+/- 5°
Camber	+/- 2’	+/- 3°	+/- 10°
Caster	+/- 5′	+/- 10°	+/- 18°
King-pin	+/- 5′	+/- 10°	+/- 18°
Rear Axle
Total toe	+/- 2′	+/- 2°	+ /- 5˚
Partial toe	+/- 1′	+/- 1°	+ /- 2˚ 30’
Set-back	+/- 2′	+/- 2°	+ /- 5˚
Camber	+/- 2′	+/- 3°	+ /- 10˚
Thrust angle	+/- 2′	+/- 2°	+/- 5°
Power Supply	110v / 1Ø / 60 Hz
Warranty	Machine Warranty: (3) Years Functional, (1) Year Labor

Rotary Wheel Service Warranty Statement
All Rotary Wheel Service serialized products are covered under warranty for a period of three years to the original owner. Important: The warranty period begins once the product is invoiced to an authorized Distributor/ Purchaser/ Account. This date can be adjusted by submitting to VSG Customer Service the Warranty Activation Form indicating either the installation date or proof of retail purchase date. This warranty covers any failure of the serialized product under normal use and service, caused by a defect in VSG material or factory workmanship ("Warrantable Failure"). VSG shall pay for reasonable costs of transportation and labor for replacement of warrantable parts only during the first 12 months of the warranty period.

Accessories are warranted to the original owner for a period of one year from the retail invoice date. If a retail invoice cannot be produced, the date of the original VSG invoice shall initiate the one-year warranty period.

VSG warrants against defects in material and factory workmanship only. VSG does not cover wear or wear out of covered parts due to normal wear and tear.

VSG, at its option, will repair or replace any part that is found to have failed due to a Warrantable Failure. VSG, at its discretion, may require the part returned to VSG for inspection to determine warrantability.

This warranty does not cover normal maintenance or adjustments, including routine calibrations, remedies for routine maintenance; damage or malfunction caused by, but not limited to improper handling, installation, abuse, misuse, negligence, carelessness of operation; or force majeure events. In addition, this warranty does not cover equipment on which unauthorized repairs or alterations have been attempted and/or made to the product.

This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall VSG be liable for any special, consequential, or incidental damages of any kind including but not limited to damages for breach of or delay in performance of the warranty.

This warranty shall be governed by the laws of the State of Indiana and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson.
