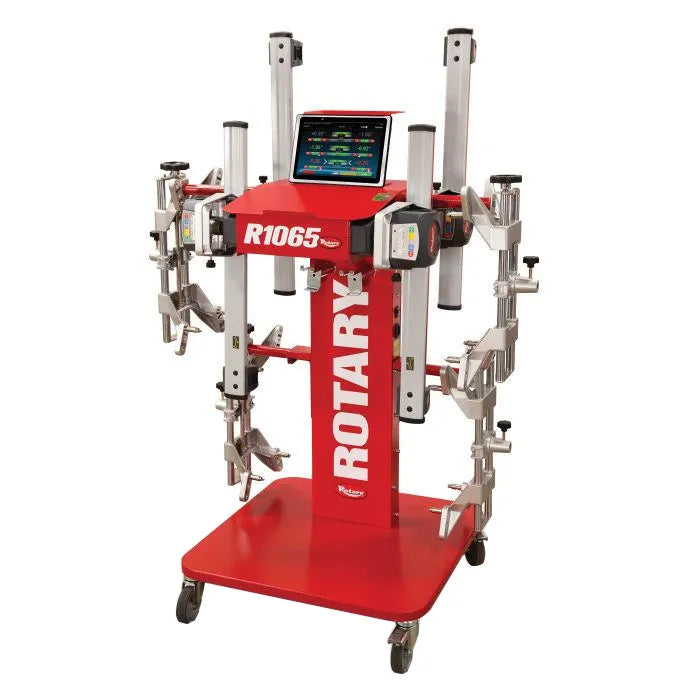

Rotary R1065 Mobile Tablet Aligner
In Stock SKU R1065
OUR PRICE: $11,412.00
Regular Price: $11,989.00
Short Description
Rotary R1065 Mobile Tablet Aligner
Affordable Tablet Operated System
Rotary's R1065 Mobile Tablet Aligner offers total drive wireless capability. No minimum bay size required so this system is ready to fit in your shop. Take the alignment tablet with you as you make assessments, adjustments and collect the necessary data to get the job done from anywhere in the bay.
Description
Rotary R1065 Mobile Tablet Aligner
Affordable Tablet Operated System
Rotary's R1065 Mobile Tablet Aligner offers total drive wireless capability. No minimum bay size required so this system is ready to fit in your shop. Take the alignment tablet with you as you make assessments, adjustments and collect the necessary data to get the job done from anywhere in the bay. THE ULTIMATE USAGE OF SHOP SPACE

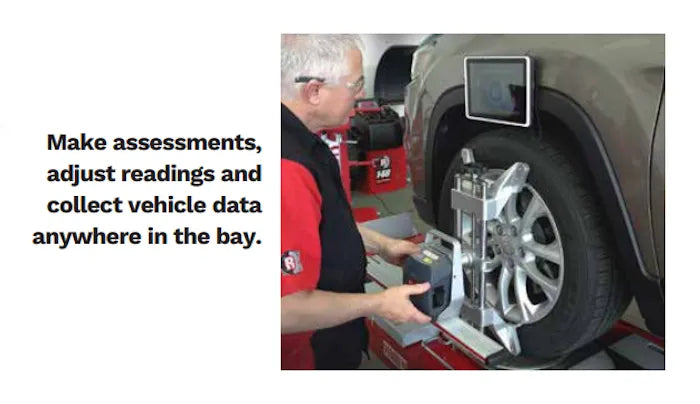

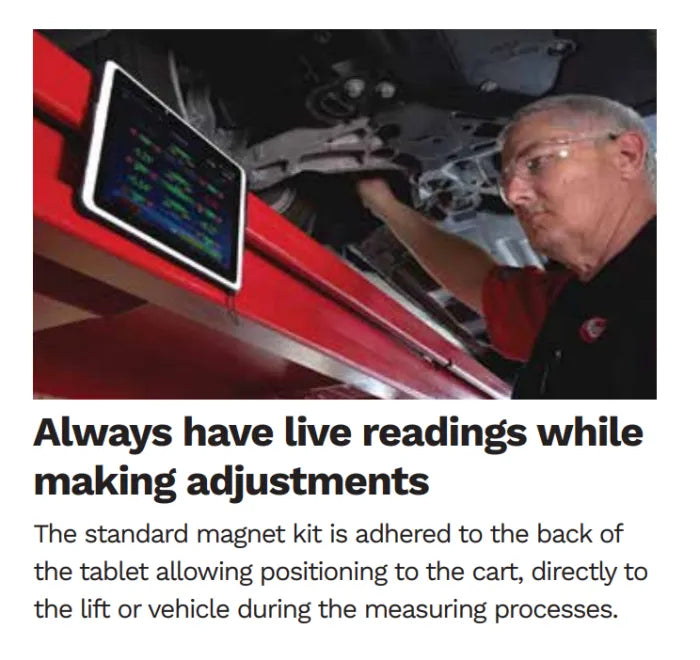

Portable aligner cart is positioned anywhere in the bay for maximum shop convenience. Handheld tablet connects via WiFi. Bluetooth transmission between measuring heads and control unit. Always have live readings while making adjustments. The standard magnet kit is adhered to the back of the tablet allowing positioning to the cart, directly to the lift or vehicle during the measuring processes. Make assessments, adjust readings and collect vehicle data anywhere in the bay.
FEATURES
- Fast installation and set up
- Can be used in multiple bays
- Operate on any runway lift with alignment kit
- Mobile cart with built-in sensor chargers
- Long lasting batteries work all day
- 2 front and 2 rear measuring heads with 2 CCD cameras each

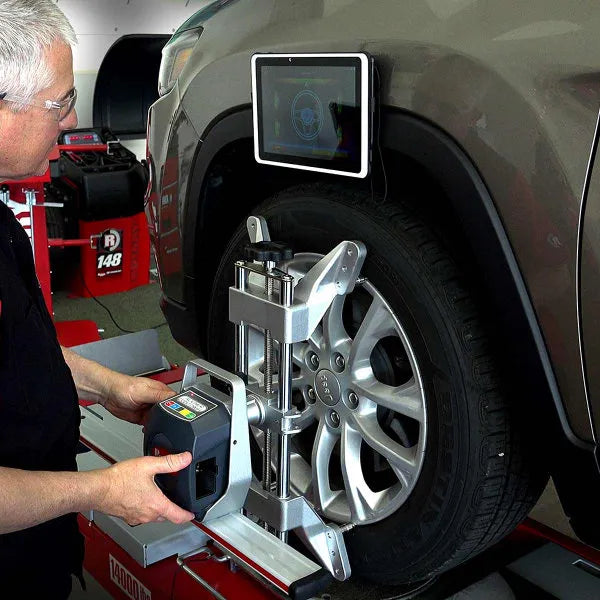

- 4 point tire clamps (2 pair)
COMPUTER FREE ALIGNMENT SYSTEM
No computer software updates required.
BLUETOOTH COMMUNICATION
Wireless measuring heads communicate via bluetooth. No cables or interruptions during alignment process
NO MINIMUM BAY SIZE REQUIRED
Wireless capability with the mobility to move from bay to bay with ease
PERSONALIZED ALIGNMENT REPORT
Personalized alignment report emailed directly to the customer. Insures customer satisfaction or print to a local WiFi printer.
ACCURATE 2 STEP RUN OUT PROCESS
The handheld tablet tells the operator when to stop, and when to roll forward during the run-out process. Eliminates any guessing and adds greater shop productivity.
NEW FRONT & REAR MEASURING HEADS

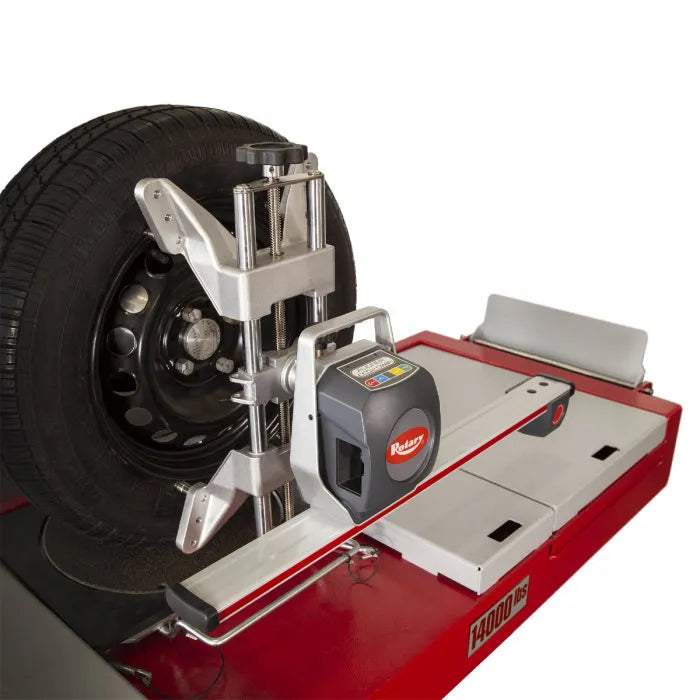

State-of-the-art design for the wireless sensors. All the characteristics of both vehicle axles are measured by 4 CCD measuring heads. Each measuring head includes 2 CCD cameras.
OPTICAL ALIGNMENT UNIT
All measuring heads include a bearing on the shaft and the Right Rear includes an encoder to speed the Run Out process. The 4 measuring heads charge while stored on the cart.

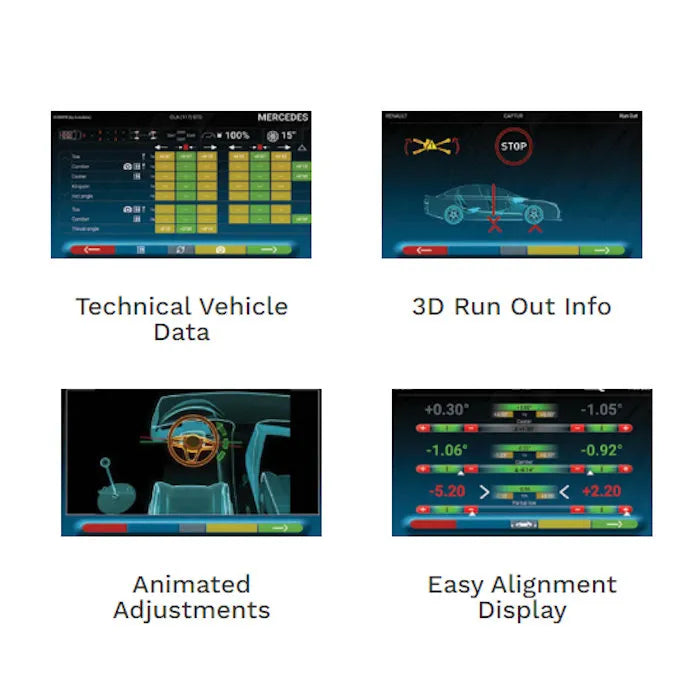

UPDATED ANIMATED INSTRUCTIONS
Updated animated instructions and graphics guide the alignment process. Includes Spoiler Program for lowered vehicles - automatically activated to measure sport and tuned car bodies.
Features & Specs
Features
- Affordable Tablet Operated
- Tower-Free System
- Handheld Tablet Connects via WiFi
- Wireless Bluetooth Measuring Heads
- 4 Sensors (2CCD Cameras Each)
- Sensor Cart Charging Built-In
- Make Reading and Adjustments Anywhere in the Bay
- 4 Point Clamps
- Long-Lasting Batteries
- Updated Animated Instructions
- Updated Graphics Guide
- Computer-Free System
- No Minimum Bay Size Required
- Personalized Alignment Report Emailed to Customer

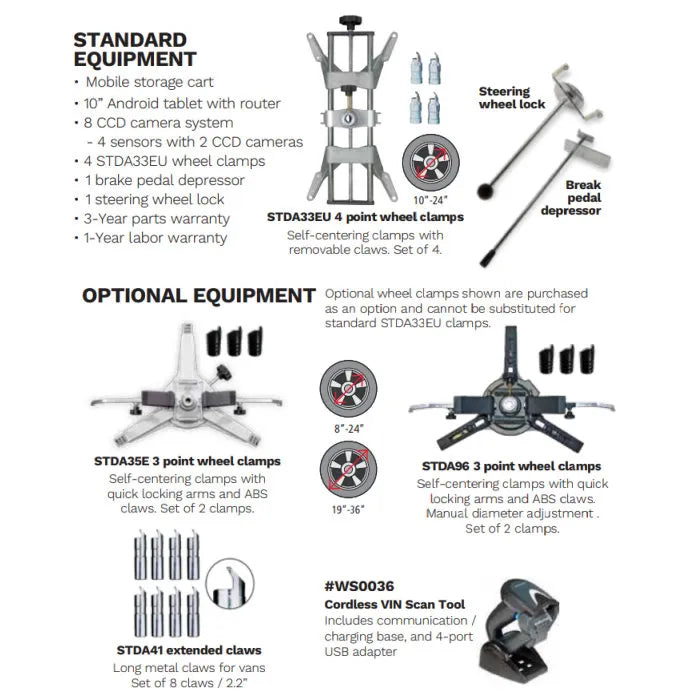

Standard Equipment
- Mobile Storage Cart
- Android Tablet for Running the Connect APP
- 10" Android Tablet with Router
- (8) CCD Camera System
- (4) Sensors with (2) CCD Cameras
- (4) STDA33EU 4 Point Wheel Clamps
- (1) Brake Pedal Depressor
- (1) Steering Wheel Lock
| Specifications | Accuracy | Measuring Range | Total Measuring Range |
|---|---|---|---|
| Front Axle | |||
| Total toe | + / – 3’ | + / – 2˚ | + / – 20˚ |
| Partial toe | + / – 1’ 30” | + / – 1˚ | + / – 20˚ |
| Set-back | + / – 2’ | + / – 2˚ | + / – 5˚ |
| Camber | + / – 2’ | + / – 3˚ | + / – 10˚ |
| Caster | + / – 5’ | + / – 10˚ | + / – 18˚ |
| King-pin | + / – 5’ | + / – 10˚ | + / – 18˚ |
| Rear Axle | |||
| Total toe | + / – 3’ | + / – 2˚ | + / – 20˚ |
| Partial toe | + / – 1’ 30” | + / – 1˚ | + / – 20˚ |
| Set-back | + / – 2’ | + / – 2˚ | + / – 5˚ |
| Camber | + / – 2’ | + / – 3˚ | + / – 10˚ |
| Thrust angle | + / – 2’ | + / – 2˚ | + / – 5˚ |
| Power Supply | 110v / 1Ø / 60 Hz | ||
| Warranty | Machine Warranty: (3) Years Functional, (1) Year Labor | ||
Rotary Wheel Service Warranty Statement
All Rotary Wheel Service serialized products are covered under warranty for a period of three years to the original owner. Important: The warranty period begins once the product is invoiced to an authorized Distributor/ Purchaser/ Account. This date can be adjusted by submitting to VSG Customer Service the Warranty Activation Form indicating either the installation date or proof of retail purchase date. This warranty covers any failure of the serialized product under normal use and service, caused by a defect in VSG material or factory workmanship ("Warrantable Failure"). VSG shall pay for reasonable costs of transportation and labor for replacement of warrantable parts only during the first 12 months of the warranty period.
Accessories are warranted to the original owner for a period of one year from the retail invoice date. If a retail invoice cannot be produced, the date of the original VSG invoice shall initiate the one-year warranty period.
VSG warrants against defects in material and factory workmanship only. VSG does not cover wear or wear out of covered parts due to normal wear and tear.
VSG, at its option, will repair or replace any part that is found to have failed due to a Warrantable Failure. VSG, at its discretion, may require the part returned to VSG for inspection to determine warrantability.
This warranty does not cover normal maintenance or adjustments, including routine calibrations, remedies for routine maintenance; damage or malfunction caused by, but not limited to improper handling, installation, abuse, misuse, negligence, carelessness of operation; or force majeure events. In addition, this warranty does not cover equipment on which unauthorized repairs or alterations have been attempted and/or made to the product.
This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall VSG be liable for any special, consequential, or incidental damages of any kind including but not limited to damages for breach of or delay in performance of the warranty.
This warranty shall be governed by the laws of the State of Indiana and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson.
Accessories/Options
Rotary R1090 Pro 3D Alignment System
OUR PRICE: $25,785.00
Regular Price: $27,079.00
Rotary R1070 Pro CCD Wheel Alignment System
OUR PRICE: $11,133.00
Regular Price: $15,642.00
Rotary R5000HD Commercial Truck Alignment System
OUR PRICE: $24,439.00
Regular Price: $25,669.00
Rotary R1085 Portable 3D Wheel Alignment System
OUR PRICE: $17,140.00
Regular Price: $17,999.00
More Information
Rotary R1065 Wheel Alignment Brochure (.pdf)
Rotary R1065 Wheel Alignment Manual (.pdf)
Rotary R1065 Wheel Alignment Parts (.pdf)
Rotary Wheel Alignment Catalog (.pdf)
Rotary Wheel Alignment Comparison (.pdf)
